safety edge for door and car

Product Overview

Description

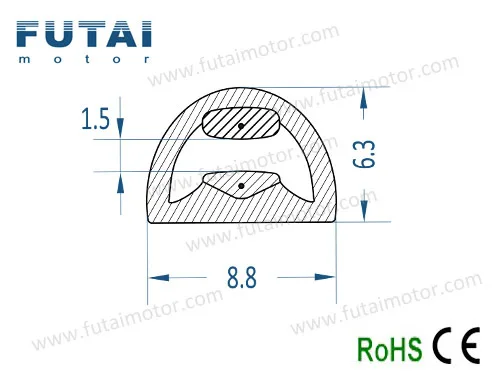

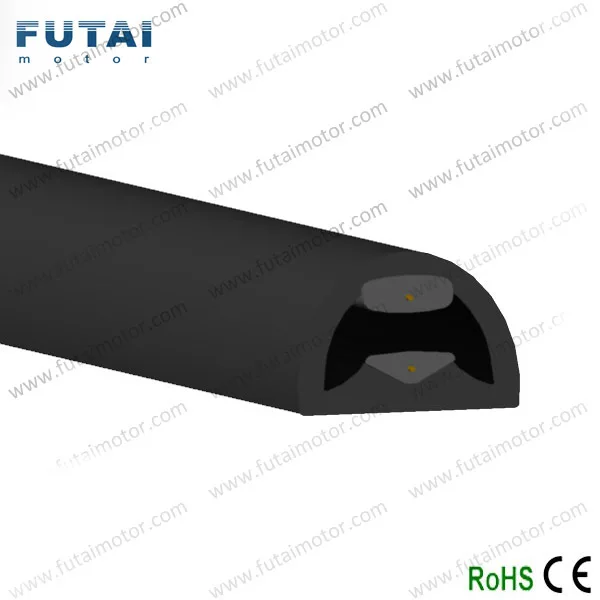

FS-11  Specially designed for narrow edge, such as bus,car etc.



Packaging

Items per Carton: 50 Meters / Roll
Package Measurements: 35X35X9 CM
Gross Weight: 1.50 KG

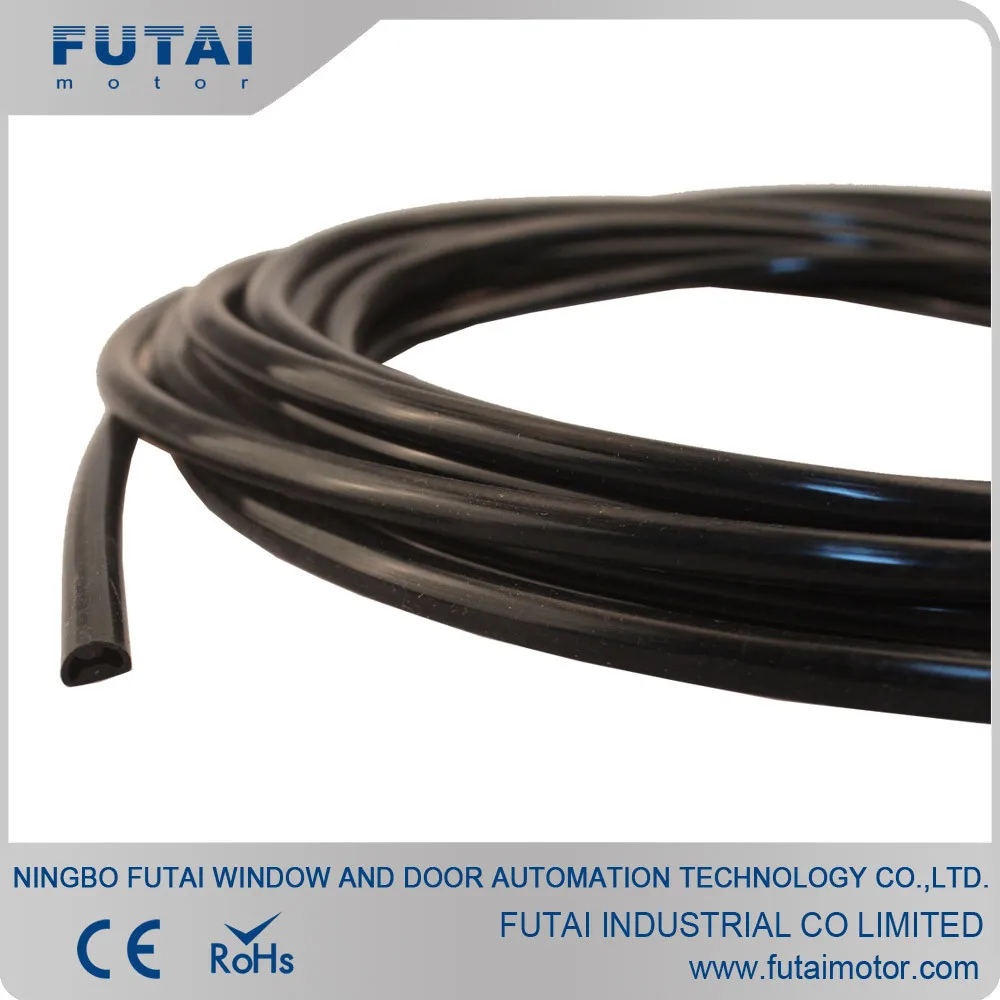

Package Type: 100 meters per roll with membrane coated 1 roll in one carton box





Technical deta:
Application temperature range -30°C ~70°C
sensor tape material silastic composite copper wire
Alternate capacity 0.2A/42V AC/DC
Resistance transmission capacity 0.5Kohm/m
Launch distance 1.6mm
Connecting cable Insulated wire 2x0.34mm2.DM type
Insulation strength 1500V AC
Bending angle maximum 15 degree





 Safety Edge is mainly used in electric shutter, gate, windows and doors, industrial shutter doors, automatic line people, sliding door, automatic barrier, mechanical areas such as security and public transportation.

Features: Safety, flexibility and reliability, 20years service life or 100,000 times using.

Working theory: Safety Edge is made of conductive compound copper wire with the upper and lower two parts. They separate at a certain distance when not squeezd. The two parts connect plug and sensor processor in a series, when the safety edge be squeezed, the two parts of upper and lower contacted, which lead a circut cycle, the resistance and current changes, the sensor processor received this signal and pass the signal to the motor controller. The controller will achieve the settled functions such as:1)doors or windows stop 2) rebound or 3) doors or windows rebound 2 second before stop.
