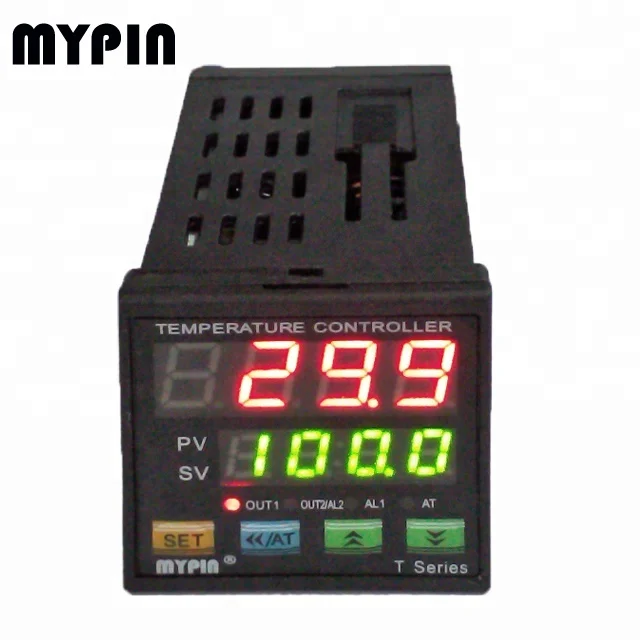

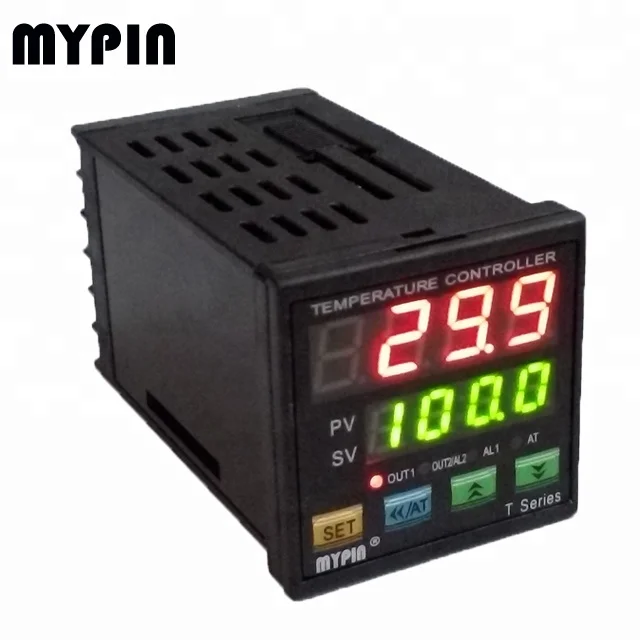

2015 TA series PID Temperature Controller Analog 4 20mA Temperature Regulator

Product Overview

Description

2015--TA series PID Temperature Controller Analog 4-20mA Temperature Regulator







Features:



 1, Apply with step control, 2 independent PID control for heating/cooling over temperature,

     pressure, level, flowm, etc. Widely used in auto system in line of light industry, chemistry,

     machine, metallurgy, ceramics, pertrification industry, or temperature control and adjust system

     of food &beverage; oven; furnance, plastic extruder heating process etc..

2, One key operation, Auto-tuning PID/ Fuzzy PID control. Easy operation, Reliable performance.

3, Input:  TC (K,J,S,E,T,R,B)/RTD(Pt100,CU50) universal input, or 4-20mA/0-10V signal  from

    standard pressure/level transmitter, (24V/30mA supply available for standard transmitter).

4, Accuracy: 0.3%.

5, Control output: RELAY  SSR  SCR  4-20mA 0-10V (If 4-20mA output,you can choose PID control or

    analog output).

   Alarm output:  2 lines output,  7 kinds of alarm mode:high/ low/ high deviation/ low deviation/

    interval/ out of interval/ breakage alarm.

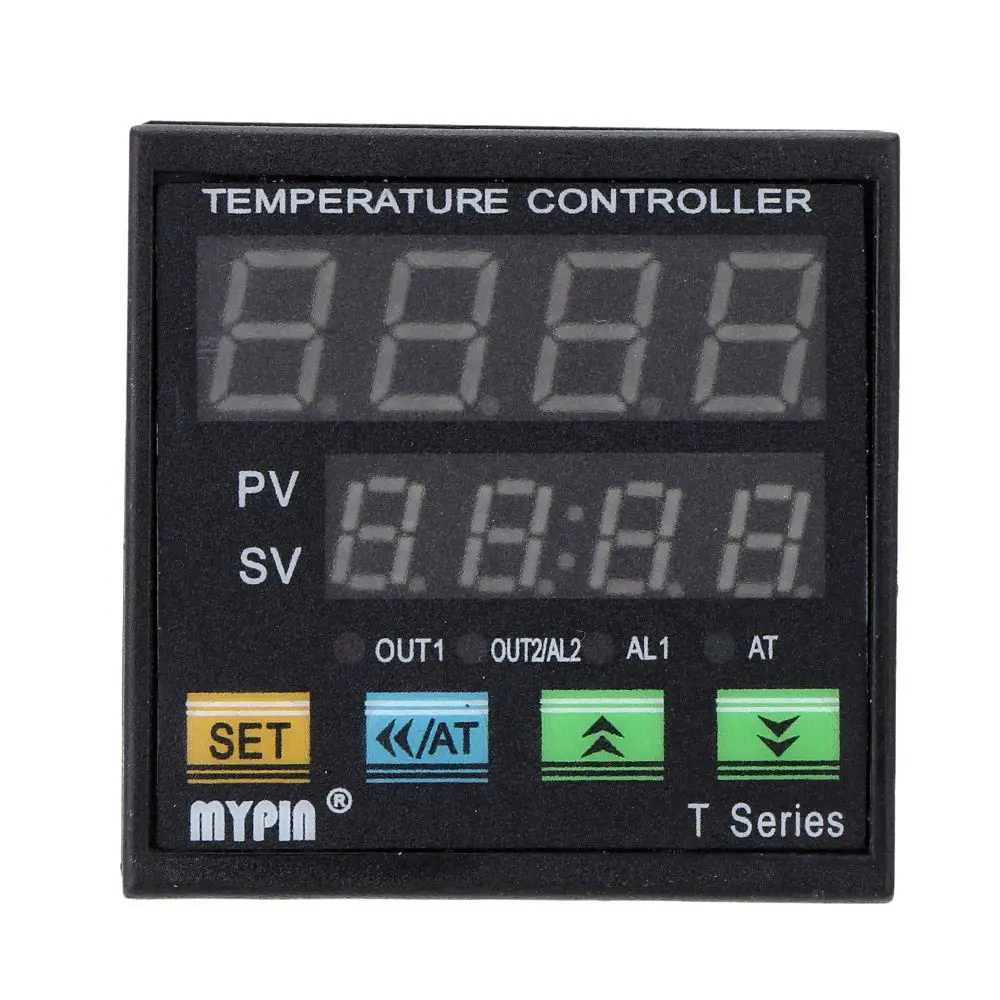

6, Dimensions:     TA4: 48*48*80      TA6: 48*96*80     TA8: 96*48*80

                                 TA7: 72*72*80      TA9: 96*96*100   TA10: 160*80*70.

Case class: IP65.

7, Power supply:  regular: 90-260V AC/DC,   others: 12-30V AC/DC..





Code Illustration:



Technical Parameters



Mouting & Installment









1.The complement packing contains 1 meter, 1 manual and 1 pair of brackets.

2.Items are usually shipped within 3 to 15 business days after payment has been received, which according to the quantities.

3.Shipment is by Sea, Freight or Courier(DHL/FEDEX/TNT/UPS/EMS/CHINA POST MAIL) as per clients request.











• We provide 18 months warranty for all Mypin products.
• OEM / ODM service available to meet up to client's requirements
• Any questions, please mail or call us any time
