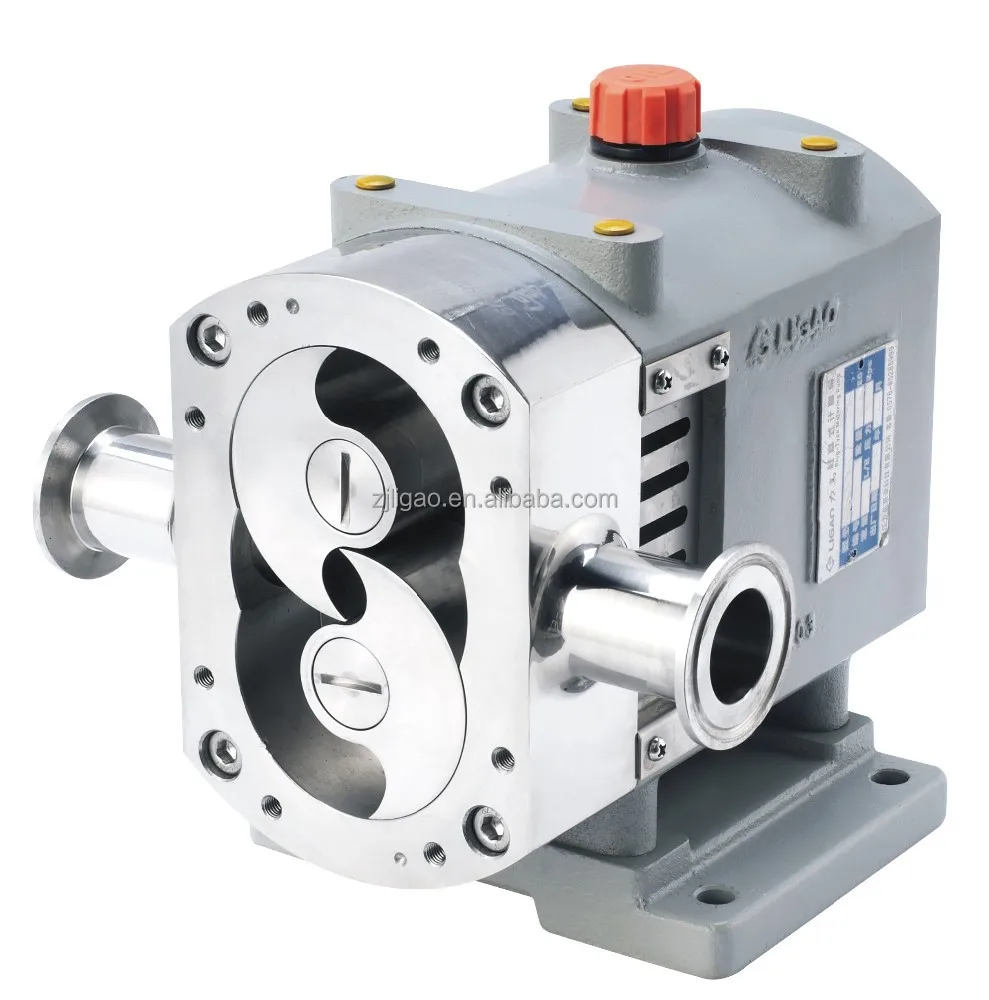

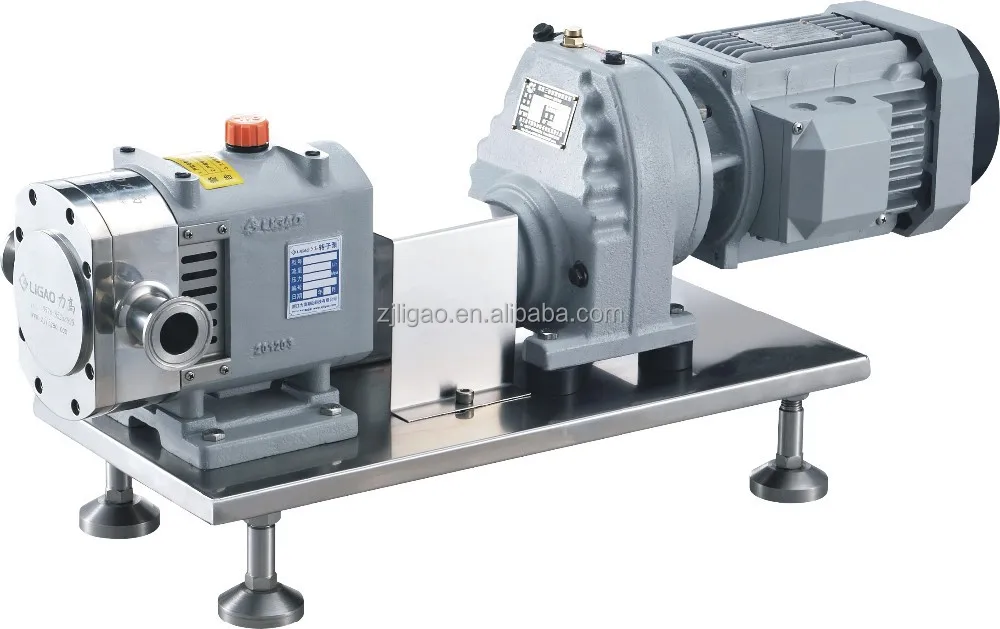

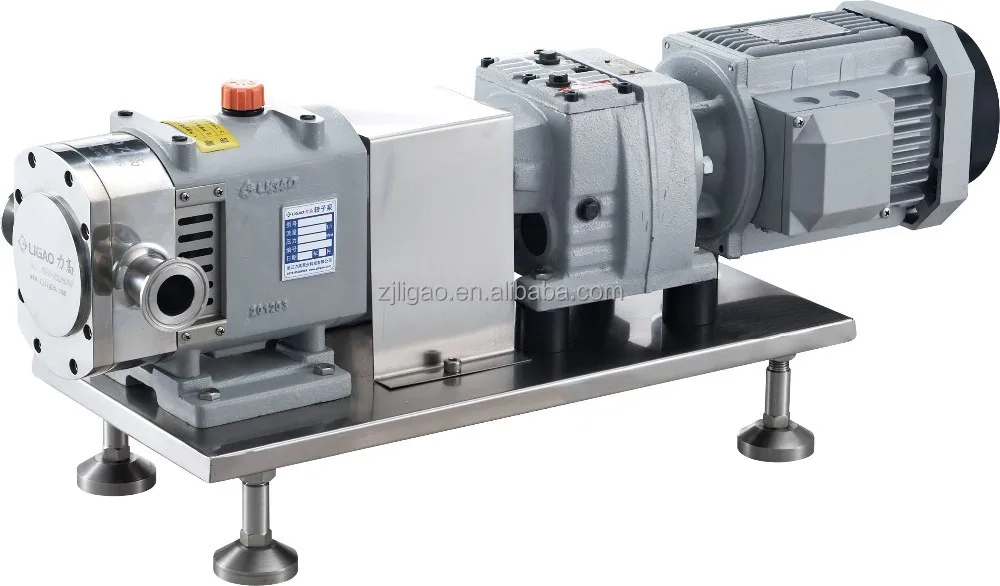

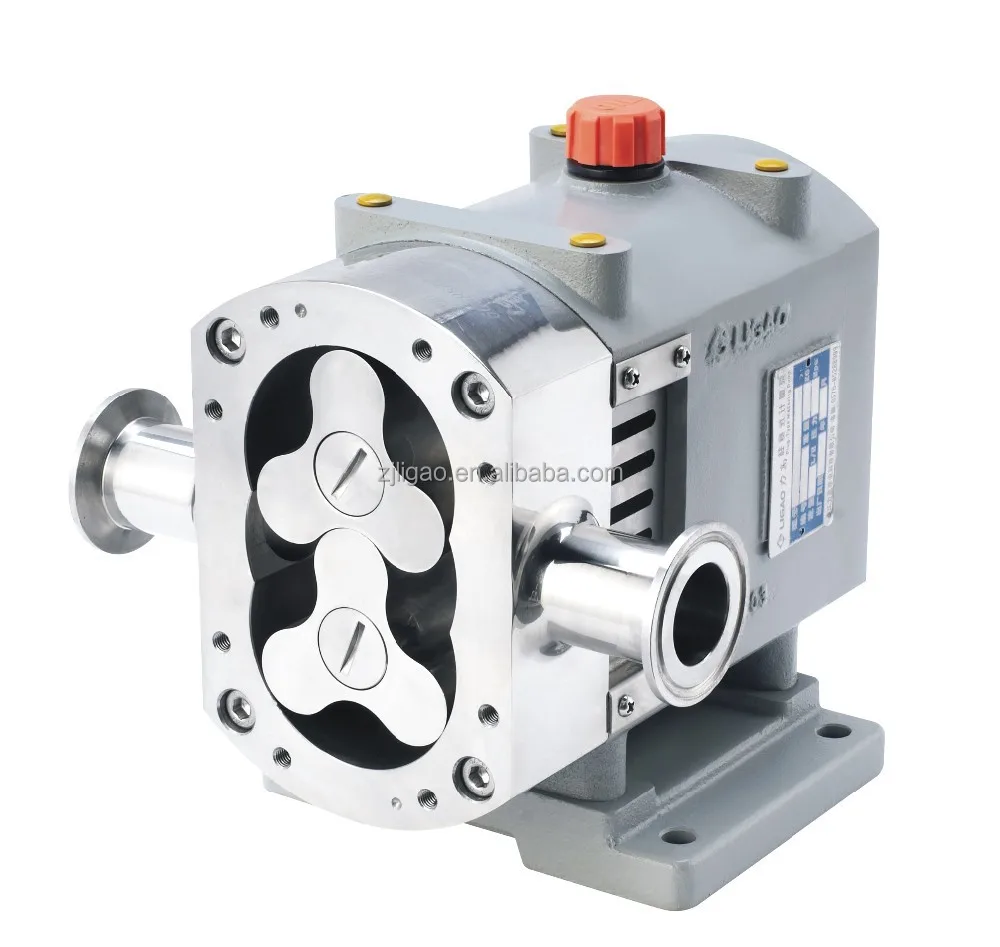

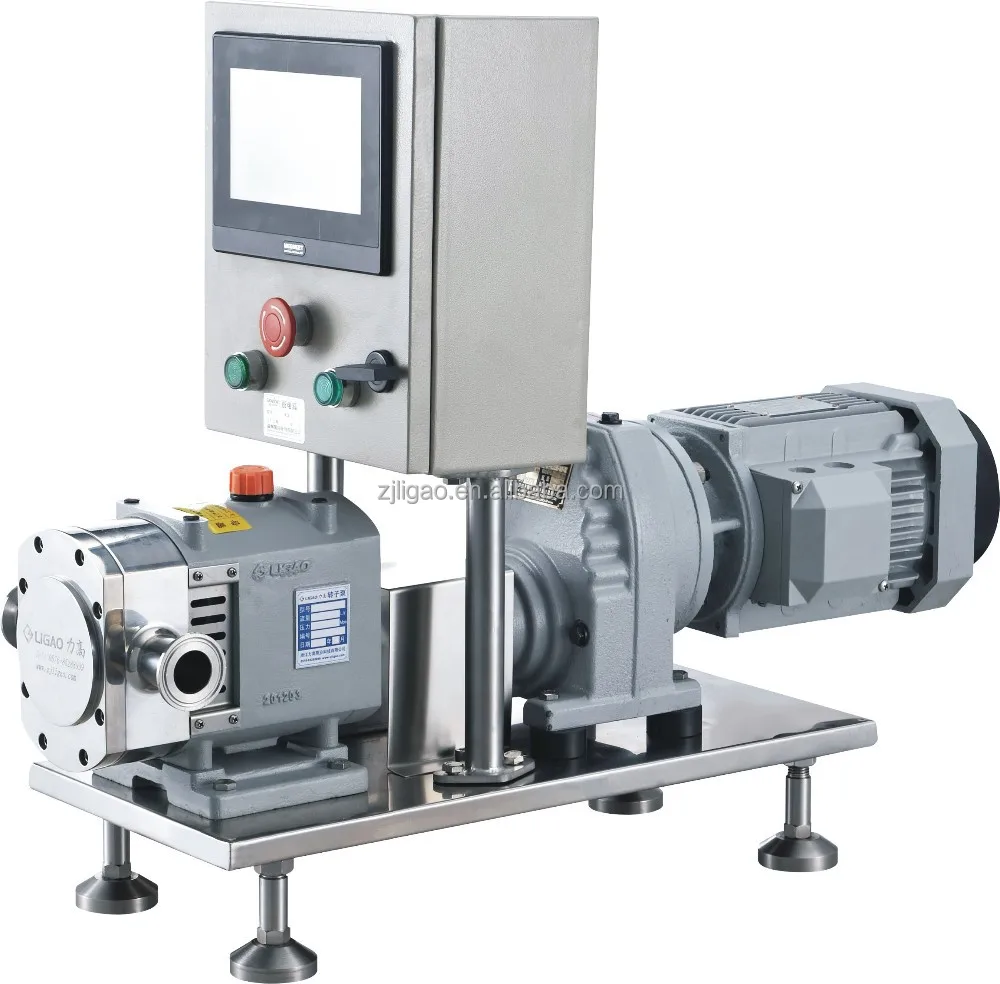

rotary lobe pump for food industry with sanitary stainless steel head

Product Overview

Description

rotary lobe pump

Rotary lobe Pump is also named Colloid pump, cam pump, trefoil pump,high concentration pump,etc,It depends on two synchronic rotators.The two rotators are driven by a pair of outer-set synchronic gear boxes and the transmission shaft .They move synchronically in counter-clockwise directions.Which consequently,builds up high vacuum capacity and emission pressure.





Principal for rotary lobe pump



Technical Parameter for Ligao Rotary Lobe Pump

Model	L/R	Flow (M3/h)	Suggest Speed (Rpm)	Max pressure (Mpa)	Viscosity (Cp)	Power  (Kw)	Inlet and outlet diameter
							Hoop (mm)	flange
RP1	0.04	0.1~1	40~500	1.6	1~1000000	0.37~1.5	25	DN20
RP2	0.08	0.2~2	40~500	1.6	1~1000000	0.55~3.0	32	DN25
RP3	0.13	0.3~3	40~500	1.6	1~1000000	0.75~4.0	38	DN32
RP5	0.20	0.45~5	40~500	1.6	1~1000000	1.5~7.5	50	DN40
RP8	0.35	0.85~8	40~450	1.6	1~1000000	2.2~11	63.5	DN50
RP12	0.52	1.2~12	40~450	1.6	1~1000000	3.0~15	76	DN65
RP20	0.90	2.1~20	40~400	1.6	1~1000000	4.0~22	89	DN80
RP35	1.60	3.8~35	40~400	1.6	1~1000000	7.5~30	108	DN100
RP55	3.20	7.5~55	40~350	1.6	1~1000000	11~45	125	DN125
RP80	5.20	12.5~80	40~350	1.6	1~1000000	18.5~75	125	DN125
RP120	8.00	19~120	40~300	1.6	1~1000000	22~90	150	DN150

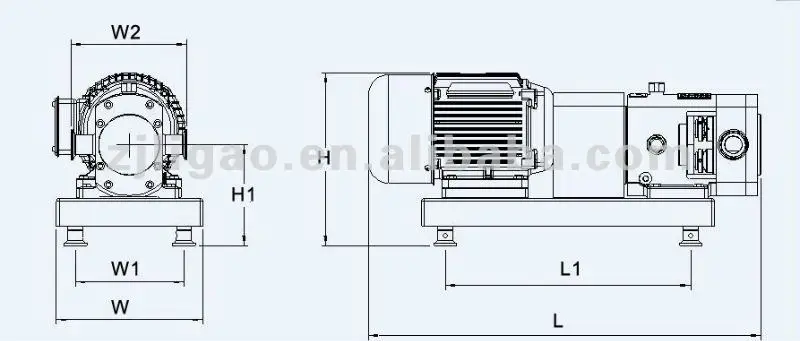

Measurements:







Note:

1. 1.       The motor power should be increased when delivering high viscosity liquid,and adopts stepless speed regulator or frequency transformer to adjust the speed;
2. 2.       The flow in tile table fefers to the aata tested taking  water as the medium;
3. 3.       You can choose Hoop / thread and flange.
