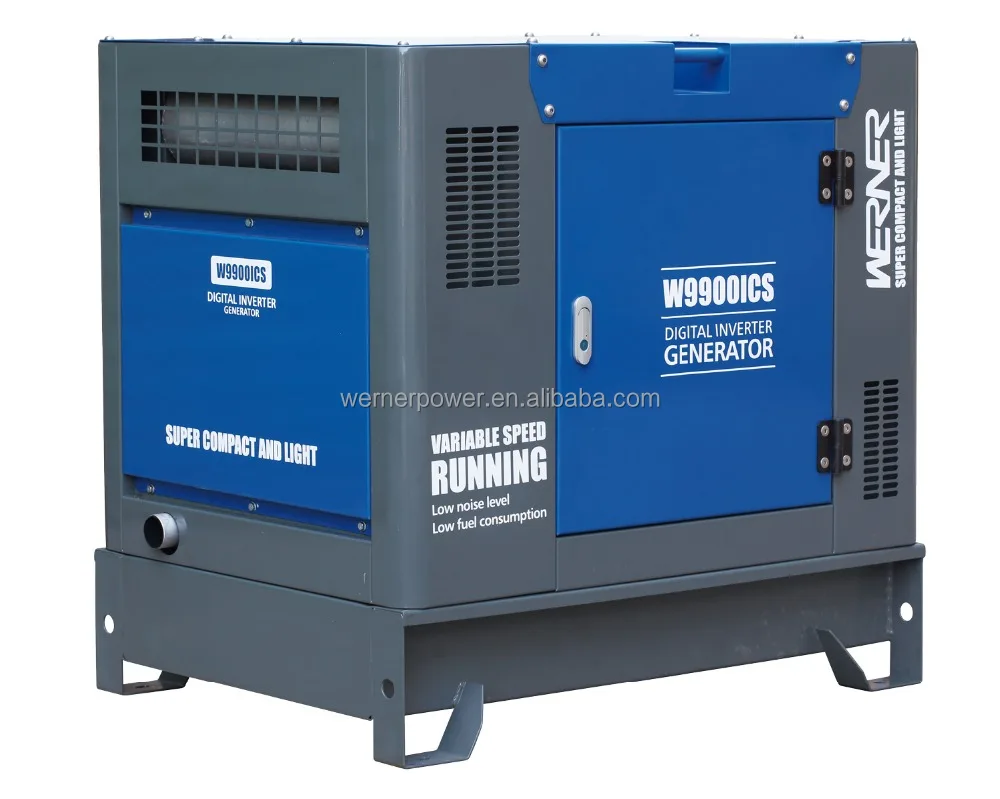

Inverter electric magnetic generator 10kw
- Category: >>>
- Supplier: Werner(Fujian) Power Co. Ltd.
Share on (60149229648):
Product Overview
Description
| Diesel Inverter Generator powered by HL292FE | ||
| GENSET | Open type model | W9900IC |
| MODEL | Soundproof model | W9900ICS |
| Continuous output(kw) | 10 | |
| Voltage(V) | 230 | |
| Frequency(Hz) | 50/60Hz @3000rpm | |
| DIESEL ENGINE MODEL | HL292FE | |
| Engine Characters | Two-cylinder ,vertical 4-stroke,air-cooled,diesel | |
| Rated power/speed (KW/rpm) | 13.5/3000 | |
| 14.5/3600 | ||
| Bore(mm)xStroke(mm) | 92x75 | |
| Displacement(cc) | 997 | |
| Compression ratia | 20.5 | |
| Max. torque (N.M) | 52/2000-2100 | |
| Lubricating system | Pressure splashed | |
| Cooling system | Forced air-cooled | |
| Direction of rotation | Counterclockwise viewed from PTO side | |
| Fuel consumption rate (g/kw.h) Min/Max | 247/ 265 | |
| Lube oil brand | SAE10W-30 or 15W-40 | |
| Lube oil capacity (L) | 2.6 | |
| Starting motor | 12V-1.7KW | |
| Charging ststem | 13V-10A | |
| Accumulator capacity (V.AH) | Above 12V,45Ah | |
| ALTERNATOR MODEL | W9900ID | |
| Continuous output(kw) | 10 | |
| Power Efficiency | ≥90% | |
| Voltage Regulation | ±2% | |
| Wave form | pure sine wave | |
| wave form distortion | ≤1.5% | |
| Dimension(mm*mm*mm) | 700*500*820/1100*750*800 | |
