Jiangsu KIET 2500 TON PLC Multiple Points Hydraulic Synchronous Lifting System
- Category: Cylinders >>>
- Supplier: Jiangsu Canete Machinery Manufacturing Co. Ltd.
Share on (60149259255):
Product Overview
Description

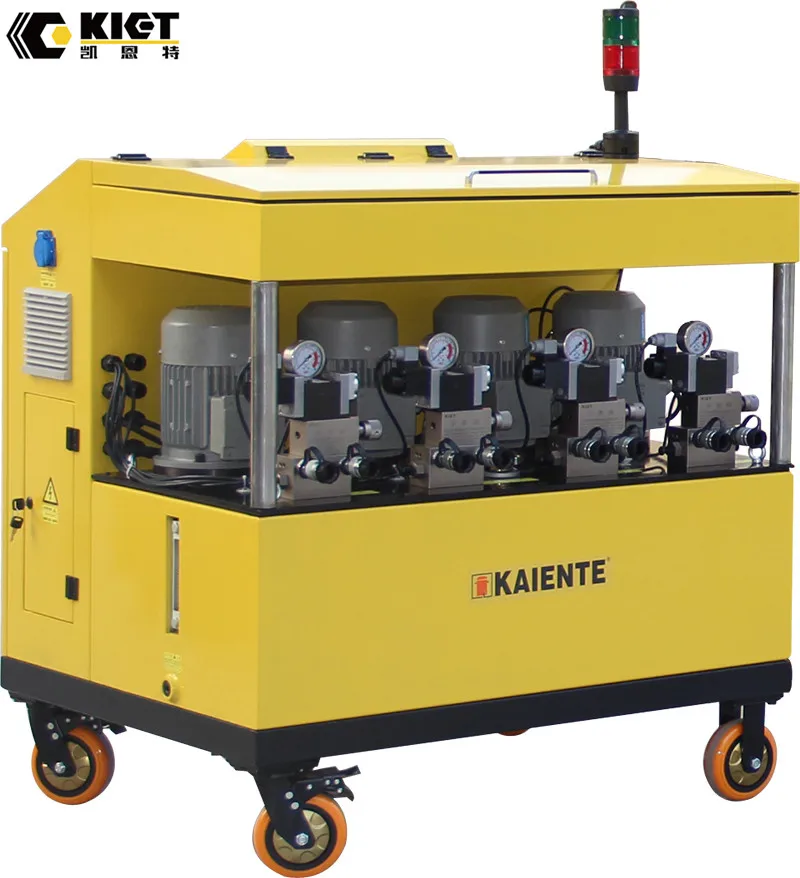

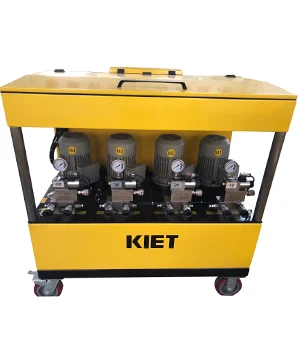

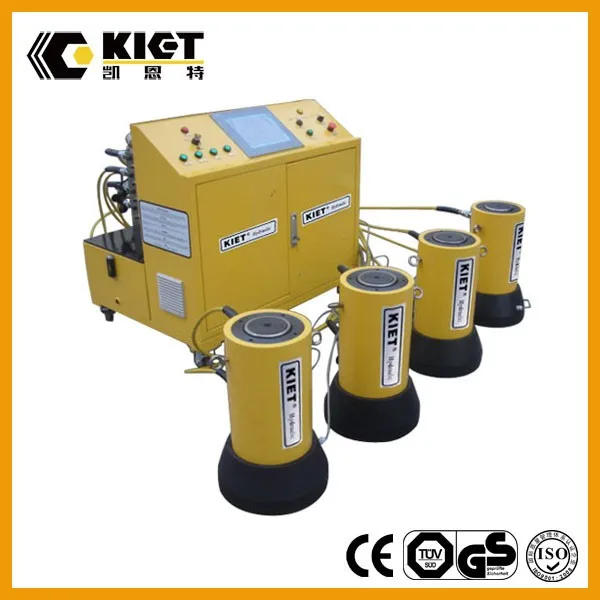

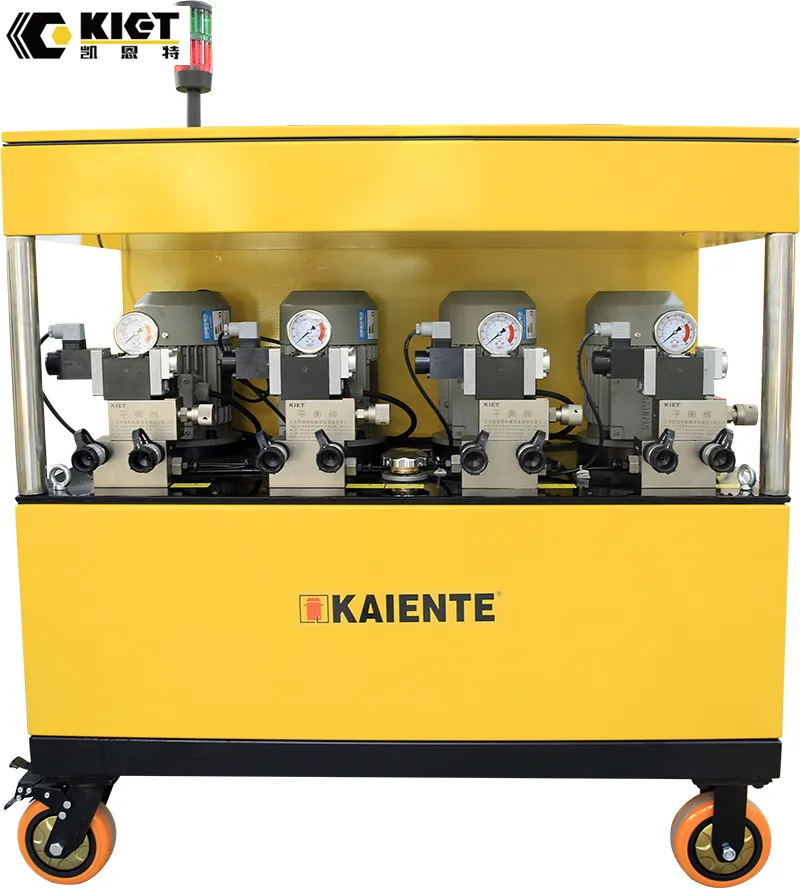

Jiangsu KIET 2500 TON PLC Multiple Points Hydraulic Synchronous Lifting System
Specifications:
*Lifting Points: 4, 8, 12 or 16,24, 32, 64
*Maximum Operating Pressure: 700 bar
*Capacity:200Ton,400ton,800ton,1200ton,2000ton,4000ton,5000ton,10000ton.
*Loading height:10-500mm
*Accuracy Over Full Stroke:±0.1mm

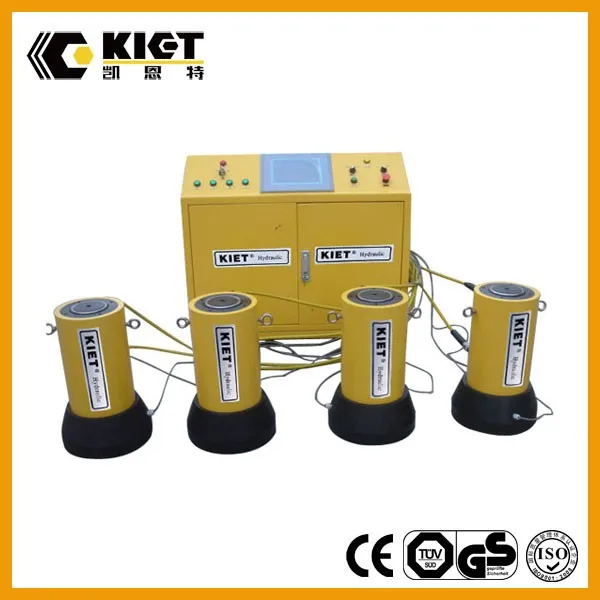

*Computer controlled sync jack-up system.
*Single operation, computer controlled friendly human-computer interface.
*Coupled with high precision electronic control devices and displacement, pressure detection system.
*Closed loop control system with frequency control, synchronization accuracy of up to ±0.15mm.
*Continuously adjustable flow pump, speed of lifting cylinder can be precisely controlled
*Sync control 4 sets cylinders and sync equipment have more lifting positions available.
*Two-speed output, quickly retract for plunger rod.
*Valve controlled auto balance function.
*Providing the data records, displaying illustration and printing functions.
*The length of sensor extension is different from the cylinder stroke.
*Automatically halt when reaching end of pre-established stroke or overloading.
*Meet the simultaneous lifting, synchronized landing, heavy weight measurement and other functions.
Vehicle-mounted design, convenient for moving.
Use: Can be widely used for synchronous jack-up of heavy objects in fields of traffic, railway, sub-railway, ship-building, construction, hydro-project.
Technical Parameter
| Model | Points | Synchronous Precision (mm) | Motor Power (KW) | Voltage (AC/V) | Working Pressure (MPa) | Flow (L) | Oil Tank Capacity (L) | Weight (kg) |
| KET-DBTB-2A | 2-point synchronization | ≤±0.2 | 1.1 | 380 | 70 | 2×1 | 130 | 180 |
| KET-DBTB-2B | 2-point synchronization | ≤±0.2 | 2.2 | 380 | 70 | 2×2 | 130 | 240 |
| KET-DBTB-2C | 2-point synchronization | ≤±0.2 | 5.5 | 380 | 70 | 2×5 | 250 | 300 |
| KET-DBTB-4A | 4-point synchronization | ≤±0.2 | 1.1 | 380 | 70 | 4×1 | 200 | 350 |
| KET-DBTB-4B | 4-point synchronization | ≤±0.2 | 2.2 | 380 | 70 | 4×2 | 250 | 430 |
| KET-DBTB-4C | 4-point synchronization | ≤±0.2 | 5.5 | 380 | 70 | 4×5 | 500 | 550 |
Project Applications in China:

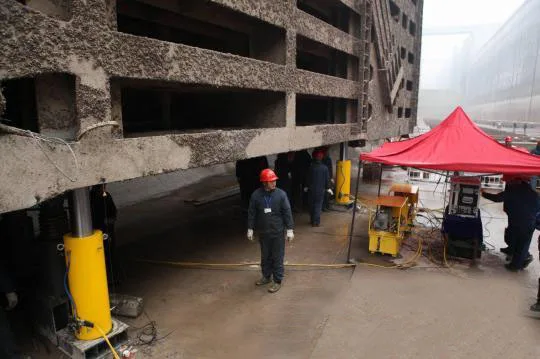

Three Gorges Dam navigation lock disassembly and maintenance:

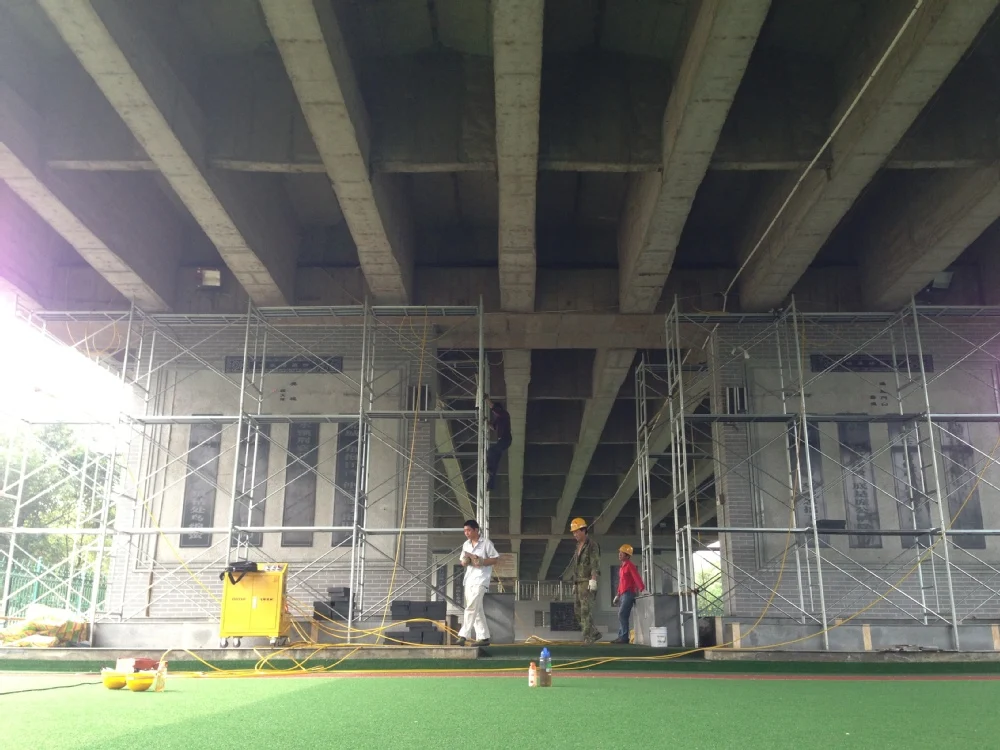

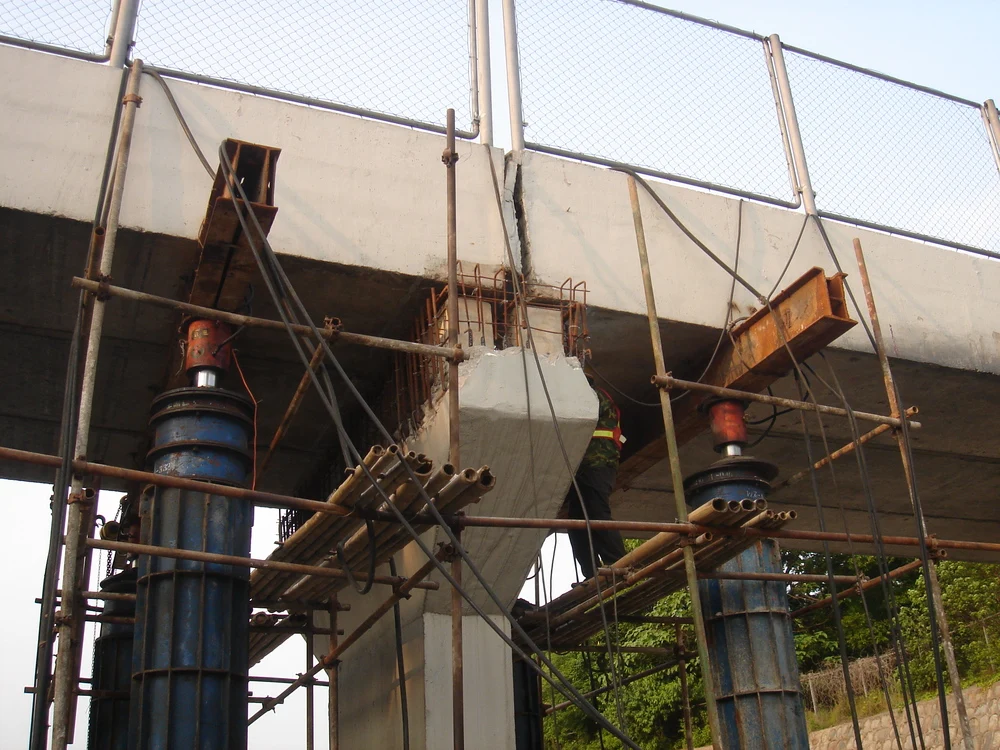

Synchronous system applied on Beijing-Shanghai high-speed bridge to replace the bridge rubber bearing:

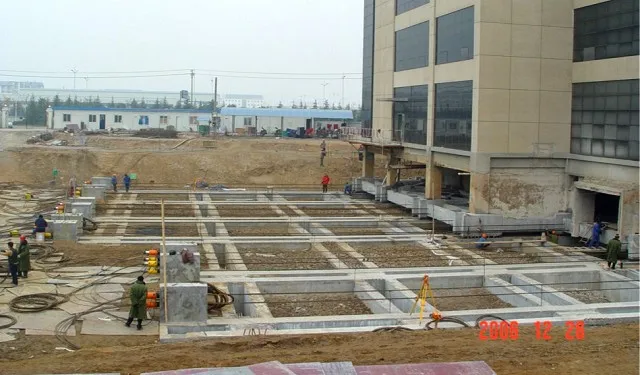

Synchronous system applied on building translation:
Synchronous system applied on Anhui high-speed bridge to replace the bridge rubber bearing:
Our Services
KIET provides one year guarantee for all the hydraulic cylinders. We promise if there is any dysfunction of the hydraulic cylinder during the quality warranty not by outside force, we will replace a new cylinder for free. Any quality defects reported by customers will be responded within 24 hours.
Packaging&Shipping
Wooden Package:
Shipping:
Company Information
Jiangsu Canete Machinery Manufacturing Co., Ltd. is a manufacturer engaged in designing and manufacturing hydraulic cylinders (capacity covers from 10-1000 tons), synchronous PLC hydraulic system, hydraulic pumps, hydraulic torque wrenches, electric torque wrenches, and hydraulic components.
We successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand KIET, and our factory has been approved by CE, ISO9001:2008 consecutively.
Our customers include many big Chinese industrial companies: China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, Sany Group, China Railway Construction Corporation.
Our synchronous PLC hydraulic system has played a great role in the China high-speed railway constructions. In recent years, our sales revenue reached 30 million USD, making us one of the leaders in Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in hydraulic tools, such as:
• Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger;
• Hydraulic/ electric /pneumatic torque wrench (100-160000Nm);
• Hydraulic bolt tensioner (100-11486NM); Hydraulic pullers (5-100 ton);
• Hydraulic pumps, manual and electric type (max up to 3000bar);
• Integrated hydraulic lifting system solutions (4-72 points lifting system for house translation or leveling, bridge supporting and tank welding supporting);
• Hydraulic nut and couplings. (M50-Tr1000)
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.

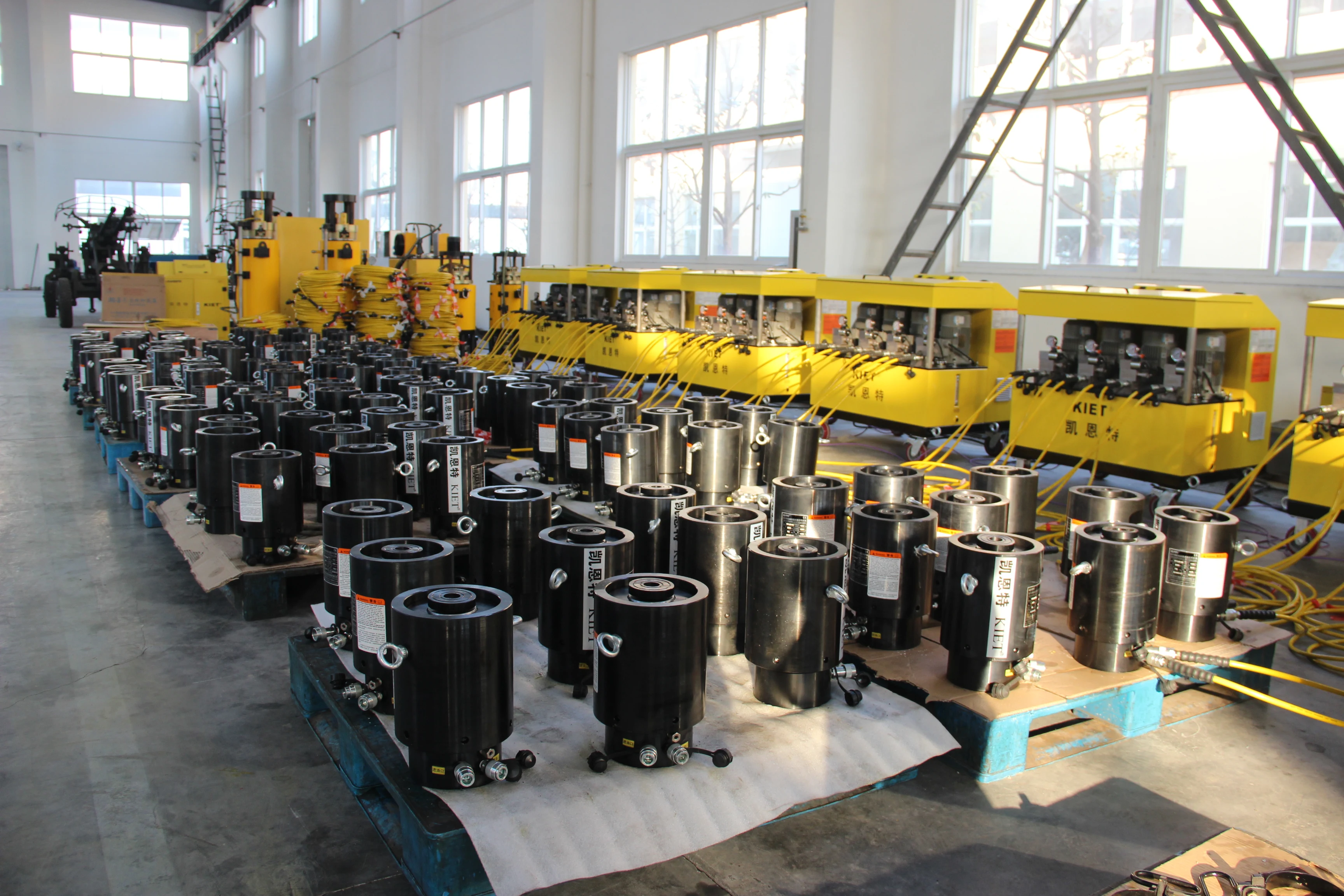

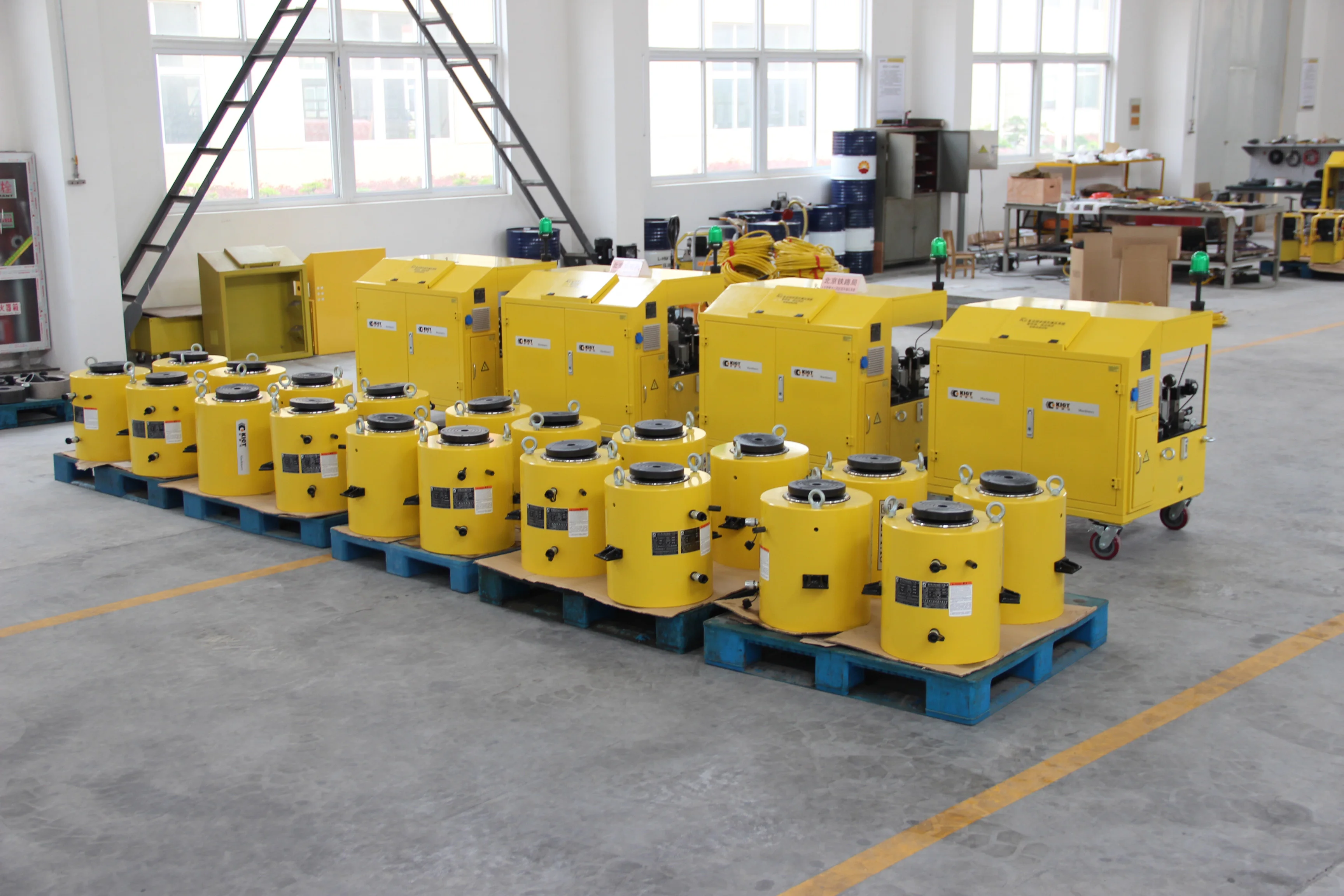

Factory Show

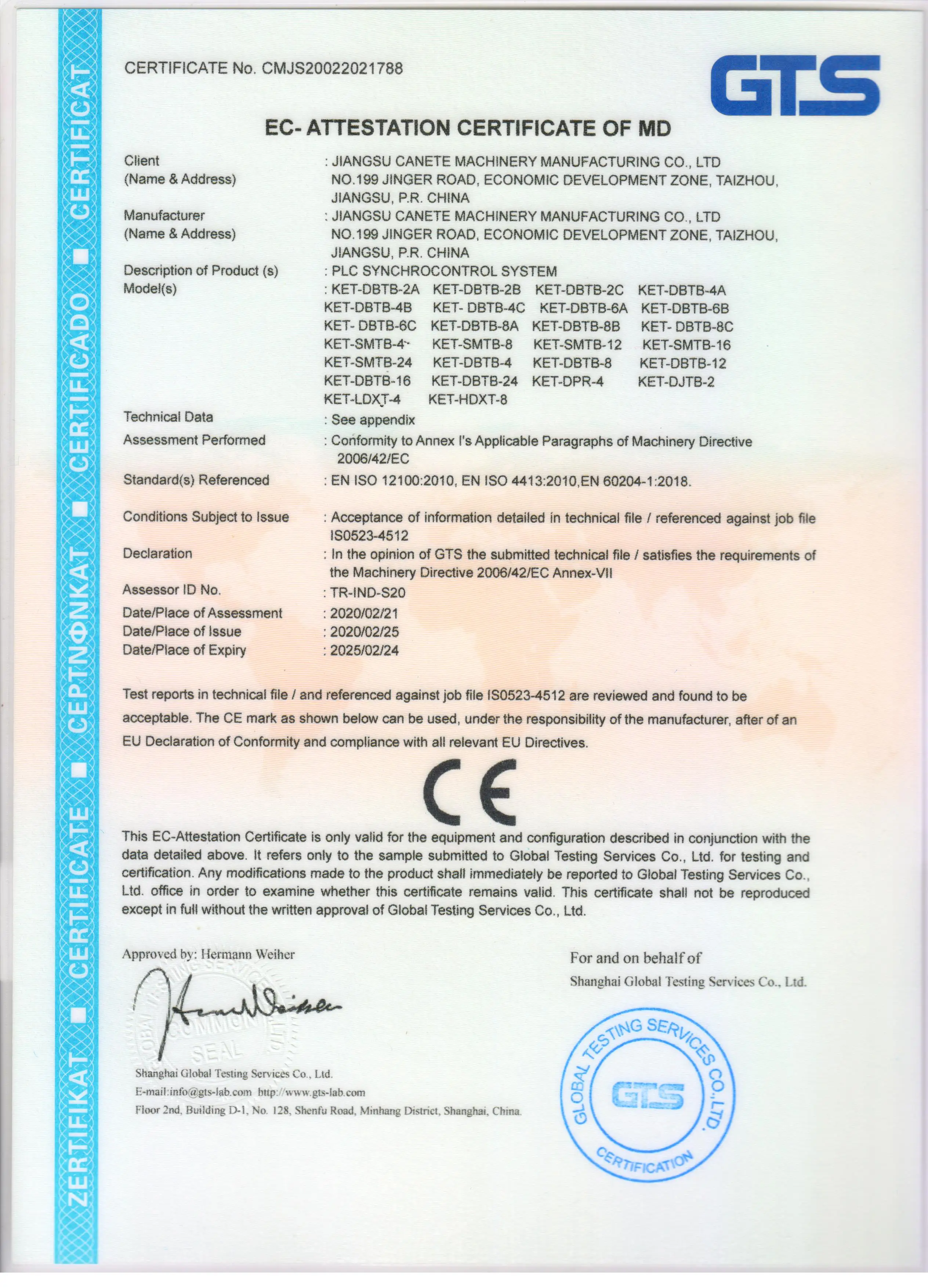

Certificate
FAQ
Q1: How to contact sales?
A1: Please call or email us.
Q2: How can I buy Kiet products in my country?
A2: Please send us an inquiry or email, we will reply to your if there is distributor in your country.
Q3: How long does it take to get the product if I place an order?
A3: It depends on products' production time, not more than 25 days.
Q4: How to make payment?
A4: Both of proforma invoice and sales contract at Alibaba are acceptable.
Contact
Eileen Qi
Sales Manager
Jiangsu Canete Machinery Manufacturing Co., Ltd.
No.199, Jinger Road, Economic Development Park, Taizhou, Jiangsu, China
Tel & WhatsApp& Imo: +86-18018290911
Wechat: JS-Kiet-Sales8
Email: Eileen @chinakiet.com
www.kiethydraulic.com
