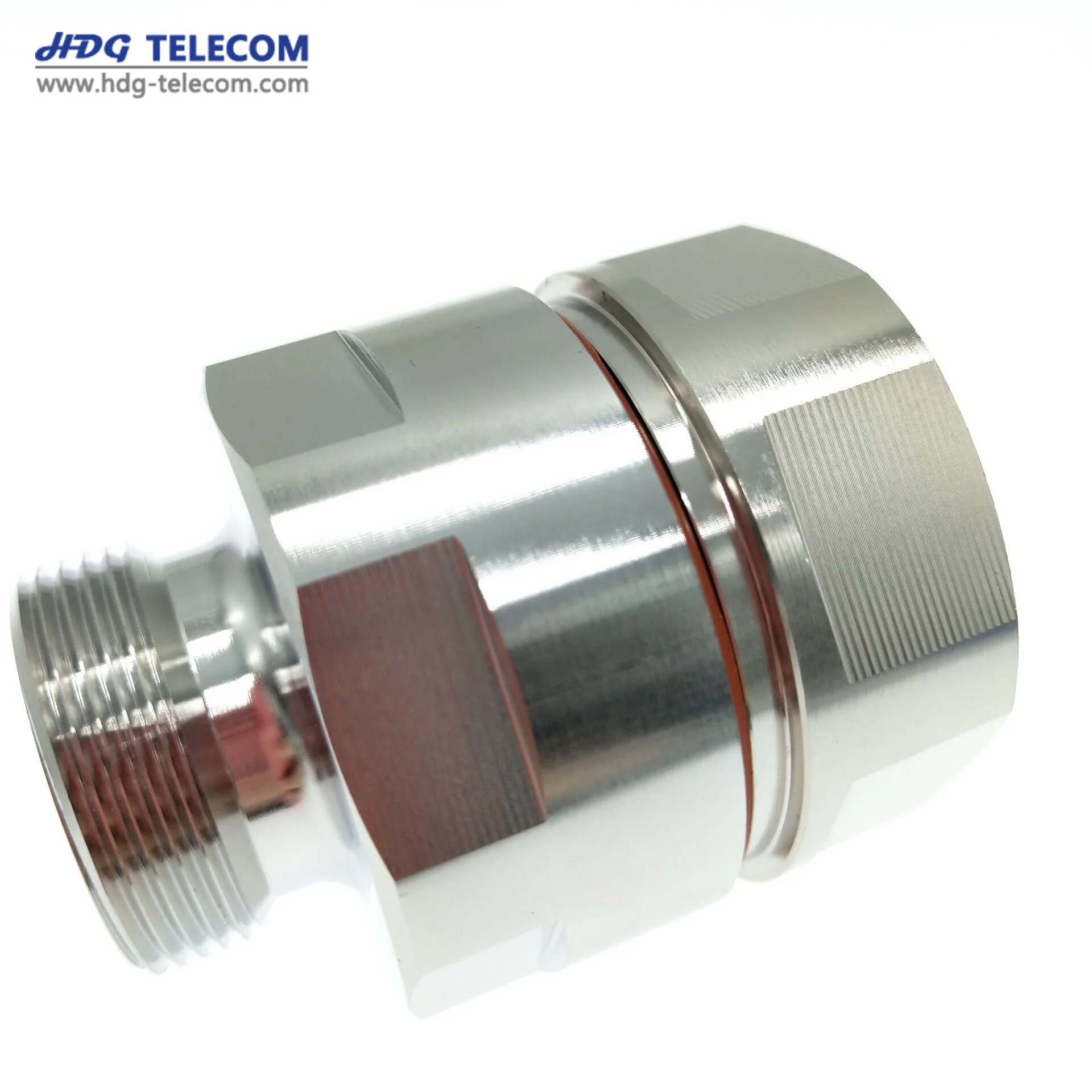

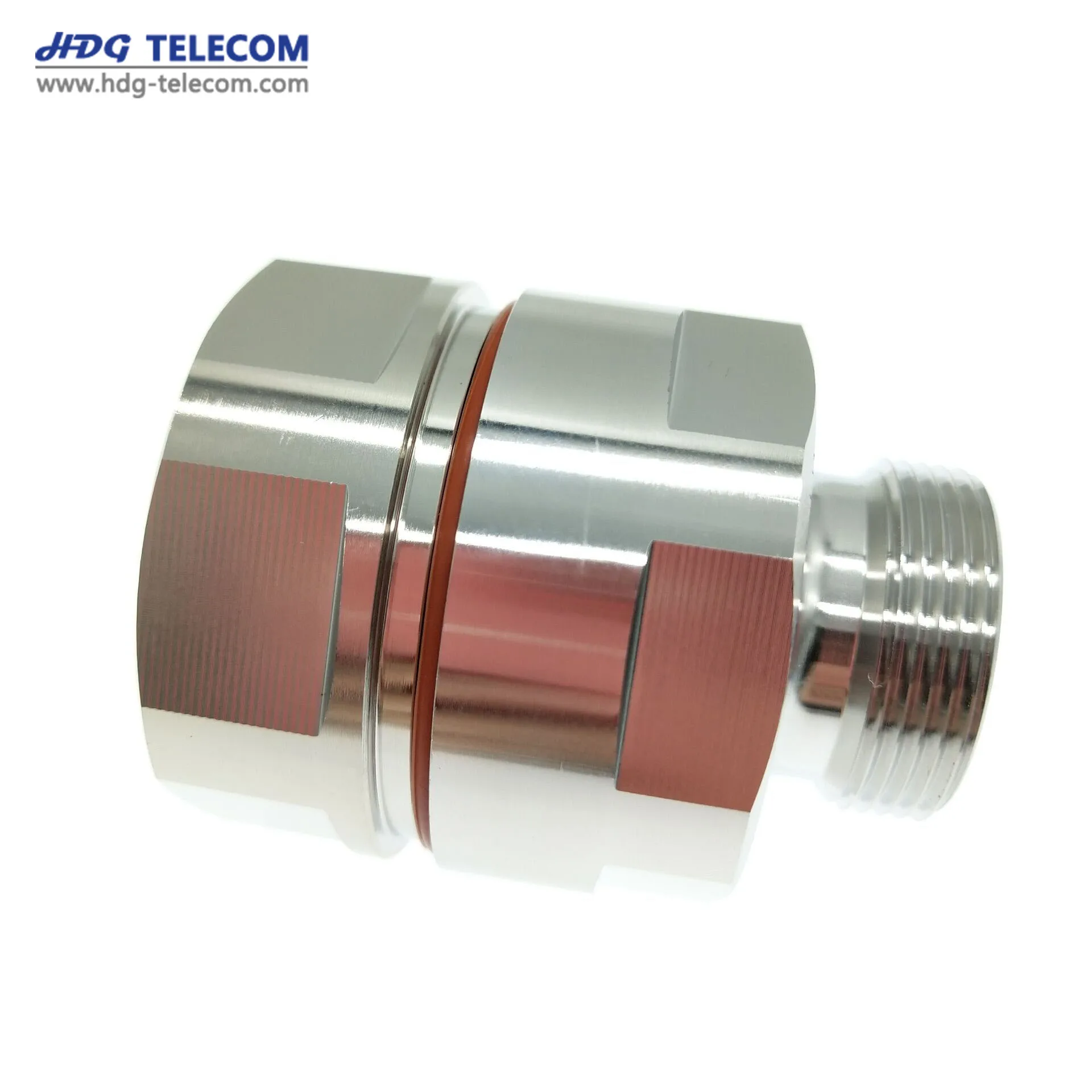

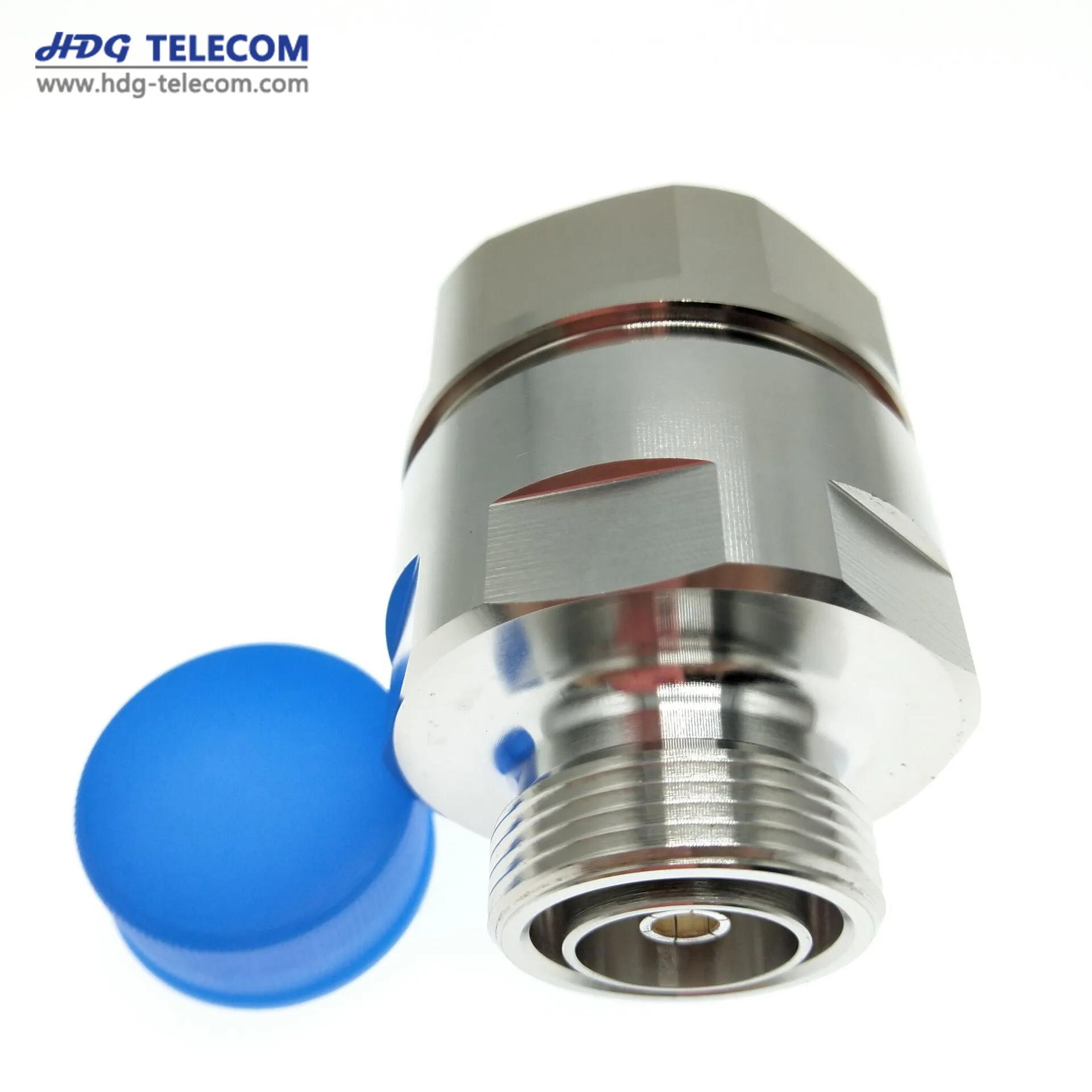

RF 7/16 DIN Female Connector For 1-1/4 Inch Coaxial Cable

7/16 Din connector is specially designed for outdoor base stations in mobile communication (GSM, CDMA, 3G, 4G) systems, featuring high power, low loss, high operating voltage, perfect waterproof performance and applicable to various environments. It is easy to install and provides reliable connection.

HDG 7/16 Din connectors are available in male or female gender with 50 Ohm impedance. Our 7/16 DIN connectors are available in straight or right angle versions, as well as, 4 hole flange, bulkhead, 4 hole panel or mountless options. These 7/16 DIN connector designs are available in clamp ,crimp or solder attachments methods.


Product details



FEATURES AND BENEFITS
* Low IMD and low VSWR provides improved system performance

* Self-flaring design ensures ease of installation with standard hand tool

* Pre-assembled gasket protects against dust (P67) and water (IP67)

* Brass / Tri-metal plated outer conductor and Bronze / Siver plated center conductor provide a high conductivity and corrosion resistance


APPLICATIONS

* Wireless Infrastructure


* Base Stations


* Lightning Protection


* Satellite Communications


* Antenna Systems


Specification


Interface
According to
IEC 60169-4
Electrical Data
Impedance
50 ohm
Frequency
DC-2.5 GHz
Insertion loss
≤1.15
VSWR
≤1.10(0.8-1G); ≤1.15(1.7-2.5G)
PIM
≤-160dBc
Dielectric withstanding voltage
≥4000V RMS
Working Voltage
≥2700V RMS
Dielectric Resistance
≥10000MΩ
Center contact resistance
≤0.4 mΩ
Outer contact resistance
≤0.2 mΩ
Mechanical Data
Durability
≥500 times
Apply with the cable
1-1/4 flexible coaxial cable
Watertightness
IP67
Salt Mist
5% Nacl, 48h
Temperature range
-40℃～+85℃
Material And Plating
Outer contact
Brass / Tri-metal plating
Center contact
Bronze / Siver plating
Dielectric
PTFE


Packing & Delivery


Our usual packing is export carton with tape and packing belt, pallet packing.


Other packing is also available by your requirement.

Samples or small batches delivered by DHL、TNT、FedEx、UPS.


Batch cargo are delivered by air or sea.


Other  transports are available by requirement.
