TL B03H High temperature mini water pump
- Category: >>>
- Supplier: Changsha Tops Industry & Technology Co. Ltd.
Share on (60149298871):
Product Overview
Description

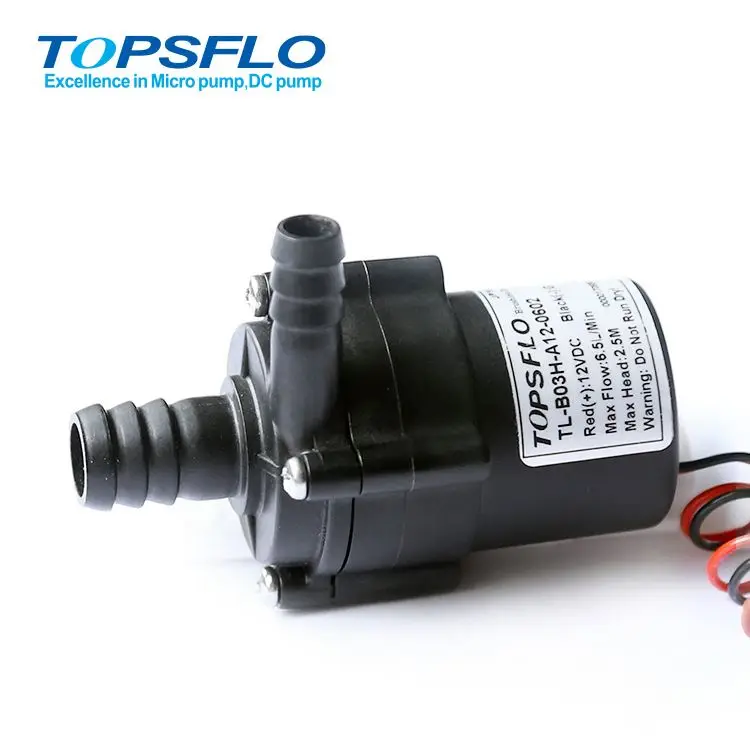

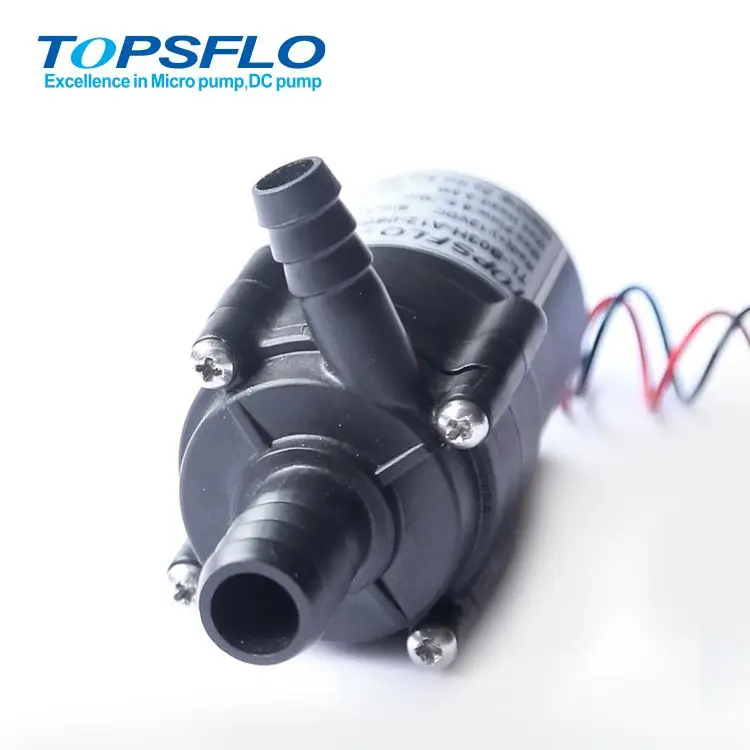

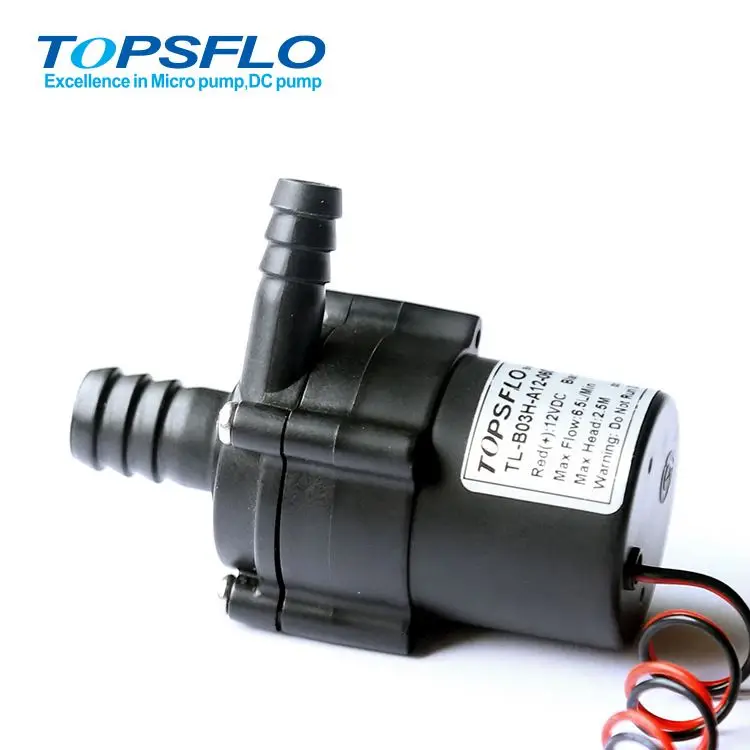

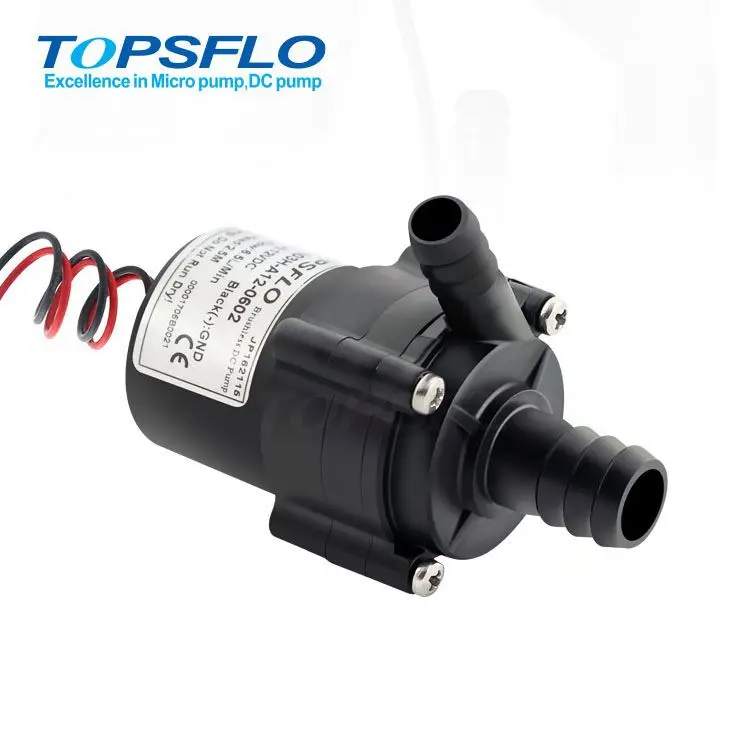

TL-B03H High temperature mini water pump
♦ 16000M2 modern factory with its own physical property rights, ESD anti-static control dust free workshop,
100+ sets of professional imported equipment
♦ 4 major professional and precision laboratories that meet the CNAS national laboratory accreditation standards
♦ More than 50 patents in the micro water pump industry, strong research and development strength, and master advanced industry technology
♦ Complete certification, passed CE, ROHS, REACH, WRAS, Food Grade and other certification
Product Description
Application:
Coffee maker/coffee machine, Water cooler/water dispenser, Beverage dispenser
Water purifier/water dispenser, Tea maker, Milk dispenser, Laboratory
Medical treatment, Fountain, aquariums,Computer CPU cooling circulation,Water heating mattress
Product Features:
•.High efficiency brushless DC motor with long lifetime 20,000hours
•.Heavy duty work,can sustain continuous 24hours work
•.Special designed high efficiency closed-impeller for low power consumption
•.Motor widely voltage designed suitable for battery,Power supplying with peak-low voltage damply
•.All wetted materials Food grade approved to be safety usage
•.Durable permanent magnetic rotor/impeller and fine ceramic shaft
•.Low or no maintenance
•.Blocked protection
Product Specification:
| Model | Product Code | Max Water Flow (L/Min) | Rated Voltage(DC) | Rated Current (A) | Max Water Head(M) | Rated Power(W) |
| B03 | TL-B03-A12-0602 | 6.5 | 12 | 0.43 | 2.5 | 5.16 |
| TL-B03-A24-0602 | 6 | 24 | 0.22 | 2 | 5.28 | |
| TL-B03-A12-0501 | 4.8 | 12 | 0.2 | 1.2 | 2.4 | |
Customization: 1. /S Submersible, liquid ≤50°C 2. /FG (RPM) signal wire 3. /PWM or /5V speed control | ||||||
Product Characteristics:
| Max Flow Rate | 6.5L/MIN |
| Max Water Head | 2.5 M |
| Rated Voltage | 12V/24V |
| Working Voltage Range | 6V-18V /12V-28V |
| Motor Type | Brushless DC motor |
| Liquid Temperature | 0-105°C |
| Noise Class form 0.3M | 37dB /Max |
| Ideal Life Time | 20000 Hours |
| Working Mode | Continuous |
| OD of Inlet/Outlet | 14 mm/9.4mm |
| Max pressure / Continue work Pressure | 1.8Mpa / 0.5Mpa |
| Working liquid | Pure Water,antifreeze,etc |
| Power Supply | DC power supply, battery |
| Remarks | Can’t dry-running, not Self-priming |
Usage Note:
Dry-running is prohibited.
Reverse polarity is not allowed (except customized).
The pump if dropped or with heavy vibration do not use.
Liquid contain impurities or magnetic particles are not allowed.
Liquid temperature over 80°C is not allowed (except high temperature models).
Acidic or alkaline liquid is prohibited (except customized).
Get more Technical data, please click here
Get more detail, please click here
