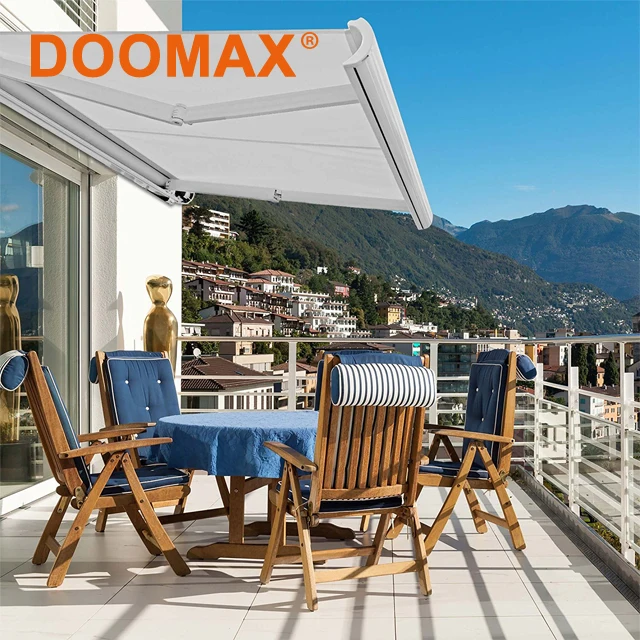

European Style Window Vertical Motorized Cassette Awning

Model:

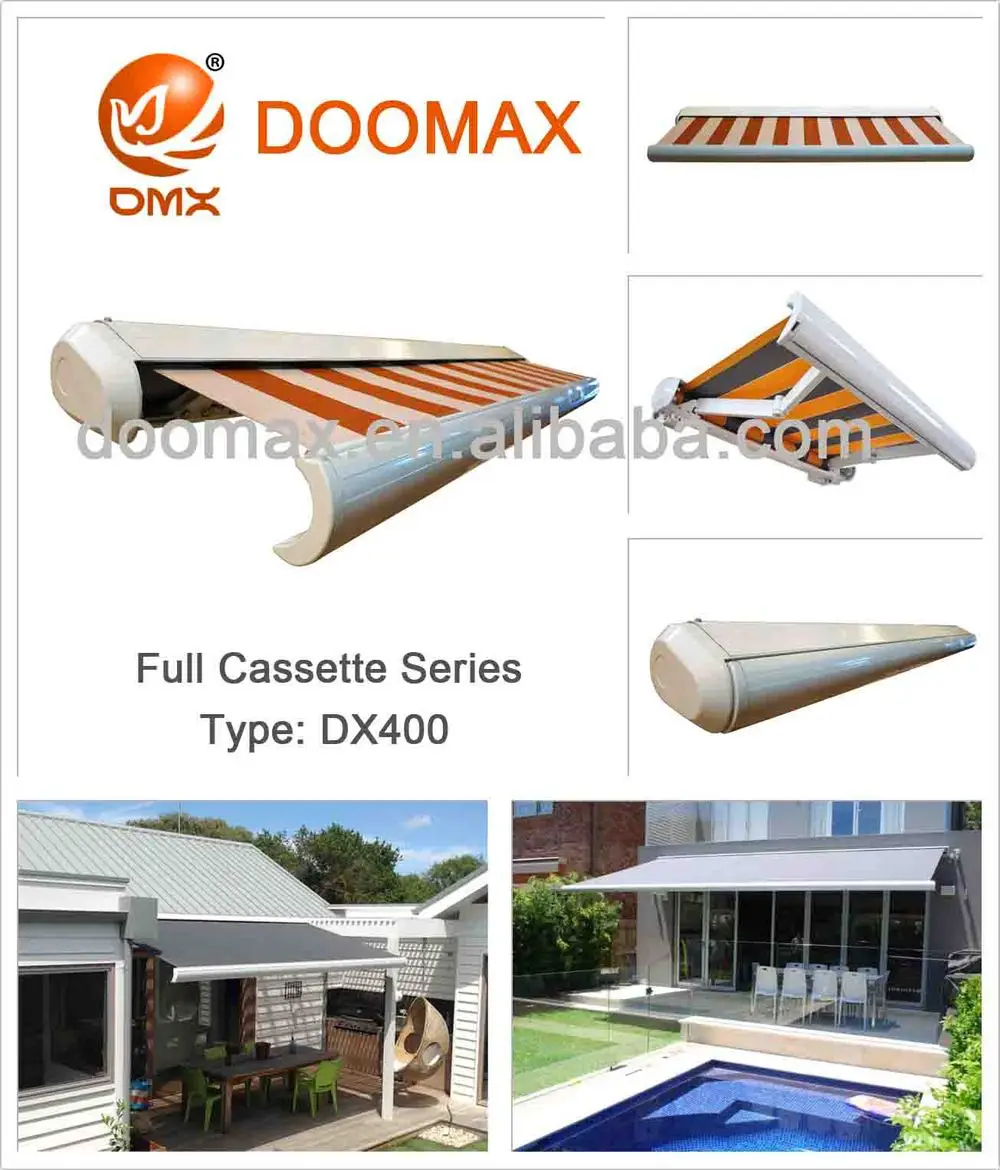

#DX400 European Style Window Vertical Motorized Cassette Awning

Size:

Min.: 1.5*1.0m,  Max.: 6.0*3.5m

OEM Accepted:

Yes

Fabric Type:

Polyester, Common Acrylic, High Quality Acrylic,European acrylic

280g/m2-320g/m2

Fabric Color:

Many for your option. (For fabric color list, click here)

Frame Color:

White, black or ivory  (other color is available under certain quantity.)

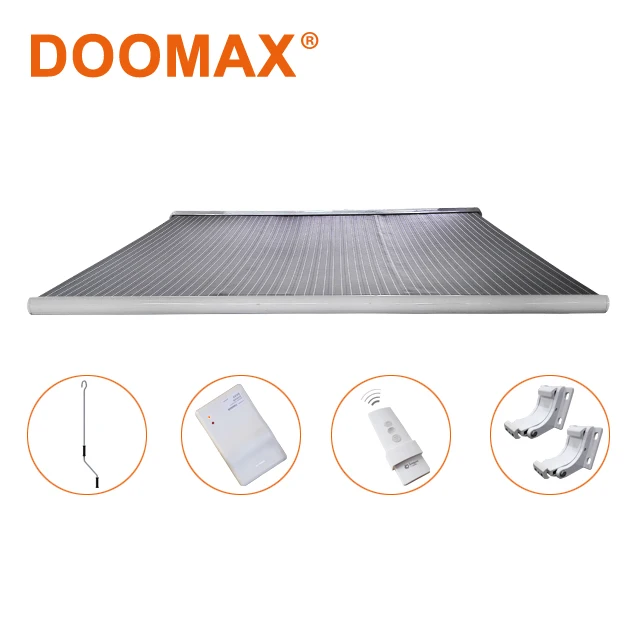

Operation Mode Option:

(1) Manual by gear box and crank handle;

(2) Motorized by switch;

(3) Motorized by remote control;

(4) Both Manual & Motorized:

(5) Any motorized mode can plus automatic sun and wind control system.

Bracket:

wall bracket, roof bracket

Adjustable Angle:

5-45 degree through simple allay key adjustment

Certificate:

CE, UL, TUV, ROHS, SGS, ISO9001.

MOQ:

NO limit. But price will be different for different quantity.

Samples Time:

(1) 2-5 working days for standard frame color and existing fabric.

(2) 7-25 working days for customize.

Part Name

Material

Specification

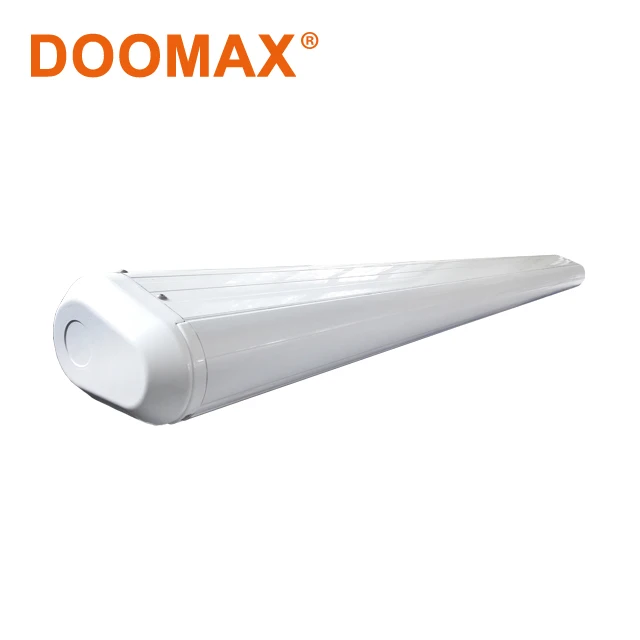

Cassette

Alu.

167 x 40 x 2.5mm, 169 x 87 x 2.3mm

Fabric Roller

Alu.

Ø70/80mm

Front Bar

Alu.

124 x 66 x 3.0mm

Support Arm

Alu.

61 x 32 x 1.8mm, 52 x 27 x 1.8mm

(Assembly with pvc coated cables provide high fabric tension)

Connector

Alu.

Bracket

Alu.

wall bracket, roof bracket

Width x Projection

1.5m

2.0m

2.5m

3.0m

3.5m

√

2.5m

√

2.95m

√

√

3.5m

3.95m

4.5m

√

4.95m

√
