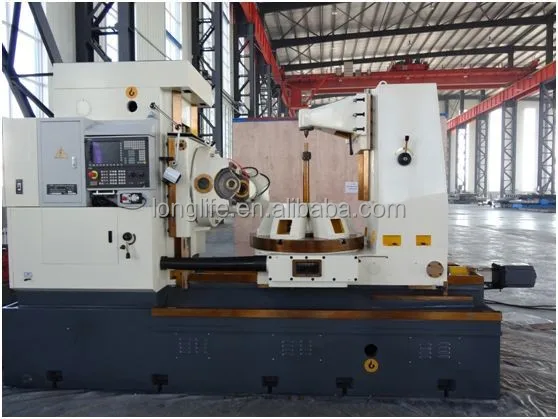

YKL31160 2 оси Зубофрезерный станок с ЧПУ/фрезерный станок с ЧПУ Зубофрезерный станок
- Category: Gear Cutting Machines >>>
- Supplier: Dalian Longlife Machinery Import And Export Co. Ltd.
Share on (60149533537):
Product Overview
Description
YKL31160 cnc gear hobbing machine/cnc gear creator
Main Features
Such cnc gear hobbing machine/cnc gear creator has following features:
1. the YK31160 cnc gear hobbing machine is applicable to produce or process spur gear, helical gear, worm gear and sprocket in batch or piece unit.
2. This machine is provided with the characteristic of excellent steel resistance, high intension, high precision, easy-operating, adjusting and maintaining etc.
3. It can process gear with down milling and up milling method in axial or radial way.
4. the 2 axes under CNC control are:
X-axis: radial feeding
Z-axis: axial feeding
5. CNC system: SIMENS or FANUC, with the CNC System to process crown gear and Small Taper Gear,
Main Technical Data
Specifications | Unit | Parameter |
Max work piece diameter | mm | with rear column: 1300 without rear column: 1600 |
Max module | mm | Steel: 16 Cast iron: 20 |
Max work piece width (Center distance≥400) | mm | 500 |
Distance from cutter axis to table surface | mm | Min.220 max. 740 |
Distance from cutter axis to table axis | mm | Min. 190 max. 940 |
Spindle taper |
| Morse 6 |
Max. size of hob cutter | mm | Max. dia Φ260 Max. length 300 |
Max. travel of toolpost carriage(Z-axis) | mm | 520 |
Worktable dia. | mm | 1000 |
worktable hole dia. | mm | 220 |
Cutter can transplant the shaft diameter | mm | 32/40/50/60 |
Max. longitudinal travel of hub cutter | mm | 100 |
Max. load capacity of worktable | T | 3 |
Worktable diameter | mm | 1200 |
worm gear diameter | mm | 985 |
Worktable hole diameter | mm | 275 |
Taper of mandrel seat for workpiece |
| Morse 6 |
spindle speed steps |
| 7 steps |
Spindle speed range | rpm | 19~125 |
Min. programming amount of X/Z- axis | mm | 0.001 |
Vertical rapid traverse speed of sliding carriage(Z-axis) | m/min | 0.5 |
Rapid traverse speed of worktable(X-axis) | m/min | 0.5 |
Power and rated speed of main motor | kW | N=15 1440 r/min |
Servo motor for Z-axis |
| 1FK7-103 2000 r/min |
Servo motor for X-axis |
| 1FK7-103 2000 r/min |
Power and rated speed for hydraulic oil pump motor | kW | N=1.5 940 r/min |
Power and rated speed for coolant pump motor | kW | N=0.4V 2800 r/min |
Overall dimensions(Lx W x H) | mm | 4082×2390×2520 |
Machine weight | T | 17 |
Free Std Accessories
S.N | Name | Remark |
1 | Main machine | 1 set |
2 | hob arbor assemblies | one set/each |
3 | change gears | a complete set |
4 | tools for installation and setup | 1 set |
5 | Dead Center | 1 pc |
6 | Documents | 1 set |
7 | Foundation bolts | 1 set |
Optional Accessories
Pls send inquiry to me for optioanl accessories and other further information about such cnc gear hobbing machine/cnc gear hobber.

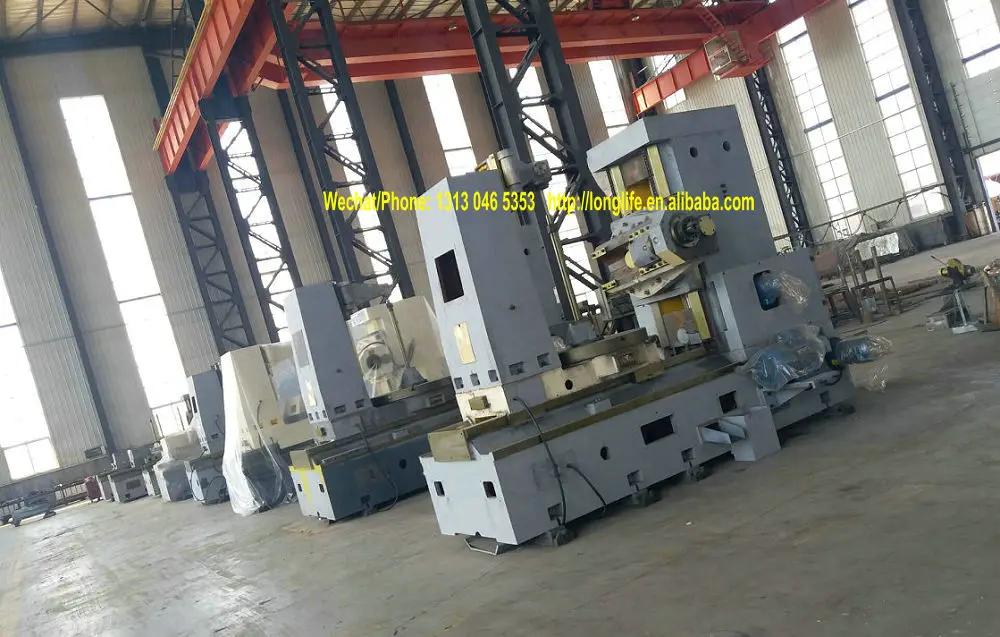

Factory Overview
