polypropylene (PP) corrugated plastic

Product Overview

Description

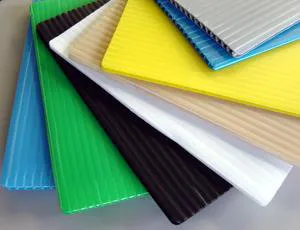

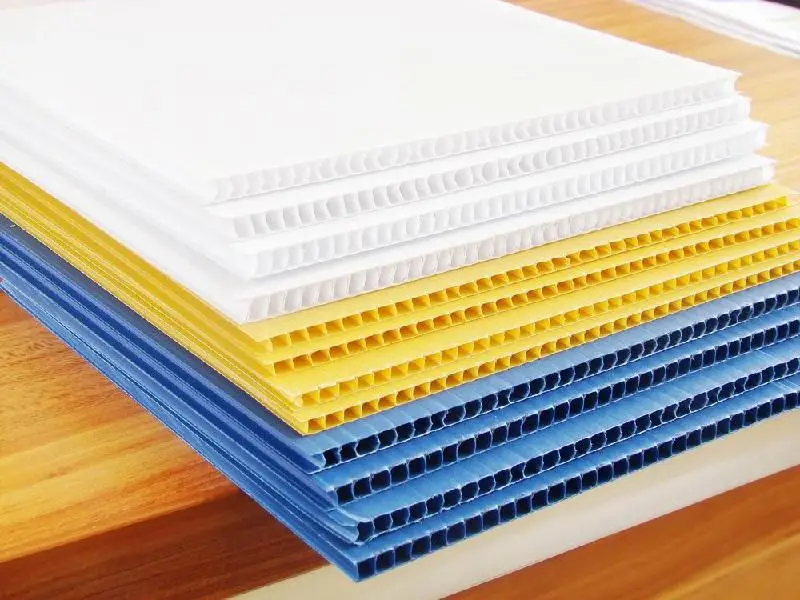

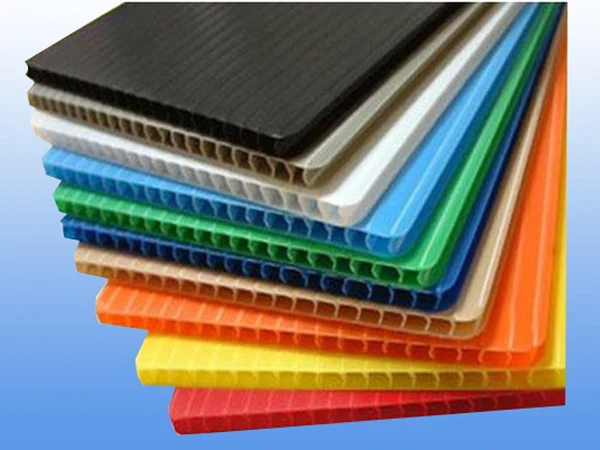

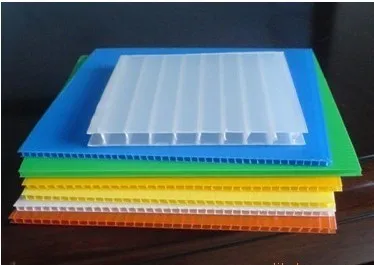

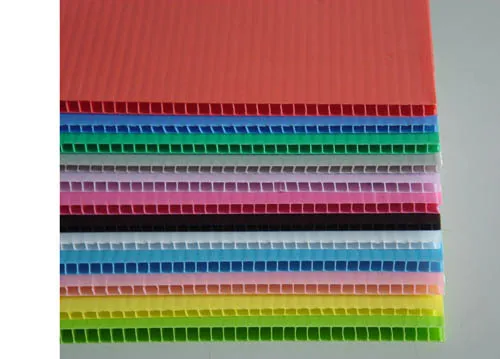

polypropylene pp corrugated plastic sheet





Corrugated plastic or corriboard - also known under the tradenames of Polyflute, Coroplast, IntePro, Proplex, Correx, Twinplast, Corriflute or Corflute - refers to a wide range of extruded twinwall plastic-sheet products produced from high-impact polypropylene resin with a similar make-up to corrugated fiberboard.It is a lightweight (hollow structure), recycled,non-toxic, waterproof, shockproof, long lifespan, corrosion preventive material. Compared with cardboard, corrugated plastic has the advantage of waterproof, colorfast and corrosion preventive. We can offer a wide variety of colors and thicknesses.
It can be altered by an adding anti-static, conductive masterbatch, producing a conductive, anti-static plastic hollow board sheet. The anti-static sheet surface resistivity can be controlled between 10⁶ ~ 10¹¹. Conductive plate surface resistivity can be controlled between 10³~10⁵.

Item	Unit	Thickness & Physical Performance Parameter
		2mm	3mm	4mm	5mm	6mm	7mm	8mm	9mm	10mm
Raw Material		PP	PP	PP	PP	PP	PP	PP	PP	PP
Length	mm	Custom- ization	Custom- ization	Custom- ization	Custom- ization	Custom- ization	Custom- ization	Custom- ization	Custom- ization	Custom- ization
Max. Width	mm	2000	2000	2000	2000	2000	1400	1400	1400	1400
Gram per  Square Meter	GSM	400	450	700	800	1200	1400	1600	1800	2000
Tension  Fracture	N	≥200	≥250	≥300	≥350	≥400	≥450	≥500	≥550	≥600
Elongation  at Break	%	≥50	≥50	≥50	≥50	≥50	≥50	≥50	≥50	≥50
Horizontal  Compression  Ratio	N	≥700	≥900	≥1000	≥2500	≥3000	≥3500	≥4000	≥4500	≥5000
Vertical  Compression  Ratio	N	≥90	≥150	≥350	≥600	≥600	≥700	≥750	≥800	≥1000
Tearing Force	N	≥50	≥60	≥70	≥80	≥100	≥150	≥160	≥180	≥210

Factory direct produce
