AC85-260V 2 Channel RF wireless remote control light switch
Product Description
Product Number
TAD-T30-3000
Operating Voltage
AC85V- AC260V
Frequency
315MHz
Receiver Sensitivity
-105dB
Dim Remoter
136 x 42 x 25mm
Dim Receiver
76 x 55 x 27mm
Channel
2
Transmitter Distance
800m(open area)
Load Capacity
Resistive load: 1000W, Inductive load: 400W
The 2 channel AC220V remote control switch/module kit utilizes the RF protocol to ensure the realizable operations. The systems offer a wireless range of 800 meters operating within the 315MHz, which can be used for controlling many different applications. Idea for remote controlling the pumps, , electrical appliances, garage rolling doors, caravans.
Features
1.Extend driver, AC 85-260V.
2.Controlling distance range up to 900 meters (open area).
3.4 channel complete remote control system supplied with one transmitter.
4.Easy learn transmitter.
5.Adjustable operating mode, toggle, latch and momentary.
6.Independent receiver or transmitter is available.
Receiver parameters:
Working voltage: AC85-260V
Quiescent current: ≤9mA
Relay contact capacity: 10A 250V AC/10A 30VDC
Receiver sensitivity:>-105dB
Dimension:76×55×27mm

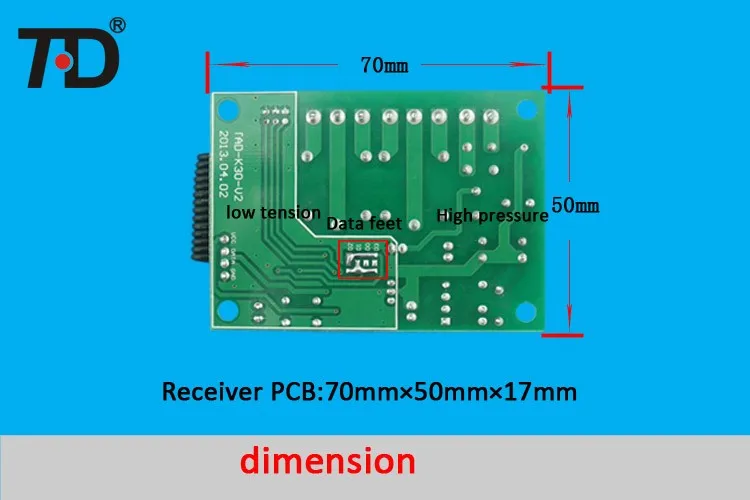

Dimension of naked PCB board (W/O case) 98x60x18mm

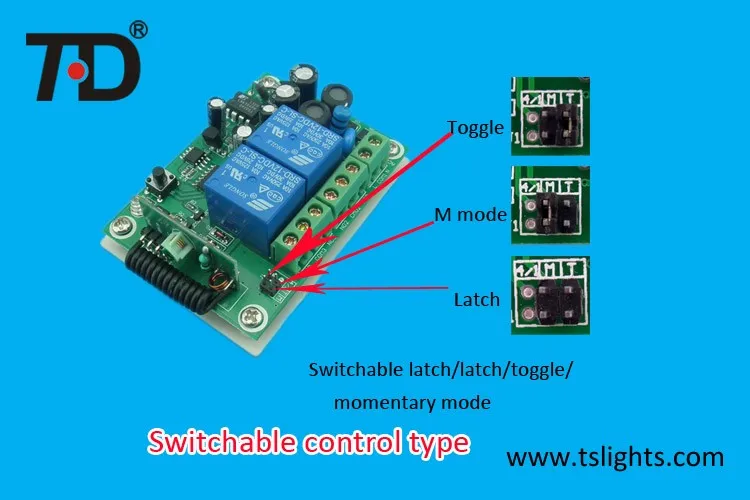

Adjustable operating mode, Toggle mode: short link jumper cap with T;
Momentary mode: short link jumper cap with M.
Latch mode: no short link between T and M.
Note: Please power off before change the operating mode.
Operating channel: 2 Notes
Toggle mode: Self-locking contact. A contact holds until press the same transmitter button again. A, B, C, D channels work independently. Just like the power key of TV remote controller, when you press it, TV on, press again, TV off.
Momentary mode: Press the transmitter button, the relay is on until you release it.
Only one channel can be on at any time. Just like the button of Klaxon, if you press it, Klaxon on, and will turn off once you release it.
Latch mode: Press the transmitter button, the relay is on till you press another one. Four channels latch each other and only one channel can be on at any time. Just like the wind-speed buttons of electronic-fan, press a wind-speed button, the fan runs at a certain speed until you press another button.
Learning a new transmitter
1) Press the learn button until the indicator light turn on then release the button.
2) Press any transmitter button within 15 seconds, the indicator will flicker fast, that means the learning is successful. If there is no any input within 15 seconds, transmitter will automatically escape from learning after the indicator light fast flicker.
Note: Each system can only support for 30 pairing, when learn the 31st one, system will automatically delete paring of first transmitter.
Deleting pairing code
1)Constantly press the Learn button until the indicator light turn on.
2)After 8 seconds, the indicator light will turn off, release the learn button. Then encode have been deleted.

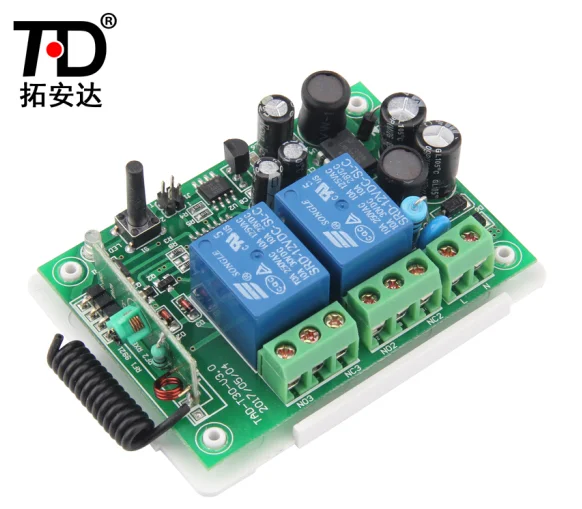

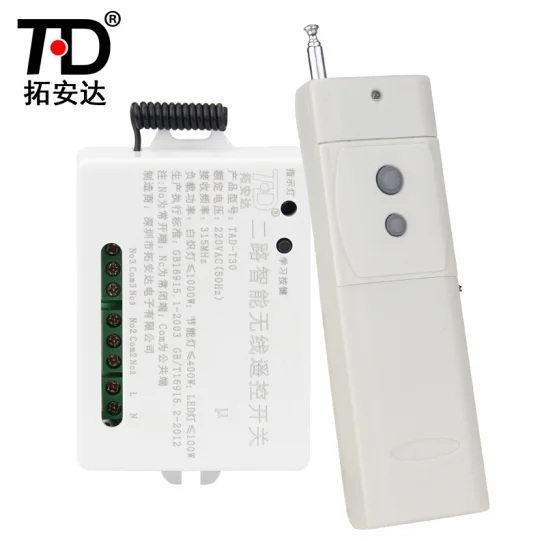

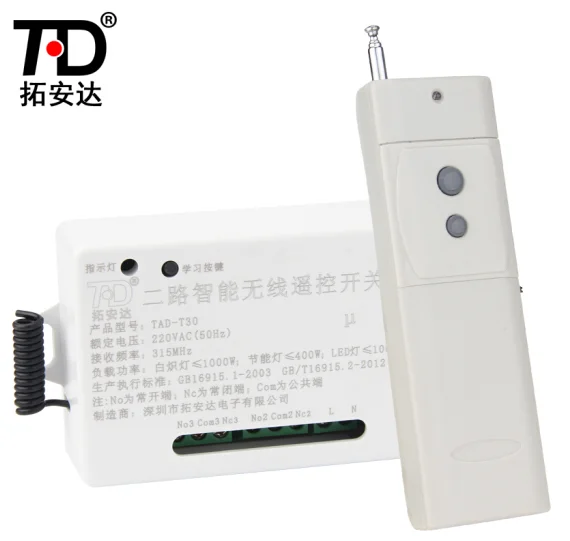

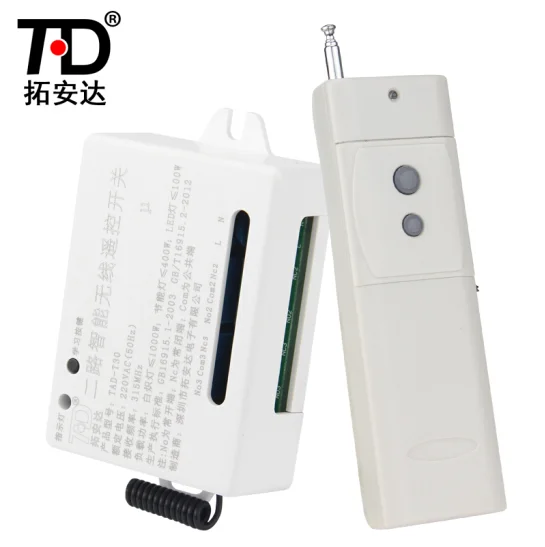

Product pictures

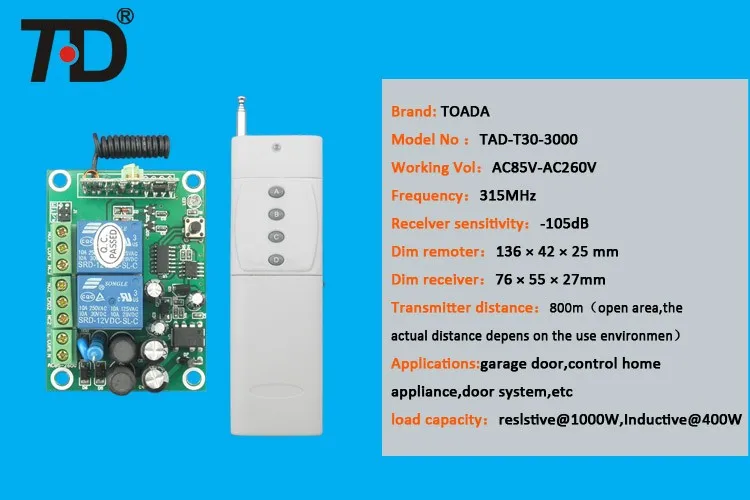

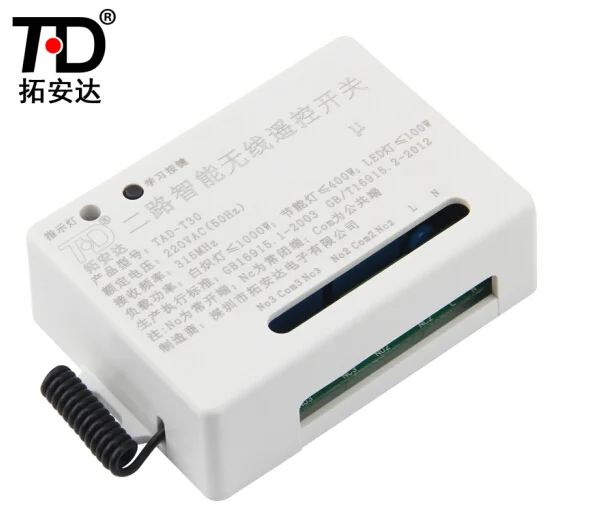

Product Details

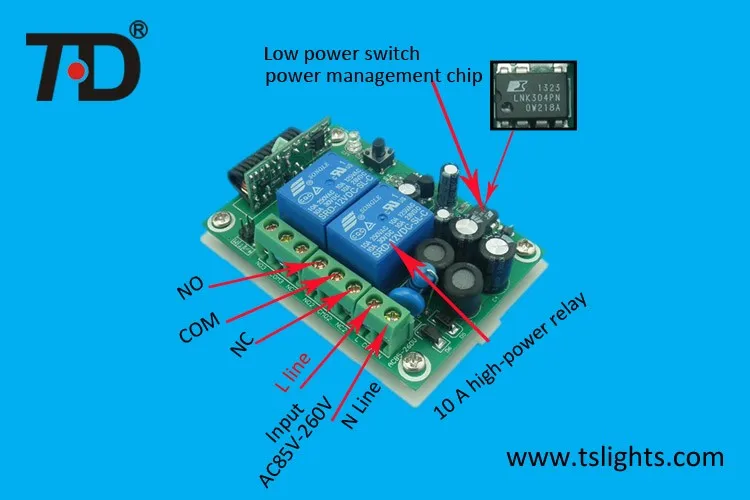

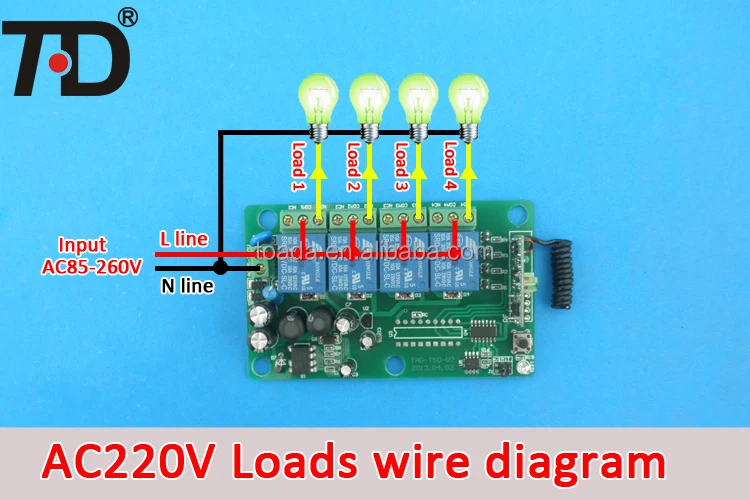

Wiring Diagram
Ideal for use with
Vehicle central locking systems Garage doors Electronic gates Electrical appliances Electric windows Car sunroofs Televisions Lights Fans Heating systems
