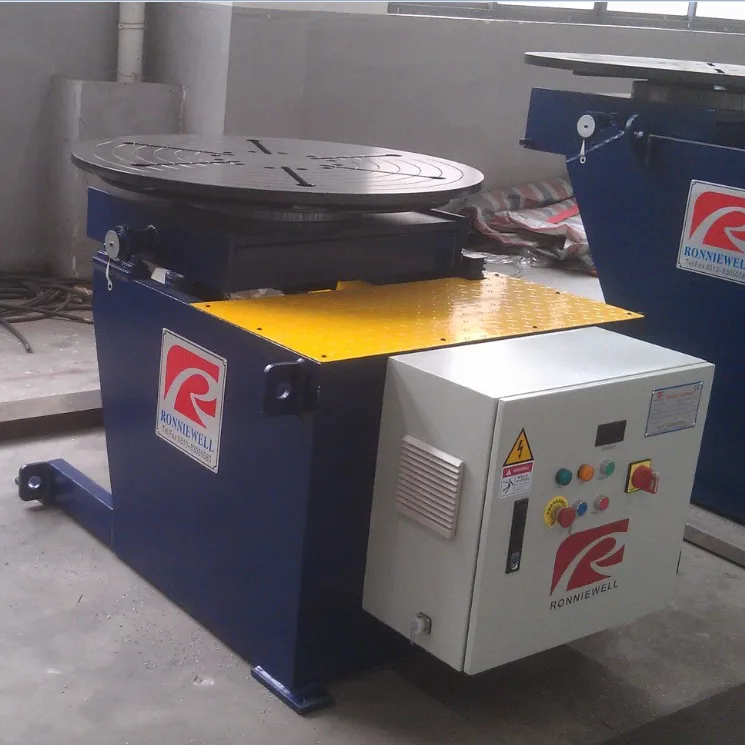

Automatic rotating weld table / 600KG Weld turning table with remote controller

Product Overview

Description

Model:ZHBJ-06 Automatic rotating weld table / 600KG Weld turning table with remote controller



Automatic rotating weld table / Weld turning table Description

1. Automatic rotating weld table / Automatic welding positioner / Weld turning table is mainly composed of worktable revolving unit and tilting unit. With worktable lifting, tilting and revolving, the workpiece fixed on the worktable can be placed to ideal position for welding and assembly.

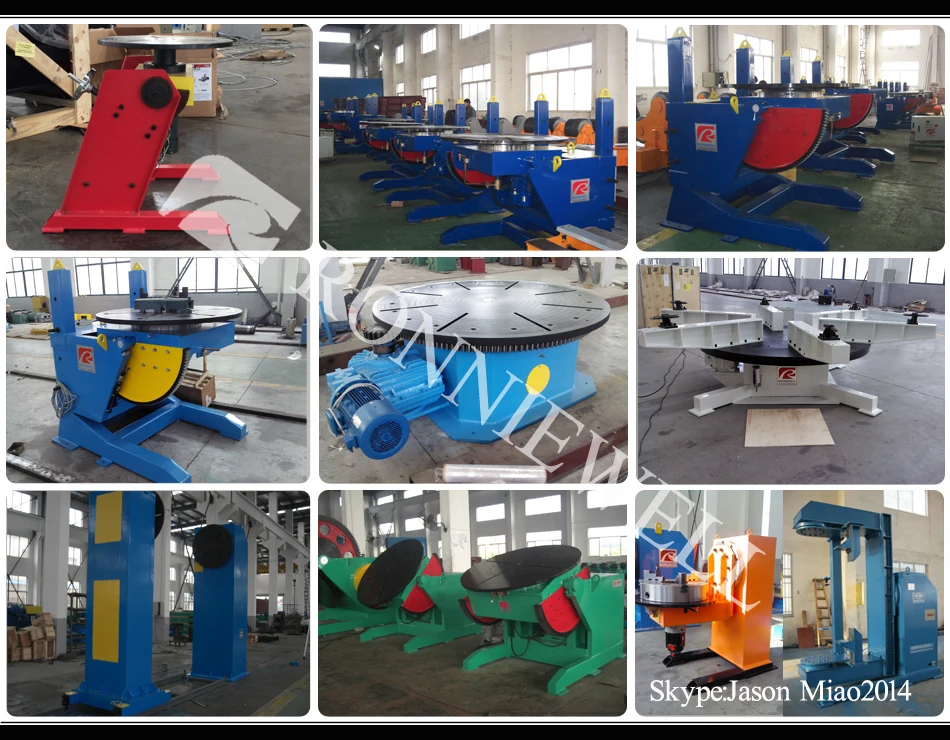

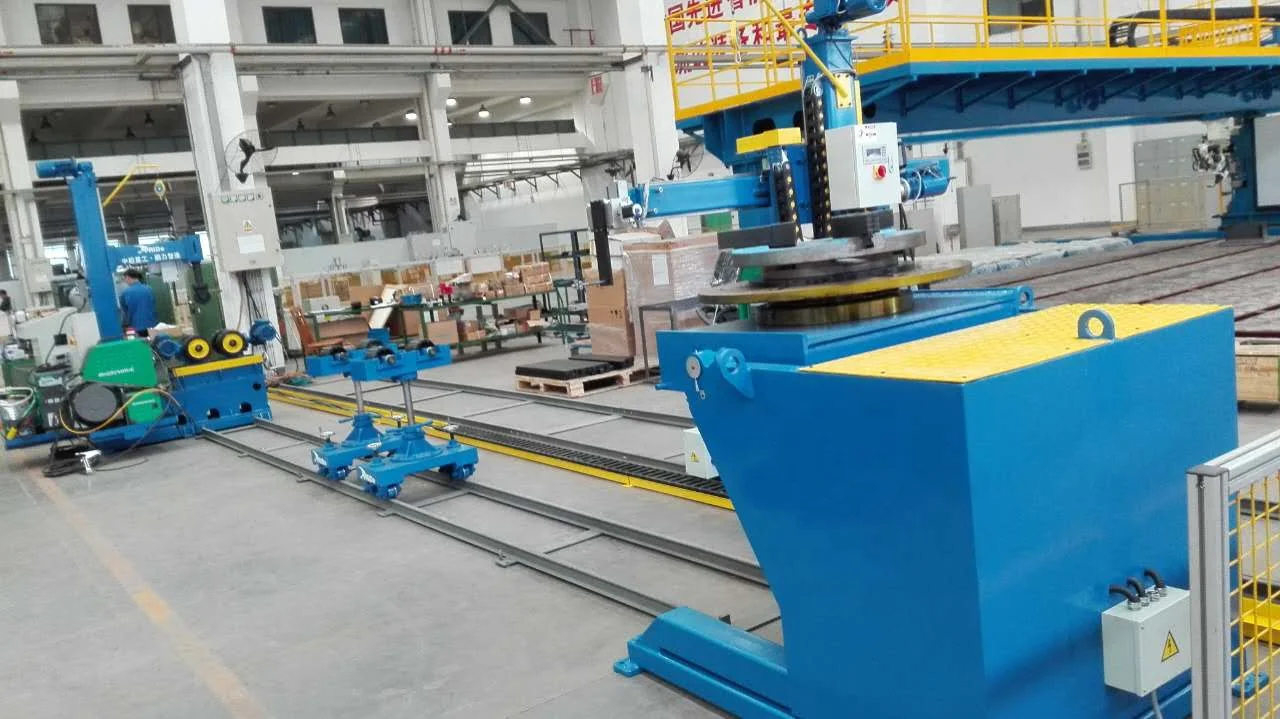

2. Automatic rotating weld table / Automatic welding positioner / Weld turning table can divide into side tilting type , head to tail rotary type, head& tailstock lifting rotary type, head& tailstock tilting type, double rotary type positioner. The positioner can work with welding column& boom to realize the automatic special purpose welding center. As robot peripherals, it can also work with robot to realize automatic welding .

3. We can design and customize the positioners according the customers’ workpiece and welding procedure.



Feature

1.  Automatic rotating weld table / Weld turning table is mainly composed of worktable rotating unit and electric control system.

2.  Automatic rotating weld table / Weld turning table has powered rotating, making the work-piece at ideal position.

3. Worktable rotation is controlled by step-less frequency conversion to achieve a best welding speed.

4. Rotate unit is driven by motor. It has a precise speed-adjusting and reliable position.

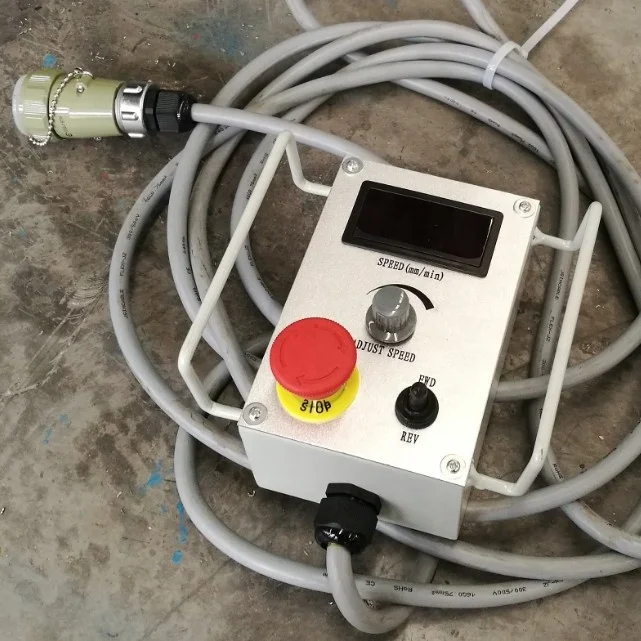

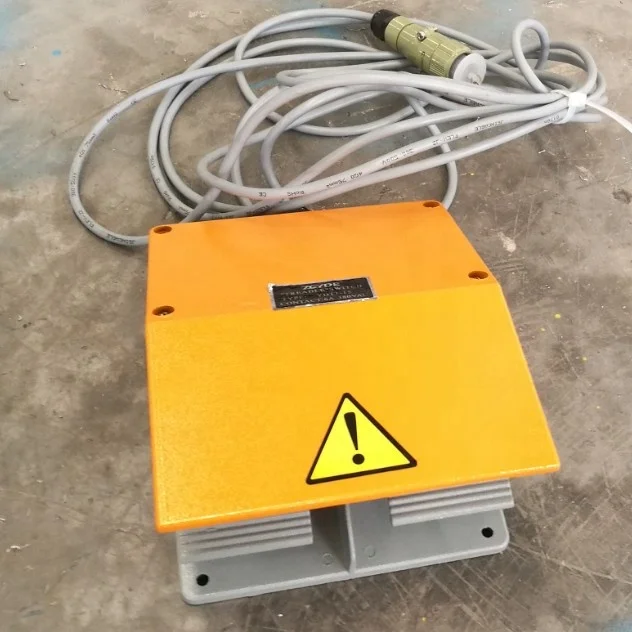

5. Remote control box can realize the remote operation of work bench, also can connect with operating machines to realize linkage operation.

6. Set aside interface to realize linkage work with manipulator and hanging automatic welding machine achieve automatic welding center.

7. Used to pressure vessel, metallurgy, electrical power, chemical industry, mechanical and metal structure.



Application

1. Pressure vessels

2. Pipe manufacturing industries

3. Wind power fabrication

4. Chemical & fuel storage tank fabrication

5. Any heavy cylindrical job



Automatic rotating weld table / Weld turning table Main Technical Parameter

Main technical parameter
Model	ZHBJ-01	ZHBJ-03	ZHBJ-06	ZHBJ-12	ZHBJ-30	ZHBJ-50	ZHBJ-100	ZHBJ-150	ZHBJ-200
Rated loading (kg)	100	300	600	1200	3000	5000	10000	15000	20000
Worktable dia. (mm)	Φ400	Φ600	φ1000	φ1200	φ1400	φ1500	φ1800	φ2000	φ2200
Rotating speed (rpm)	0.4~4	0.15~1.5	0.11~1.1	0.11~1.1	0.11~1.1	0.09~0.9	0.03~0.3	0.03~0.3	0.03~0.3
Speed control	Variable Frequency Drive control for rotation speed
Overturning  speed(rpm)	By manual	By manual	1.1	0.4	0.23	0.2	0.14	0.14	0.14
Overturning  angle(°)	0-90°	0-90°	0°~90°	0°~120°	0°~120°	0°~120°	0°~120°	0°~120°	0°~120°
Rotating motor  power(kW)	0.12	0.18	0.55	0.75	1.5	2.2	3	4	5.5
Overturning motor  power (kW)	/	/	0.75	1.5	2.2	3	4	5.5	7.5
Max eccentricity  distance(mm)	100	100	150	200	200	200	200	200	200
Max gravity center  distance(mm)	150	150	200	250	300	300	400	500	600
Worktable T slot  quantity	4	4	4	6	6	6	6	6	6





 Exhibition



Certificate & Honour









Automatic rotating weld table / Weld turning table Names

Welding positioner,positioner welding , welding rotator , welding table , welding turning table , rotary turning machine , head to tail positioner , welding turning table , automatic rotating weld table , weld turning table , automatic welding positioner .
