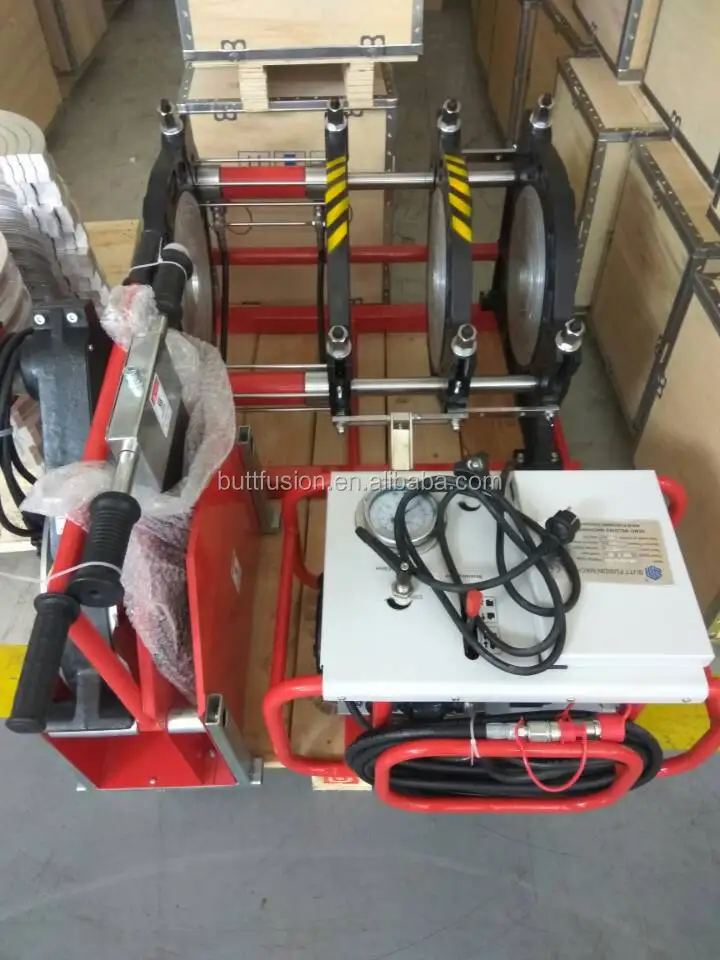

SHD250/63 Hydraulic butt fusion welding machine for pipe OD from 63mm to 250mm
Product Description
Application and features:

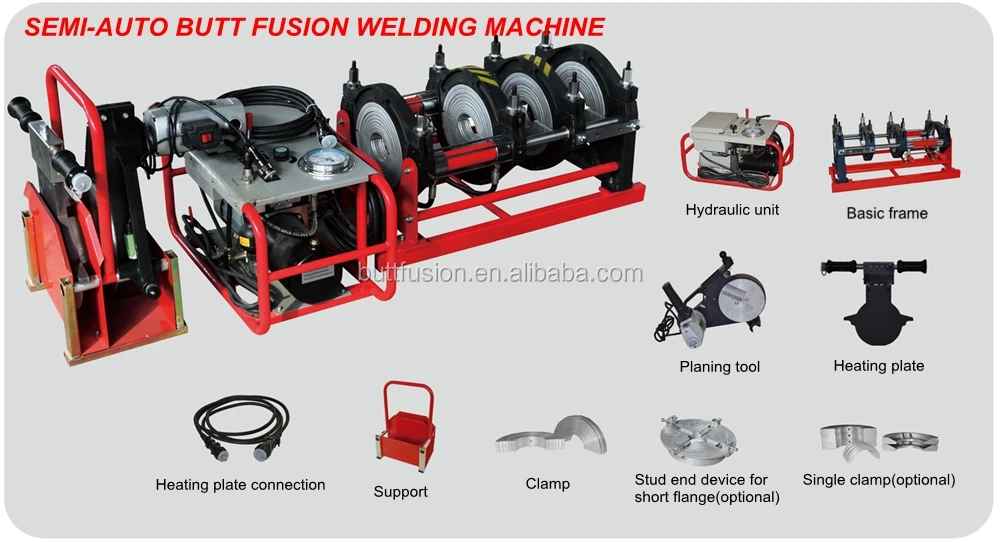

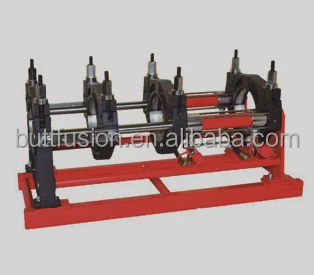

1. Consists of basic frame, hydraulic unit, planing tool, heating plate, support for planing tool & heating plate, and optional parts

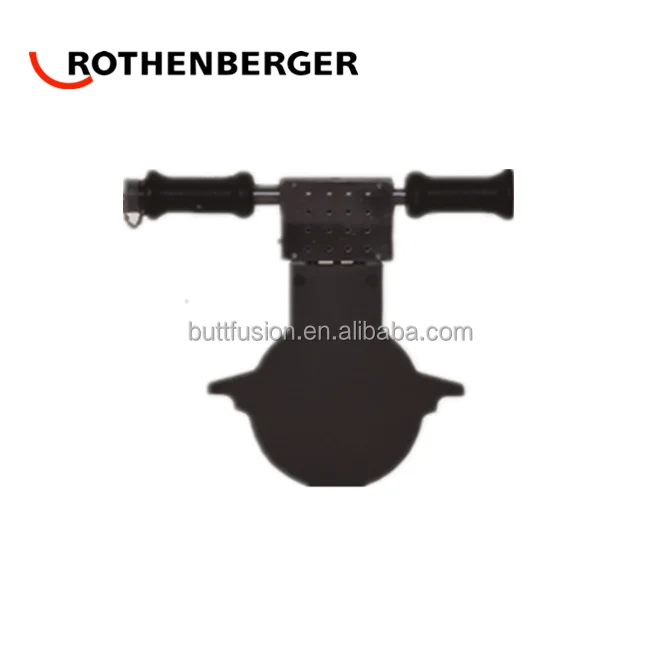

2. Removable PTFE coated heating plate with high accurate temperature control system

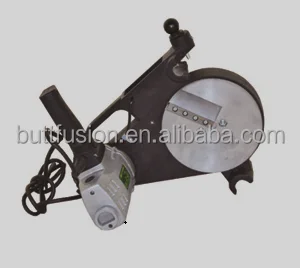

3. Electrical planing tool
4. Be made of lightweight and high strength material; simple structure, small and delicate, user friendly
5. Low starting pressure ensures reliable welding quality of small pipes
6. Changeable welding position enables to weld various fittings more easily
7. High accurate and shockproof pressure meter indicates clearer readings
8. Separate two-channel timer records time in soaking and cooling phases
Technical parameters
| Model | SHD250 |
| Pipe size (mm) | 63,75,90,110,125,140,160,180,200,225,250 |
| Heating plate max. temp | 270 centigrade degrees |
| Temp. deviation in surface | less than ±7 centigrade degrees |
| Pressure adjustable ranges | 0~6.3Mpa |
| Working voltage | 220V 50Hz |
| Heating plate power | 3KW |
| Planing tool power | 1.1KW |
| Hydraulic unit power | 0.75KW |
| Total power | 4.85KW |
| Weight | 143KGS |
| Packing | 3 Plywood cases |
Optional parts:
1. Stub end device for short flange
2. Data logger
