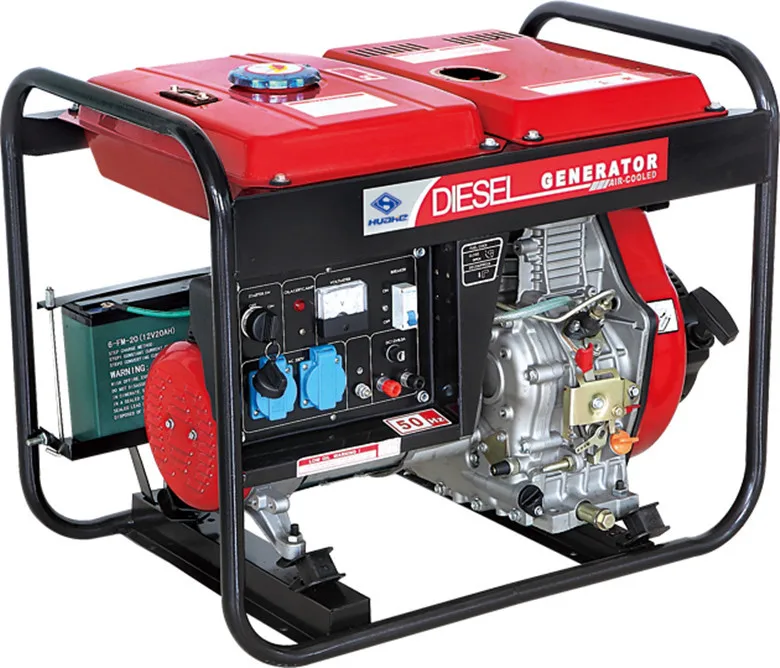

key start diesel generator 5kva diesel consumption,open type diesel generator set

Product Overview

Description

  key start diesel generator 5kva diesel consumption,open type diesel generator set































Technical data

Model		Economical type
		5GF
Generator	Type	Revolving field type 2 pole generator
	Frequency (Hz)	50	60
	Cont. Output (KW)	4.2	5
	Voltage (A.C)(V)	230	240 (120)
	Current (A.C)(A)	18.3	20.8 (41.7)
	Engine speed (r/min)	3000	3600
	Phase	Single phase
	Power factor (COSΦ)	1
	Excitation system	Controlled constant self-excitation
	D.C output V/A	12V/8.3A
	Operation capacity	12 hour constant operation
	Coupling pattern	Straight shaft coupling
Model		186FG
Engine	Type	Direct injection vertical, 4-cycle, air-cooled diesel engine
	Displacement cc (cu.in)	406(24.78)
	Max. output (KW/rpm)	6.6	7.35
	Cont. output (KW/rpm)	5.9	6.6
	Starting system	Recoil start/ Electric start
	Governor system	Centrifugal weight system
	Fuel	Diesel light fuel (BS-AL or equivalent)
	Fuel tank capacity (L)	5.5L
	Lube oil capacity (L)	1.65
	Bore×Stroke	86×70
	Protection system	Low oil, warning system/Stop device (not for L-series)
Unit	Noise level at 7m dB (A)	85
	Dimension (L×W×H) (mm)	745×480×615
	Dry weight (kg)	95















Product Option






5KW Open Type Key Start Diesel Generator Set with Battery





1, Reliable and durable



2, Low fault because of no ignition



3, Convenient in operation



4, Engine:The effective intake and combustion of overhead valve,with easy starting and automatic decompression device;quick response of speed governor;stable transistor ignition system;excellent bearing performance,low vibration of the aluminum connect rod.



5, Oil alert:Oil level under the level line,the engine stops working automatically.



6, Automatic voltage adjustor:Keeping the voltage stable is especially important for sensitive equipment.



7, Fuel meter:Show the varietal of fuel accurately.
