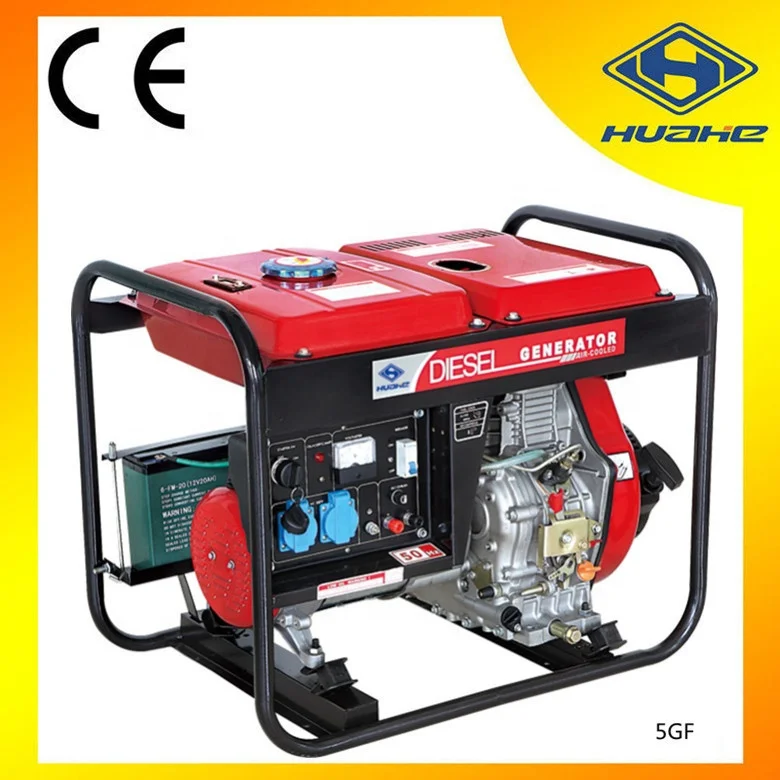

5kva diesel generator fuel consumption per hour,diesel power generator used

Share on (60151541579):


Price:$410.00

Quantity:


Product Overview

Description


  5kva diesel generator fuel consumption per hour,diesel power generator used























































- Technical Data:



































































































































Model



Economical type



5GF





















Generator


















Type



Revolving field type 2 pole generator



Frequency (Hz)



50



60



Cont. Output (KW)



4.2



5



Voltage (A.C)(V)



230



240 (120)



Current (A.C)(A)



18.3



20.8 (41.7)



Engine speed (r/min)



3000



3600



Phase



Single phase



Power factor (COSΦ)



1



Excitation system



Controlled constant self-excitation



D.C output V/A



12V/8.3A



Operation capacity



12 hour constant operation



Coupling pattern



Straight shaft coupling



Model



186FG


















Engine












Type



Direct injection vertical, 4-cycle, air-cooled diesel engine



Displacement cc (cu.in)



406(24.78)



Max. output (KW/rpm)



6.6



7.35



Cont. output (KW/rpm)



5.9



6.6



Starting system



Recoil start/ Electric start



Governor system



Centrifugal weight system



Fuel



Diesel light fuel (BS-AL or equivalent)



Fuel tank capacity (L)



5.5L



Lube oil capacity (L)



1.65



Bore×Stroke



86×70



Protection system



Low oil, warning system/Stop device (not for L-series)






Unit






Noise level at 7m dB (A)



85



Dimension (L×W×H) (mm)



745×480×615



Dry weight (kg)



95
























Product Option






5KW Open Type Key Start Diesel Generator Set with Battery





1, Reliable and durable





2, Low fault because of no ignition





3, Can be widely used in highways, railways, airports, factories, hospitals





4, Engine:The effective intake and combustion of overhead valve,with easy starting and automatic decompression device;quick response of speed governor;stable transistor ignition system;excellent bearing performance,low vibration of the aluminum connect rod.





5, Oil alert:Oil level under the level line,the engine stops working automatically.





6, Automatic voltage adjustor:Keeping the voltage stable is especially important for sensitive equipment.





7, Fuel meter:Show the varietal of fuel accurately.
