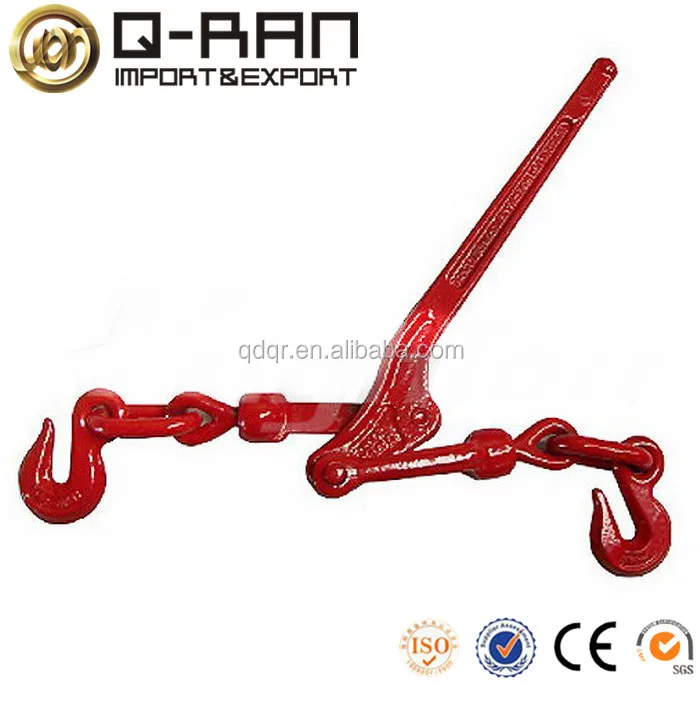

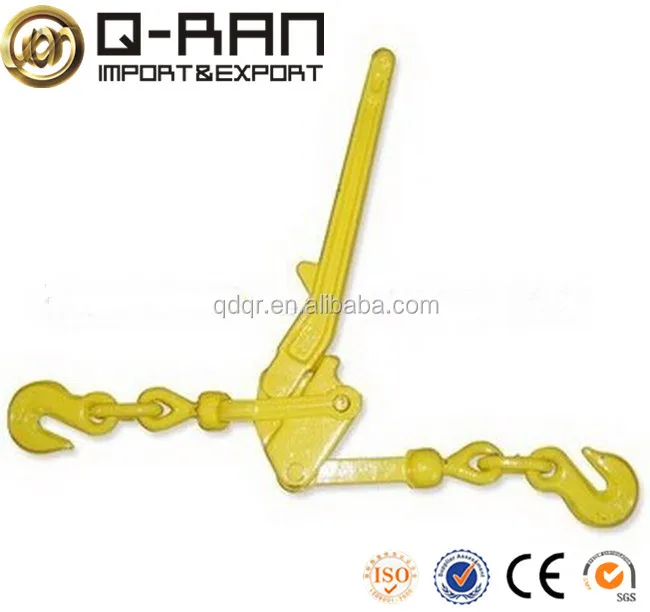

Types of Load Binder/Drop Forged Ratchet and Lever Load Binders
- Category: >>>
- Supplier: Qingdao Q-Ran Import & Export Co. Ltd.
Share on (60151630438):
Product Overview
Description
Product Description
Types of Load Binders
| Product Name | Types of Load Binder/Drop Forged Ratchet and Lever Load Binders |
| Place of Origin | Shandong,China |
| Brand Name | Q-RAN |
| Model Number | U.S.Type |
| Technology | Drop Forged or Casting |
| Material | Carbon Steel and Alloy Steel |
| Surface | Galvanized/Powder Coated |
| Size | 5/16-3/8 to 1/4-5/16(inch) |
| Delivery | Within 30 Days |
| Using for | Lifting |
Min-Max Chain Size(in.) | Working Load Limit(lbs.) | Proof Load(lbs) | Ultimate Load(lbs.) | Weight Each(lbs.) | Handle Length(in.) | Dimensions(in.) | |||||||
| A | B | C | E | E1 | F | F1 | G | ||||||
| 5/16-3/8 | 5400 | 10800 | 19000 | 10.5 | 13.92 | 13.92 | 1.3 | 2.6 | 22.64 | 30.64 | 25.24 | 33.24 | 0.51 |
| 3/8-1/2 | 9200 | 18400 | 33000 | 12.9 | 13.92 | 13.92 | 1.3 | 2.6 | 24.13 | 32.13 | 12.2 | 35.04 | 0.59 |
| 1/2-5/8 | 13000 | 26000 | 46000 | 14.38 | 21 | 13.92 | 1.3 | 2.6 | 26.45 | 34.45 | 30.07 | 38.07 | 0.74 |
| 1/4-5/16 | 2600 | 5200 | 9200 | 3.52 | 7.16 | 7.16 | 0.89 | 1.17 | 1622 | 21.26 | 17.79 | 22.83 | 0.35 |

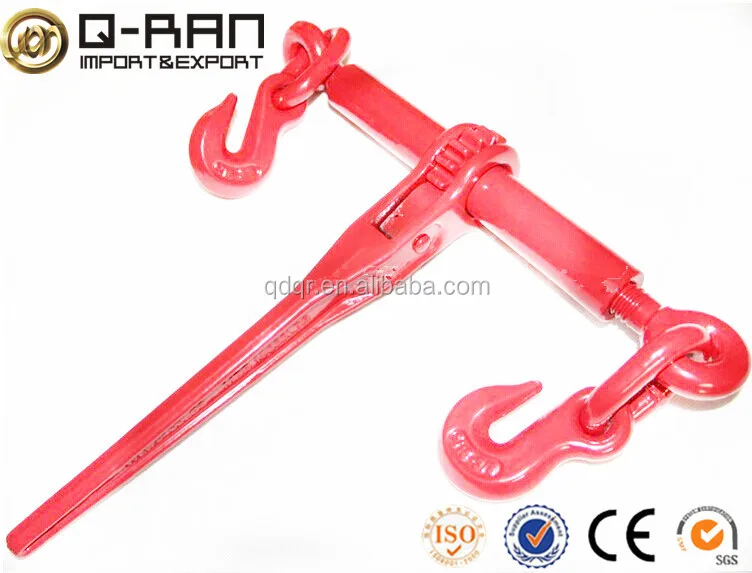

Ratchet Load Binders
Applications:
Packaging & Shipping
Types of Load Binders
| Product | Types of Load Binder/Drop Forged Ratchet and Lever Load Binders |
| Packing | Gunny Sacks and Steel Pallet |
| Delivery Time | Within 30 Days |
| Port | Qingdao,Shanghai,Tianjin |
Our Services
Why choose us?
| High quality products |
Raw materials |
Professional staffs |
| Skillful workers |
Powerful teams |
We follow up from material preparation to delivery,profession in shipping,fast delivery,packed well in container.Specifications and marks can be produced according to the customers's requirements.SO,click the mouse to make an order to us.
Company Information
Our company has advanced production equipment and technical force, the main production of forging, card head, American malleable steel clamping head, 741 galvanized malleable clip, A type galvanized malleable clip, ring screw, nut, DIN582 DIN580, rings and other precision forging. Products are exported to Southeast Asia, Europe, American, Japan, South Korea, Hongkong, Taiwan and other twenty countries and regions. Since the product into the market, by the vast numbers of users and trust .
Fast delivery in short time,best quality of our products,first class in our service,the more you order,the cheaper you got.
