Waterproof 12mm WS2811 RGB LED Pixel/Pixel LED/UCS1903 LED Pixel Light; round shape; 5v: ip68

Product Overview

Description



Waterproof 12mm WS2811 RGB LED Pixel/Pixel LED/UCS1903 LED Pixel Light; round shape; 5v: ip68



Products Name	RGB LED Pixel/Pixel LED/LPD 6803 LED Pixel Light
Model NO.	SC-WS2811-50-5-R
Power Consumption	0.3W
Work Voltage	DC5V
Work Current	60mA
Beam Angle	120°-140°
LED Encapsulation	Straw Hat LED
LED Quantity	1pcs
LED Type	Low power LED
Color	Full Color
FPC Color	White
Dimension	Diameter12mm
Waterproof Grade	IP68
Work Temperature	-30-60deg
Light Decay	Less Than 1% After 1,000H
Life-span	50,000H
Certificate	CE&ROHS
Every Bag	50pcs
Warranty	3 years





Operation Instructions:
50pcs of each string, 3A/string. User can use paralleling for multiple strings, each string running a loop, to avoid the nonuniform color which caused by the voltage drop, the thickness of power cord should not less than 2.5mm2.
Keep it in a well-ventilated environment, which good for heat dissipation.
The Green wire is data, Red wire connect with positive pole on the power supply,  yellow wire connect with negative pole and controller’s GND port, green wire is connect to controller DAT port. Do not reversal!



Features:
The led lamp diameter is 12mm, punching 12mm hole.
It’s cuttable.
According to the signboard hanging height, the distance between lamps should be within 5-8cm.
This lamp use special optical lens, high light transmittance. protect chip from moist, Unti-UV, thermostability, cold-resistant, anti-corrosion, and anti,acid-base, etc, more longer life time.

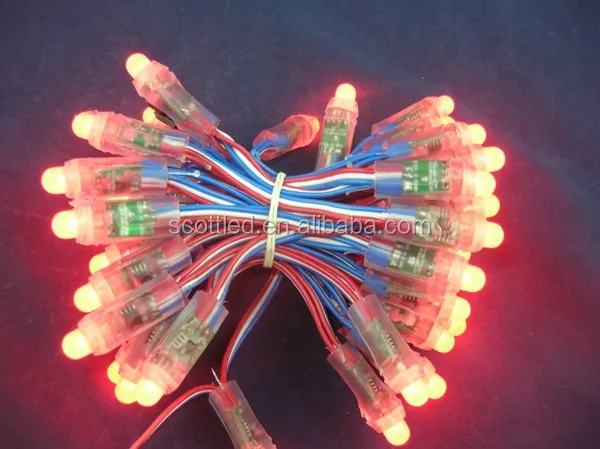

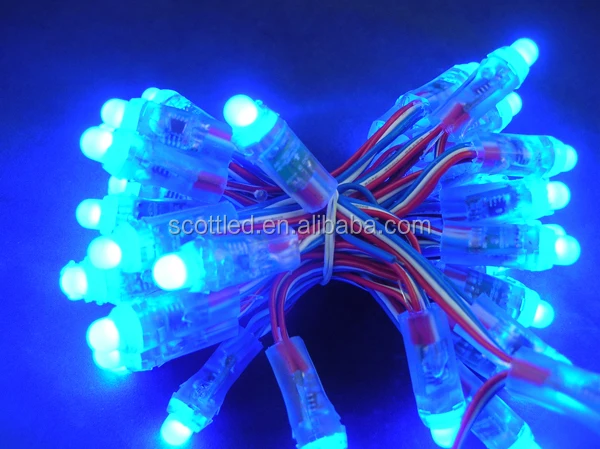

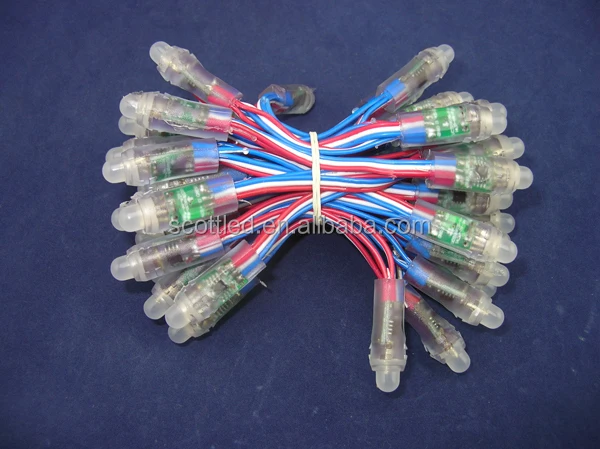

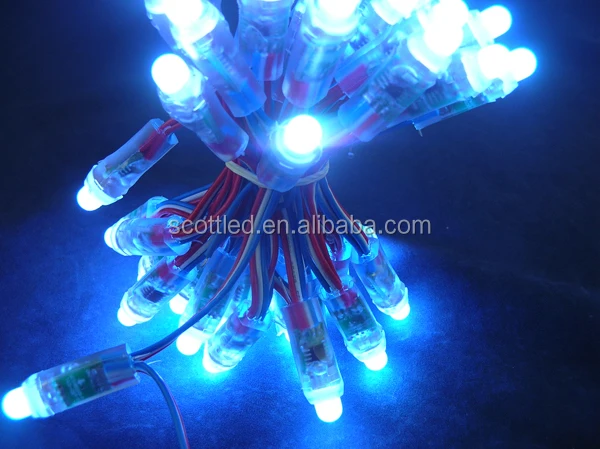

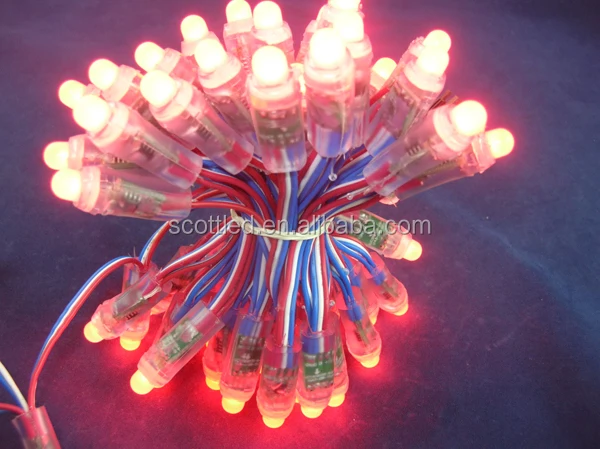

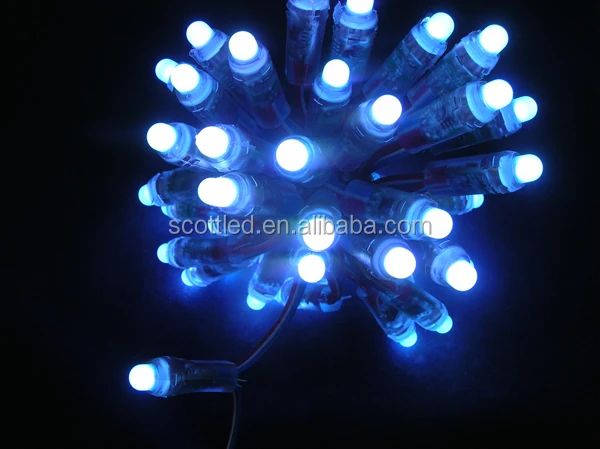

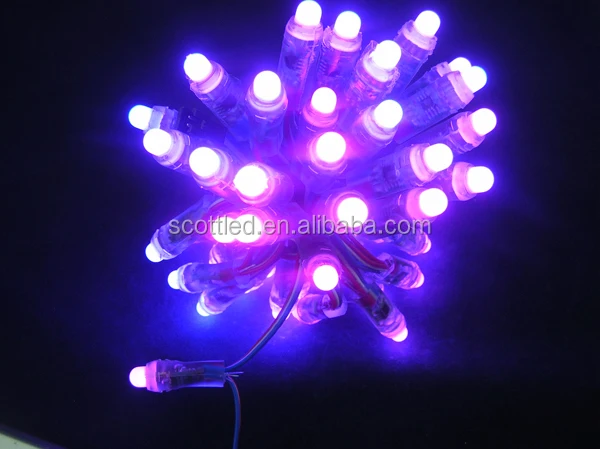

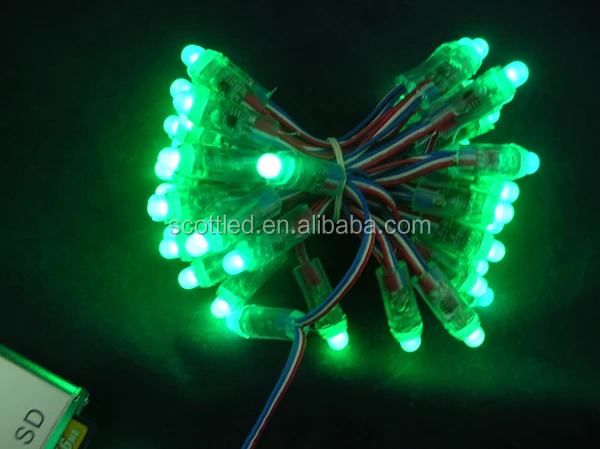

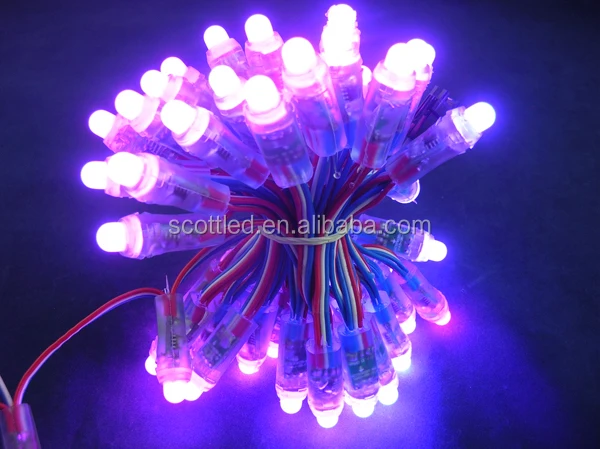

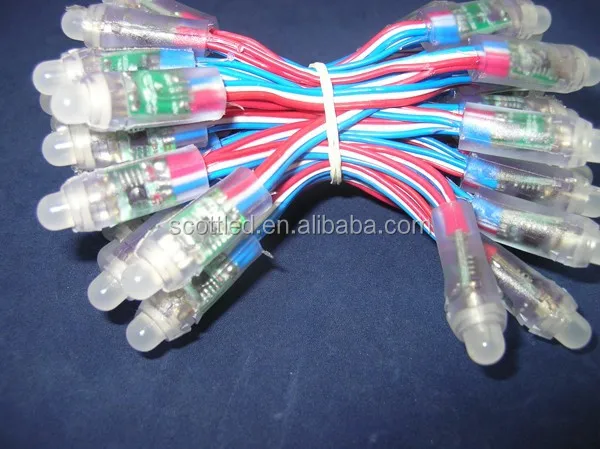

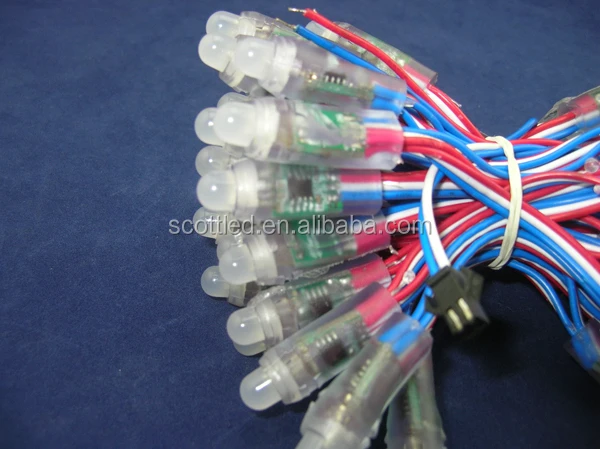

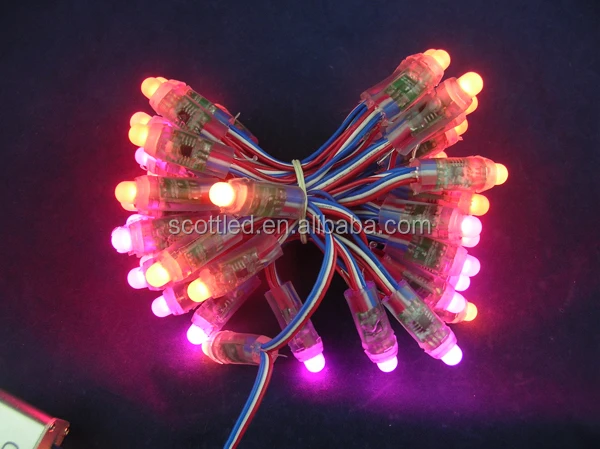

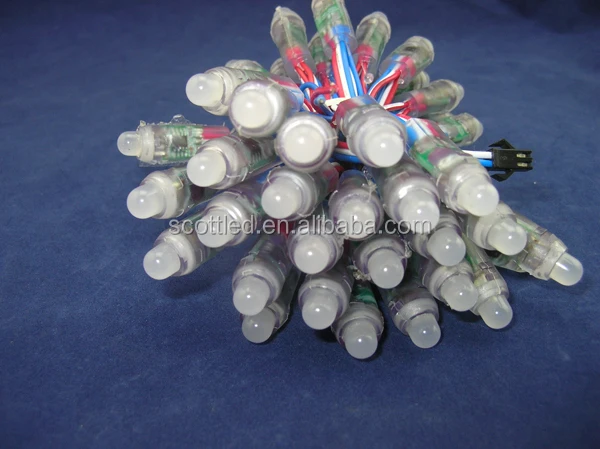

Photos
