stainless steel 30w led explosion proof coal mining tunnel light
- Category: >>>
- Supplier: Shenzhen Gf Technology Development Ltd.
Share on (60152013642):
Product Overview
Description
stainless steel 30w led explosion proof coal mining tunnel light
Product Description
This model is widely used for tunnel illumination of underground mines, food manufacturer,industry plant and offshore oil plant, which has potential explosive atmospheres or combustible dust, sulfide or salt in the air.
Advantages of stainless steel 30w led explosion proof coal mining tunnel light
Absolutely corrosion proof, explosion proof, ATEX Approved DMT-30 IP68 explosion proof lighting fixture is a very good item for coal mine, metal mine and offshore oil plant;
Reducing energy by 7 times, the energy you saved for one year using is enough to buy the lamp.
Very long lifetime, and no maintenance cost.

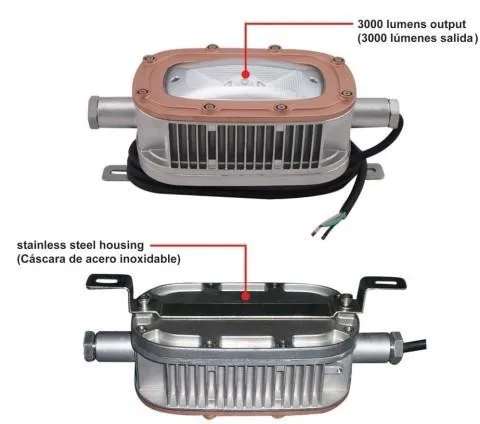

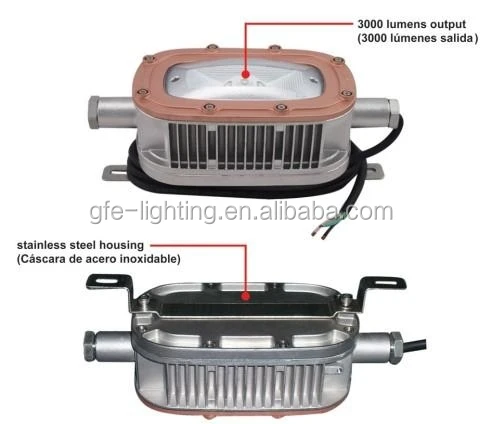

Housing material:
stainless steel with nickel plated, absolutely corrosion proof
bulletproof PC lens with antistatic oil painted, which can support more than 20J impact, no need metal mesh as normal light
Light source:
6pcs American CREE XM LED, total power 30 watt,
initial output lumens is 3000 lumens.
Life time: more than 50,000 hours
CRI: 78, color temperature: 6500K
Patented reflectors enable the lamp to illuminate the underground passage uniformly, 160 degree beam angle in longituginal plane, and 120 degree in transverse plane
Electrical:
Input: AC85-265V, 50/60HZ, or DC24-36V, no critical to voltage drops.
Total power consumption is only 33watt, .reducing energy consumption by 7 times.
Long life span, and no maintenance cost, absolutely corrosion proof, explosion proof, dust proof and water proof.
Rated:
water proof: IP67
Corrosion proof: WF2
EXD 1 for MI,
EXD IIB T5 for MII, Zone 1 and 2, Zone 21 and 22
Approval:
ATEX (In process)
FCC
CE
FM (in process)
Specifications of stainless steel 30w led explosion proof coal mining tunnel light
| Total power consumption: | 30watt | |||||
| Input voltage: | AC85-265V, or DC24-36V | |||||
| Power factor (λ): | >0.9 | |||||
| High power LED brand: | CREE | |||||
| CRI: | 78 | |||||
| CCT: | 6500K | |||||
| Output lumens: | 3000 lumens | |||||
| Corrosion proof grade: | WF2 | |||||
| IP Classification: | IP68 | |||||
| Explosion protection classification: | EXD I, EXD IIB T5 | |||||
| Equipment category: | MI, MII | |||||
| Area classifications (gases): | Zone 1 and 2 | |||||
| Gas Group: | IIA, IIB, | |||||
| Area classification (dusts): | Zone 21 and 22 | |||||
| Temperature classification: | T5 | |||||
| Dimension: | 24 * 12 * 8.9cm | |||||
| weight: | 5kg | |||||

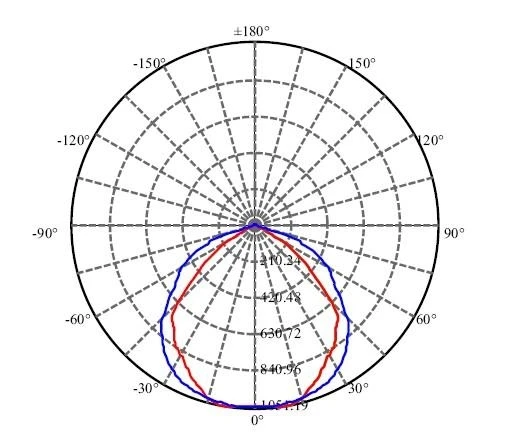

Light distribution Curve:

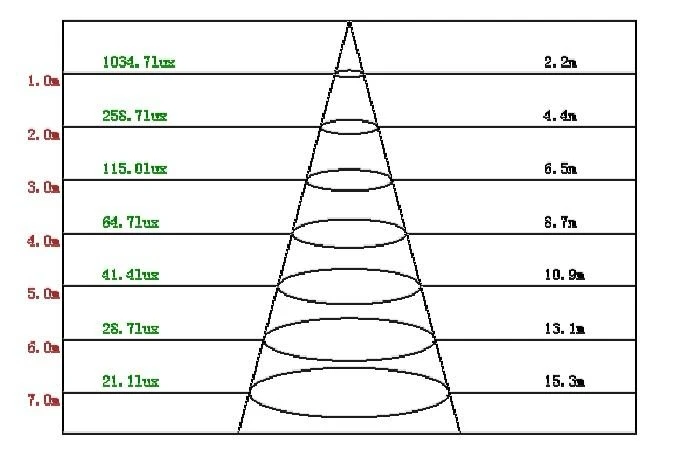

Lux Distance Curve:

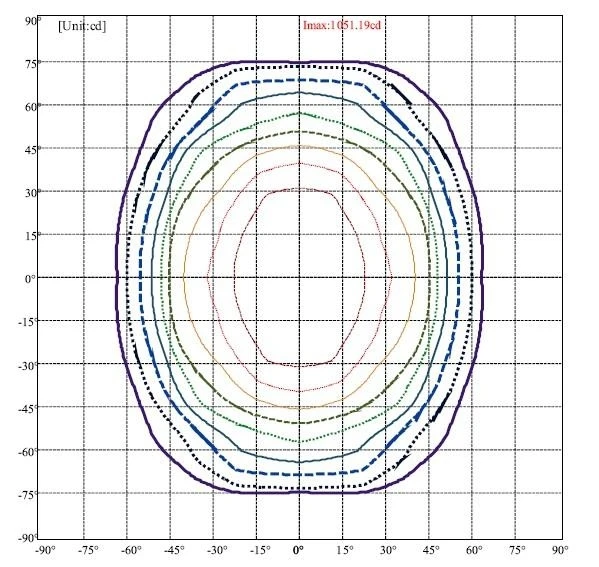

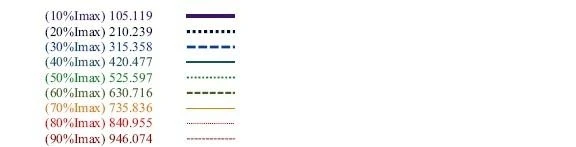

ISO Intensity:

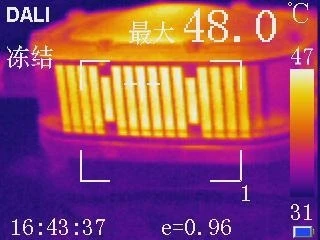

Housing temperature under working: less than 50 degree
tested by infrared temperature meter
Packaging & Shipping
The packing details of ip68 waterproof cree led coal mine tunnel light is 1 pc in one carton, gross weight: 5.6kg
Our Services
Being focused on LED products, provide good quality, quick delivery, AQ discount for all customers.
1. For all your inquires, we will reply you in detail within 24 hours.
2. OEM/ODM services. Print your own logo on product, can customize retail box packing and other things.
3. We have sales who have engage in LED many years to provide custom-made the sales solution.
4. We have engineers who has the experience of projects to solve the problems of technical.
5. We have very experienced R&D engineers and we have strong ability to do ODM projects.
Looking forward to cooperating with you.
FAQ
Q: 1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q: 2. What is the lead time?
A:Sample needs 7-10days, mass production time needs 25-30days.
Q: 3. Do you have any MOQ limit?
A: Our MOQ EXW is 1 pc for sample; MOQ FOB is 200pcs.(Depends on different type battery/battery pack)
Q: 4. How do you ship the goods and how long does it take arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 5-7 days to arrive.
Q: 5. How to proceed the order when customer order products?
A: Inquiry-Confirmation-Send Proforma Invoice-Customer make payment-Arrange production-ship the goods to customers-Confirmation-Finish.
Q: 6. How to make this payment?
A: TT, Paypal, Western Union.
Q: 7. Do you offer guarantee for the products?
A: Yes, we offer one year guarantee for the products.
Q: 8. Do you accept OEM/ODM?
A: Yes, it’s available.
