Supercritical co2 Extractor/Machine in Herbal/Plant Extract

Product Overview

Description



BETTER  Supercritical co2 Extractor







1. General introduction of Supercritical co2 Extractor



1. This Supercritical co2 Extractor is multi-function SCFE equipment, the working mode is intermittent or continuous way to extract solvent from solid or liquid material, the additive can be add to the supercritical fluid;

2. The system has one extractor and two separators

3. The highest working pressure of solid extractor is 50Mpa, the highest working temperature is 85℃;

4. The design of pressure vessels according the related national standard and rule demand and with over pressure protection system which means enough safety valves;

5.  The whole equipment beauty, safety and easy operation, pressure temperature flow number can be showed from pressure meter and digital instrument. The material of pipe parts, valves, pipe lines, are all stainless steel(1Cr18Ni9Ti).





2. Main configuration for Supercritical co2 Extractor



1.The air source part

2.Cooling part



3.Power supply part



4.Purifying filtration system



5.The extraction kettle



6.Separate kettle



7.Preheater



8. Thermodynamic cycle



9.Flowmeter



10.Heating control system



11. Vibration-proof pressure gauge pressure gauge



12. Safety protection device

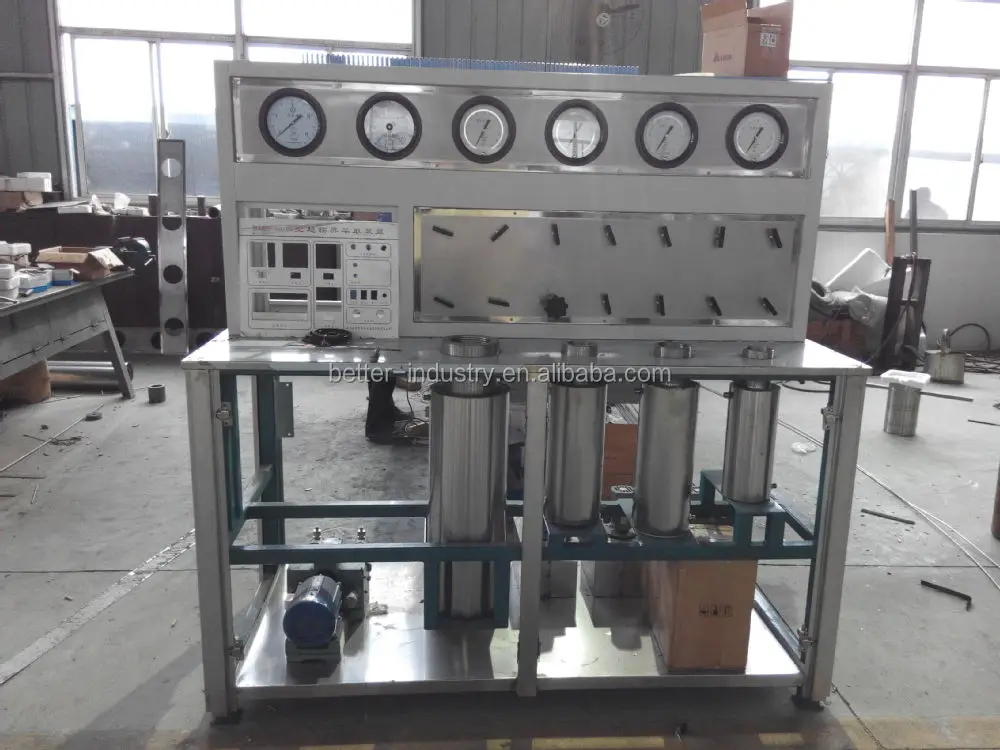

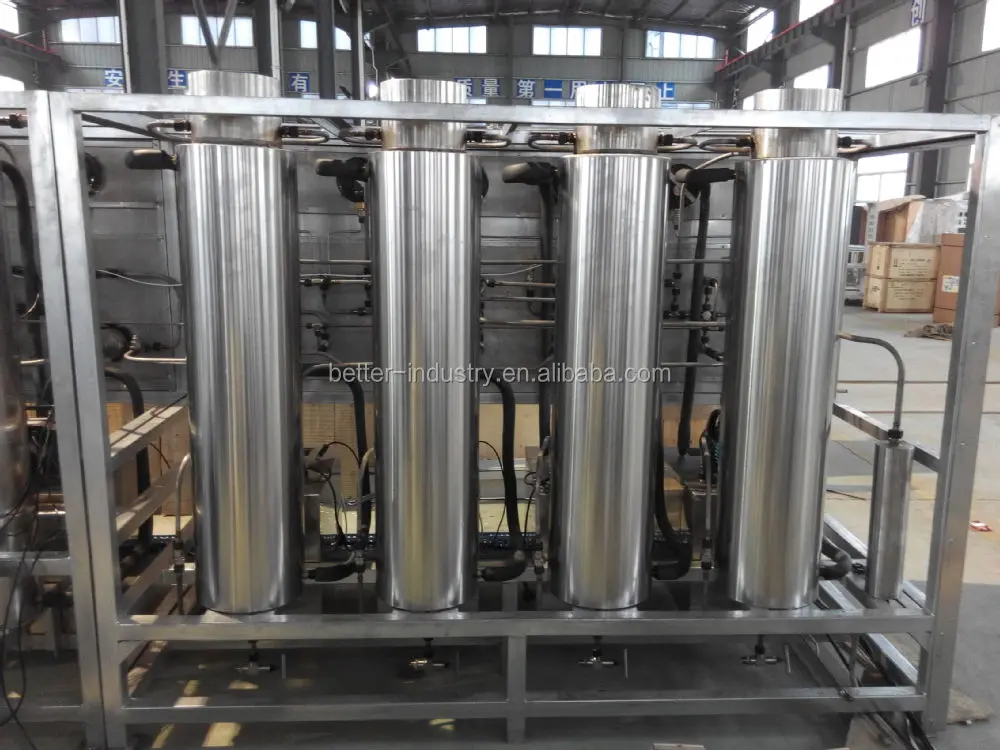

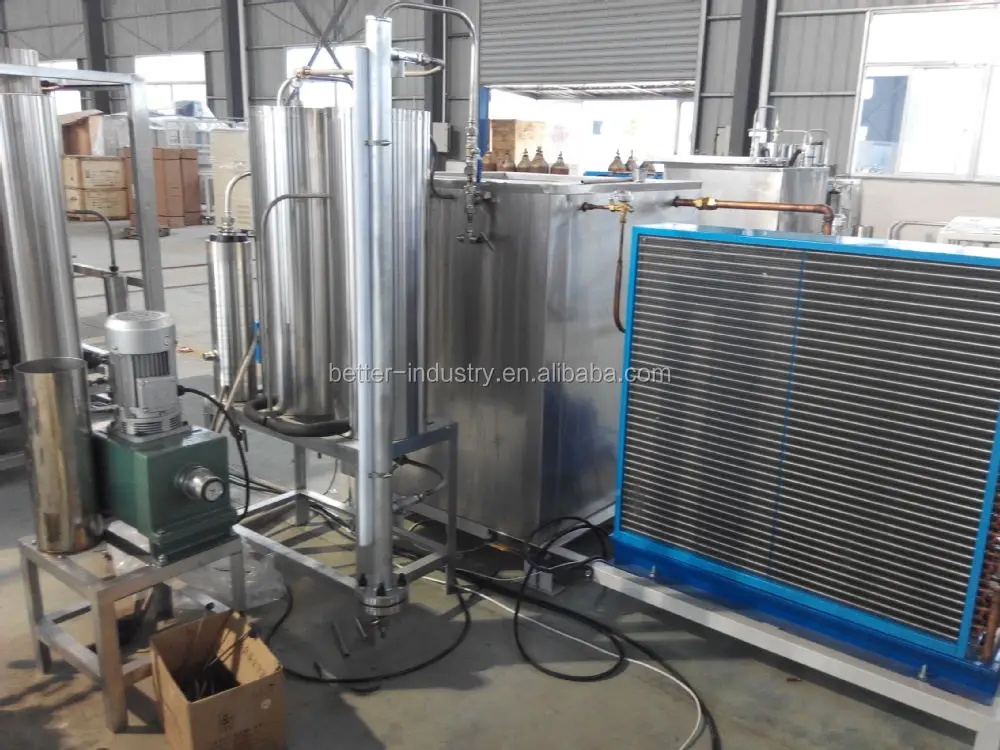

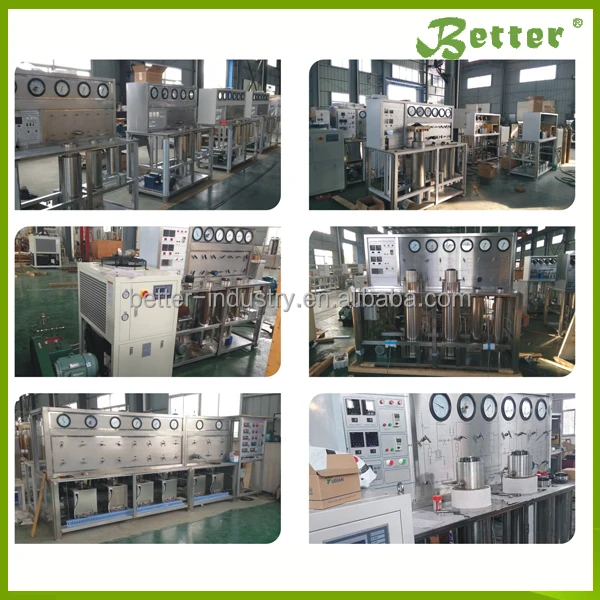

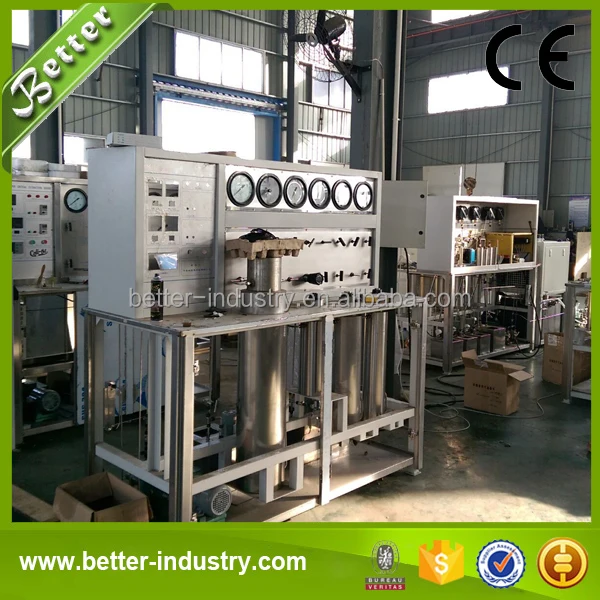

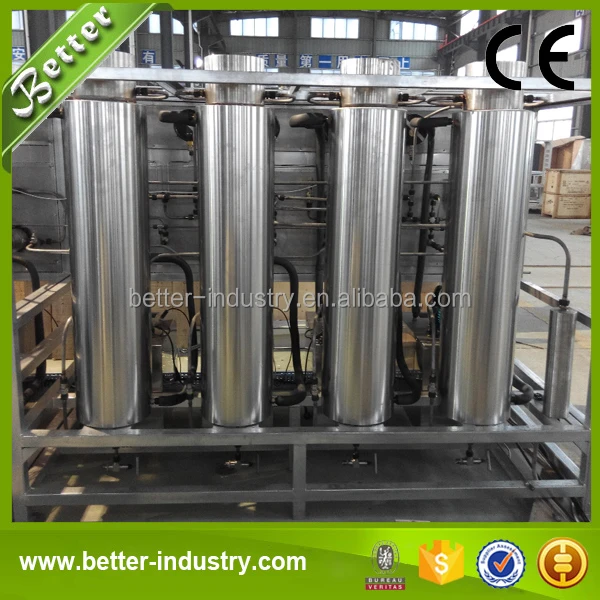

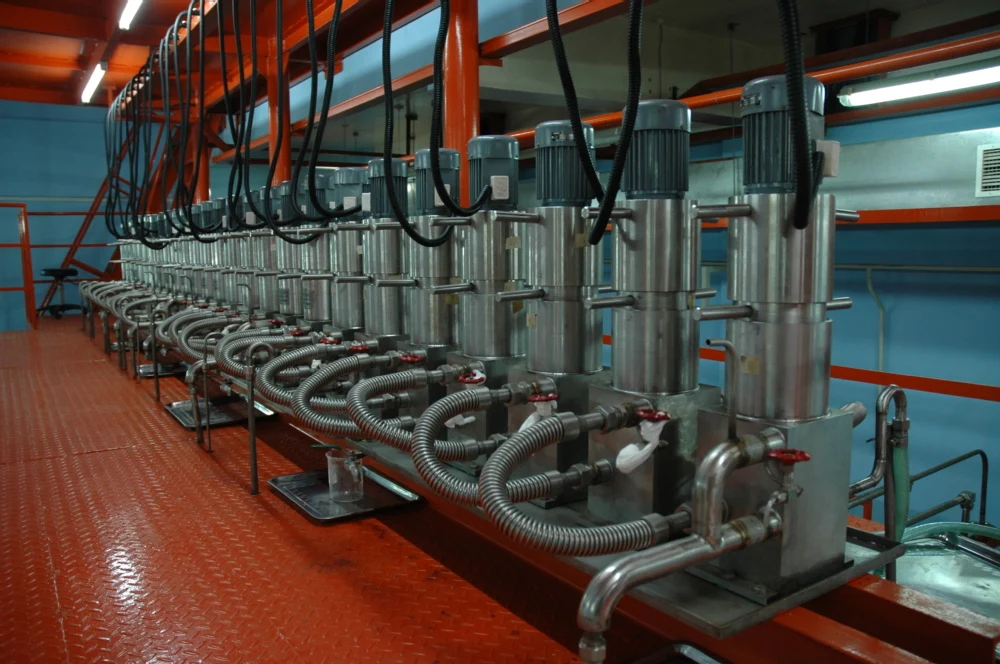

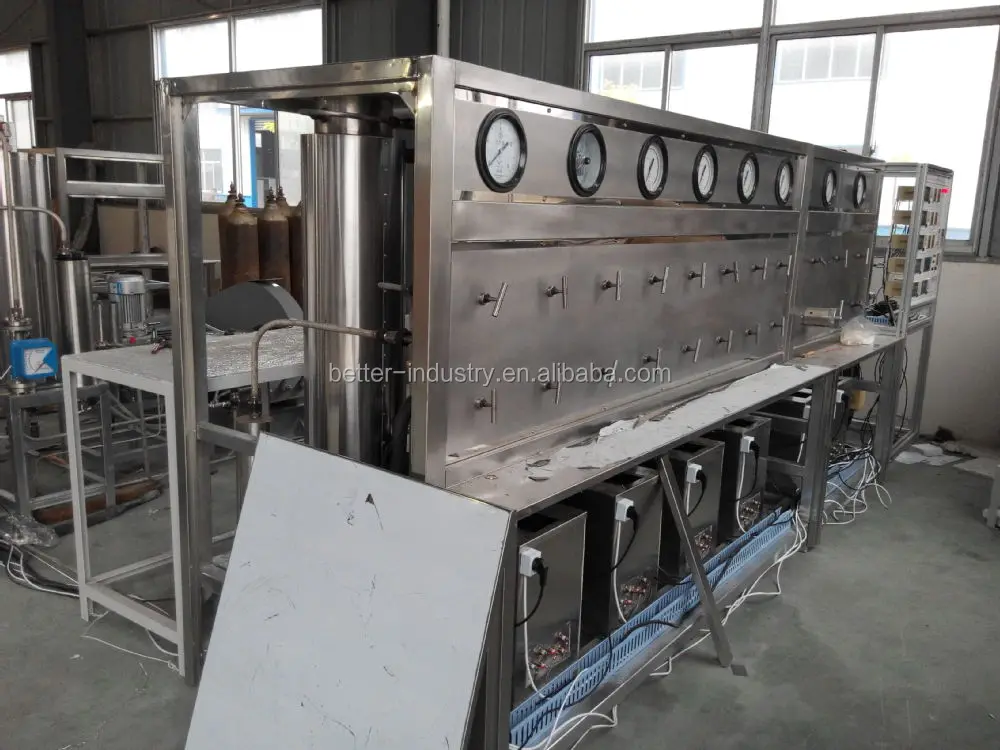

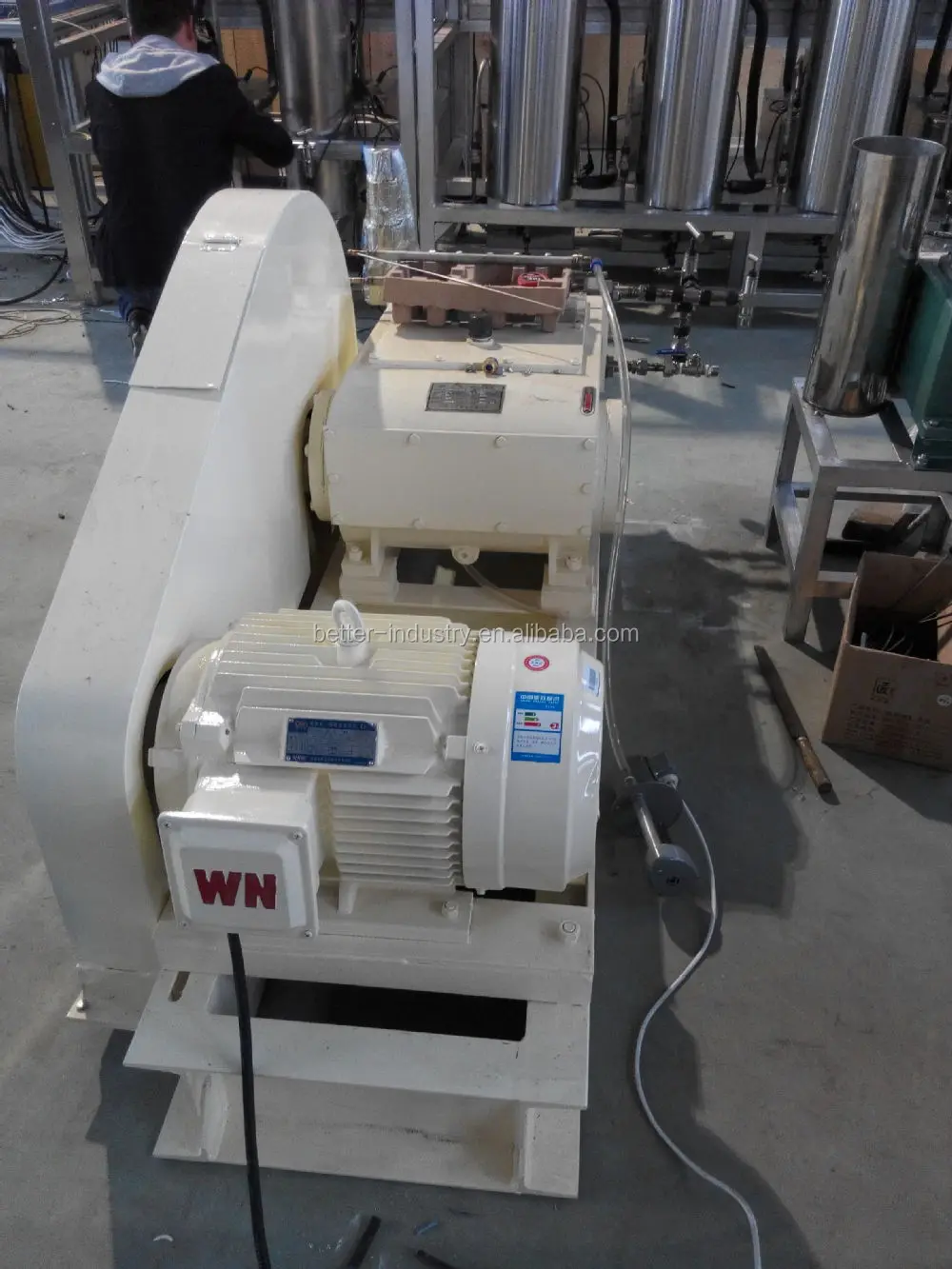

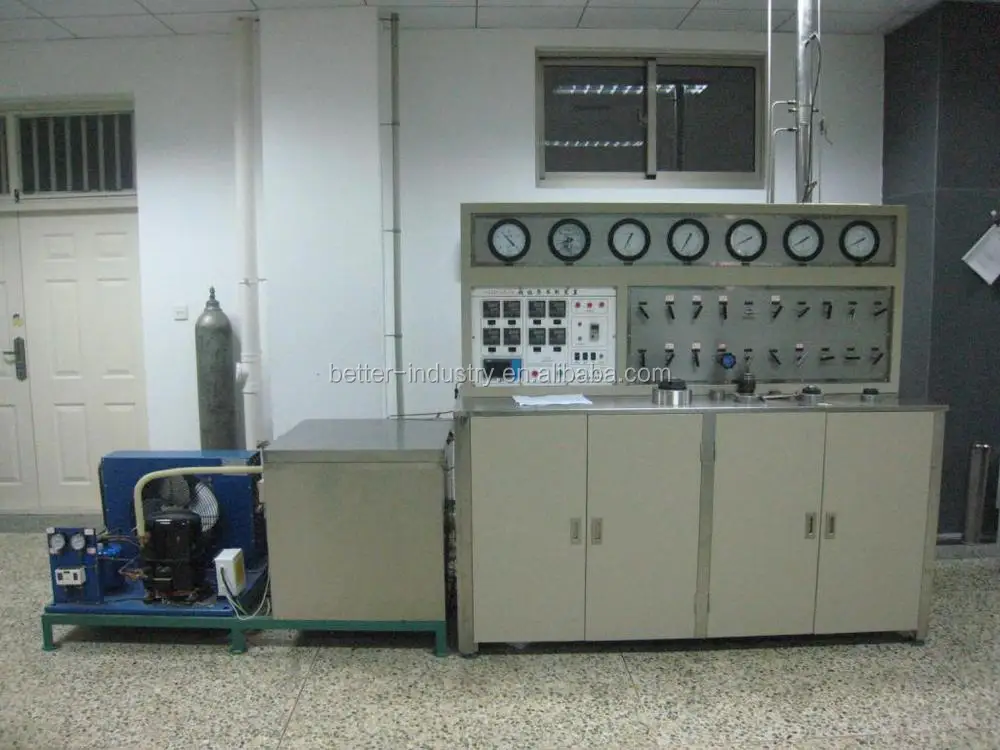

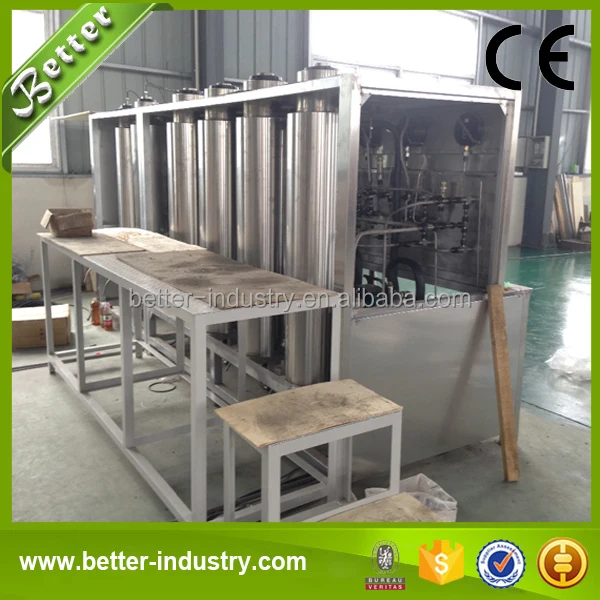

3. Picture for  Supercritical co2 Extractor



Supercritical co2 Extractor





Supercritical co2 Extractor





Supercritical co2 Extractor



Supercritical co2 Extractor





Supercritical co2 Extractor





Supercritical co2 Extractor



Supercritical co2 Extractor

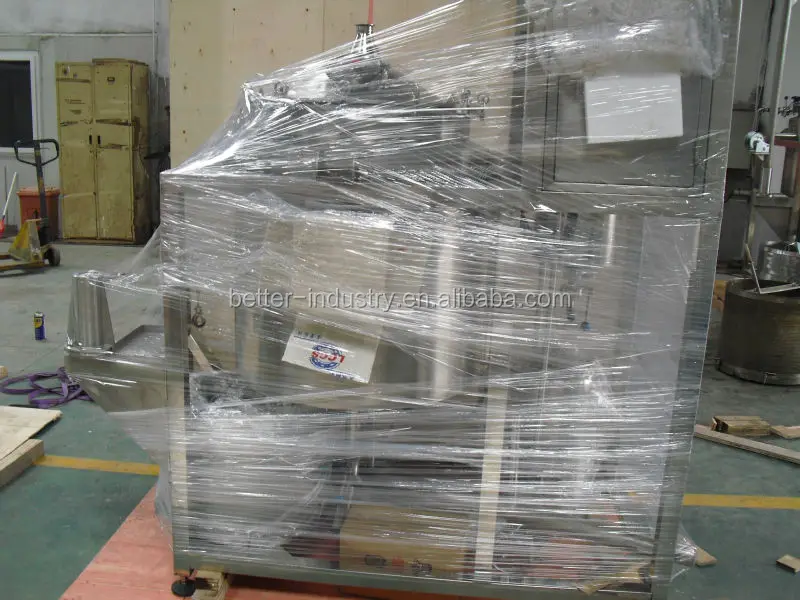

Package for Supercritical co2 Extractor









4. Training for  co2 extraction machine



1) Safe training of the equipment, including: power, pressure, inflammable and explosive, mechanical drive, health, and so on)



2) Normal operation method and step;



3) Import and export of CO2 and additive



4)  Material tank load and unload of extractor



5) Open and close of extractor and separator



6)  How to use dry purifier



7) The parameter setting and physics meaning of all controlling component



8) The operation of high pressure valve control, flow adjustment, temperature setting, pressure balance, and so on



9)The daily maintenance program and method of this device









Thanks for interest in our Supercritical co2 Extractor more details of Supercritical  CO2 Extraction Equipment please contact with us freely!
