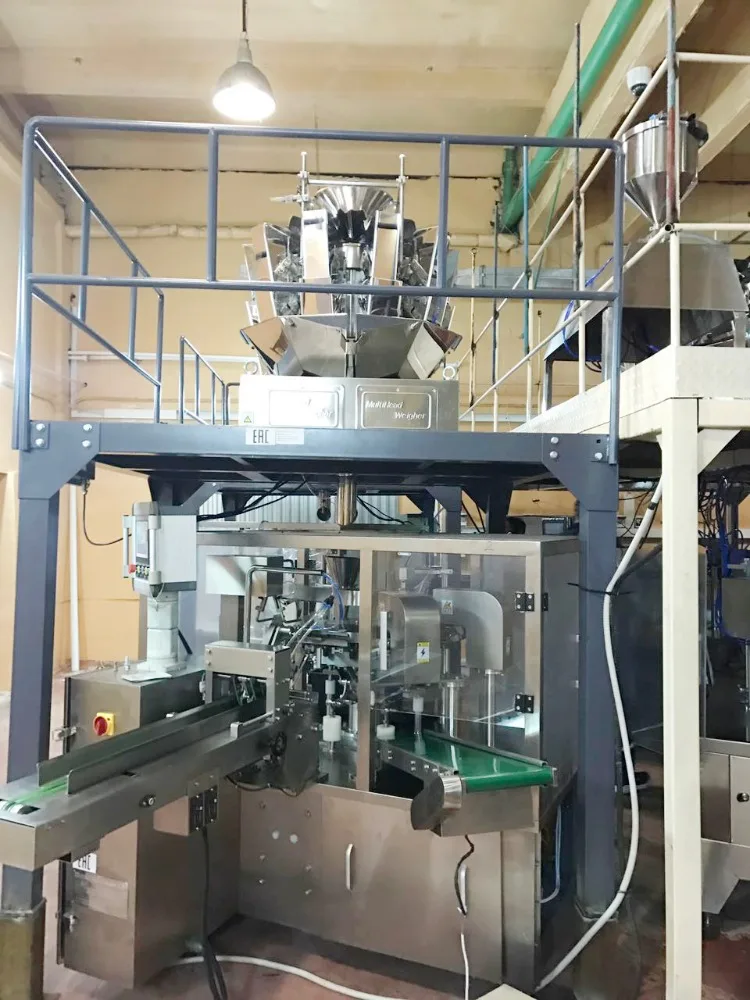

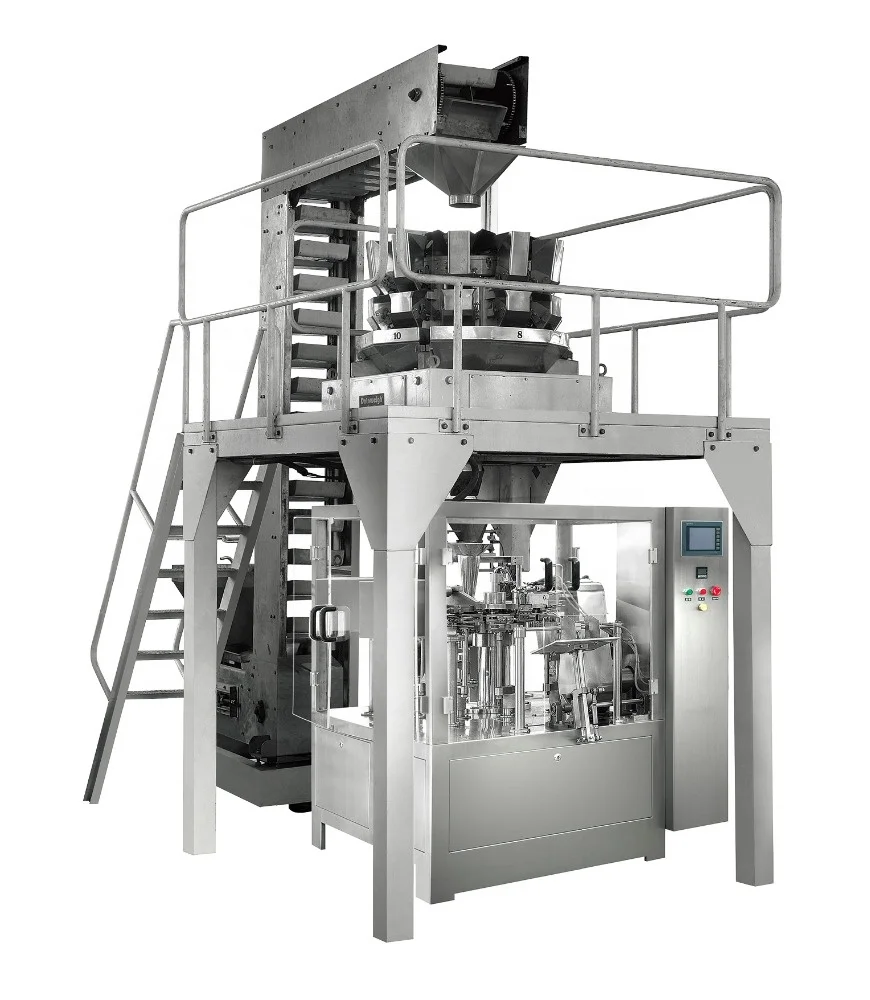

Excellent frozen shrimp and seafood packing machine with multihead weigher
- Category: >>>
- Supplier: Ruian Honetop Machinery Co. Ltd.
Share on (60152261485):
Product Overview
Description
Product Description
SPECIFICATIONS FOR PACKAGING MACHINE HTL-8G | ||||||
Packing specification | Bag size range | Width 100-200mm, Length 100-300mm | ||||
Packing weight | 20-2000g (Depend on The Filling Products) | |||||
Packing speed | 20-50 bag/min (speed depends on filling product &weight) | |||||
Main performance parameters | Total power | 4.5 kw | ||||
Compressed air Consumption | 0.36 | |||||
Air pressure | 0.6 | |||||
Main specification | Touch Screen | Yes | ||||
Photoelectricity Sensor | Yes | |||||
Date Robbon Printer | Yes | |||||
Machine size | Machine Dimensions | (L)4400*(W)1800*(H)3700mm | ||||
Machine Weight | 2900 kg | |||||
Type of packing all kinds of grains and solids: frozen dumpling, meat, dates, candy, nuts, pet food, tobacco, raisins, seeds, cereal, fruit, potato chips, chocolate, bread, biscuits, cakes, expanded food and bulk food etc.

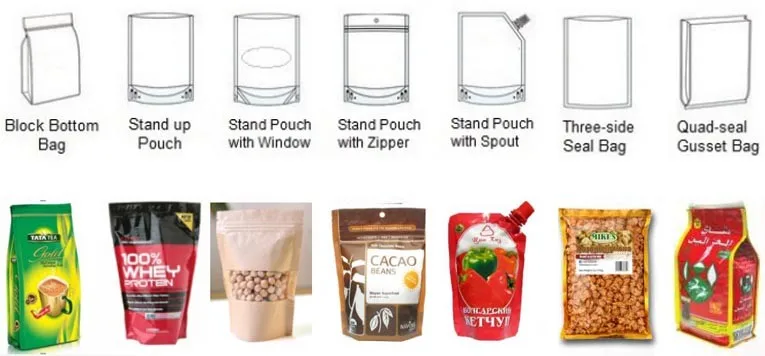

Kinds of Premade Pouches
Stand up pouches, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch etc.
Stand up pouches, doypack with zipper, 3 side seal bags, 4 side seal bags, flat bags, pouch with hole, spout pouch etc.
Main Features
1. Easy to operate. The machine with Japan Mitsubishi PLC control, man-machine interface with touch screen control system, it can
be operate easily.
2. Frequency control. The machine with frequency control, the required speed can be adjustable within the range according to any
needs of reality in production.
3. Automatic detection. No pouch or pouch is not opened completely, no feeding, no sealing, pouch can be reused, avoid wasting
materials, it can reduce production costs for user.
4. Safety devices, when the abnormal pressure of work or failure of heating pipe, it will alarm.
6. The width of the bags could be adjusted by electrical motor. Press the control-button could adjust the width of clips, easily
operate, and save time.
7. Part of plastic bearings are imported, no oil, reduce pollution materials.
8. Use no oil vacuum pump, avoid polluting the environment in the production.
9. The packing materials loss low, what this machine is used the preformed bag, the bag pattern is perfect and has a high quality
of the sealing part, this improved the product specification.
Detailed Images

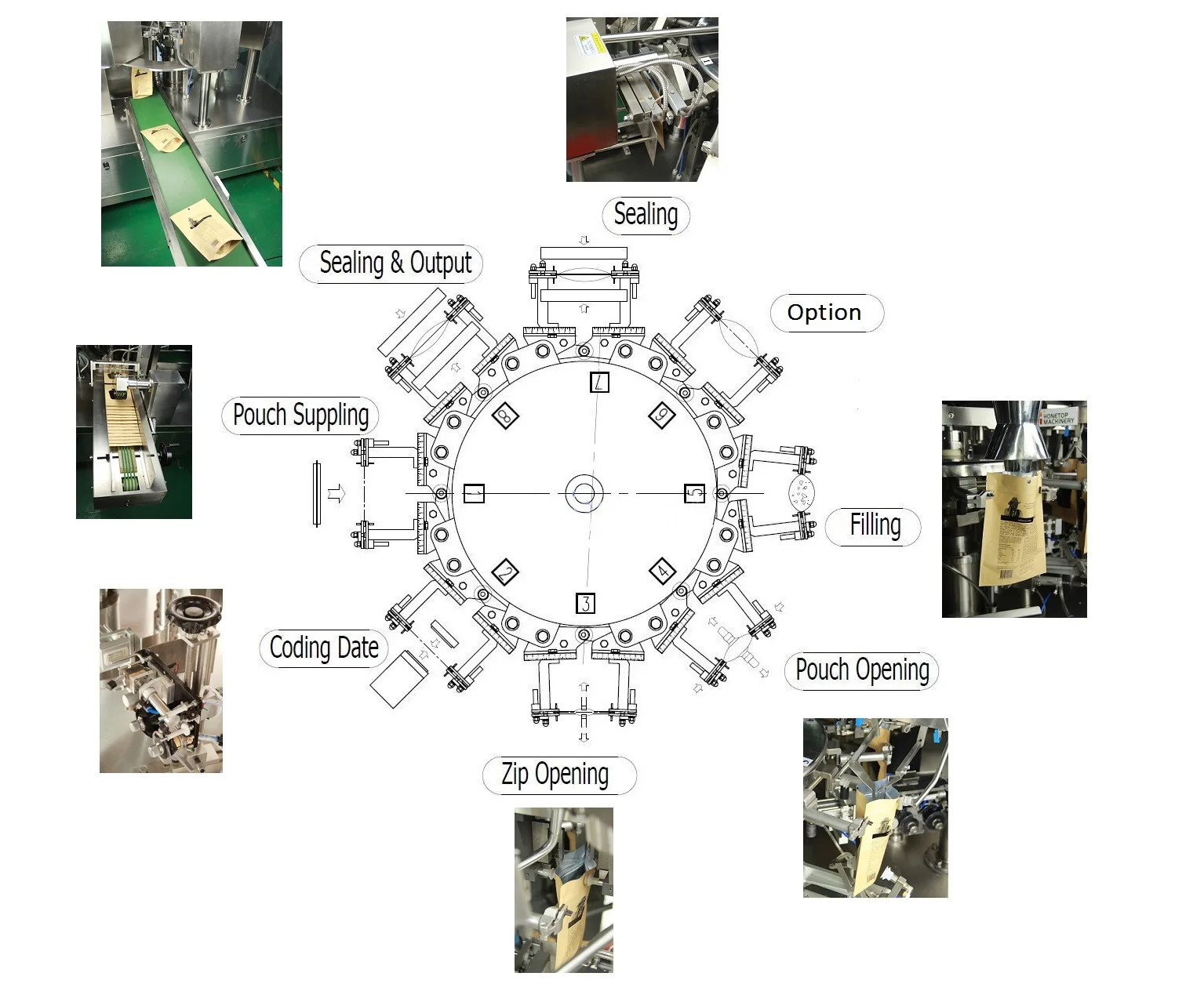

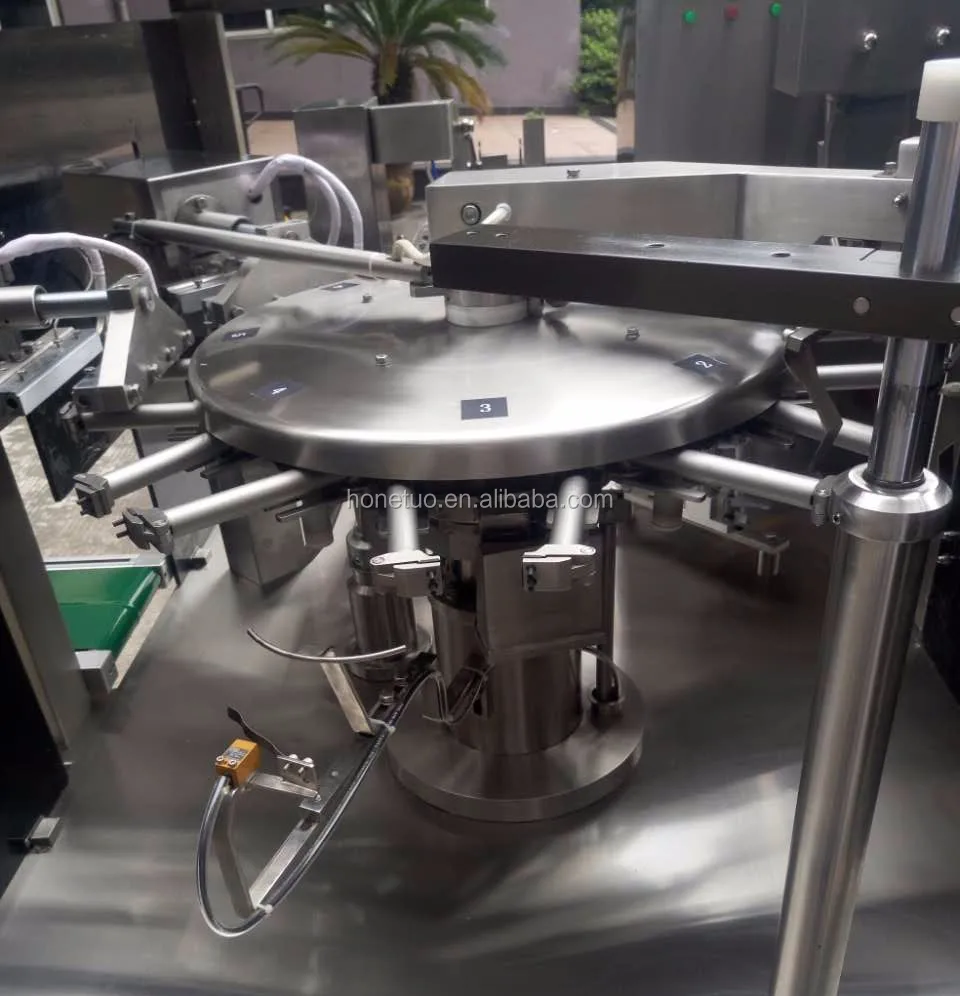

8 stations
1.Pouch Supplying --> 2. Coding Date + --> 3. Zip Opening (if need)--> 4. Pouch Opening ---> 4. Filling + Vibrating (if need)--->
5. Option functions (Nitrogen flushing/2nd fillings ) --> 7. Sealing 1st ---> 8. Sealing 2nd + Output
Machine body full of 304 stainless steel.
PLC adjust bag clamp adjustment: Only needs 2mins by auto PLC for adjust different bag width sizes

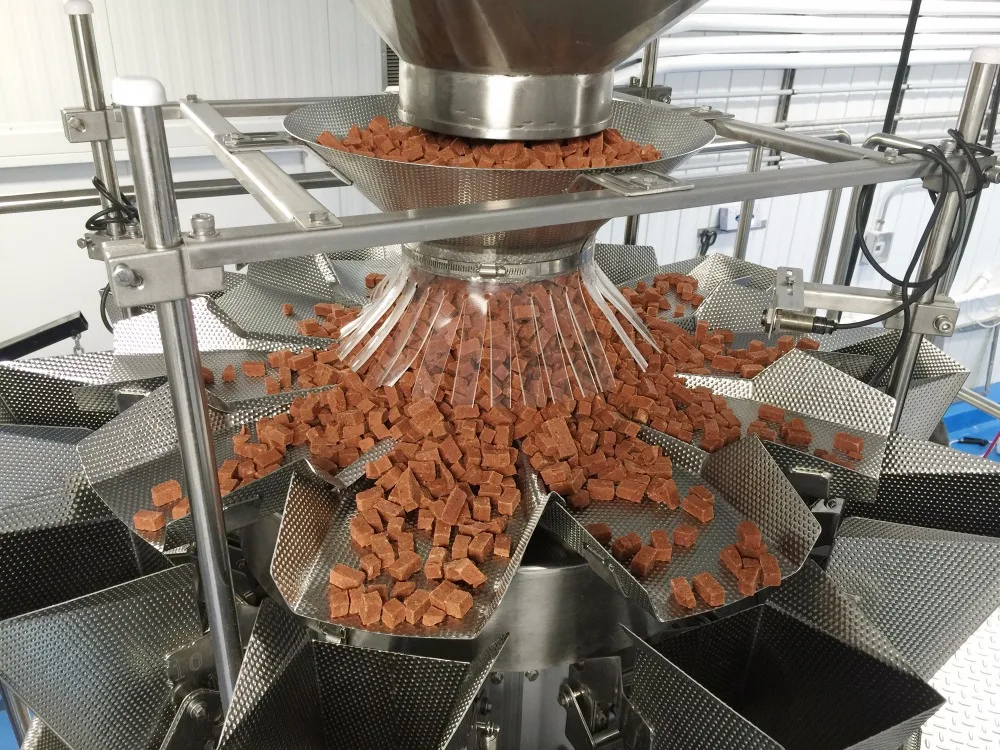

It is suitable for weighing snake food,roasted seeds & nuts,potato chips,biscuits,pasta,pet food......small block products.
Z type Elevator
1. It drives the materials through chain transmission, for vertical transport of granule and small blocky materials, high lifting
capacity and speed.
2. Vibration feeder: Vibration is relatively stable, able to adjust the feeding speed, wear a small long life.
3.Machine frame:SS304.
4. Bucket material: Food grade reinforced polypropylene.
1.The material for platform: carbon steel or stainless steel 304 (If not specified, it's stainless steel 304)
2.It's mainly used to support the weighers, and it is also the general accessorial equipment in the packaging system.
2.It's mainly used to support the weighers, and it is also the general accessorial equipment in the packaging system.
Ribbon Coding Printer print max. 4 lines, each line has 16 characters;If not specified, it print max. 2 lines, each line has 12
characters.
characters.
Related Products
Our Company
Exhibition
Certifications
Our Service
Pre-Sales Service:
Pre-Sales Service:
1.Provide packing solution according requirements
2.Doing test if customers send their products
3.View our Factory
After-Sales Service:
1.Installing service we will send our engineer to your factory if you need. you need to afford the round trip flight ticket and cost which happen at your place and engineer fee .
2.Training services: Our engineer will train your workers to install machine ,how to use machine and basic skills to fix machines.
3.Trouble shooting service: We will solve problems by phone ,video.If need to change spare parts,We will send spare parts to fix.
if still can't fix problems,Then we send engineer to come. In guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee.
2.Doing test if customers send their products
3.View our Factory
After-Sales Service:
1.Installing service we will send our engineer to your factory if you need. you need to afford the round trip flight ticket and cost which happen at your place and engineer fee .
2.Training services: Our engineer will train your workers to install machine ,how to use machine and basic skills to fix machines.
3.Trouble shooting service: We will solve problems by phone ,video.If need to change spare parts,We will send spare parts to fix.
if still can't fix problems,Then we send engineer to come. In guarantee period, if spare part broken, we will send you the parts free and we will pay the express fee.
Packing & Delivery
1.To oil machine and fix machine in the wooden tray avoid machine moving during shipment.
2.Use film to wrap whole machine aviod the seawater dropping on machine.
3. To pack whole machine into wooden case aviod machine collision.
2.Use film to wrap whole machine aviod the seawater dropping on machine.
3. To pack whole machine into wooden case aviod machine collision.
FAQ
Dear sir,Please kindly response questions of machines before inquiry:
1.What's product to pack and size?
2.What is the target weight per bag(gram/bag)
3.What's bag type,Please show photos for reference if possible?
4.What's bag width and bag length?(WXL)
5.The speed is required?(bags/min)
6.The room size for putting machines
7.The power of your country(Voltage/frequency)
Q :How long of the warranty period?
whole machine 1year. In warranty period, We will send the part free to replace the one that is broken
Q :What’s the Payment terms?
Our payment is T/T and L/C.40% is paid by T/T as deposit.60% is paid before shipment.
Q :Can you provide oversea service?
We will dispatch engineer to install the machine if you need, buyer should afford the cost in buyer's country and round-trip air tickets. The compensation for engineer is 100USD/DAY.
3.What's bag type,Please show photos for reference if possible?
4.What's bag width and bag length?(WXL)
5.The speed is required?(bags/min)
6.The room size for putting machines
7.The power of your country(Voltage/frequency)
Q :How long of the warranty period?
whole machine 1year. In warranty period, We will send the part free to replace the one that is broken
Q :What’s the Payment terms?
Our payment is T/T and L/C.40% is paid by T/T as deposit.60% is paid before shipment.
Q :Can you provide oversea service?
We will dispatch engineer to install the machine if you need, buyer should afford the cost in buyer's country and round-trip air tickets. The compensation for engineer is 100USD/DAY.
