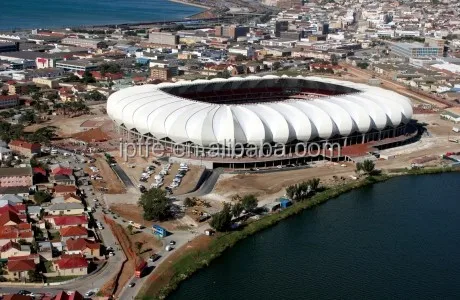

Tensile Fabrics Enhance Architecture Around the World PTFE Architectural Membranes

Permanent architectural fabric is lightweight, durable, non-combustible, and has water tight seams.

Lightweight

• Low weight compared to conventional roofing materials
• Capable of bearing loads over long spans
• Open space below -- no columns
• Lightweight construction of load bearing walls

Durable

• Expected life of 25+ years
• Raw materials (fiberglass and Teflon) unaffected by weather and ultraviolet light
• Permanently installed -- no need for any adjustments during its lifetime

Non-Combustible

Both raw materials (fiberglass and Teflon®) rated as non-combustible

Rated non-combustible throughout the world in local testing -- ASTM, JIS, British Standard

In US, rated as Class A or B roof (ASTM)

Complies to DIN 4102 B1 or EN 13501

Water Tight Seams

• All seams heat welded
• Use of fluoropolymer film as adhesive layer giving a fluoropolymer-to-fluoropolymer bond
• Like the fabric, seams are unaffected by weather and ultraviolet light

ITEM

UNIT

H300

H301

H302

M602

TEST

 Thickness

mm

1.0±0.15

0.8±0.1

0.6±0.1

0.6±0.1

DIN EN ISO 2286-3

 Weight

g/m2

1600±160

1300±130

1050±105

900±90

DIN EN ISO 2286-2

 Tensile

 Strength

warp

N/5cm

9500

8000

5500

4200

   DIN 53354

weft

8500

7000

5000

4000

 Tear

 Resistance

warp

N

500

400

300

200

   DIN 53363

weft

500

400

300

200

 Translucency

%

10

12

15

15

 Solar Reflection

%

70±10

70±10

70±10

70±10

 Basic Cloth

Fiberglass

      DIN 60001

 Coating

PTFE

 Color

White(after exposure to sunlight)
