small scale autoclave sterilizer for lab vertical autoclave

Product Overview

Description

 Electric heating sterilization pot is cylindrical, by raising the temperature of electric heat pipe hot water sterilization, so as to achieve the effect of sterilization, widely used in food, fruit juice, pharmacy, chemical industry, drinks, etc, for heating, cooling, heat preservation, sterilization, handling or storage of liquid is a necessary equipment, electrical heating sterilization pot is suitable for small low production enterprises use, regular size 500 mm * 800 mm / 18 kw / 24 kw 700 mm 600 mm * 1000 mm * 1200 mm / 36 kw 900 mm * 1800 mm / 60 kw electric heating sterilization pot users according to the actual situation in this region, Easy to choose electric heating steam dual-purpose sterilization, energy saving effect, high productivity, temperature display automatic control, wide range of adjustment, high control precision, corrosion resistance and noise elimination, convenient cleaning and other advantagesVertical retort sterilizer / vertical autoclave sterilizer

1. Carbon steel construction or all stainless steel construction: 304 / 316

2. Autoclave diameter from 400mm to 1100mm<customized>

3. Sterilization baskets quantity from 1pcs to 6pcs <customized>

4. Suitable for lab and small scale sterilization

5. Suitable for the sterilization of meat, fish, vegetable, as well as paste and sauce

6. Suitable for tin can and glass jar and vacuum package

7. Use compressed air as counter pressure

8. Heating medium can be steam, hot water and water-steam mixture

9. Cooling medium can be tap water, or ice water

10. Temperature automatic control

Optional for vertical autoclave retort

11. Extra sterilization baskets for different autoclave

12. Customized temperature control system

13. Paperless temperature recorder

15. Paper recorder for temperature

16. USB date loge

17. Engineer available for oversea installation

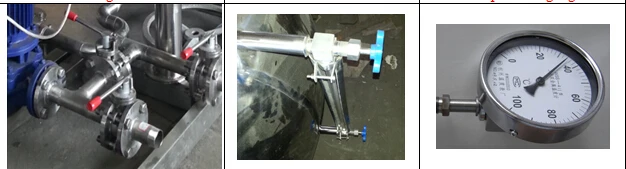

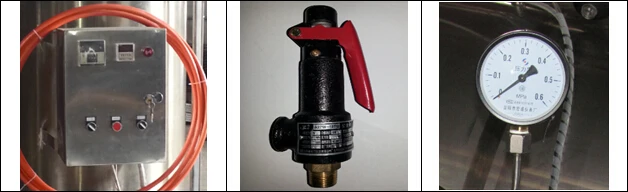

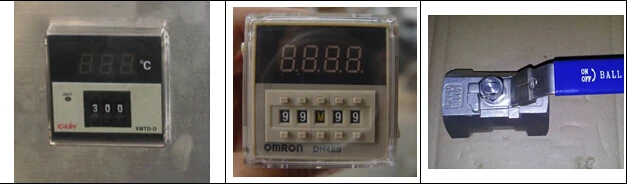

Accessories for vertical autoclave sterilizer

Control panel	Safety valve	Pressure gauge
Drainage valve	Level meter	Temperature gauge
Temperature controller	Countdown timer	air evacuation valve

 Vertical autoclave --Hot sell models specification

Autoclave model	GT7C0.5A	GT7C1A	GT7C2A
Diameter of sterilization kettle(MM)	DN400	DN800	DN1100
Number of basket(crate)	1	1~6	1~6
Maximum working pressure(MPA)	0.35	0.35	0.35Mpa
Maximum working temperature()	137	137	137
Volume(M3)	65L	500L	1000L
Required Steam pressure(MPA)	≥0.2	≥0.2	≥0.2
Heating power (KW) <for electric heating type only>	8~12	24~36	36~60
Pump	N/A	1pcs 3.7kw	1pcs 4kw
Steam inlet pipe	1/2”	1”	1”
Water inlet pipe	DN25	DN40	DN40
Compressed air inlet pipe	1/4”	1/4”	1/4”
Water drainage pipe	DN25	DN40	DN40
external Dimension   L*W*H	600*500*1000	1300*1000*1800	1400*1300*1800

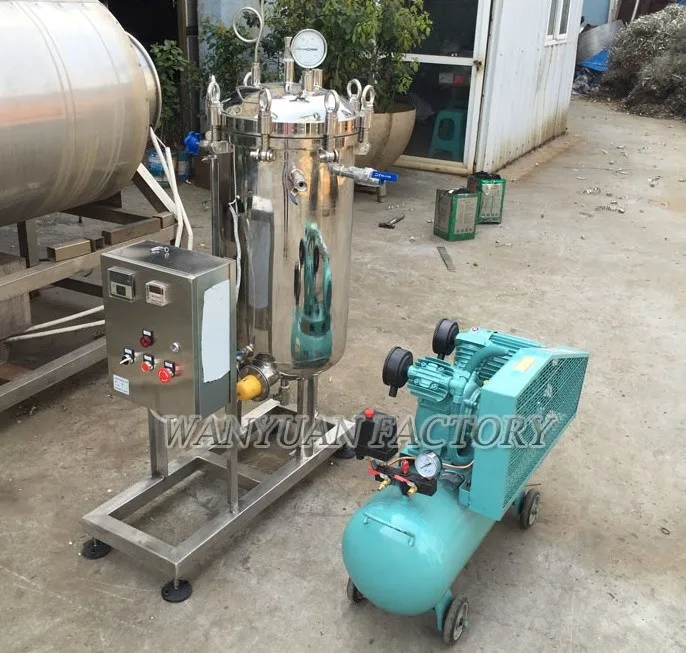

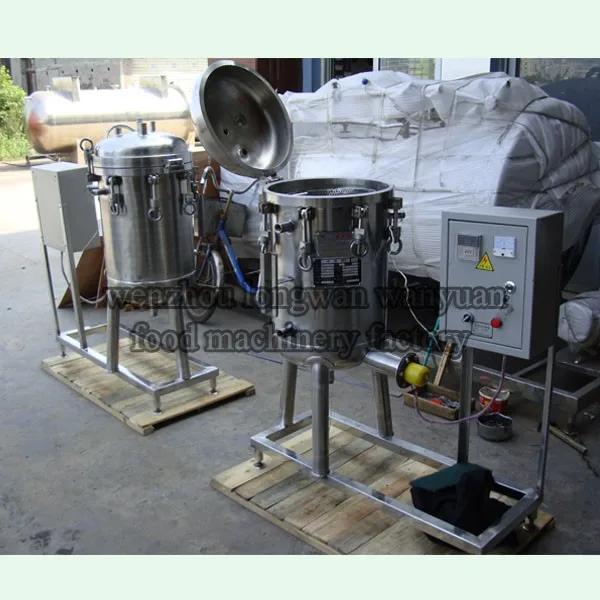

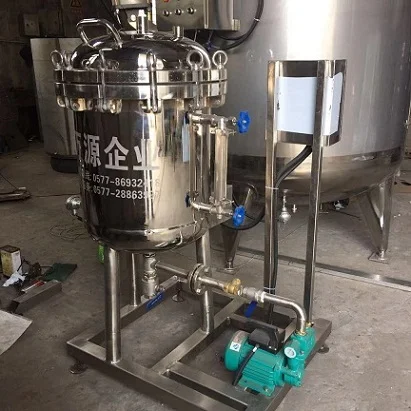

Autoclave retort picture

Autoclave retort price

Price for sterilizer retort : for more information about this vertical autoclave, please contact us directly.

Vertical retort sterilizer / vertical autoclave sterilizer
