SMT PCBA PCB Assembly manufacturer, Customized pcb assembly service

Price:RUB 37.65 - RUB 752.97

Price in USD:Details

Quantity:

SMT PCBA PCB Assembly manufacturer, Customized pcb assembly service , OEM & ODM is welcome!

FAQ

Advantage:

S.r Engneers PCB design team

Quickly lead time,5-7days

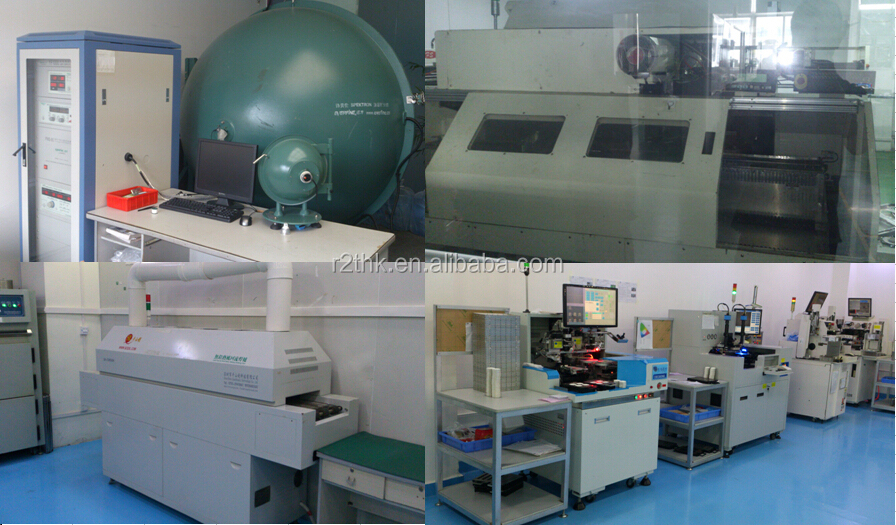

Professional PCB assembly machine

LED Parts sourcing and buying for Customers

Product Description

9&16w Ceiling Ring led pcba.jpg

PCB Design and assembly circuit board led par.jpg

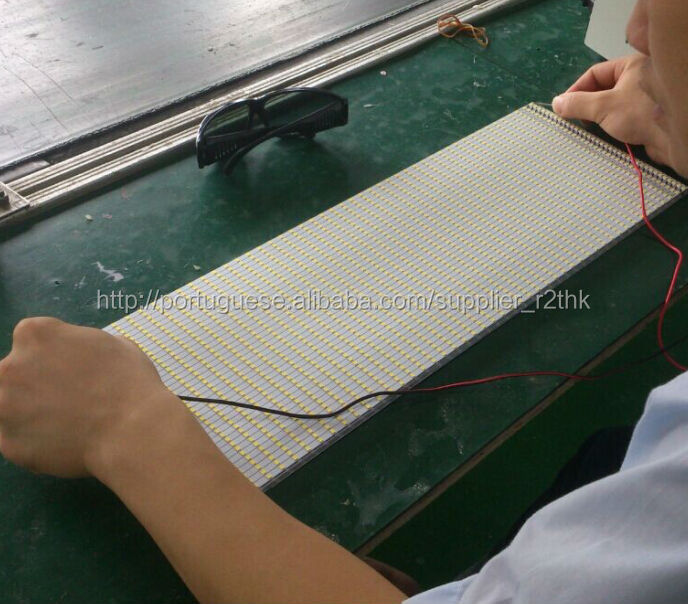

pcb led rigid strip SMT Assembly.jpg

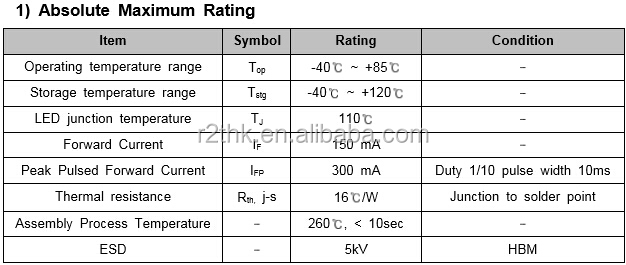

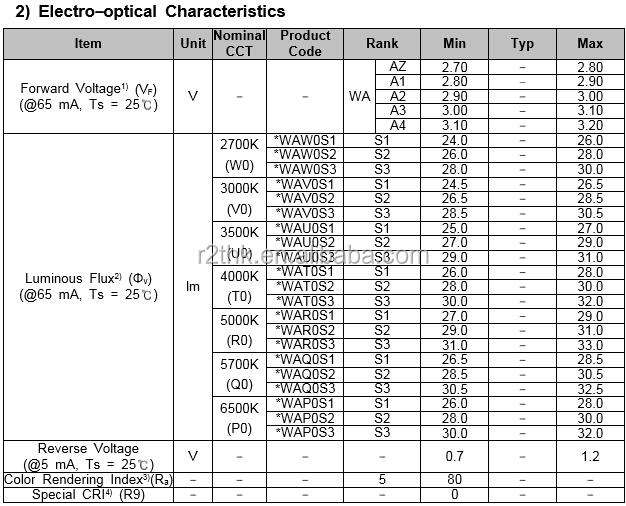

Samsung 561B LED Diode Data:

MCPCB parameters

Technical Item	Specifications
MCPCB Model	Aluminum Base Board
Model Material	Domestic Aluminum, Overseas Aluminum, CCAF-01, CCAF-04, CCAF-05
Surface Treatment	HASL / ENIG/ Chemical Sn/ OSP/Immersion silver etc.
Rise	MCPCB Single / Double-sided Aluminum Plate
Max. Size	1100mm * 450mm
Min. Size	10mm * 10mm
Processing Thickness	0.3 ~ 3.2mm
Min. Diameter of Punching	1.0mm
Min. Specifications Slot	Thickness below1.0mm: 0.8 * 0.8mm Thickness below1.2 ~ 3.0mm: 1.0 * 1.0mm
Red Silk Square Deviation Slot	+/-0.076mm
Smallest Aperture	0.5mm
Largest Aperture	No limited
V-cut Plate Thickness Range	0.6mm ~ 3.0mm
V-cut tolerance	+/-0.1mm
Smallest Components Font Tag	0.15mm
Copper Foil Thickness	0.5/1.0/1.5/2.0/3.0oz
Tolerance Molding	+/-0.15mm
Smallest Window pad	0.15mm
Processing Capacity	2000m2
