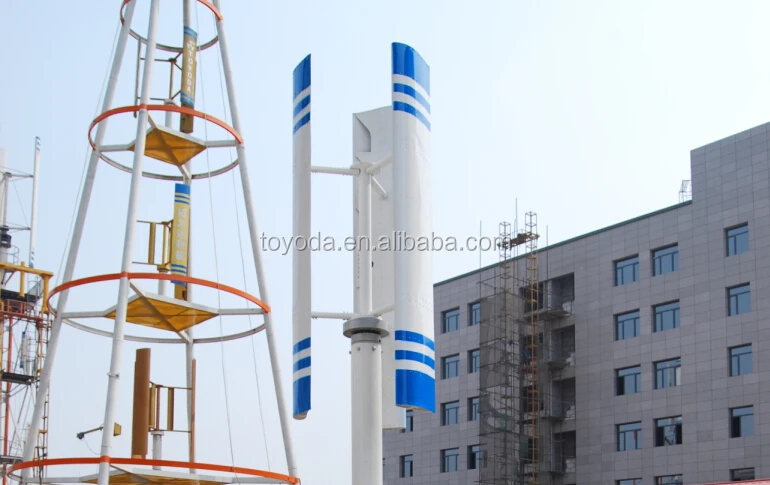

2KW vertical low rpm wind generator

Product Overview

Description

2KW vertical low rpm wind generator



Some Details of the wind generator

Model	TYD-250	TYD-350A	TYD-350B	TYD-450B
Internal structure	Axial type;outer rotor; iron-coreless; three-phrase AC	Axial type;outer rotor; iron-coreless; three-phrase AC	Axial type;outer rotor; iron-coreless; three-phrase AC	Axial type;outer rotor; iron-coreless; three-phrase AC
dimension	250mm*85mm	350mm*107mm	350mm*117mm	450mm*148mm
magnetic material	rare-earth magnet	rare-earth magnet	rare-earth magnet	rare-earth magnet
Rated Power(W)	300	1000	2000	5000
Rated current(A)	8	13	14	17



 Feature of wind power turbine

 1. It can be installed in the narrow space like the roof of public facilities,

     companies, factories, and residence, etc.

 2. Wind-resistant structure, noise-free, vibration-free, and will not hinder

      the spread of the signals.

 3. Multiple generators can be combined, and generate electricity complemented

      by the solar-panel.



 Advantage of our service

 long warranty period.

 Professional installation personnel supplied by us.
