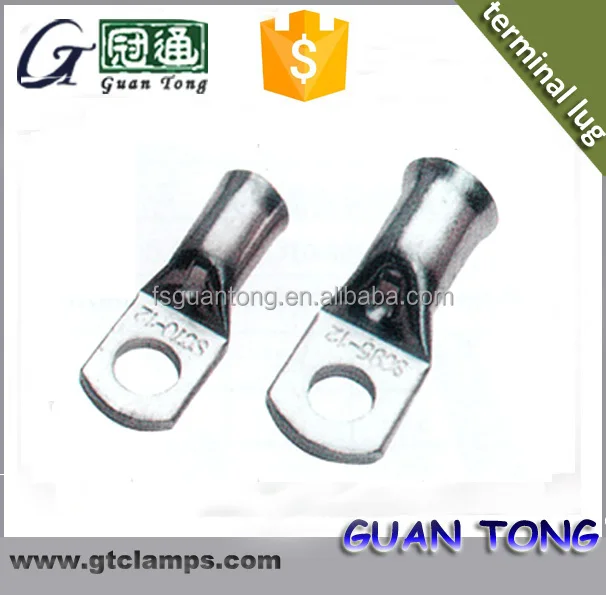

JM Crimp Type Terminal Lug
- Category: >>>
- Supplier: Guan Tong Electric Equipment Manufacturing Co. Ltd.
Share on (60153998176):
Product Overview
Description
Terminal Lug
Product Description
Guan Tong- The Icon Of High Quality
CLICK PHOTO FOR DETAIL
DTL-2 Bimetal Cable Lug SC Copper Cable Lug DTL-1- Bimetal Cable Lug
GTY Connecting Tube SV Fork Type Terminal Lug OT Ring Type Terminal Lug
JM Cable Lug JB Cable Lug GTL Bimetal Cable Lug
Specification
| ITEM NO | DIMENSIONS | |||||
| φE | ΦD | Φd | W | B | L | |
| JM2.5-4 | 4.2 | 3.90 | 2.6 | 8.7 | 7.0 | 20.0 |
| JM2.5-6 | 6.5 | 3.90 | 2.6 | 10.0 | 7.0 | 20.0 |
| JM4-4 | 4.2 | 4.40 | 3.2 | 10.0 | 8.0 | 22.0 |
| JM4-5 | 5.2 | 4.40 | 3.2 | 10.0 | 8.0 | 22.0 |
| JM4-6 | 6.5 | 4.40 | 3.2 | 10.0 | 8.0 | 22.0 |
| JM6-5 | 5.2 | 5.20 | 3.7 | 10.0 | 10.0 | 24.0 |
| JM6-6 | 6.5 | 5.20 | 3.7 | 12.0 | 10.0 | 24.0 |
| JM6-8 | 8.4 | 5.20 | 3.7 | 12.5 | 10.0 | 24.0 |
| JM10-5 | 5.2 | 6.20 | 3.7 | 12.0 | 10.0 | 27.0 |
| JM10-6 | 6.5 | 6.20 | 4.5 | 12.0 | 10.0 | 27.0 |
| JM10-8 | 8.4 | 6.20 | 4.5 | 12.5 | 10.0 | 27.0 |
| JM10-10 | 10.3 | 6.20 | 4.5 | 15.0 | 10.0 | 29.0 |
| JM16-6 | 6.5 | 7.34 | 5.7 | 12.0 | 12.0 | 30.0 |
| JM16-8 | 8.4 | 7.34 | 5.7 | 12.5 | 12.0 | 30.0 |
| JM16-10 | 10.5 | 7.34 | 5.7 | 16.0 | 12.0 | 32.0 |
| JM16-12 | 13.0 | 7.34 | 5.7 | 17.0 | 12.0 | 32.0 |
| JM25-6 | 6.5 | 8.84 | 7.2 | 13.0 | 15.0 | 34.0 |
| JM25-8 | 8.4 | 8.84 | 7.2 | 15.0 | 15.0 | 34.0 |
| JM25-10 | 10.5 | 8.84 | 7.2 | 16.0 | 15.0 | 34.0 |
| JM25-12 | 13.0 | 8.84 | 7.2 | 18.0 | 15.0 | 36.0 |
| JM35-6 | 6.5 | 10.60 | 8.5 | 16.0 | 16.0 | 38.0 |
| JM35-8 | 8.4 | 10.60 | 8.5 | 16.0 | 16.0 | 38.0 |
| JM35-10 | 10.5 | 10.60 | 8.5 | 16.0 | 16.0 | 38.0 |
| JM35-12 | 13.0 | 10.60 | 8.5 | 18.0 | 15.0 | 38.0 |
| JM50-6 | 6.5 | 12.25 | 9.8 | 18.0 | 19.0 | 44.0 |
| JM50-8 | 8.4 | 12.25 | 9.8 | 18.0 | 19.0 | 44.0 |
| JM50-10 | 10.5 | 12.25 | 9.8 | 18.0 | 19.0 | 44.0 |
| JM50-12 | 13.0 | 12.25 | 9.8 | 20.0 | 19.0 | 44.0 |
| JM70-8 | 8.4 | 14.20 | 11.5 | 21.0 | 22.0 | 50.0 |
| JM70-10 | 10.5 | 14.20 | 11.5 | 21.0 | 22.0 | 50.0 |
| JM70-12 | 13.0 | 14.20 | 11.5 | 21.0 | 22.0 | 50.0 |
| JM70-14 | 14.5 | 14.20 | 11.5 | 21.0 | 22.0 | 50.0 |
| JM95-10 | 10.5 | 16.70 | 13.7 | 25.0 | 25.0 | 57.0 |
| JM95-12 | 13.0 | 16.70 | 13.7 | 25.0 | 25.0 | 57.0 |
| JM95-14 | 14.5 | 16.70 | 13.7 | 25.0 | 25.0 | 57.0 |
| JM120-10 | 10.5 | 18.60 | 15.0 | 27.0 | 26.0 | 63.5 |
| JM120-12 | 13.0 | 18.60 | 15.0 | 27.0 | 26.0 | 63.5 |
| JM120-14 | 14.7 | 18.60 | 15.0 | 27.0 | 26.0 | 63.5 |
| JM120-16 | 17.0 | 18.60 | 15.0 | 27.0 | 26.0 | 63.5 |
| JM150-10 | 10.5 | 20.60 | 16.7 | 30.0 | 30.0 | 71.0 |
| JM150-12 | 13.0 | 20.60 | 16.7 | 30.0 | 30.0 | 71.0 |
| JM150-14 | 14.7 | 20.60 | 16.7 | 30.0 | 30.0 | 71.0 |
| JM150-16 | 17.0 | 20.60 | 16.7 | 30.0 | 30.0 | 71.0 |
| JM185-12 | 13.0 | 22.60 | 18.5 | 34.0 | 32.0 | 79.0 |
| JM185-14 | 14.7 | 22.60 | 18.5 | 34.0 | 32.0 | 79.0 |
| JM185-16 | 17.0 | 22.60 | 18.5 | 34.0 | 32.0 | 79.0 |
| JM240-12 | 13.0 | 25.55 | 21.0 | 38.0 | 40.0 | 92.0 |
| JM240-14 | 14.7 | 25.55 | 21.0 | 38.0 | 40.0 | 92.0 |
| JM240-16 | 17.0 | 25.55 | 21.0 | 38.0 | 40.0 | 92.0 |
| JM240-20 | 21.0 | 25.55 | 21.0 | 38.0 | 40.0 | 92.0 |
| JM300-12 | 13.0 | 29.45 | 24.0 | 43.0 | 44.0 | 102.0 |
| JM300-14 | 14.7 | 29.45 | 24.0 | 43.0 | 44.0 | 102.0 |
| JM300-16 | 17.0 | 29.45 | 24.0 | 43.0 | 44.0 | 102.0 |
| JM300-20 | 21.0 | 29.45 | 24.0 | 43.0 | 44.0 | 102.0 |
| JM400-12 | 13.0 | 33.35 | 27.0 | 48.5 | 50.0 | 113.0 |
| JM400-14 | 14.7 | 33.35 | 27.0 | 48.5 | 50.0 | 113.0 |
| JM400-16 | 17.0 | 33.35 | 27.0 | 48.5 | 50.0 | 113.0 |
| JM400-20 | 21.0 | 33.35 | 27.0 | 48.5 | 50.0 | 113.0 |
| JM500-14 | 14.7 | 37.30 | 30.0 | 55.0 | 50.0 | 123.0 |
| JM500-16 | 17.0 | 37.30 | 30.0 | 55.0 | 50.0 | 123.0 |
| JM500-20 | 21.0 | 37.30 | 30.0 | 55.0 | 50.0 | 123.0 |
| JM630-16 | 17.0 | 44.10 | 35.0 | 65.0 | 65.0 | 135.0 |
| JM630-18 | 19.0 | 44.10 | 35.0 | 65.0 | 65.0 | 135.0 |
| JM630-20 | 21.0 | 44.10 | 35.0 | 65.0 | 65.0 | 135.0 |
Our Electric Power Fitting Line Including:
* machine bolt * double arming bolt * square nut * washer
* carriage bolt * shoulder oval eye bolt * brace bolt * cable lug
* alley arm brace * thimble clevis * wedge connector * Insulator
* angle bracket * cross arm clevis * secondary bracket * guy hook
* thimble eye nut * guy clamp * insulated clevis
* Anchor Shackle * insulator spindle * forged thimble eye bolt
* anchor expanding * flat crossarm brace * secondary rack
* cross arm plate * ground plate * guy attachment
* pole bands Pole Clamp * double arming plate * cable suspension clamp
* Strain Clamp * dead end clamp * Tension clamp
* Anchor Clamp * suspension clamp * Piercing Connector
* socket clevis * transformer lead pins * u bolt u shackle
* socket eye * ball clevis * pole top pins
* single/double upset bolt * Anchor Rod stay rod * ground rod earth rod
* D Iron Bracket * ground rod clamp * staple gound wire
* guy bonding clamp * insulated clevis * insulator pin
* anchor assemble * oval eye nut * parallel clamp
and so on
Packaging & Shipping
Export Carton Box Package ,which is suitable for loading, storage in most popular Condition. Custom packing will be charged reasonably to favor customer’s requirement .
