expanded perlite wall Panel bricking machine, perlite board machine, perlite plate machine V
- Category: >>>
- Supplier: Yinan Huarun Tianyuan Machinery Co. Ltd.
Share on (60154268133):
Product Overview
Description
Product Description
Expanded perlite / vermiculite boards plate slab production line:
The expanded perlite productions are New building materials of fireproof thermal insulation board for wall, for ceiling, for pipe, for tank, for medical usage.
Widely used in many fields.
The whole production line including mixer, board press machine, stack system, curing system ects.

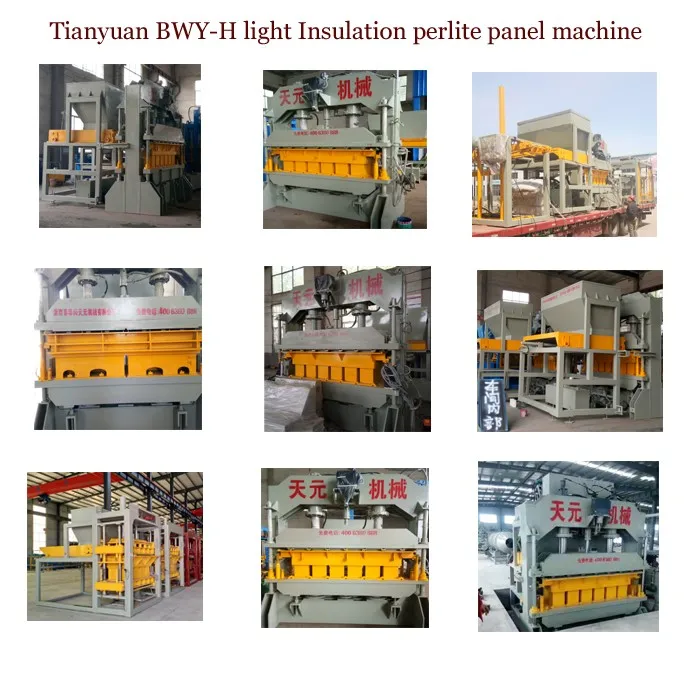

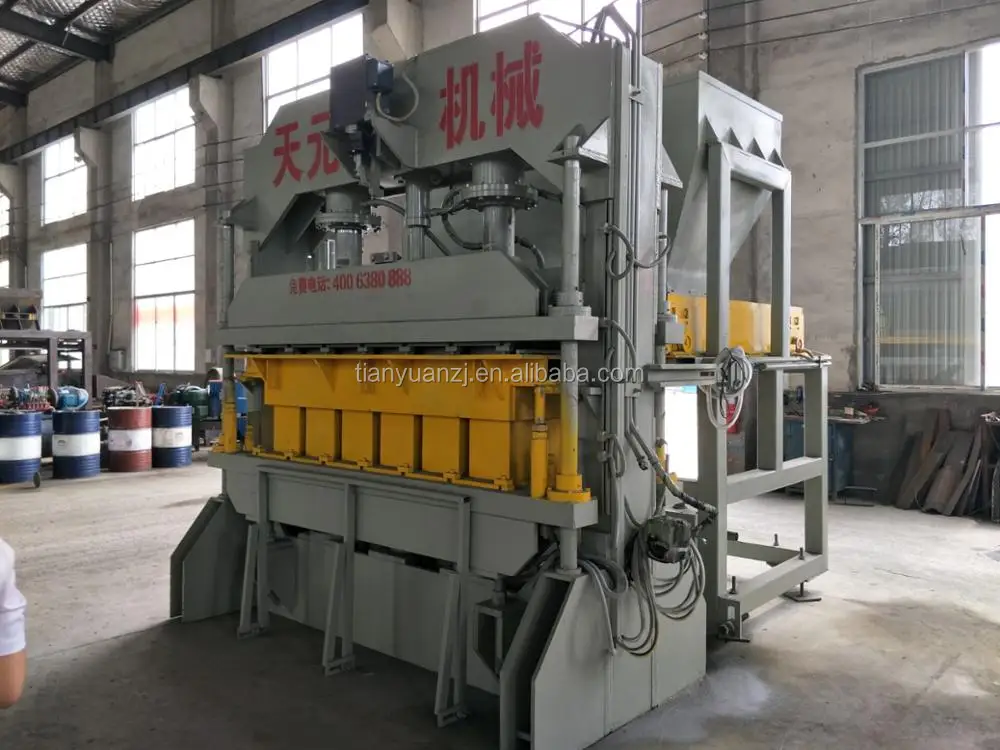

Specification of Board press machine | ||||||
Dimension of main machine | 4000x3500x3500mm | |||||
Board size (be customized) | 2100x900mm; 600x300mm | |||||
Weight it main machine | 19ton | |||||
Electric power | 15kw | |||||
Rated pressure | 15-30Mpa | |||||
Molding cycle | 15-60s | |||||
Workers | 4 | |||||
Capacity of boards | ||||||
Board size | pc/mold | pcs/hour | pcs/8hour | |||
2100x900mm | 1 | 120 | 960 | |||
600x300mm | 6 or 4 | 720 or 480 | 5760 or 3840 | |||
Usage of perlite products as below:
1. Widely used in wood fire door
2. Fire resistance steel door
3. Interior with fireproof core board and fireproof isolation
4. Public buildings,
5. Civil construction
6. Metallurgy,
7. Cement,
8. Oil pipe insulation,
9. Sound insulation ect.
1. Widely used in wood fire door
2. Fire resistance steel door
3. Interior with fireproof core board and fireproof isolation
4. Public buildings,
5. Civil construction
6. Metallurgy,
7. Cement,
8. Oil pipe insulation,
9. Sound insulation ect.
Main Features of perlite boards products:
Function as below:
1. Fireproof
2. Non-tonxic
3. Impact strength 5.6KJ/m2
4. Non-Formaldehyde
5. Low thermal conductivity,
6. stable performance
7. light weight,
8. fire prevention
9. non-toxic and tasteless
10. Nonionic adhesive No corrosion
11.Refractory grade A1, conform to the fire door GB12955-2008 new technique standard.
Technical
Main parameters of thermal insulation boards:
1, density (D): 200-300kg/m3
2, the flexural strength of more than or equal to 8MPa
3, the compressive strength: 0.35-0.8 (Mpa)
4, the coefficient of thermal conductivity: less than or equal to 0.035-0.076W/ (m.k)
5, water content (%): less than 10
6, wet expansion rate (%): less than 0.25
7, refractory limit: 0.6-2h
8, fire resistant temperature of 1300 DEG C:
9, the sound absorption coefficient: 0.03-0.8
1, density (D): 200-300kg/m3
2, the flexural strength of more than or equal to 8MPa
3, the compressive strength: 0.35-0.8 (Mpa)
4, the coefficient of thermal conductivity: less than or equal to 0.035-0.076W/ (m.k)
5, water content (%): less than 10
6, wet expansion rate (%): less than 0.25
7, refractory limit: 0.6-2h
8, fire resistant temperature of 1300 DEG C:
9, the sound absorption coefficient: 0.03-0.8
Certifications
Our Service
Factory Office Building
√ Famous trademark of China
√Passed CE Mark
√ National enterprise abiding by contract and keeping good faith
√ National key high-tech enterprise
Oversea User
√ Top ten influential brand of China brick and tile industry
√ First place in production and sales of block machine and tile making machine in China
√ ISO quality system certificate enterprise
*Huarun Tianyuan Factory
1* We are the professional manufacturer of Concrete Brick Block machine & Expanded Perlite Slab Molding Machine &
EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more
than 15years experience in this fields, cover 80000sqm and more than 400 staffs.
2* Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.
3* We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the
biggest water diversion project in China Government.
4* We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.
5* We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are
top leader in Chinese markets, share more than 95% markets.
6* We ensure our products quality and best after sales service.
We will do the best with clients' advice and susgestion.
1* We are the professional manufacturer of Concrete Brick Block machine & Expanded Perlite Slab Molding Machine &
EPS Insert Concrete Hllow Block Machine, & Fireproof door core making machine, with high technology research develop teams, more
than 15years experience in this fields, cover 80000sqm and more than 400 staffs.
2* Our products with CE/ISO certification had been sold to more than 106 countries, and well received high acceptance.
3* We had successfully designed the Slope protection brick machines for South-to-North water diversion project, this is the
biggest water diversion project in China Government.
4* We had successfully designed EPS(polystyrene) insert concrete hollow block machines. For chinese North-East building company.
5* We had successfully designed thermal insulation Expaned Perlite Slab molding machines for outside wall heat insulation. We are
top leader in Chinese markets, share more than 95% markets.
6* We ensure our products quality and best after sales service.
We will do the best with clients' advice and susgestion.
Service.
@:Free designing ,technical support and project;
@Engineer available for overseas installation and adjustment;
@All necessary documents and drawings and videos for free;
@Warranty one year after delivery.
@ 24hours Online service for all life time.
Packing & Delivery
RFQ
1- * Delivery period and payment terms?
10days after advanced payment, 100% advanced by T/T, balance
10days after advanced payment, 100% advanced by T/T, balance
2- * Packing method ?
Packed in plastic clothes, or on pallets.
Packed in plastic clothes, or on pallets.
