2Way NSF electric stainless steel valve motorized water ball valve (A100 T50 S2 C)

Product Overview

Description

Business philosophy

                            —— Sincerity , Quality assurance, Create

                            —— Good Customer service



TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4”~2’’).And valve actuator which are approved CE certification and SS304 valve approved NSF61 international certification.Our company also approved SGS ISO9001 in 2013 .





Product Model Definition





For occasions

1 IC card water meter, heat meter.

2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, small-scale industrial automation  equipment,  environmental protection







Technical Parameters:



Product size : 2" (NPT/BSP 1-1/4'' 1-1/2" 1'' ) Optional



Maximum working pressure : 1.0 MPa



Circulation medium : Fluid, air



Rated voltage : DC12V  DC24V AC/DC9-35V AC110-230 Optional



Wiring control methods : CR2-01 CR2-02  CR3-03 CR4-01 CR5-01 CR5-02 CR7-04  Optional



Working current :  ≤500MA



Open/close time :  ≤15S



Life time : 70000 times

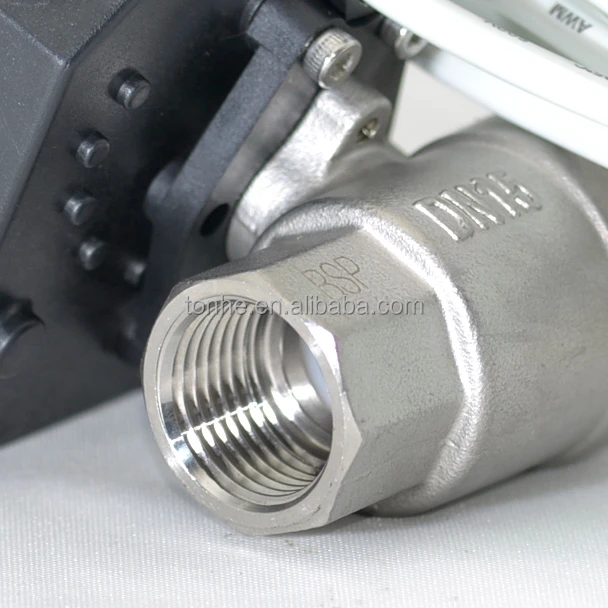

Valve Body material :  Stainless steel 304/316

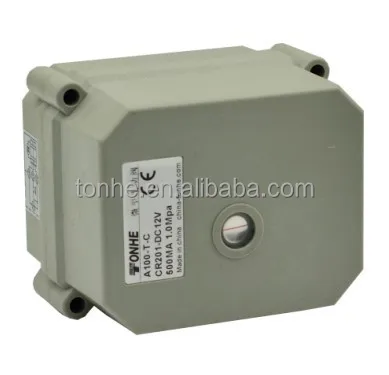

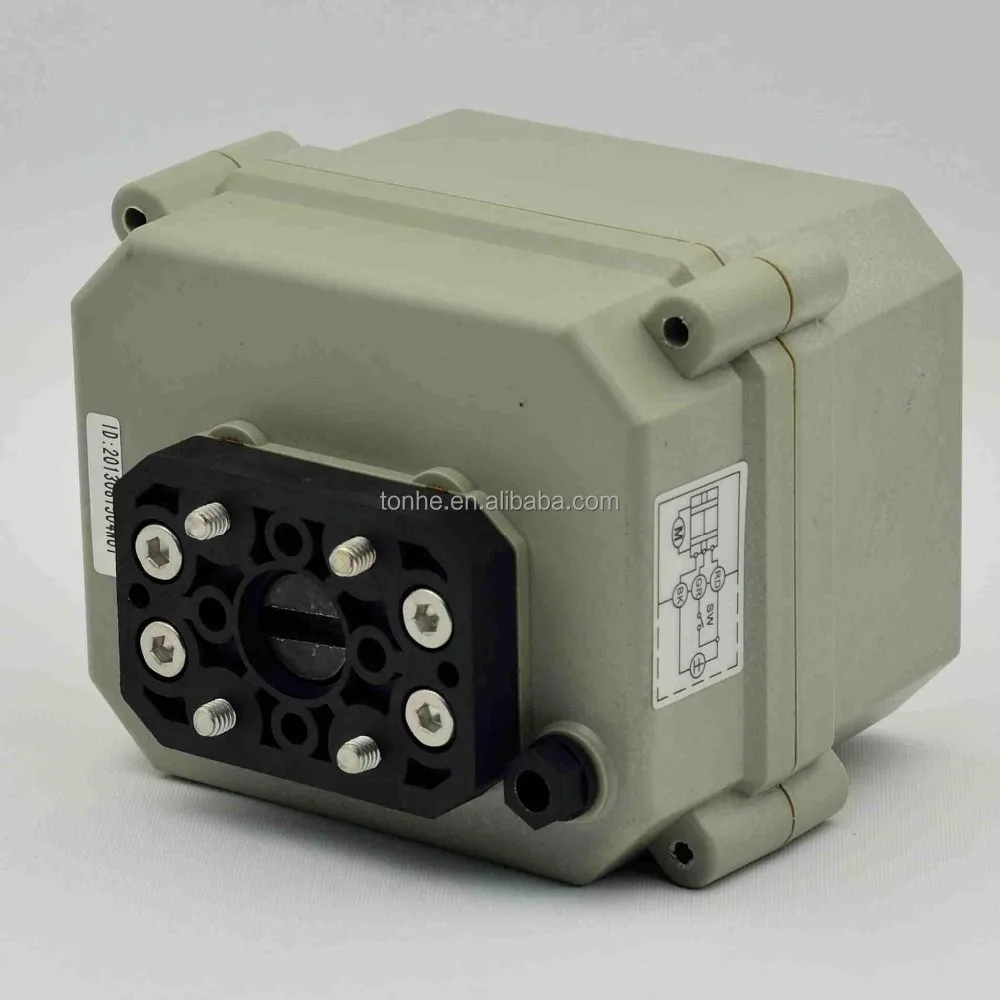

Actuator material : Engineering Plastics



Sealing material: FKM & PTFE



Actuator rotation:90°



Max. torque force: 10 Nm



Cable Length: 0.5m,1.5m (Optional)



Environment temperature: -15℃~50℃



Liquid temperature: 2℃~90℃



Manual operation: No



Indicator: Yes



Protection class: IP67
