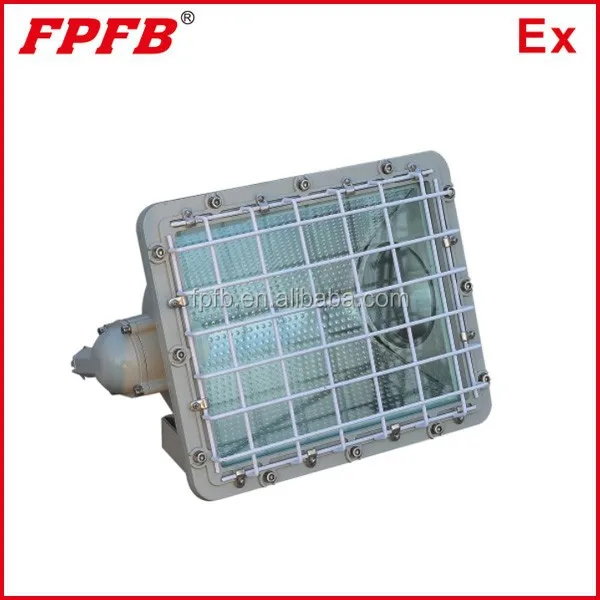

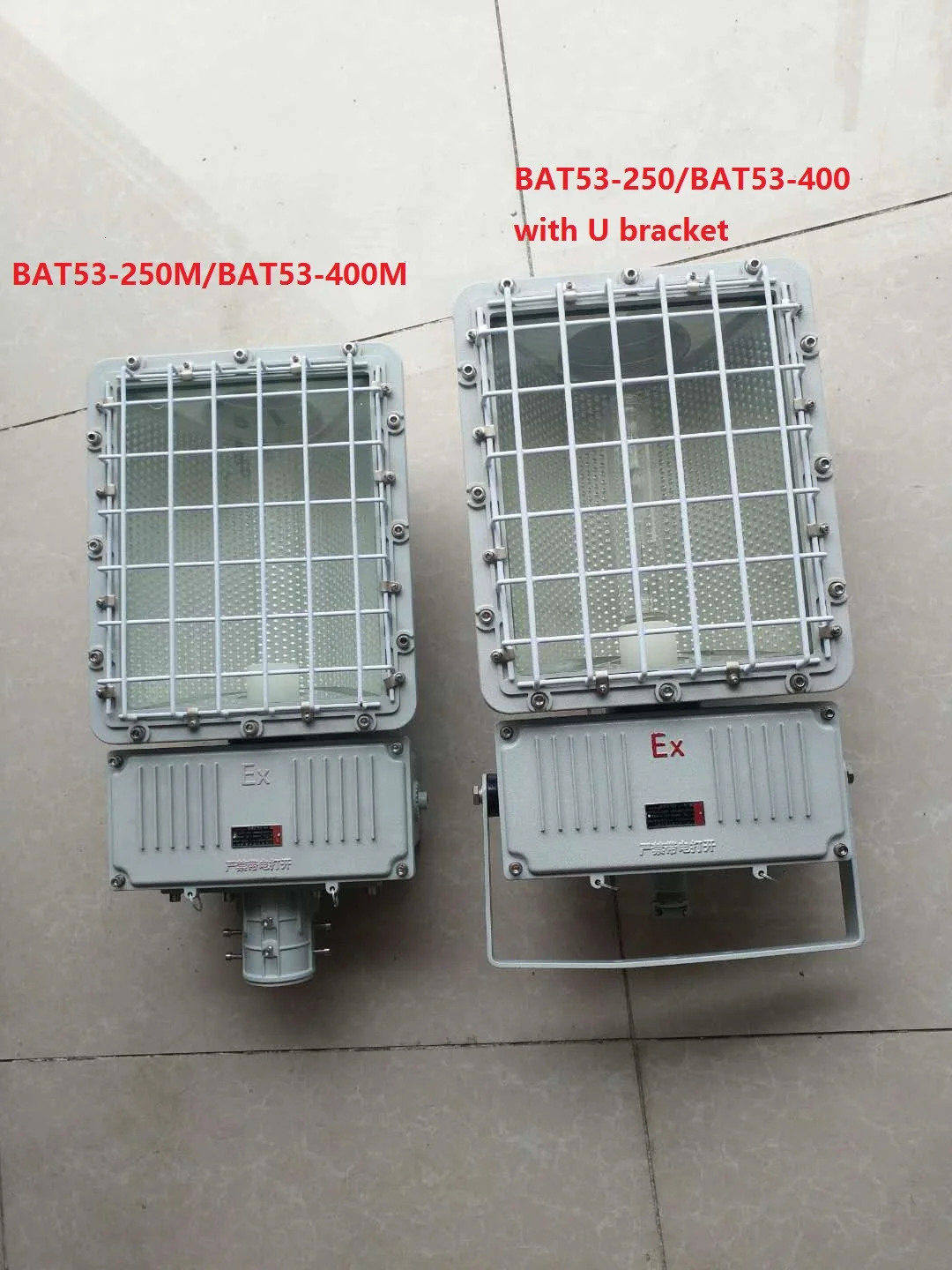

400W BAT53 Explosion proof high lumen Floodlight lamp IP65 ExdIIC

Product Overview

Description

 400W BAT53-Explosion proof high lumen Floodlight lamp IP65 ExdIIC



Youtube video web: https://www.youtube.com/watch?v=tMZw5qKZZJg

1. Can be used in hazardous areas: Zone 1 and Zone 2 .

2. Can be used in explosive gas atmospheres of Category II B and II C where the temperature classification is T1-T4.

3. Hazardous zone : 20. 21. and 22

4. Flammable dust atmosphere.

5. widely used in the fields of oil, chemical industry , spaceflight ,war industry and so on.



Voltage	RATED power	INLET thread	Lighting source	Ex-mark	Degree of protection	Erosionproofclass	cableouterline (mm)
AC220v	55W-400W	G3/4"	N,L,G,Z,J	Exde II BT6/CT6 GB	IP54,IP65	WF1	Φ 9- Φ 14



APPlications:

• Suitable for explosive gas environment Zone1 and Zone2.


• Suitable for IIA,IIB,IIC explosive gas environment.


• Suitable for Hazarous dust area: Zone20, Zone21, Zone22.


• Can be used in the environment of  temperature group for T1~T3.


• 3 different Types are available.


• Designed for petroleum explosion, refinery, storage, chemistry, medicine, military etc. sites with potential explosive atmosphere.



Techinical parameters:

• Meet a criterion:G3B3836.1, GB3836.2, GB3836.3, GB12476.1,IEC60079-0,  IEC60079-1,  IEC60079-7,  IEC61241-1,  EN60079-0, EN60079-1, EN60079-7, EN61241-1


• Ex-proof Mark:Exd II BT3 Gb, Exd II CT3 Gb, DIP A21 TA, T3.


• Rated voltage: AC220V


• Protection grade: IP54,IP65


• Corrosion-proof grade:WF1


• Inlet Thread: G³/₄"


• Cable outer dia:9mm~14mm

Product Features:

• Aluminium alloy Enclosure,high-pressure electrostatic powder coated after shot plastic.

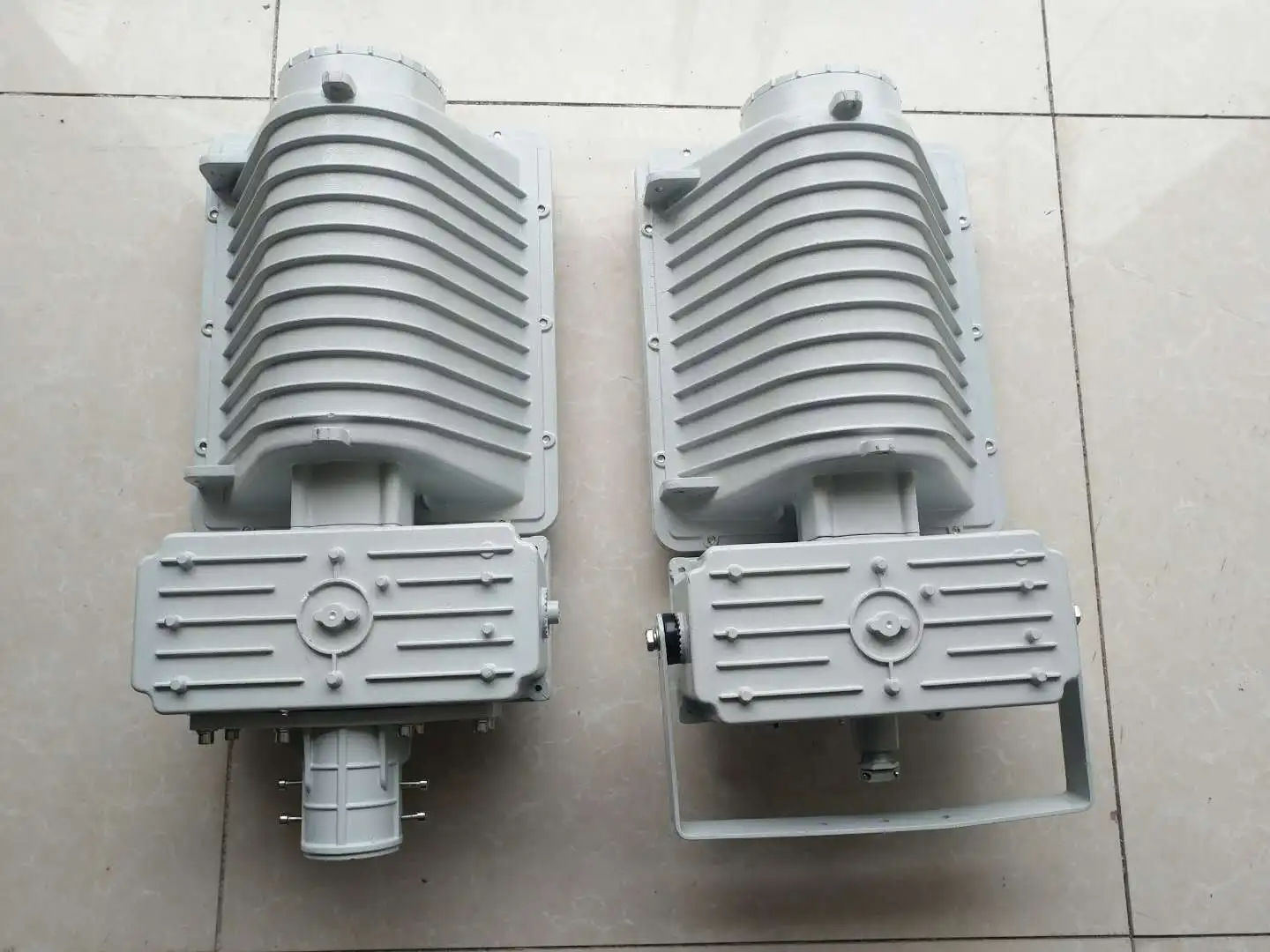

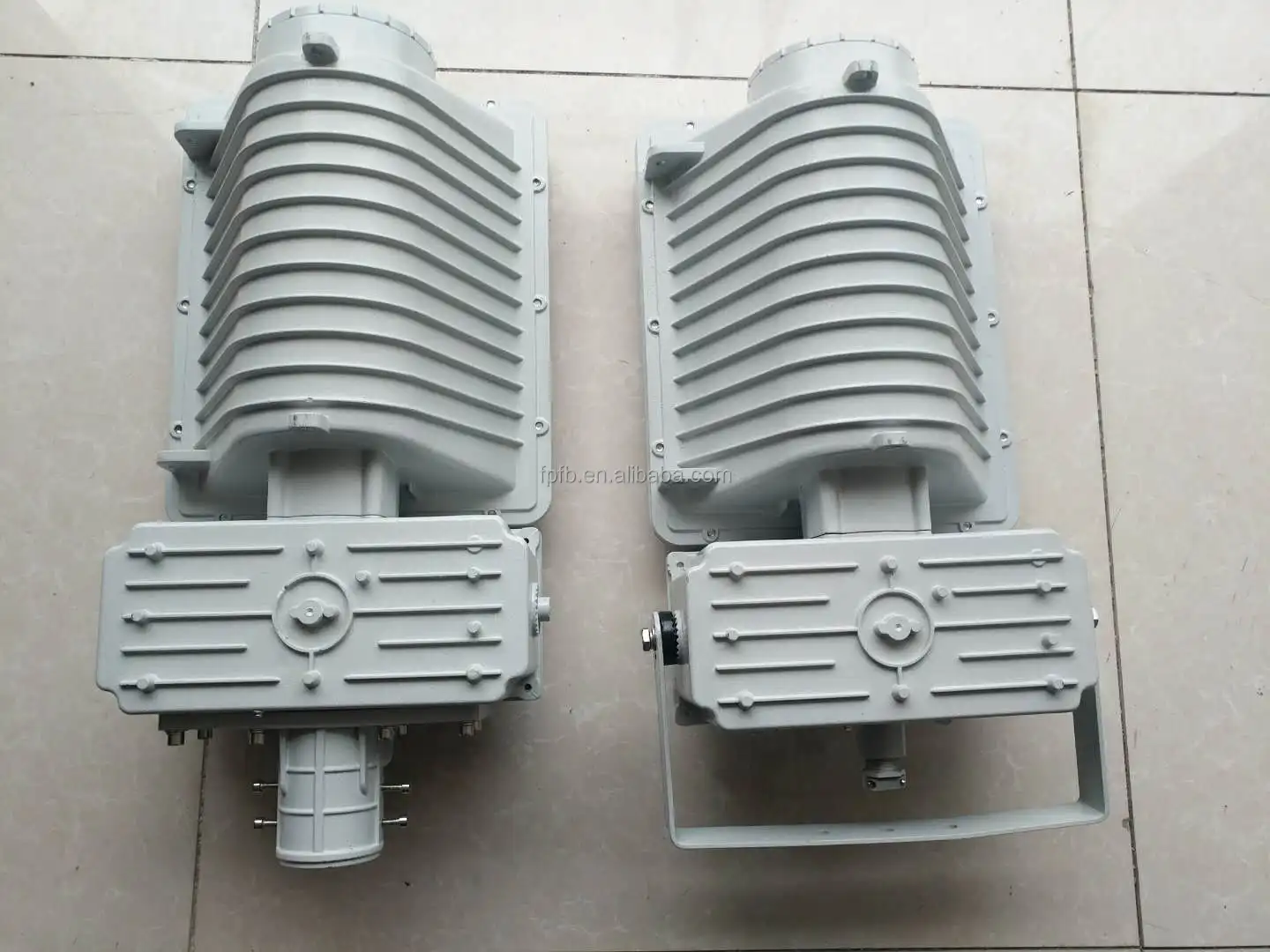

• Fins type enclosure structure is convenient for heat dissipation.


• Plate toughened glass cover with good impact resistance capacity.


• Lamp compartment with thread cover convenient for maintenance and change lamp.


• O shape sealing ring at flameproof joint with good water-proof capacity.


• Guards are treated by dip craft after galvanized with aesthetic appearance and strong corrosion resistance.


• Stainless steel Exposed fasteners with strong corrosion resistance capacity.


• Ajustable 360 horizontally and 45~135 elevation.


• Steel conduit wiring.
