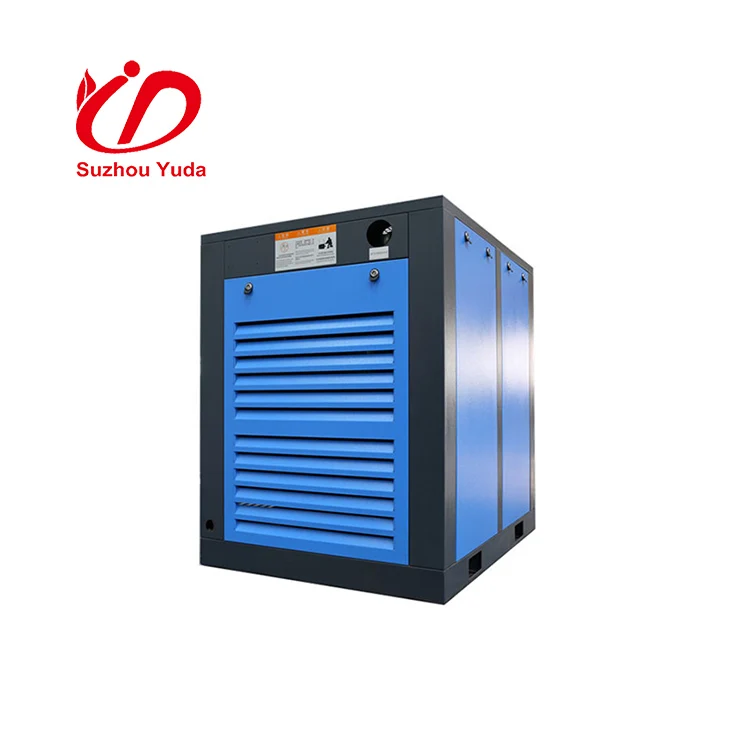

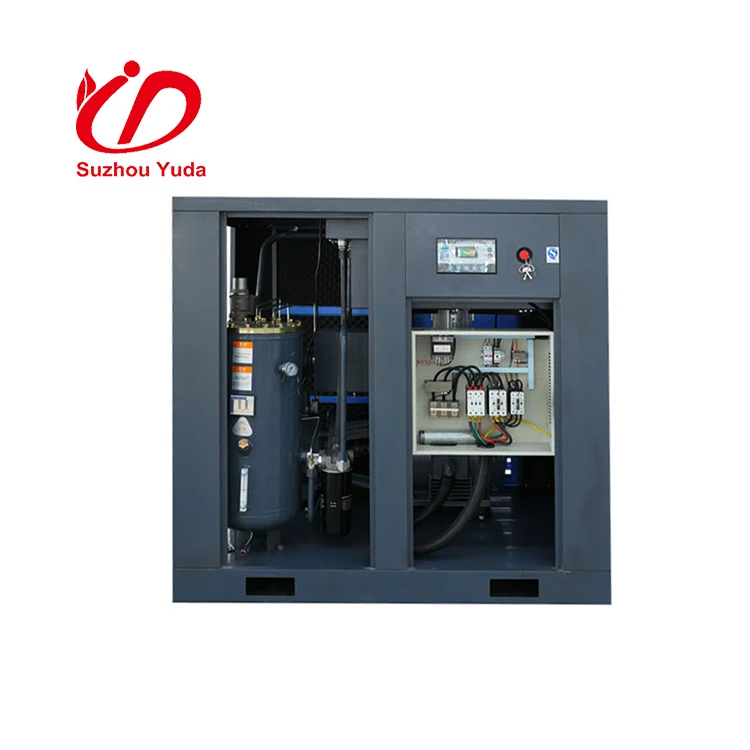

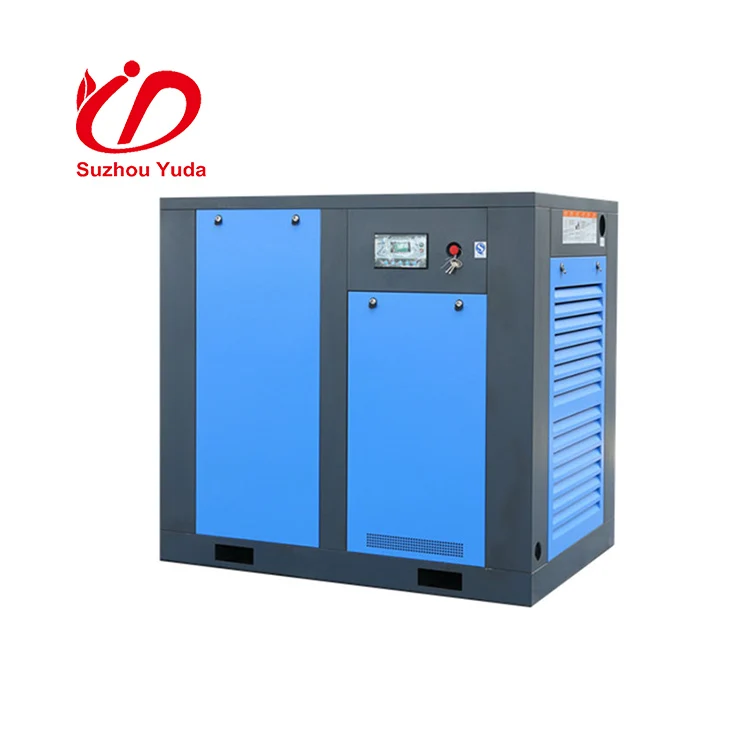

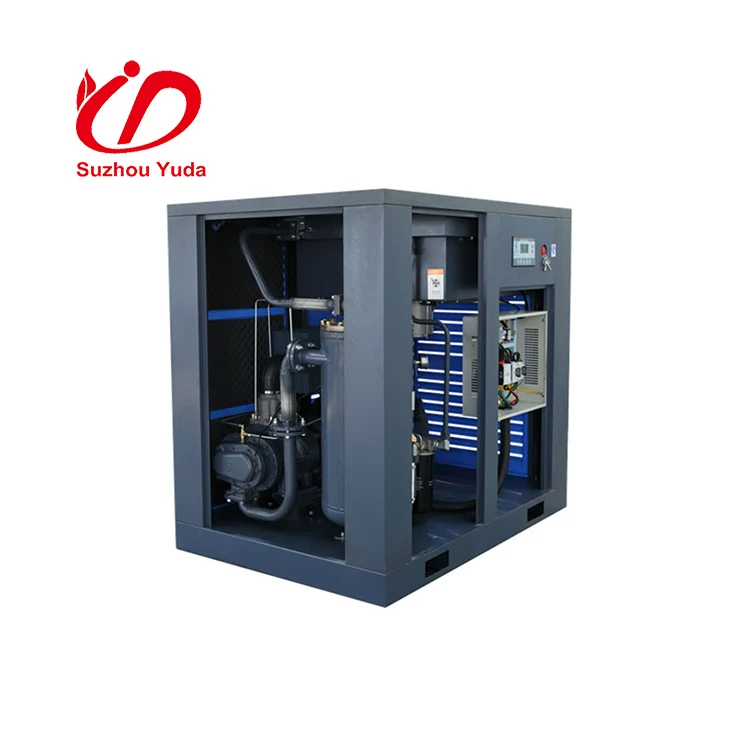

Industrial 100HP screw air compressor with 10Bar electric rotary compressor

Product Overview

Description

 Our advantages



1. Imported top-grade main machine, as the third generation product of state-of –the art brand the world, with asymmetrical 5:6 tooth rotor, is provided with outstanding performance and high efficiency far beyond other similar-type brand.



2. Full-intellectual control system and LCD screen, with self-diagnosis and protection devices, remote control and multi-host interlocking control, realizing unattended and high-tech operation.



3. Y series three-phase asynchronous motor special for compressor, imported World famous brand bearing, F-level insulation, IP54 especially suitable for long-term use, safe and reliable.



4 .Imported oil filter, oil gas separation filter element, ternary separation, ensure oil content less than 0.001ppm, the trunk adopts metal pipe, safe for long –term operation without leakage or deformation, the V type drive belt is imported from Germany, and has a service life more than10000hous.



5.Air volume auto intelligent control, auto shutdown after over long idle run, ensure over 25% of energy saving.

9.6Valve-free oil system design, achieving a safer and more reliable operation of the whole machine, main machine adopts imported special compressor oil, reducing leakage inside and outside the compressor, improving efficiency of main machine and prolonging service life.



Model	YDERC- 175SW	YDERC- 200SW	YDERC- 330SW	YDERC- 420SW	YDERC- 470SW	YDERC- 550SW	YDERC- 600SW
Type Of Cooling	Water	Water	Water	Water	Water	Air	Air
Volume Flow/Pressure	24.0/7	27.7/7	43.0/7	54.0/7	64.0/7	70.0/7	76.0/7
m3/bar	23.0/8	26.5/8	40.0/8	47.0/8	55.0/8	62.0/8	68.0/8
	20.0/10	22.5/10	37.0/10	40.0/10
Compressor Power (KW)	132	160	250	315	355	400	450
Speed (r/min)	3000	3000	3000	3000	3000	3000	3000
Power for Steam Turbine Compressor (KW)	160	250	320	400	450	500	600
V/Hz	AC 380/50
Noise db(A)	72±5 Measured according to national standards (GB/T4980-2003)
Exhaust Oil Content	<3ppm
Exit Air Temperature m3/min	Environment Temperature+15°C
Cooling Water Volume L/min	200	118	236	460	540	600	660
Port Size	Dn65	Dn65	Dn100	Dn125	Dn150	Dn150	Dn150





Main configuration

1 Motor- Germany

2 Belt- Germany

3 Oil filter- Germany

4 Solenoid valve- Japan
5 Combination valve- Austria

6 AC contactor- Germany

7 Gas cooler- Wuxi, China

8 Oil cooler- Wuxi, China

.9 Pressure controller- Japan
