Semi automatic plastic liquid soap bottle making machinery

Product Overview

Description



Introducton:

Semi-automatic blow molding machinery is suitable for producing PET plastic containers and bottles. It is widely used to produce the carbonated bottle ,mineral water,carbonated drink bottle, pesticide bottle oil bottle cosmetics,wide-mouth bottle etc.

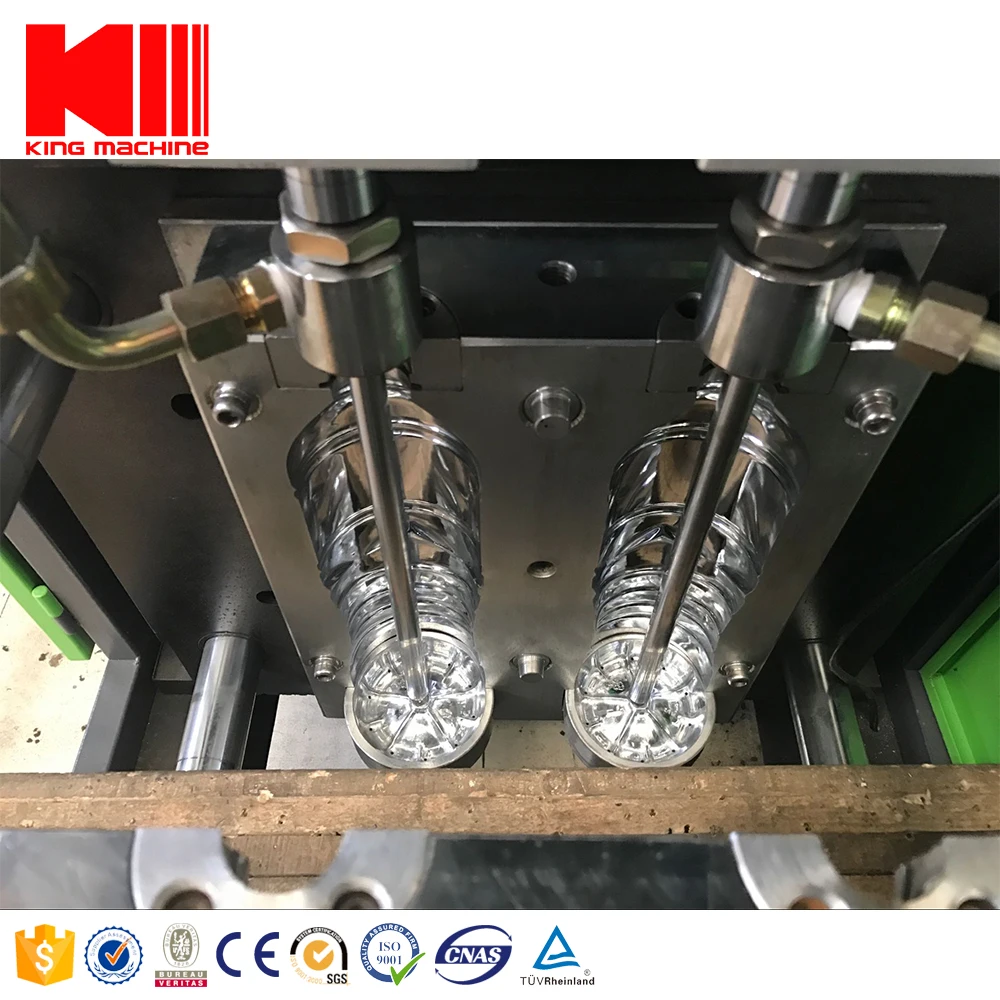

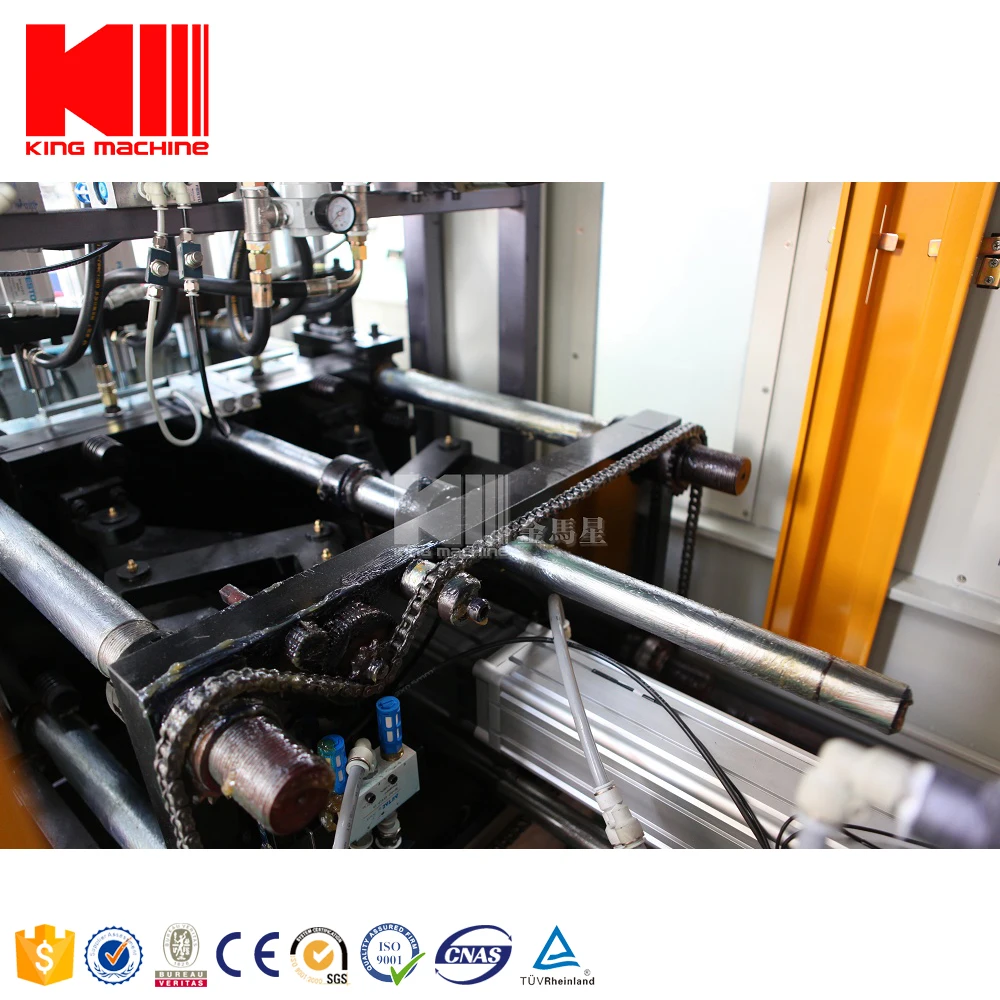

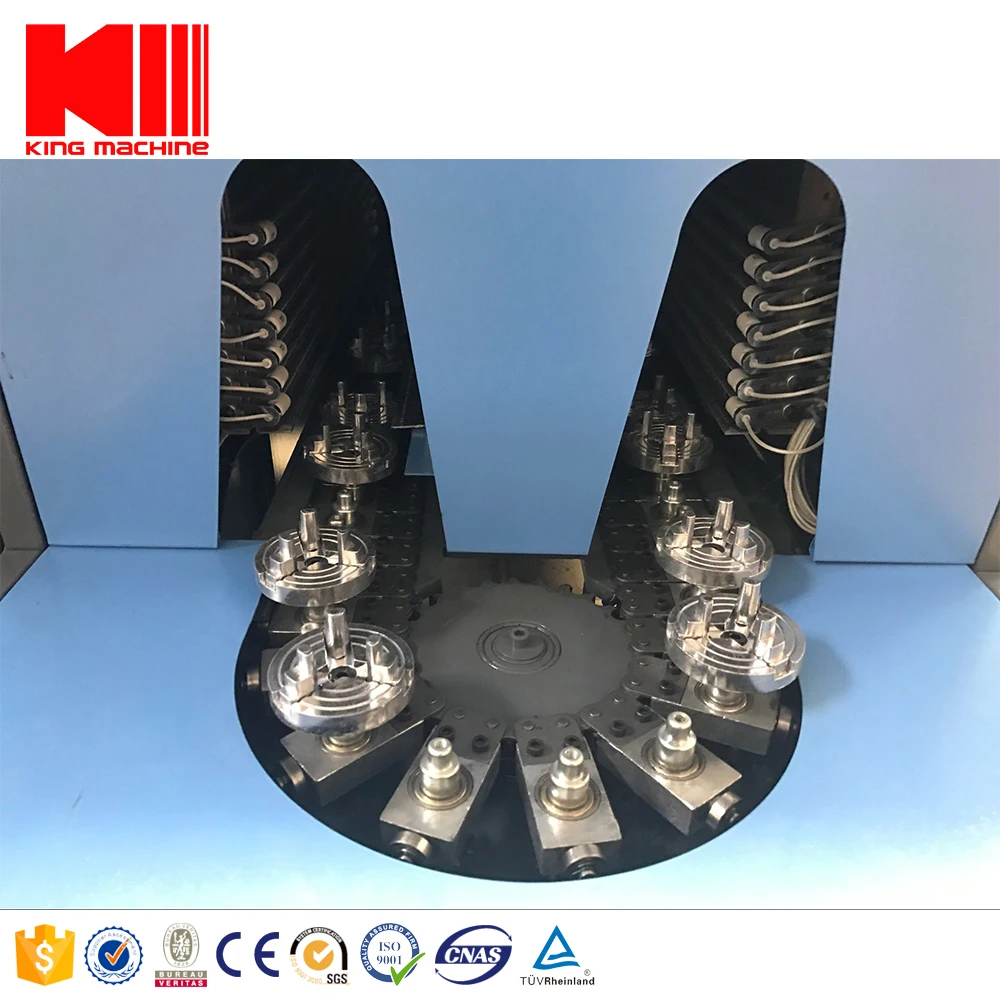

Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .It can provide sufficient and steady high pressure for blowing large irregular shaped bottles.
The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
The machine can be operated in the step-by-step mode and the semi-auto mode.

The machine is small with low investment, easy and safe to operate .

Function:

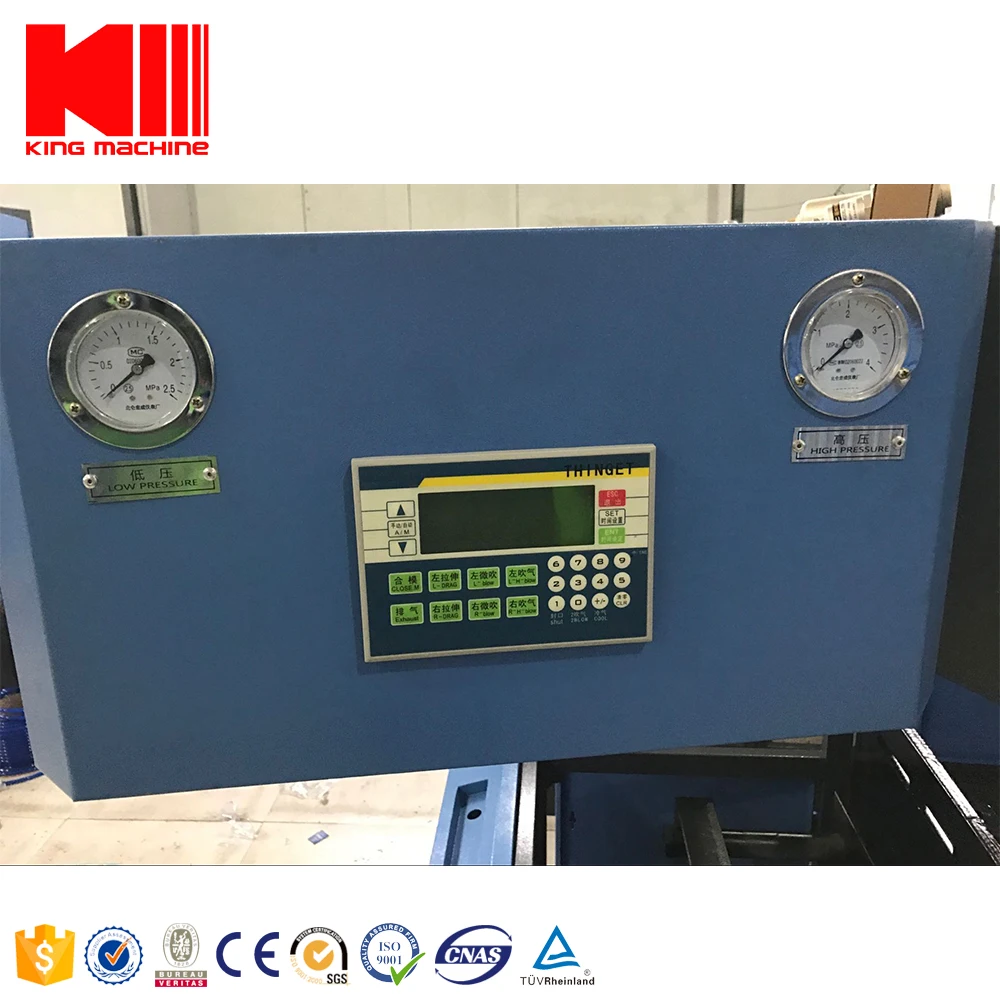

1. Controlled by MITSUBISHI touch screen computer. Operate consistently and simply.

2. Pneumatic elements from FESTO (German) and SMC (Japan)

3. Energy-saving and environmentally friendly design. Mechanical units are compact and rational.

4. Malfunction alert and diagnostic units allow easy maintenance.

5. Suitable for manufacturing a variety of PET bottles: mineral water bottles, edible oil bottles, soda bottles, medicine bottle, cosmetics bottles etc..

6. Oven can be made according the different preform requirements of customers

Container	Product material	PET
	Volume	0.1L-2L
	Theoretical output	1200-1600PCS/H
	Preform length	15mm-350mm
	Preform inner diameter	φ5mm-38mm
Moulding	Max.mould plate Dimenstion(L x W)	350x380mm
	Max.mould thickness	180mm
	Clamping force	45KN
	Mould opening stroke	160mm
Machine size and weight	Main machine (L x W x H)	160x60x161KM
	Main machine weight	500Kg
	Heater (L x W x H)	187x63x145KM
	Heater weight	250Kg
	Power	17.5kw
