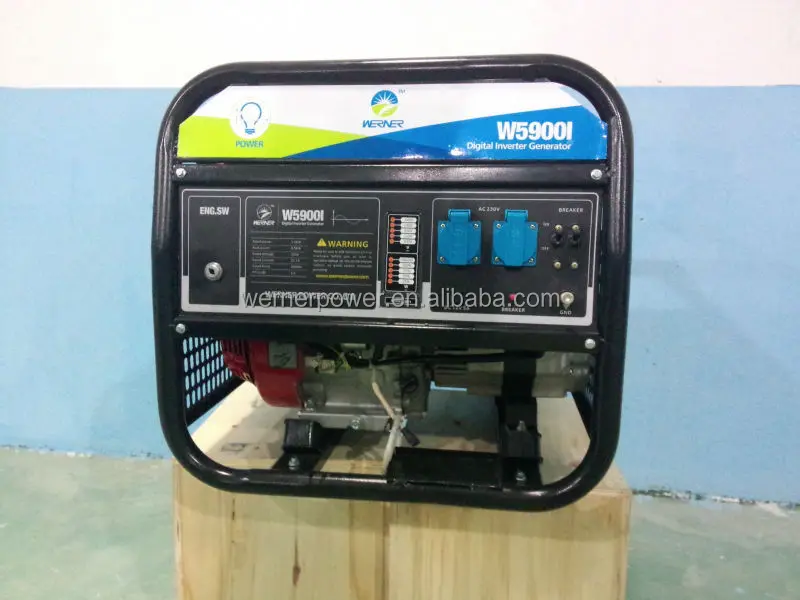

5kw Inverter generator powered by Honda

Product Overview

Description

Advantages

PERMANENT MAGNETIC ALTERNATOR:We choose permanent magnetic alternator which is brushless with inverter electronic control system.

DIGITAL INVERTER SYSTEM: Pure sine wave and THD less than 1%.High voltage multiphase AC power generated by the alternator and the AC power is then converted to DC. Finally the DC power is converted back to AC by the inverter unit. The inverter unit also smoothes and cleans the power.

HIGH QUALITY POWER OUTPUT:  A sinewave inverter that guarantees commercial-quality electricity – making it ideal for use with frequency sensitive electrical equipment such as computers, TV sets, air condition and so on.

HIGH FUEL EFFICIENCY:  As coupled with the inovation of alternator,this digital inverter generator can save 20% fuel consumption than other home use genset.

POWERFUL 4-STROKE OHV GASOLINE ENGINE: Compact size, high power, simple mechanism and easy starting.

Model Name	W5900I
Engine	188F
Engine Type	4-stroke, OHV, single cylinder, cylinder inclined, air cooled,petrol
Displacement	389ml
Compression	8.0:1
Rated rev	3000r/min
Ignition system	T.C.I
Start system	electric start
Engine rated output	7800W
Fuel tank capacity	21L
Fuel comsumption	≤299g/kw.h
Lube Oil capacity	1.1L

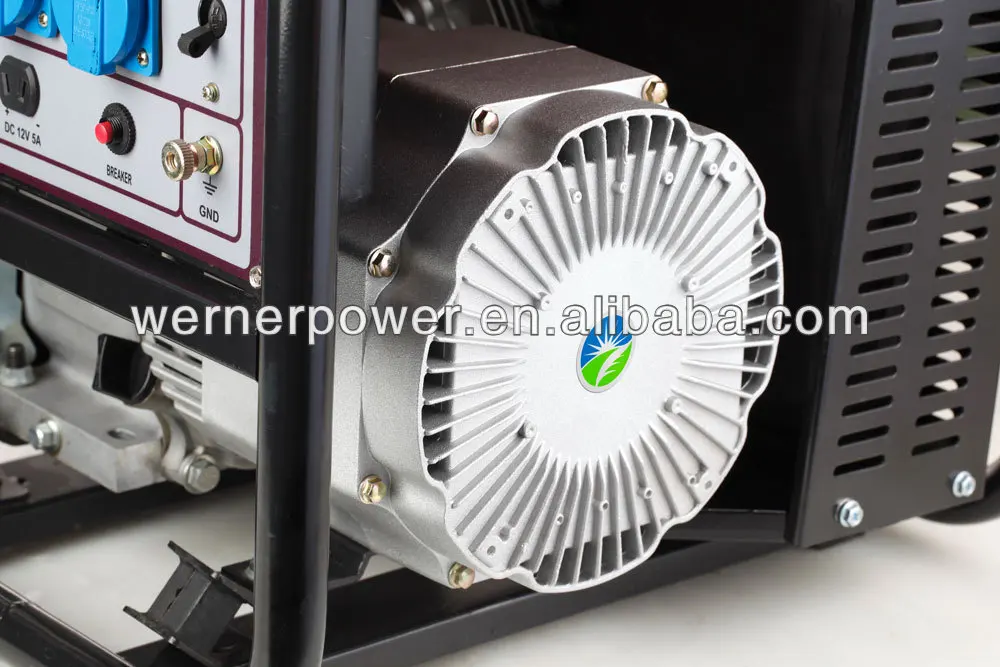

Alternator	Werner permanent magnetic alternator,100%copper,brushless
Rated AC frequency	50/60HZ
Rated AC voltage	230V
Rated AC current	21.7A
Rated AC output	5000W
DC output	12V   5A
output waveform	pure sine wave
output efficiency	90%
Total Harmonic Distortion	≤1.5%
Phase	single phase
Power factor	1
Frequency stability	±0.5Hz
Voltage regulation	0.5%V
Dimension	599×502×523 (mm)
Net weight	61.5KG







100% copper winding

Digital Inverter



Pure sine wave
