Hot sale CAD/CAM dental zirconia block for Amann Girrbach ceramill motion system
- Category: >>>
- Supplier: Heilongjiang Label Technology Co. Ltd.
Share on (60154747647):
Product Overview
Description
Hot sale CAD/CAM dental zirconia block for Amann Girrbach ceramill motion system
Company Information
Denxy is a professional manufacturer for dental series orthodontic products in China over 9 years. Mainly product : ortho bracket,niti /SS arch wire , buccal tube, molar band , ligature tie,elastics,power chain, dental wax,dental plier ,Spot welder ,bonding adhesive ,endo files, dental handpieces , light cure etc.
Denxy offer good quality products and excellent service for customers.
Product Description
zirconia blocksare made of nanometer medical grade zirconia powder. The powder are firstly compacted by cold isostaticpressing with high compressive strength and then pre-sintered to a certain degree to offer good machinability.

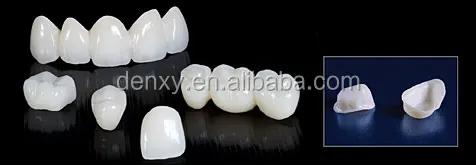

Us zirconia blocks can be used to create crowns, bridges, inlays and veneers of fixed partial denture with different translucency levels and colors.
| Product Information | |
| Compositions: | ZrO2(94%-95%), Y2O3(4.5%-5.5%), AL2O3(0.2%-0.5%), other Oxides (<0.5%) |
| Grade: | High Translucency, Super High Translucency |
| Compatibility: | open dental milling system |
| Specifications: | ø98 x 10, ø98 x 12, ø98 x 14, ø98 x 16, ø98 x 18, ø98 x 20, ø98 x 22, ø98 x 25, ø98 x 28 |
| Appearance: | white color disc |
| Technical Facts | |
| Pre-sintering Density: | ≥ 2.95g/cm3 |
| Post-sintering Density: | ≥ 6.08g/cm3 |
| Post-sintering Hardness: | Hv10 ≥ 12.5Gpa |
| Post-sintering Flexural Strength | > 1100Mpa |
| SinteringShrinkage: | 19% - 22% |
| Pre-sintering Solubility: | ≤ 2000µg·cm-2 |
| Post-sintering Solubility: | ≤ 100µg·cm-2 |
| Radioactivityof uranium-238 per unit mass: | ≤ 0.02Bq·g-1 |
3. Operation Guide
1). Place a Jrcera® zirconia block in your CAD/CAM machine and machine it following the manufacturer’s instructions.
2). After machining is completed, remove the zirconia block from the CAD/CAM machine first. Then remove the framework from the zirconia block with a diamond disc. Subsequently, place the framework on a sintering tray with zirconia beads and put them in the oven for sintering.
3). Program the furnace according to its instruction manual and Jrcera® zirconia block’s sintering chart, and then start sintering.
4). Do not remove the sintered framework until it is fully cooled down. Examine the sintered framework for wall thickness, margin fit and seat fit. If necessary, make minor adjustments with a water cooled diamond tool.
5). Make sure no wall thickness is less than 0.5mm and no connector is thinner than 9mm2.
6). Rinse the sintered framework with water and dry completely. The framework

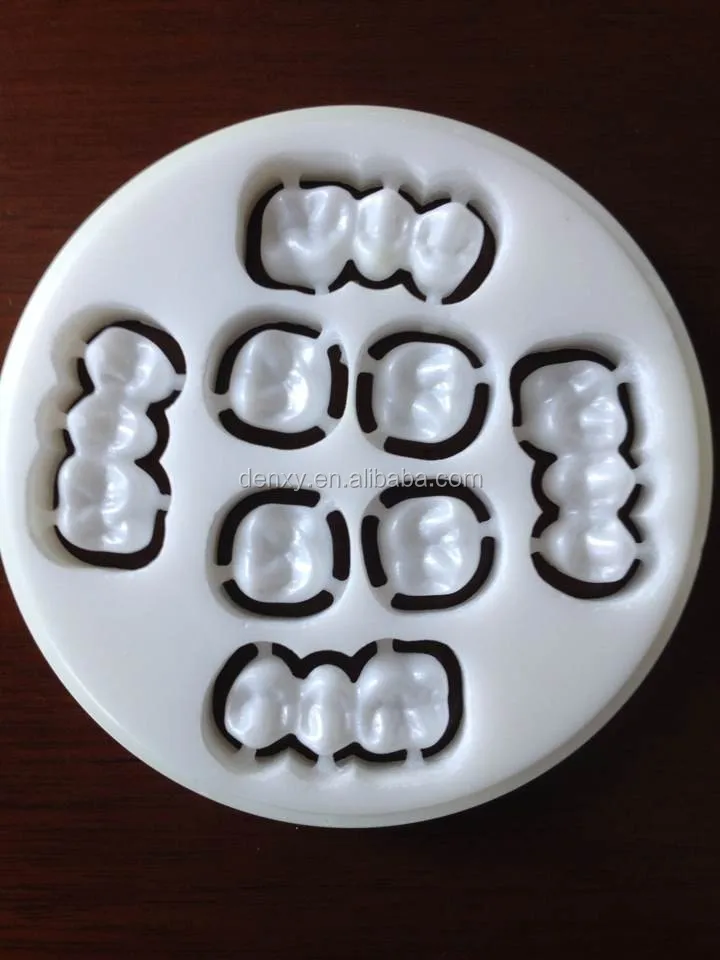

Product picture :

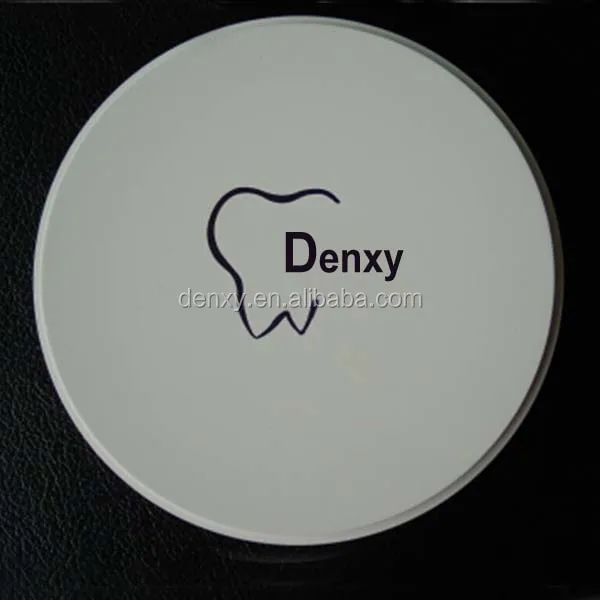

"Denxy" brand

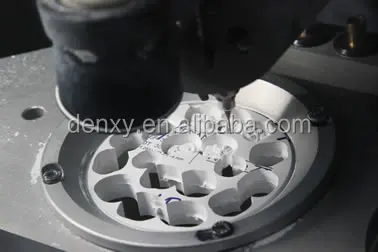

Facotry picture :
Packaging & Shipping
FAQ
Our Services
Skype : denxydentalnancy
24-hours online service
24-hours online service makes your inquiry be replied immediately.
Professional Consultation
Give the the professional and detailed introduction, make you know the features and usage of the products immediately.
Quality Guarantee
We have professional quality inspectors who will carefully insect each product before delivery.
Payment:
We accept payment via TT (Bank transfer), Western Union, Escrow,Paypal.
Delivery Assurance
Depends on the products, Most of products we will deliver within 1 weeks, We offer as many shipping options as possible, including DHL, UPS, TNT, Fedex, EMS and Air mail. In case for big quantity, we will let you know the delivery time when in inquiry.
Import taxes:
We can help you reduce and avoid import taxes by declaring prices low, declaring the contents as "electronic accessories" or other items and shipping in simple packaging.
