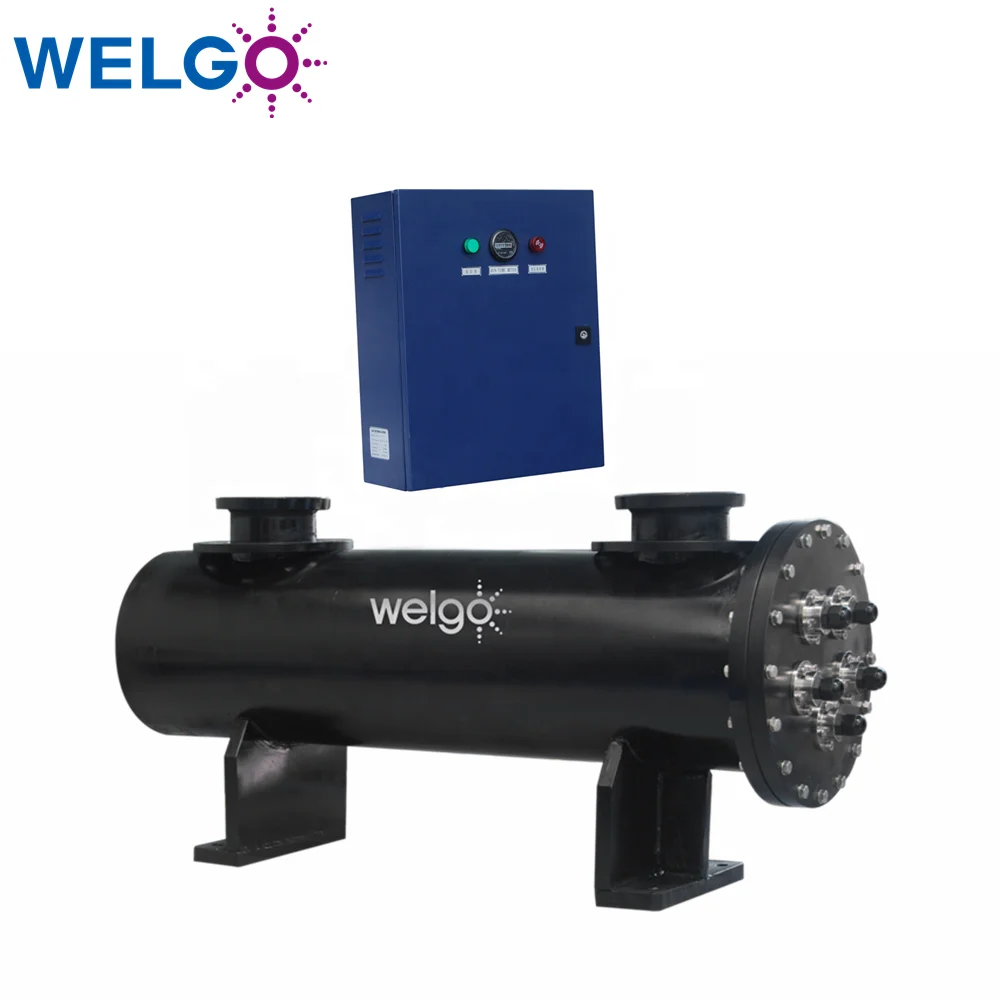

UV Sterilisers for Marine Water
- Category: >>>
- Supplier: Guangzhou Welgo Environmental Equipment Co. Ltd.
Share on (60154753472):
Product Overview
Description
UV Sterilisers for Marine Water
uv lamp marine aquarium water sterilizer marine water uv steriliser
Characteristic of HDPE UV Sterilizer
► The chamber of HDPE UV system is made of corrosion-resistant high density polyethylene material which guarantees 50 year life span.
►Light weight, aging resistance, chemical rust resistance, shock resistance
► High output UV lamps guarantee efective disinfection
► High output UV lamps guarantee efective disinfection
►Adopt USA UV lamp which service time is up to 12000 hours
Advantages
►Corrosion resistant to sea water and water which contains with chemicals.
►The life span of HDPE chamber can reach 50 years
►Electrical safety features secured by HDPE insulation material
►Electrical safety features secured by HDPE insulation material
►Fexible choices for client:
a)Basic model
b)Basic plus UVC monitor and UV intensity meter
c)Manual or automatic wiping mechanism for cleaning the surface of quartz tube
Typical Applications
Fish Pond Marine aquarium
Aquaculture Brackish water aquaculture
Technical parameters
Model | Flow Rate | Lamp Watts | Lamp QTY | Total Power | Inlet/ Outlet Port | Reator Size (mm) | ||||
L | W | H | ||||||||
WGUV-HDPE-80-2U | 12m³/Hr | 80W | 2PCS | 200W | DN65 | 980 | 180 | 400 | ||
WGUV-HDPE-80-3U | 20m³/Hr | 80W | 3PCS | 280W | DN80 | 980 | 195 | 400 | ||
WGUV-HDPE-80-4U | 25m³/Hr | 80W | 4PCS | 360W | DN100 | 980 | 215 | 450 | ||
WGUV-HDPE-80-5U | 30m³/Hr | 80W | 5PCS | 440W | DN100 | 980 | 250 | 500 | ||
WGUV-HDPE-80-6U | 35m³/Hr | 80W | 6PCS | 520W | DN100 | 980 | 250 | 500 | ||
WGUV-HDPE-155-4U | 45m³/Hr | 155W | 4PCS | 650W | DN100 | 1700 | 215 | 450 | ||
WGUV-HDPE-155-5U | 55m³/Hr | 155W | 5PCS | 800W | DN100 | 1700 | 250 | 500 | ||
WGUV-HDPE-155-6U | 66m³/Hr | 155W | 6PCS | 970W | DN125 | 1700 | 280 | 520 | ||
WGUV-HDPE-320-2U | 45m³/Hr | 320W | 2PCS | 670W | DN65 | 1700 | 220 | 335 | ||
WGUV-HDPE-320-3U | 70m³/Hr | 320W | 3PCS | 990W | DN80 | 1700 | 220 | 335 | ||
WGUV-HDPE-320-4U | 90m³/Hr | 320W | 4PCS | 1330W | DN100 | 1700 | 280 | 520 | ||
WGUV-HDPE-320-5U | 110m³/Hr | 320W | 5PCS | 1650W | DN125 | 1700 | 280 | 520 | ||
WGUV-HDPE-320-6U | 130m³/Hr | 320W | 6PCS | 2000W | DN125 | 1700 | 280 | 520 | ||
1. Q: Can I get your products with our logo and design?
A: Customized service is available.
2. Q: What about Lead time ?
A: About 15 work days normally. Your order will be arranged to production once the deposit be received.
3. Q: Do you accept sample order?
A: Yes,we can make your customized sample before mass order placed.
4 Q: What's the MOQ ?
A: We can offer the quantity you required, as we do not have MOQ requirement.
5. How do you control the quality?
A: Strictly check the material and control the quality at every stage of production, from the incoming raw materials to the finished product.
6. What is the Packing material?
A: Carton, Plywood case, Pallet. They are suitable for shipment.
7.What information we need to let you know before order?
a. What is the raw water?
b.What's the flow rate per hour?
c.What is your industrial voltage and frequency?
8.What's the payment terms?
1) Small order: T/T100% payment in advance
Big order: T/T 30% deposit in advance, 70% paid before shipment.
2)Western Union
3)Alibaba Escrow.
4)L/C at sight.
9.After sales service
(1) 24 hours we are ready to explain question for you.
(2) Professional engineers supported, along with strong technical service.
(3) Welgo will send engineers to customers factory to Offer installation, debug and technology training to if you need.
