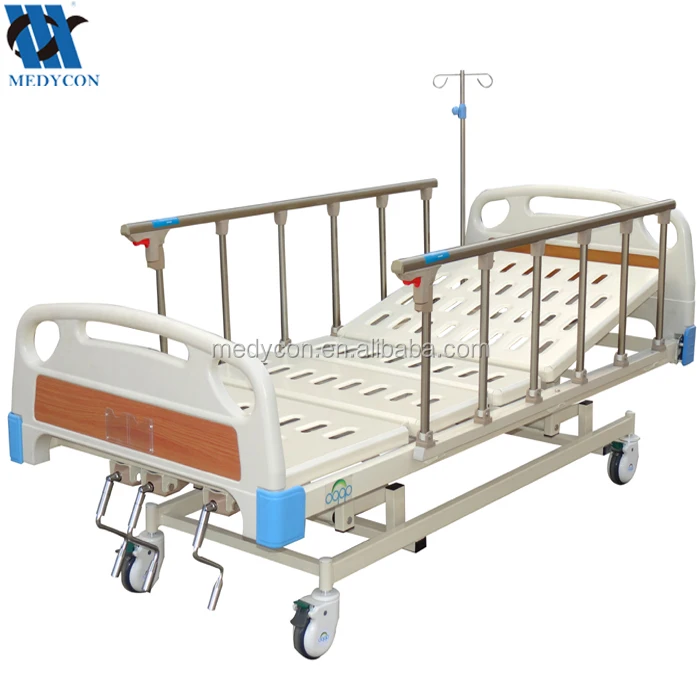

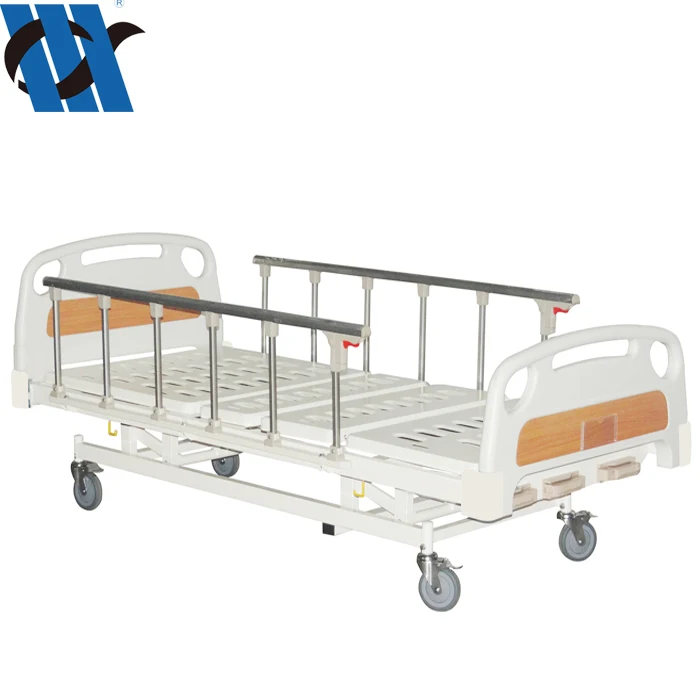

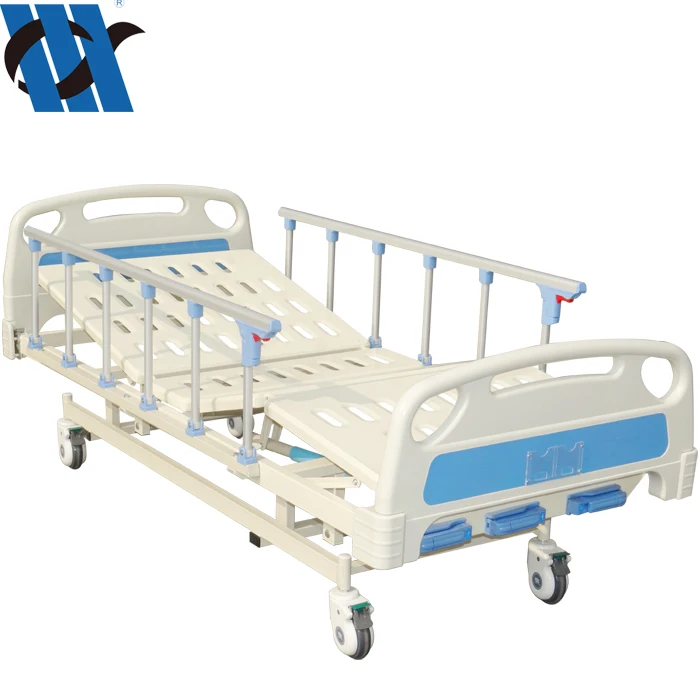

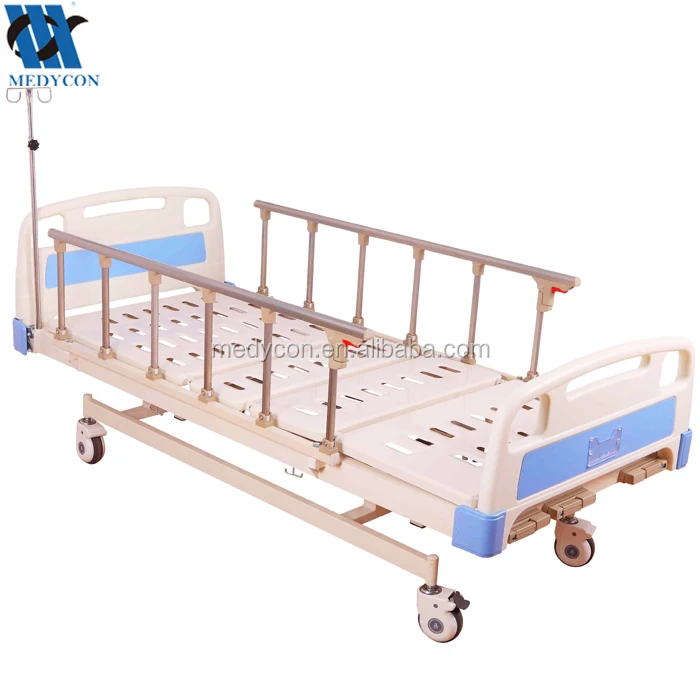

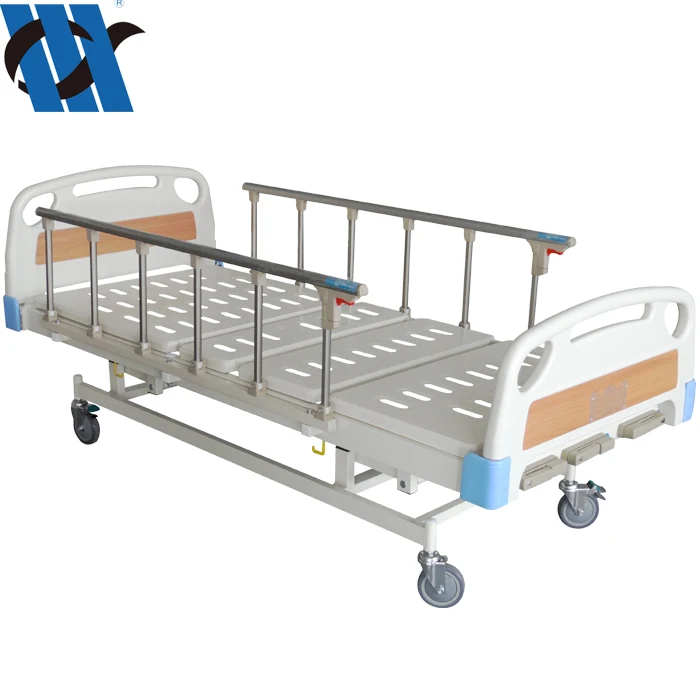

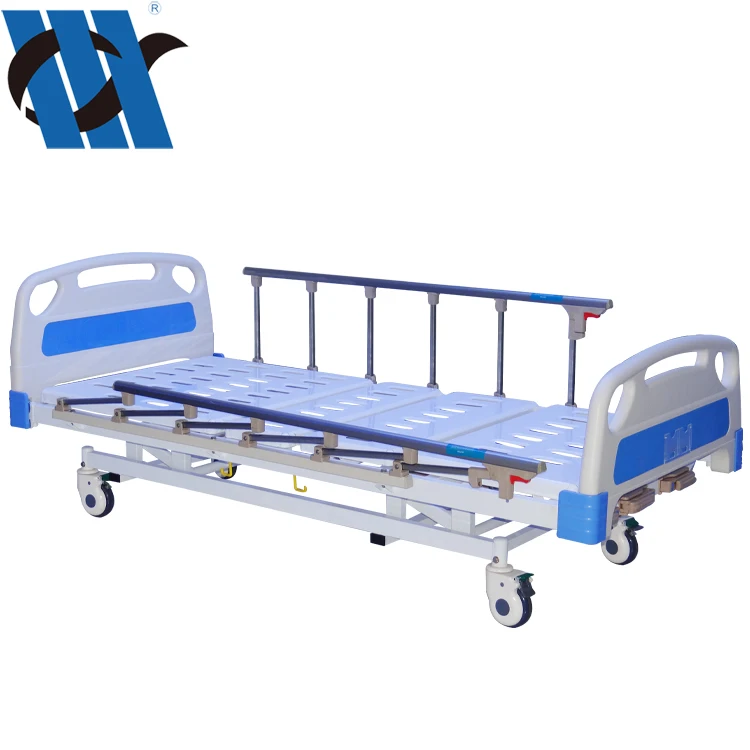

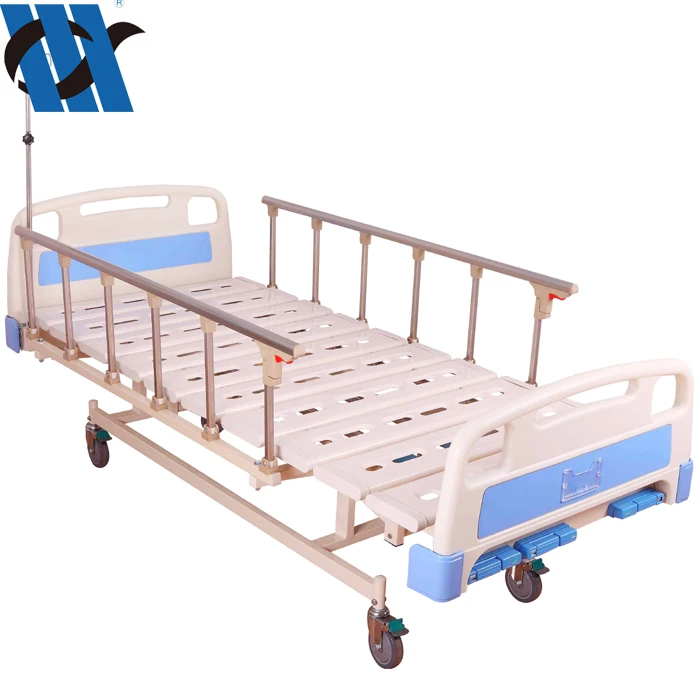

Mdk t3611L 3 Crank Hospital Bed Medycon Manufacture Medical Furniture Height Adjustable Foldable Manual Hospital Bed
- Category: >>>
- Supplier: Zhangjiagang Medycon Machinery Co. Ltd.
Share on (60154783178):
Product Overview
Description
Video Description
MDK-T3611L
3 Crank Hospital Bed Medycon Manufacture Medical Furniture Height Adjustable Foldable Manual Hospital Bed
Products Description
Important Quality Control
* Mordern design.Use new and strong inserted ABS fire-proof panel avoid off.
* Easy to be cleaned and installed
* With UL/ROHS/EN Standard. Noise Under 50dB, With Lifetime 20,000Times Movement.
* Baosteel from Fortune Global 500
* Environmental plastic can be sterilized in 100°C,tensile upto 30MPa
* Solid bed base made of 5.0mm stamped rotating plate
* 11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact
* Panasonic Robotic ensure 360° full smooth wedldingFunctions
* Easy to be cleaned and installed
* With UL/ROHS/EN Standard. Noise Under 50dB, With Lifetime 20,000Times Movement.
* Baosteel from Fortune Global 500
* Environmental plastic can be sterilized in 100°C,tensile upto 30MPa
* Solid bed base made of 5.0mm stamped rotating plate
* 11 Process epoxy painting, ASTM testing anti-baterial, paint thickness 0.12mm, brightness 60°, paint can resist 50kg impact
* Panasonic Robotic ensure 360° full smooth wedldingFunctions
3 Functions:
Backrest adjustment,
Kneerest adjustment,
Height adjustment
Accessories Details
* Stamping ONE -TIME forming platform, welded by robot to ensure smooth surface no welding scar, bearing 250KG load. Option ABS platform and resin X-ray translucent platform
* L-shaped foldable guardrail, made of bended tube, solid installing, 0 shaking, easy to clean, anti-pinch, protect patient's
safety
* Mordern design.Use new and strong inserted ABS fire-proof panel avoid off.
* Easy to be cleaned and installed.Net weight over 3.5kg.
* With bumper,protect the bed and patient during transportation
* TPR tire no worn out after running 30KM, save anti-winding hard shell, united forming without bolts
* Pass Dynamic test: Bearing 120kg run 30KM and pass obstacles 500time
* Castors with test report of BS EN 12530: 1998 standard
* Plastic drainage hook, movable
* Full SS IV pole, bearing 15kg
* Lifting pole - Bearing 765N force!

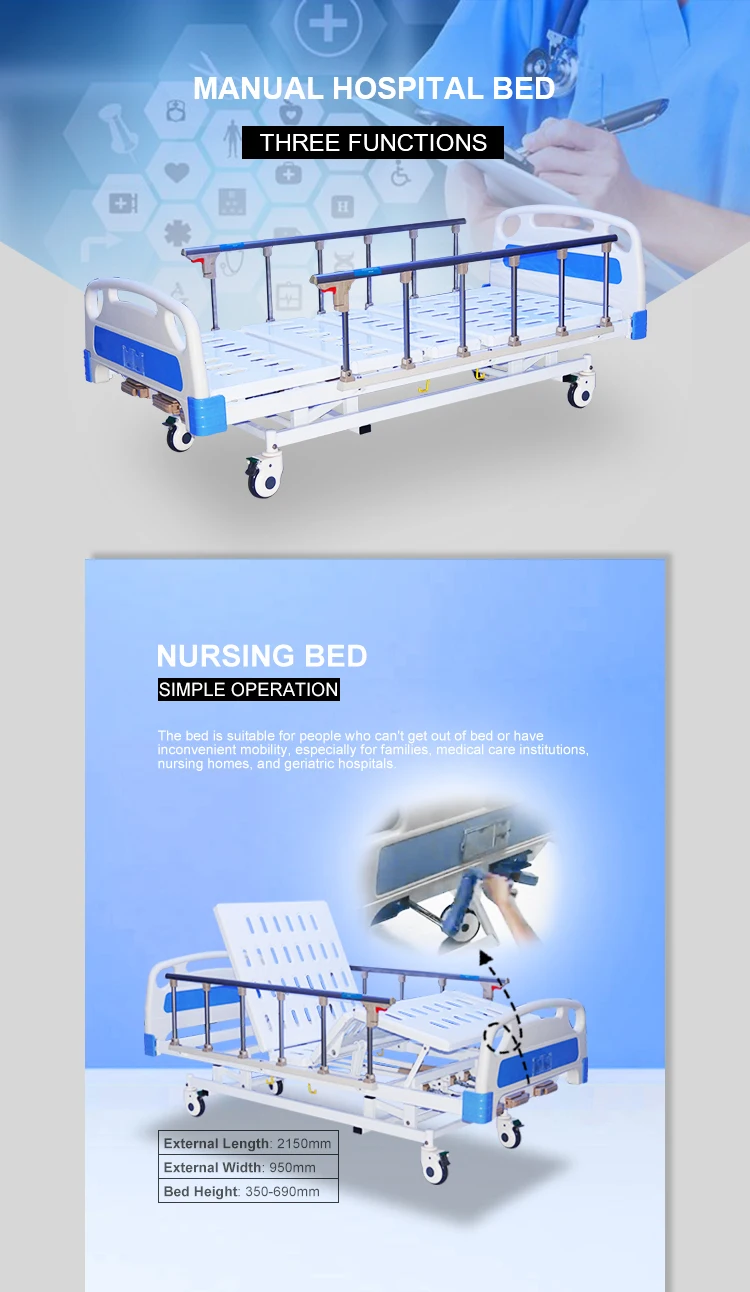

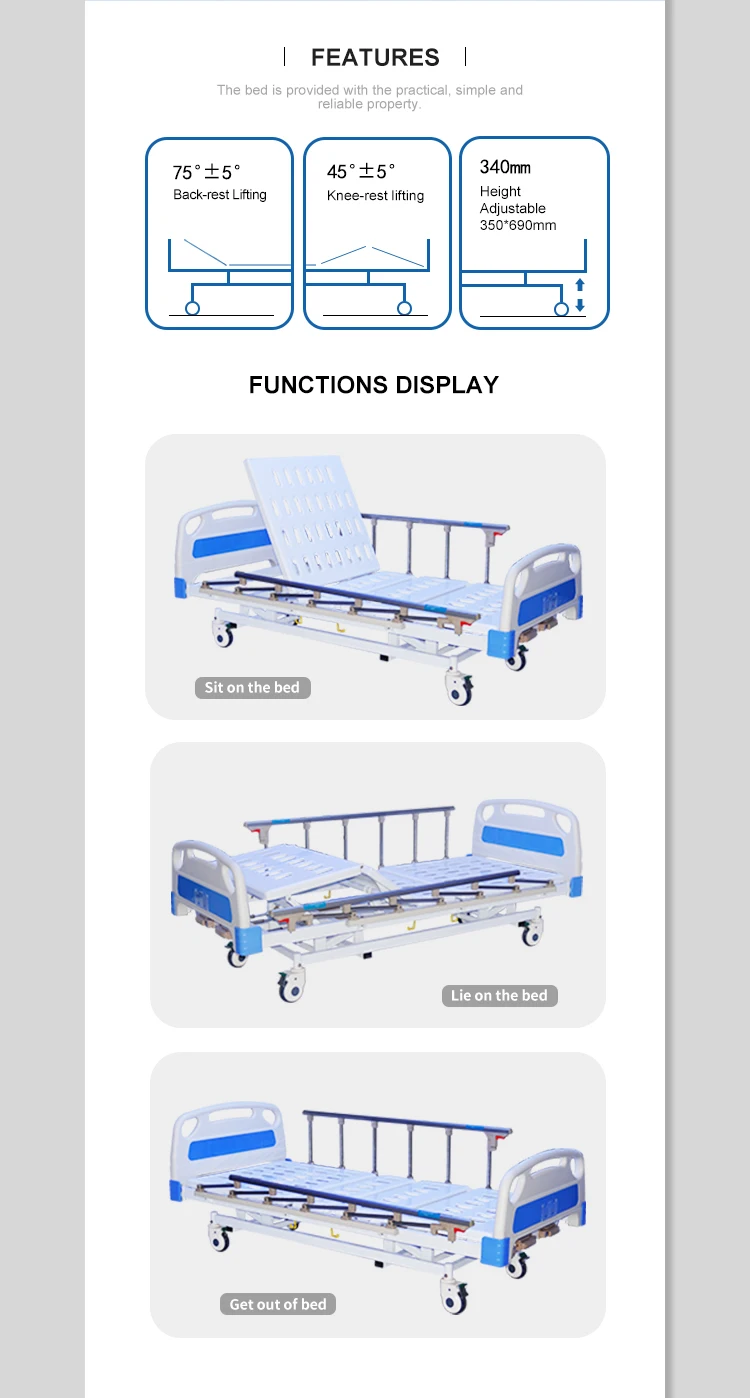

Function Display
Specification
Parameter | Category |
External L*W*H | 2150*950*350-690mm |
Mattress Platform | 1950x830mm |
Safe Working Load | 250kg |
Back-rest lifting angle | 0-75°(±2%) |
Knee-rest lifting angle | 0-45°(±2%) |
Height adjustable | 350-690mm |
Manual Crank System | 3pcs |
5'' Double Side Castors | 4pcs |
Aluminum Side Rail Extra Height | 1set |
ABS Headboard with Safe Lock | 1set |
IV Pole | 1pc |
IV Pole Prevision | 4pcs |
Drainage Hook | 4pcs |
Carton size: | 206*96*30cm/1pc |

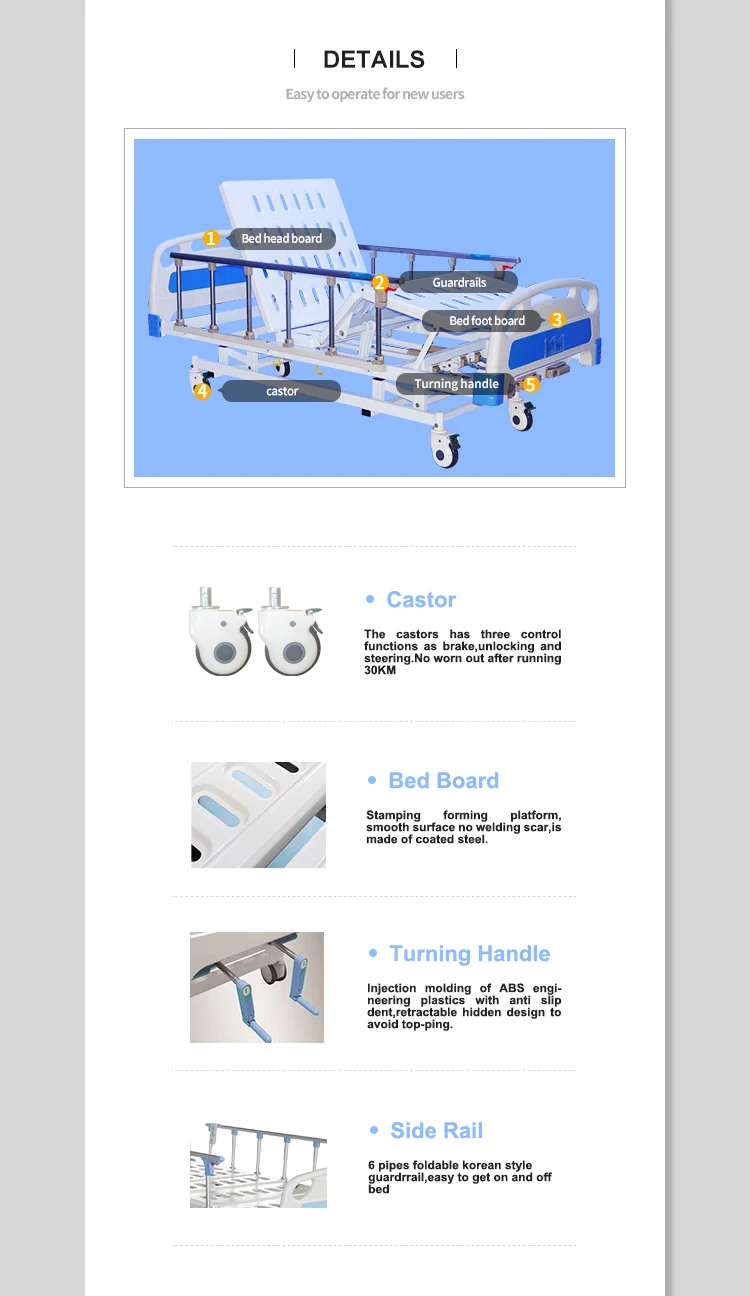

Details Images
Company Profile

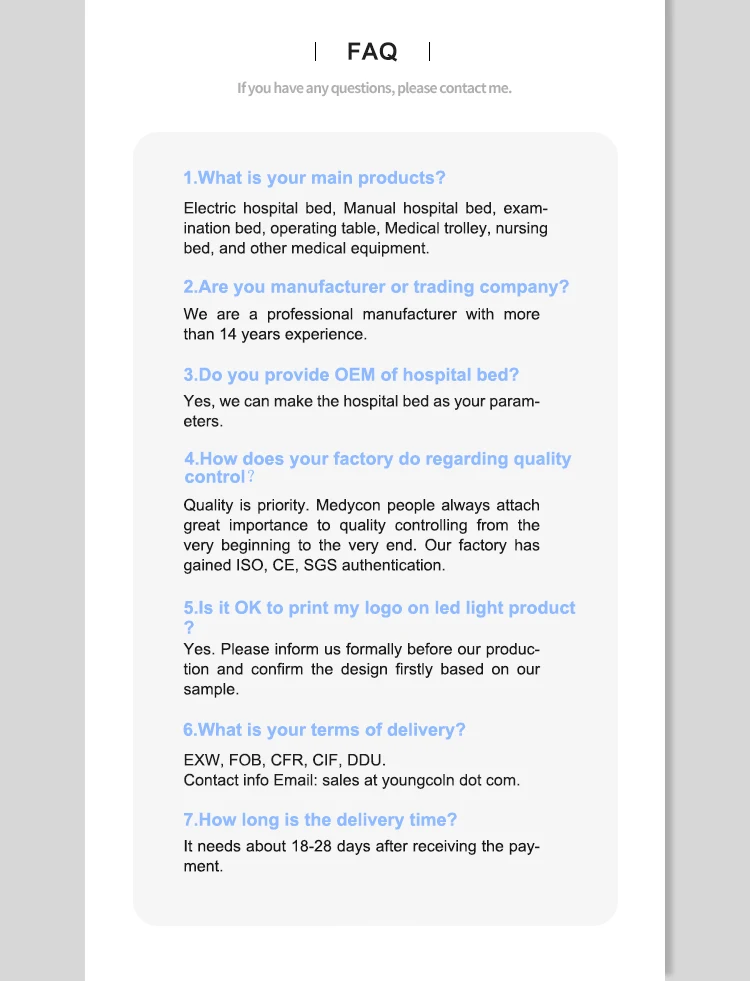

FAQ
MDK-T3611L
3 Crank Hospital Bed Medycon Manufacture Medical Furniture Height Adjustable Foldable Manual Hospital Bed
