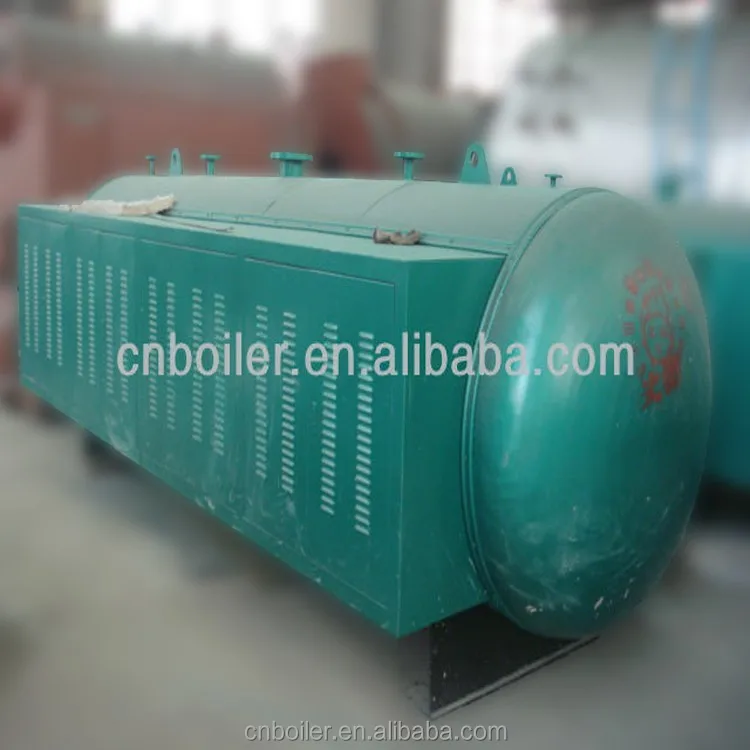

Industrial Fully Automatic Electric Heating Steam Boiler with ASME, CE, SGS Certificate

Electric Steam Generator

Rated

Evapora

tion

 T/H

Rated

Steam

Pressure

Mpa

Rated

Steam

Temp.

℃

Feed

Water

Temp

 ℃

Power of

Single

Electric

Heater

Tube

Kw

Rated

Incoming

Current

A

Thermal

Efficiency

%

Test

Hydraulic

Pressure

Mpa

Max

Transpor

tation

Weight

T

Max

Transpor

tation

Dimension

(L*W*H)

Mm

ZDRQ0.5

0.5

0.7

170

20

12

548

95

1.05

1.5

3170×1200

×1312

ZDRQ1.0

1.0

0.7

170

20

12

1095

95

1.05

2.6

3620×1550

×2072

ZDRQ2.0

2.0

0.7

170

20

12

1642

95

1.05

3.6

4850×1730

×1662

Pressure-Bearing Electric Hot Water Boiler

Rated

Thermal

Power

 Kw

Rated

outlet

Water

Pressure

Mpa

Rated

Outlet

Water

Temp

℃

Rated

returned

Water

Temp

℃

Power

of Single

Electric

Heater

Tube

Kw

Rated

Incoming

Current

A

Thermal

Efficiency

%

Test

Hydraulic

Pressure

Mpa

Max

Transpor

tation

Weight

T

Max

Transpor

tation

Dimension

(L*W*H)

Mm

ZDR0.36

360

0.7

95

70

12

547

95

1.05

0.997

2090×1150

×1222

ZDR0.45

450

0.7

95

70

12

683

95

1.05

1.2

2090×1150

×1222

ZDR0.72

720

0.7

95

70

12

1095

95

1.05

2.6

3620×1550

×1472

ZDR1.44

1440

0.7

95

70

12

1642

95

1.05

2.771

4850×1730

×1662
