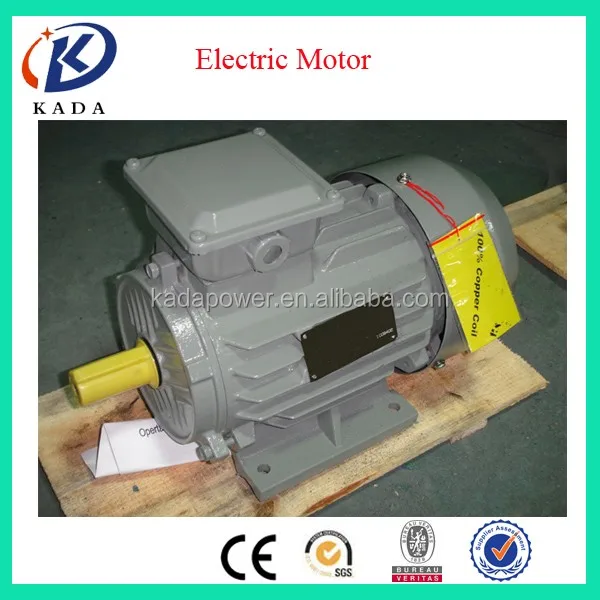

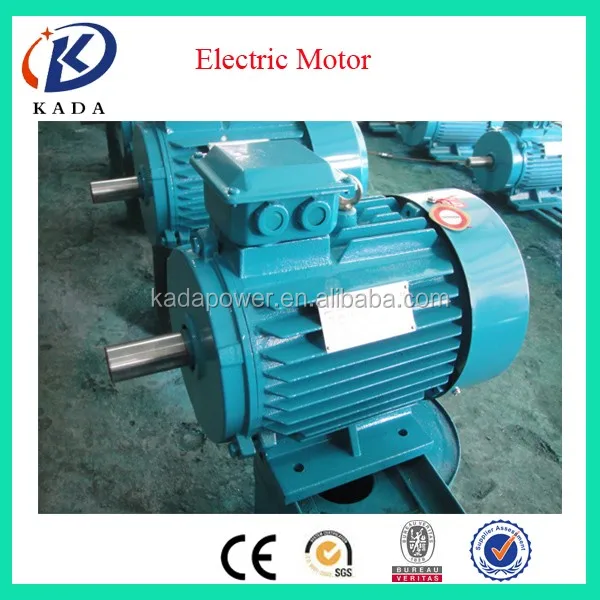

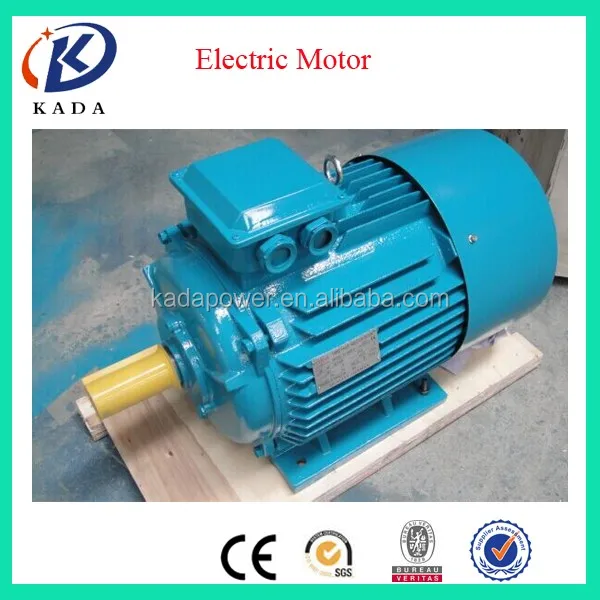

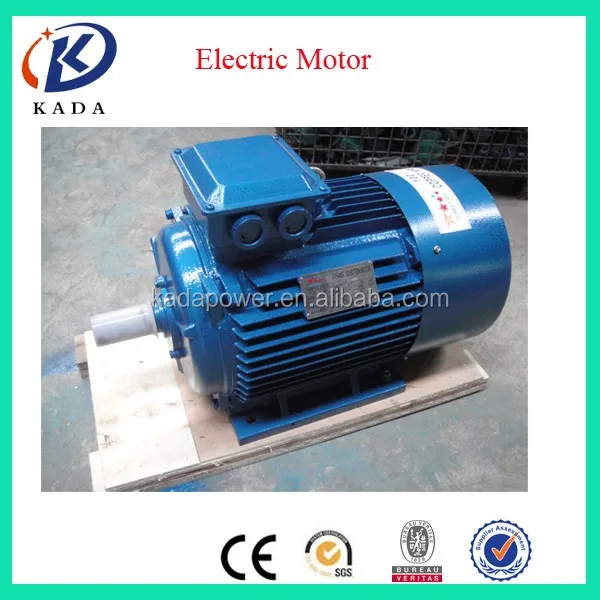

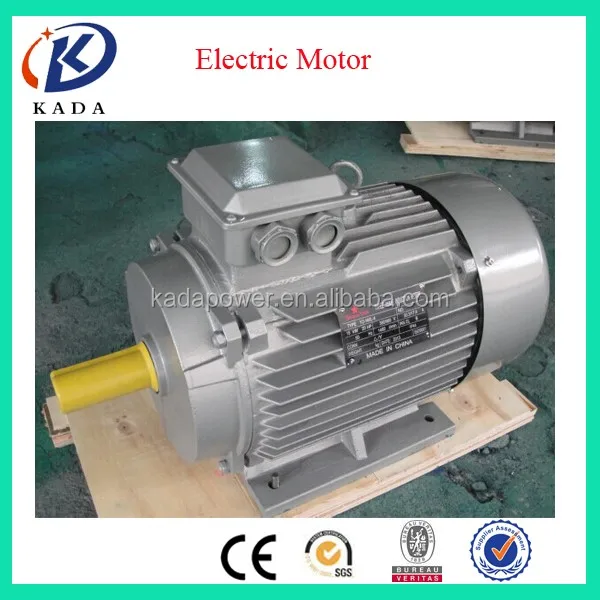

380v electric motor for dynamo electric motor three phase Y2 dynamo motor

Y2 Electric Dynamo Motor 3 Phase Motor

Y2 series three phase asynchronous motor is a kind of totally enclosed fan-cooled squirrel-cage induction motor, it was developed in 1990’ in China, the design of Y2 series electric motors absorbed advanced technology of electric motors around the world. Y2 series motors are designed and renew on the basis of Y series for general purpose using.

1. Y high quality 3 phase electric motors are totally enclosed and fan cooling,3 phase squirrel cage induction motor, it is newly designed in conformity with the relevant rules of IEC&DIN42673 standards.

2. Y high quality 3 phase electric motor have outstanding performance, such as high efficiency, energy saving, high starting torque, Iow noise, little vibration, reliable operation and easy maintenance, etc.

3. Y high quality 3 phase electric motor are widely used in many places,where do not esist combustible,expiosive or corrosive gas,and without any special requirements,such as machine tools,pumps,fans,transport machinery,mixer,agriculturemachinery and food mahines,etc.

-----------------------------------------------------------------------------------------------------------------------------

1. Y2 three phase electric motor is specially designed for European market, whose terminal box is located on the top. This motor has a very compact structure and attractive appearance.

2. The sizes and mounting dimensions are produced according to the IEC standard. Y2 three phase electric motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.We can also supply aluminum housing type for frame size below IEC132.

3.The Y2 three phase electric motors are suitable for driving general purpose or special combination machine tools

4. Y2 three phase electric motors are widely used in many places, where there doesn't exist combustible, explosive or corrosive gas, and without any special requirements, such as machine tools, pumps, fans, transport machinery, mixer, agriculture machinery and food machines, etc.

Y2 Motor Features:

Electric motor frame from 56 – 355, output range from 0.17HP to 430HP
Motor mounting type B3 (IM 1001), B35 (IM 2001), B5 (IM 3001), B14 (IM 3601), B34 (IM 2101)
Protection type IP44, IP54, IP55 on request
Multiple mounting arrangement for optional
Aluminum frame, end shields and base
Strong cast iron frame
High strength cable
Shaft key and protector supplied
Superior paint finish
45# steel shaft and stainless steel shaft is optional
Electric motor continuous duty S1
Electric motor have vacuum impregnation for insulation
Electric motor is class F insulation and class H insulation is optional
Electric motor has been make according to ISO9001, CE, UL, CCC, GS request
All of our products are make according to GOST, RoHS and IEC standard.
High performance and IE1, IE2, IE3 efficiency / IE1 ENERGY SAVEING,IE2 - HIGH EFFICIENCY,IE3 PREMIUM EFFICIENCY

Benefits to Customers:
Electricity saving and quiet operation
Electric motor can withstand water, dust and vermin
Electric motor very easy installation
Electric motor dependable Corrosion resistant and long life to work
Reliability performance and very competitive price.

KADA Motor Standard Production :
1. Silicon steel DR510, 800, 600, 360 standard use stamping of lamination stator and rotor die-casting
2. 100% copper winding and inserting stator (manual and semi-automatically)
3. Stator Vacuum impregnation and drying
4. CNC machining motor shaft, frame, end shields, etc
5. Professional workman inspecting spare parts every processing
6. Electric motor assembly product line
7. Electric motor will 100% test before painting.
8. Electric motor spray-paint on motor painting product line
9. Electric motor will 100% check again before packing.
An electric motor from material to finish motor, must pass 15 time check, and 100% testing, output power, voltage, electric current, non-load, 50% load, 75% load, 100% load and check the nameplate, packing. Finally shipping to our customer.
