Linquan Refractory LQLV180 Slide Gate Plate with lower nozzles
- Category: >>>
- Supplier: Jinan Lin Quan Import And Export Co. Ltd.
Share on (60155358388):
Product Overview
Description
Linquan Refractory LQLV180 Slide Gate Plate with Lower nozzle for Steel Plant
Fired Ladle LQLV180 Slide Gate Plate

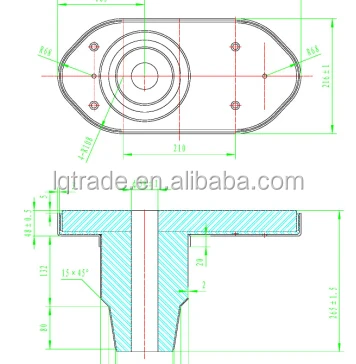

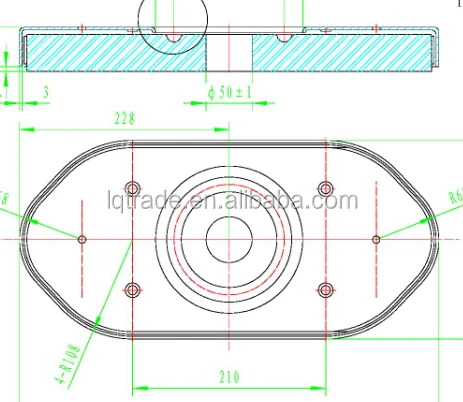

Pictures and Drawing
Product Description
1. Material of Slide plate—according to the different size of ladles and slide gate plate
Small Size Slide plate-----AL-C;
Middle & Large size slide plate-------AL-Zr-C; ---LQLV180 slide gate plate
Special Steel (Ca-treatment steel)------Al-Spinel ; Mg Spinel .
| Al-Zr-C Material | |||||
| Al2O3 | C | ZrO2 | Apparent porosity | Bulk density | C.C.S |
| (% minm) | (% minm) | (% minm) | (% max) | (gm./cc minm) | (MPa minm) |
| 85 | 3 | 5 | 7 | 3.1 | 120 |
2. Service Result for slide gate plate:
Service life depends on the Different Raw Material and Production Process of Slide Gate Plate. Such as Firing Temp, Oil immersion, Drying Temp. and so on.
3. High Temperature Burnt Slide Gate Plate LQLV180 slide gate plate
High preformance ladle slide gate plate refractories adopts tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure, tar impregnated and distilled, burned under high temperature. Mainly used in large and medium-sized ladles.

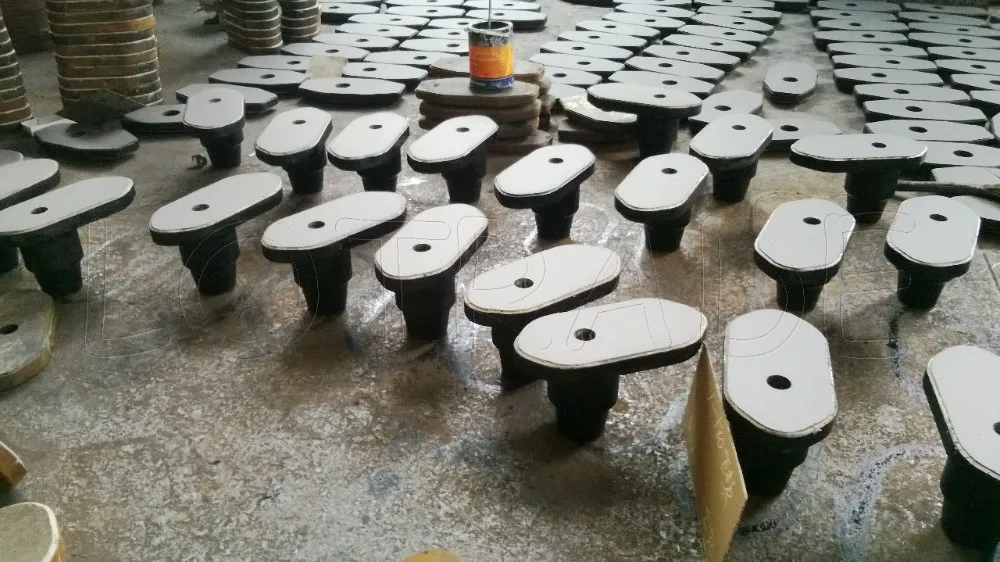

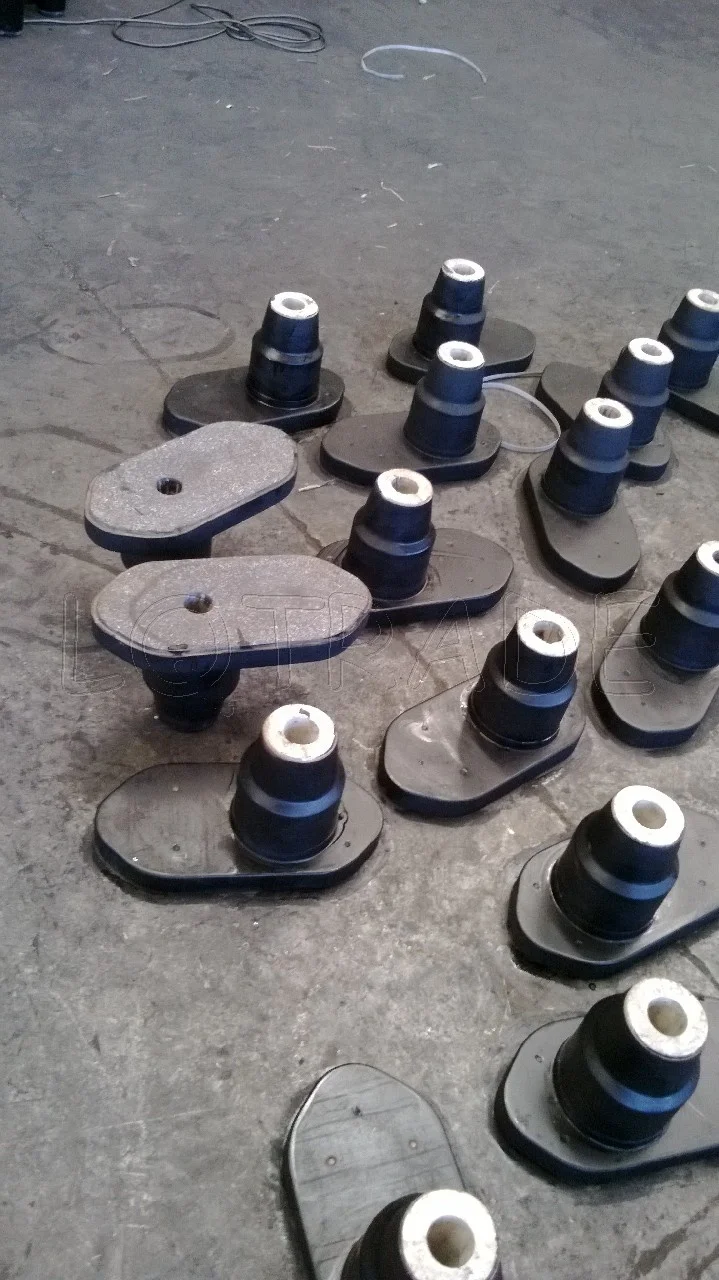

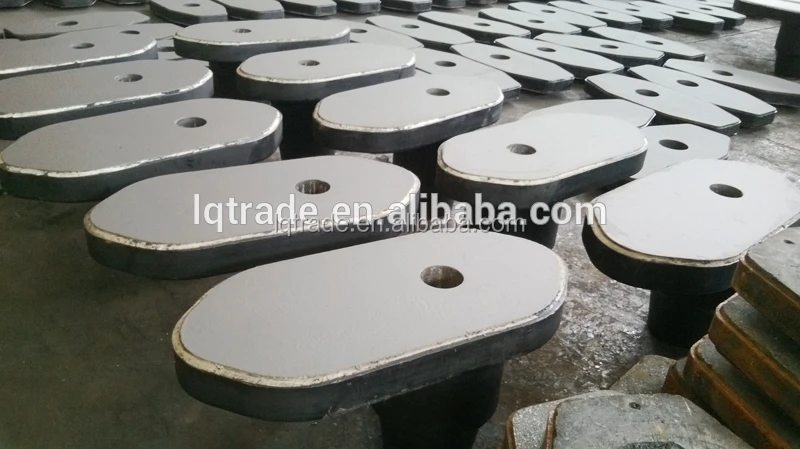

Products pictures:
4. Our Slide Gate Plate refractory adopts HIgh quality bauxite materiao , also takes tabular alumina, carbonaceous material and zirconia-containing material as main raw materials, adds in high performance antioxidants, uses phenolic resin as binder, formed under high-pressure and burned under high temperature. The slide plates have the advantages of high strength, good erosion resistance, thermal shock resistance and good stability etc., mainly used in large and medium-sized ladle.
5. Customer Case for Some speical type of Slide Gate Plate ----Mainly for using countries of the steel plants
C series Slide Gate Plate ---mainly for Indonesia, Vietnam, Myanmar, Thailand, for 5-20 tons ladles.
1QC 2QC Slide Gate Plate mainly for India, Turkey, Indonesia, Pakistan, Italy , mainly for 20-30 tons ladles.
B250 , safllow, HB250 Slide Gate Plate , Mainly for Pakistan.
Flocon sereis Slide Gate Plate mainly for Turkey, Italy, Braizl, and soon.
LQCS LF LG VSV Serise Slide Gate Plate mainly for Europe countries. mostly for larges ladles such as more than 120 tons.
Company Information
Jinan Linquan Industry and Trade Group Co., Ltd --Our goal is to provide ladle Slide Gate Plate refractories and services to clients, and strive to become the large-scale international company in the particular fields as stated above. We believe that through excellence and innovation while keeping good faith and traditional morals in doing business, Linquan can achieve high-speed development and satisfy the interests of our shareholders, employees and the society.
Factory Workshop
Packaging & Shipping
Our Services
Note:
1. Serivice life depends on steel-making condition, refractory slide gate and different operation mode. The above service life we supply is based on the condition of more than 100 Tons ladle.
2. Delivery time depends on the drawings. If we have the mould, generally, 45 days, if for new mould, it will take 60 days for deliver.
