led advertising video display Leeman P8.9 SMD full color rental smd led display show in incheon asian games
- Category: >>>
- Supplier: Shenzhen Leeman Industrial Co. Ltd.
Share on (60155545194):
Product Overview
Description

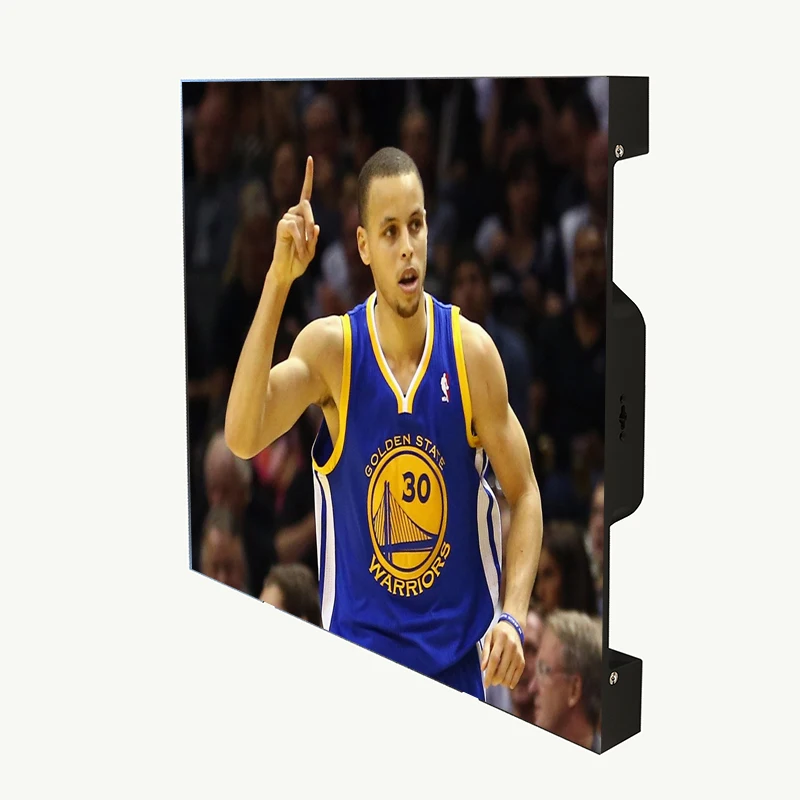

Super Slim LightWeight Indoor Rental HD SMD RGB LED Video Wall Screen Panel
Model Number:
P1.875/P2/P2.5/P3/P3.75/P3.91/P4/P4.615/P4.81/P5/P5.2/P5.92/P6/P6.944/P7.62/P8.925/P10/P10.41/P12.5
Die Casting Aluminum Rental Cabinet dimension:
480mm x 480mm
500mm x 500mm
512mm x 512mm
576mm x 576mm
640mm x 640mm
768mm x 768mm
800mm x 800mm
960mm x 960mm
Features:
1.Ultra-thin & ultra-light
2.Die casted AL cabinets, high precision with seamless splicing
3.Standard cabinet size: 500x500mm, convenient for area calculation
4.Highly effective & quick for transportation and screen assembling
5.SMD black light, wider viewing angle, high-contrast(5000:1),soft image
6.Special buckles structural connection between the cabinets,don’t need other tools
7.Cabinets are in common use for standard modules,shorten production cycl
Main Advantages:
1. Lightweight. Convenient in transporting and installing & saving labor cost, suitable for flow shows.
2. Nice appearance and simple structures.
3. Jointed correctly, being installed & dismounted by one person without tool.
4. Humanized operating interface with breakdown indicator lights, easy to maintain.
5. High debugging brightness and no damage to gray scale, achieving the debugging technology for nice image.
Full HD Ultra-thin Indoor Aluminum Rental LED Video Screen TV series:
| Items | Parameter | ||
| Pixel Pitch | PH2.5mm | PH1.9mm | PH1.6mm |
| Module Resolution(W*H) | 160*120 | 208*156 | 256*192 |
| Pixel Configuration | 1R1G1B(in 3 n 1) | ||
| LED Encapsulation | SMD Black 1514 | ||
| Pixel Density | 160000Pixel/m2 | 270400Pixelm2 | 409600Pixel/m2 |
| Driving Method | 1/20Scan | 1/26Scan | 1/32Scan |
| Refresh Frequency | ≥2880Hz(Support High refresh rate,depends on the system configuration) | ||
| Driver IC | SUM2032 / MBI5153 / MBI5041 / MBI5024 | ||
| Grey Scale | ≥16Bit(depending on the system and Configuration) | ||
| Cabinet Size | 400mm*300mm | ||
| White balance Brightness | 800cd/m2 | 800cd/m2 | 800cd/m2 |
| Color Temperature | 5000K,6500K,9300K,12000K(adjustable) | ||
| Viewing Angle | Horizontal 130°Vetical 120° | ||
| Optimal Viewing Distance | ≥3m | ≥2m | ≥2m |
| Working Voltage | AC 220v/110V±10% | ||
| Module voltage | DC4.2V | ||
| Max Power Consumption | 90W/pcs | 80W/pcs | 80W/pcs |
| Avg.Power Consumption) | 90W/pcs | 40W/pcs | 40W/pcs |
| Lifetime | 50000hours | ||
| Operating Temperature | -10℃~50℃ | ||
| Net weight | 4.8Kg/pcs | 4.8Kg/pcs | 4.8Kg/pcs |
Lightweight Die-casting Aluminum Rental LED Video Wall series:
| Pitch/mm | P4 | P4.8 | p5.33 | p6 |
| Module size/mm | 256x256 | 250x250 | 288x288 | 192x192 |
| Density of pixel/(dots/m2) | 62500 | 43402 | 35,200 | 27,777 |
| Pixel composition | 1R1G1B | 1R1G1B | 1R1G1B | 1R1G1B |
| Led encapsulation | SMD0606 | SMD3528 | SMD3528 | SMD3528 |
| Resolution of module | 72X72 | 60X60 | 54X54 | 48X48 |
| Optimum viewing distance | 3-15m | 4-16m | 5-16m | 7.5-20m |
| View angle / ° | 140H,120V | 140H,120V | 140H,120V | 140H,120V |
| Max power consumption/W/M2 | 1,100 | 1,100 | 1,000 | 1,000 |
| Size of cabinet/mm | 512x512 | 500x500 | 576x576 | 576x576 |
| Resolution of cabinet | 144X144 | 120X120 | 108X108 | 96x96 |
| Weight of cabinet/kg | 8 | 8 | 8 | 8 |
| Driving method | 1/9 scan constant current | 1/15 scan constant current | 1/9 scan constant current | 1/8 scan constant current |
| Refresh rate Hz/S | ≥1500 | ≥1500 | ≥1500 | ≥1500 |
| Luminance of white balance | ≥1500 nits | ≥1500 nits | ≥1500 nits | ≥1500 nits |
| Operation of Environmental Temperature/°C | below 30 to above 50 | |||
| Working vlotage | 110-220 VAC/+/- 10% | |||
| Grey scale/color | displaying colors≥16.7M(synchronized) | |||
| Brightness adjustment | 256 levels of each color(manually),100 levels of each color(automatically) | |||
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | |||
| Control system | linsn(sending card,receiving cards and Hubs) | |||
| Average of non-failure life | >50,00h | |||
| Life span | >100,000h | |||
| Defect dot rate | <0.0001 | |||

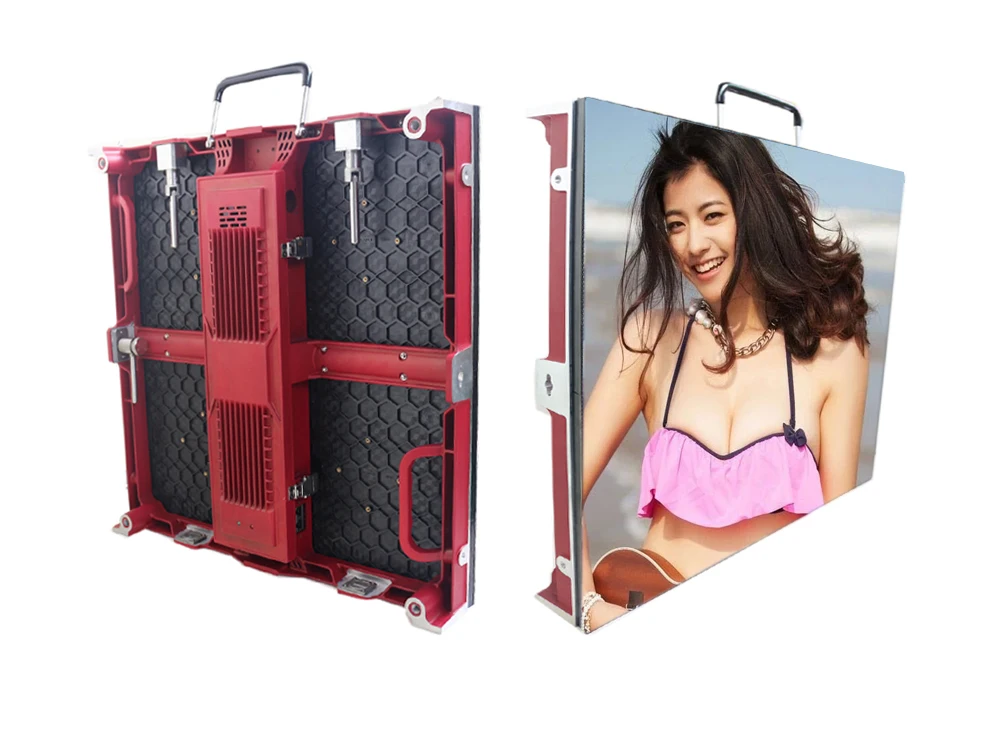

Slim stage/concert background Aluminum hanging rental led screen series:
| Items | Parameter | ||||
| Pixel Pitch | P3.9mm | P4mm | P4.615mm | P5mm | P6mm |
| Module Resolution(W*H) | 128(W)*128(H) | 120(W)*120(H) | 104(W)*104(H) | 96(W)*96(H) | 80(W)*80(H) |
| Pixel Configuration | 1R1G1B(in 3 n 1) | ||||
| LED Encapsulation | Black SMD 2121 | Black SMD 2724 | Black SMD 2724 | Black SMD 3528 | Black SMD 3528 |
| Pixel Density | 71111/ Pixel m2 | 62500 Pixel /m2 | 46944/ Pixel m2 | 40000/ Pixel m2 | 27778/ Pixel m2 |
| Driving Method | 1/16 Scan | 1/15 Scan | 1/13 Scan | 1/12 Scan | 1/10 Scan |
| Refresh Frequency | ≥2880Hz | ≥2880Hz | ≥2880Hz | ≥2880Hz | ≥2880Hz |
| Driver IC | Special constant current IC with high refresh rate & high grey scale | ||||
| Grey Scale | 14Bit(depending on the system and IC configuration) | ||||
| Cabinet Size | 480*480mm | ||||
| White balance Brightness | ≥1800cd/ m2 | ≥1800cd/ m2 | ≥1800cd/ m2 | ≥1500cd/ m2 | ≥1500cd/ m2 |
| Color Temperature | 8000K±500 (adjustable) | ||||
| Viewing Angle | Horizontal 160°Vetical 120° | ||||
| Optimal Viewing Distance | >3m | >4m | >5m | >5m | >6m |
| Working Voltage | AC 220V/110V ±10% | ||||
| Module voltage | DC4.2V | ||||
| Max Power Consumption | 100W/PCS | 100W/PCS | 110W/PCS | 100W/PCS | 80W/PCS |
| Avg.Power Consumption | 60W/PCS | 60W/PCS | 60W/PCS | 50W/PCS | 40W/PCS |
| Lifetime | 50000hours | ||||
| Operating Temperature | –10℃ ~ 65℃ | ||||
| Net weight | 8.5Kg/pcs | 8.5Kg/pcs | 8.5Kg/pcs | 8.5Kg/pcs | 8.5Kg/pcs |

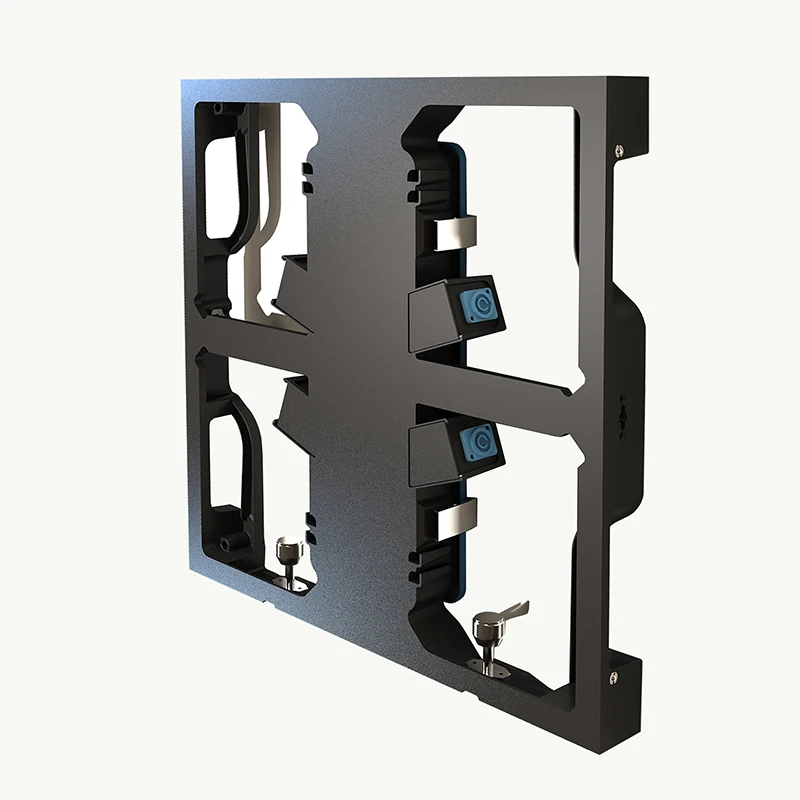

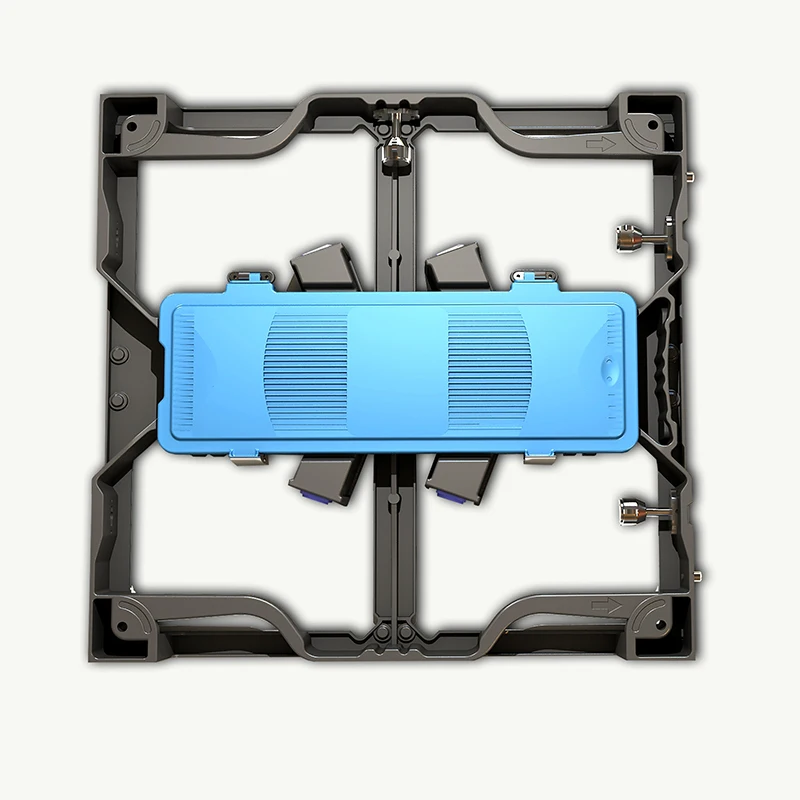

1. CNC + Die Casting process cabinets
The flatness of led panel surface is greatly improved by its CNC+Die Casting molding process (precision up to 0.05mm), thus it ensures the full screen’s seamless and precise installation.
2. Super Slim
The thickness is 60mm. This saves your installation space and packing size, it ensures the greatly fast movement and installation.
3. Light Weight
The weight of full panel is only 10KG, can be easily hanging up by one person, with only two person can finish 12sqm led screen installation in 30minutes, it saves your time and labor cost.
4. Convenient and Fast Installation
We adapted Plug and play designing for this series, the power and signal connector is quite easy and fast for in&out operation; and the signal connection can be in horizontal and vertical ways, it satisfied the rental application in any cases.
HD Indoor fixed installation Aluminum led video wall screen TV series:
| Pitch/mm | P3 | P4 | P5 | P6 |
| Module size/mm | 192x96 | 128x128 | 160x160 | 192x96 |
| Density of pixel/(dots/m2) | 111111 | 62500 | 40,000 | 27,777 |
| Pixel composition | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 | SMD 3 in 1 |
| Led encapsulation | SMD2020 Black Lamps | SMD2020 | SMD3528 | SMD3528 |
| Black Lamps | White Lamps | White Lamps | ||
| Resolution of module | 63x32 | 32X32 | 32X32 | 32X16 |
| Optimum viewing distance | 3-10m | 4-15m | 6-16m | 7.5-20m |
| View angle / ° | 140H,120V | 140H,120V | 140 H,120 V | 140 H,120 V |
| Max power consumption/W/M2 | 1200 | 1,000 | 1,000 | 900 |
| Size of cabinet/mm | 576x576 | 512X512 | 640X640 | 768X768 |
| Resolution of cabinet | 192x192 | 128X128 | 128X128 | 128x128 |
| Driving method | 1/16 scan constant current | 1/16 scan constant current | 1/8 scan constant current | 1/8 scan constant current |
| Refresh rate Hz/S | ≥600 | ≥600 | ≥600 | ≥600 |
| Luminance of white balance | ≥1500 nits | ≥1500 nits | ≥1500 nits | ≥1500 nits |
| Thickness | 110mm | |||
| Operation of Environmental Temperature/°C | below 30 to above 50 | |||
| Working voltage | 110-220 VAC/+/- 10% | |||
| Grey scale/color | displaying colors≥16.7M(synchronized) | |||
| Brightness adjustment | 4096 levels of each color(manually),100 levels of each color(automatically) | |||
| Input signal | RF,S-Video,RGB,RGBH,YUV,YC&Composition ,etc | |||
| Control system | linsn(sending card,receiving cards and Hubs) | |||
| Average of non-failure life | >50,00h | |||
| Life span | >100,000h | |||
| Functionless dot rate | <0.0001 | |||
