Top quality biomass fuel briquette extruder machine

Product Overview

Description

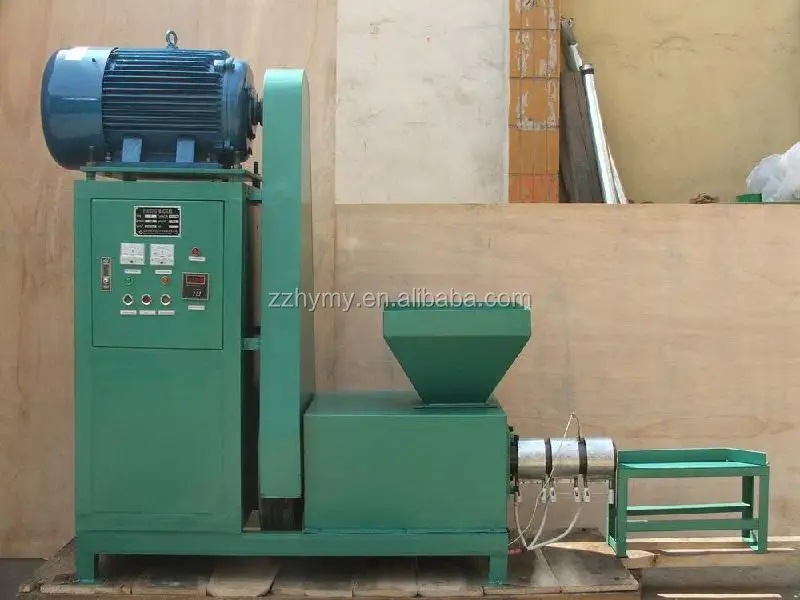

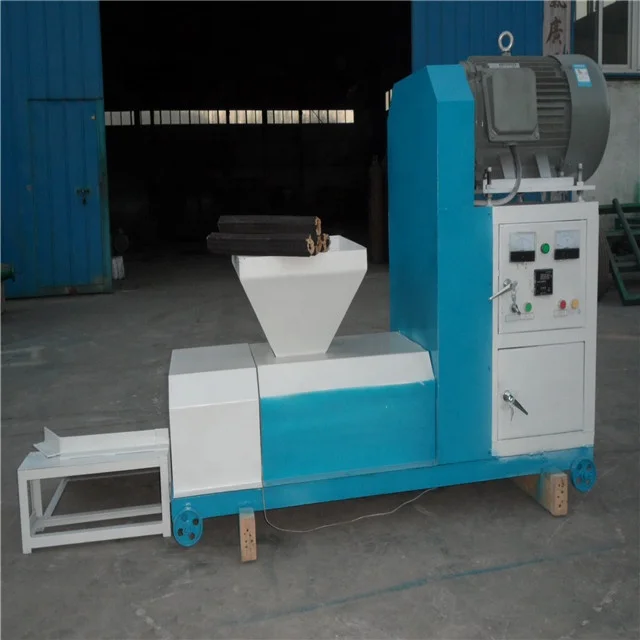

Biomass fuel briquette extruder machine

Introduction of biomass fuel briquette extruder machine

Biomass fuel briquette extruder machine is pressing sawdust and biomass into sticks with a hole under high temperature and pressure.It's also called sawdust/wood briquette machine, rice husk briquette machine.

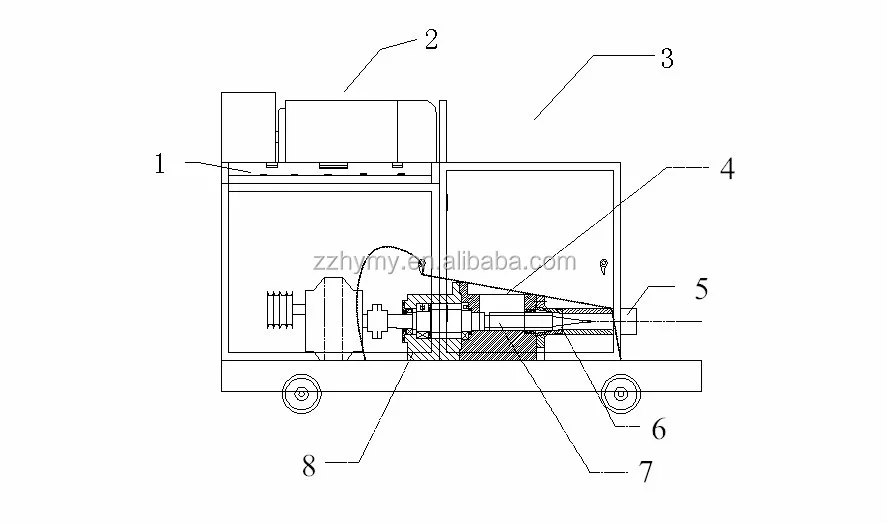

The internal structure of biomass fuel briquette extruder machine



1. Electric control board

2. 18.5kw Motor

3. Under Hopper

4. Body

5. Forming Cones

6. Wear sets

7. Propeller

8. Body

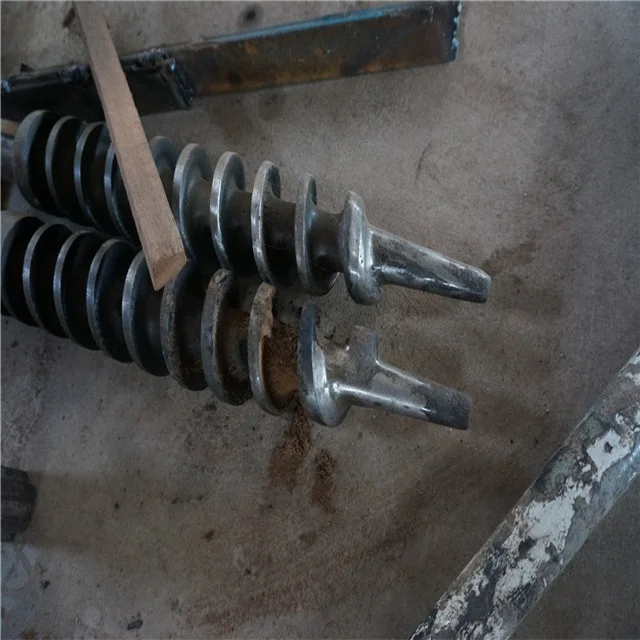

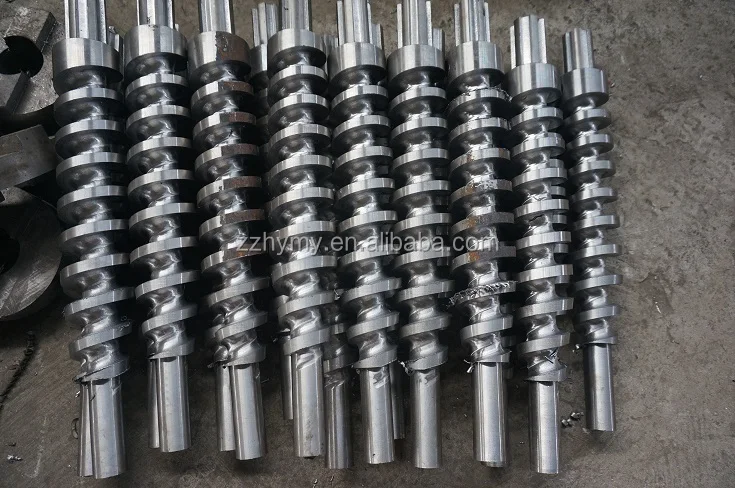

Main spare parts of biomass fuel briquette extruder machine



Propeller:6 monthsMold:8-10 months

  Heating ring:4-6 months

The propeller we suggest that it should be repaired by welding every 3-7 days.

Raw material of biomass fuel briquette extruder machine

Sawdust,crops straw,chaff,bagasse,etc.

Length<5mm ,diameter<6mm , humidity<14%



Technical parameters of biomass fuel briquette extruder machine



Model	Power	Capacity	Final shape
ZBJ-1	15KW	120-200kg/h	circle,square,hexagon
ZBJ-2	18.5KW	250-300kg/h	circle,square,hexagon





Main features of biomass fuel briquette extruder machine

(1) No need any binder

(2) Low cost ,high capacity

(3) Good quality , convenient maintenance

(4) Supply complete production line

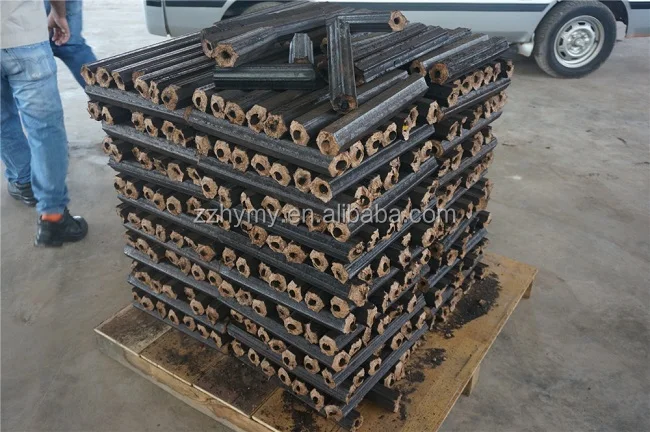

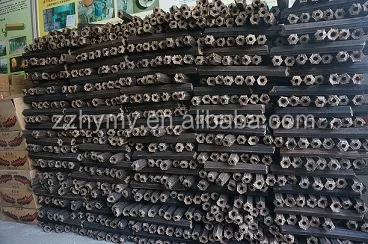

Final product of biomass fuel briquette extruder machine



Working principle and heating temperature



By high pressure and high temperature,the temperature is around 300°C to 330°C.



Packing and shipping



Packing:wooden case

Shipping:we can also use CIF terms.

Company informations



GongYi HengYuan Industry Co., Ltd is located in GongYi, ZhengZhou, HeNan Province—China



Our services for biomass fuel briquette extruder machine



Welcome to our factory for visiting,we will pick up you at the airport.We can also send our engineer to your country for installing.We will try our best to provide service for you.

FAQ

Q:What’s the requirement of the raw material for biomass fuel briquette extruder machine?

A:Almost all the wood waste can be used ,such as sawdust ,wood chips,tree branches ,rice husk and so on ,but the size should less than 5mm.

If the material cannot achieve the requirement ,it should be crush first ,and the moisture of the raw material is about 8-12%

Final size should be less than 6mm



Q:What’s the shape of the final product from biomass fuel briquette extruder machine?

A:Long bars in square shape or with hexagonal shape

Length:30-40cm



Q:What’s the screw gap?

A:The screw gap could be the size as 32mm,36mm,40mm. (36mm is the most common )





Q: What’s the advantages of biomass briquettes?

A:1.Increase the net calorific value per unit volume after biomass briquetting

   2.Easy to transport and store as densified product
   3.Better solution to the problem of residue disposal
   4.Uniform in size and quality as a kind of biofuel briquette
   5.Reduce excess deforestation by providing a substitute for fuel wood



 Q:Can you provide the production line?

A:Crush - dryer -briquette-package

  1. Crush the raw material into small pieces (diameter is about 3-6mm)
  2. Dry the material by machine or dried it in the sun , till the moisture is less than 14%
  3. Put the material into feed let of briquette machine
  4. Produce the briquette stick from biomass material without any additive
  5. Package
