Product Overview

Description



Factory supply Copper Clad Aluminum wire cca wire copper price



Standard:

SJ/T 11223-2000

ASTM B 566-2011Feature:



Compared to copper conductors:

1. Higher Flexibility due to lower elastic modulus.
2. 63% material weight reduction due to lower specific gravity of CCA over regular copper.

Compared to aluminum conductors:

1. Better corrosion resistance than aluminum due to copper layer.
2. Lower resistance due to high electric conductivity of copper .
3. Better Solderability.
4. Higher strength than aluminum.

Application:

 In high frequency signal transmission field, it is applied to:

1. Standard Material of Conductor in CATV Coaxial Cable;
2. 50 Ohm Radio Frequency Aerial;
3. Leaky Cable;
4. Soft Coaxial Radio Frequency Cable;
5. Data Cable

 In power transmission field, it can be applied to:

1. Stranded wire;
2. Power Cable;
3. Control Cable;
4. automotive cable;
5. Building distribution wire;
6. Busbar;
7. Radio Frequency shielding;

In special electromagnetic wire, it can be applied to:

1. Coils in motor and fans, mahjong machine, Loudspeakers
2. Voice coils (e.g. in Headphone, Headset, ...)
3. Windings

Manufacture Scope: 0.12MM~5.50MM

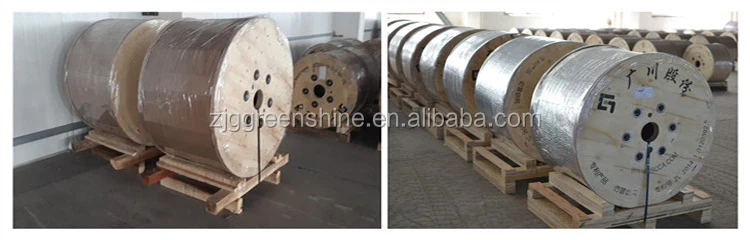

Copper Clad Aluminum wire  wire braid with diameter 1.20mm~5.50mm     Plywood bobbin+Pallet

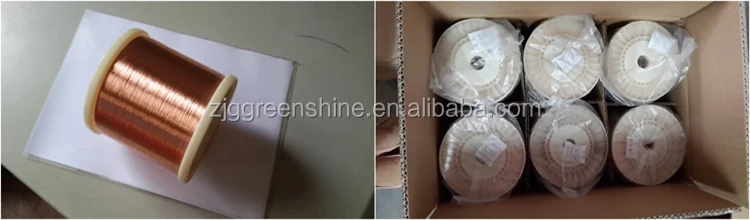

Copper Clad Aluminum wire  wire braid with diameter 0.12mm~1.20mm     Plastic bobbin+Carton+Pallet
