AmScope 7X 45X Zoom Power Inspection Dissecting Stereo Microscope with 144 LED Light

Product Overview

Description

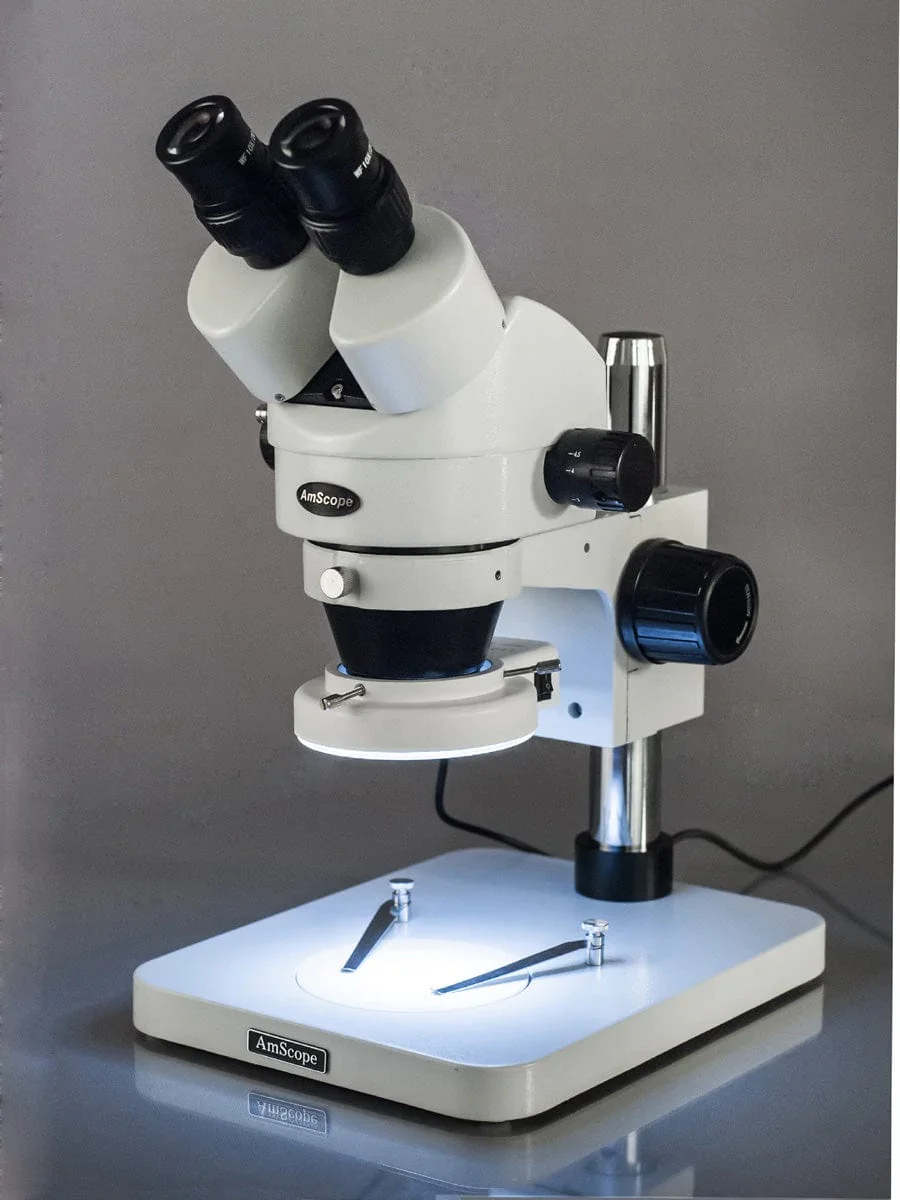

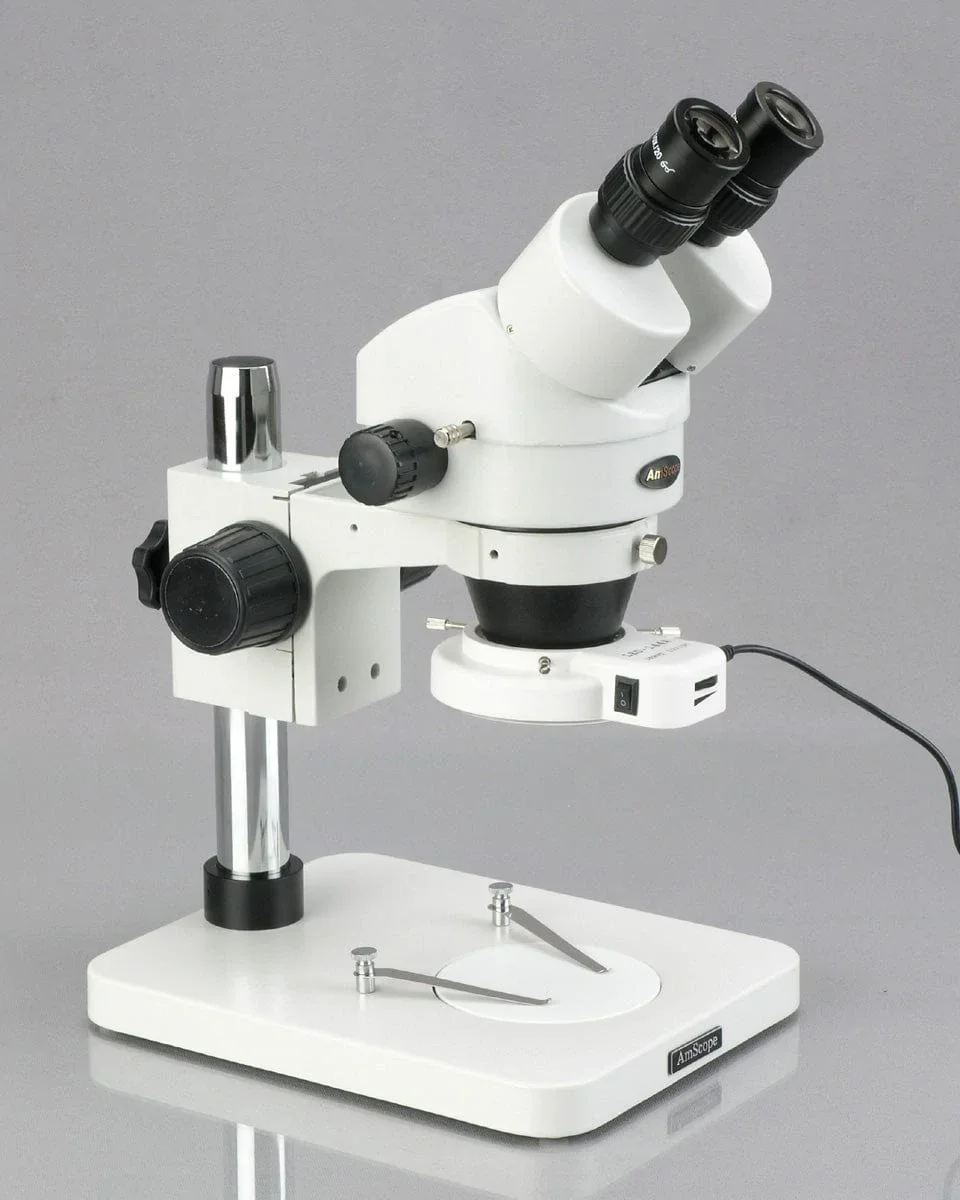

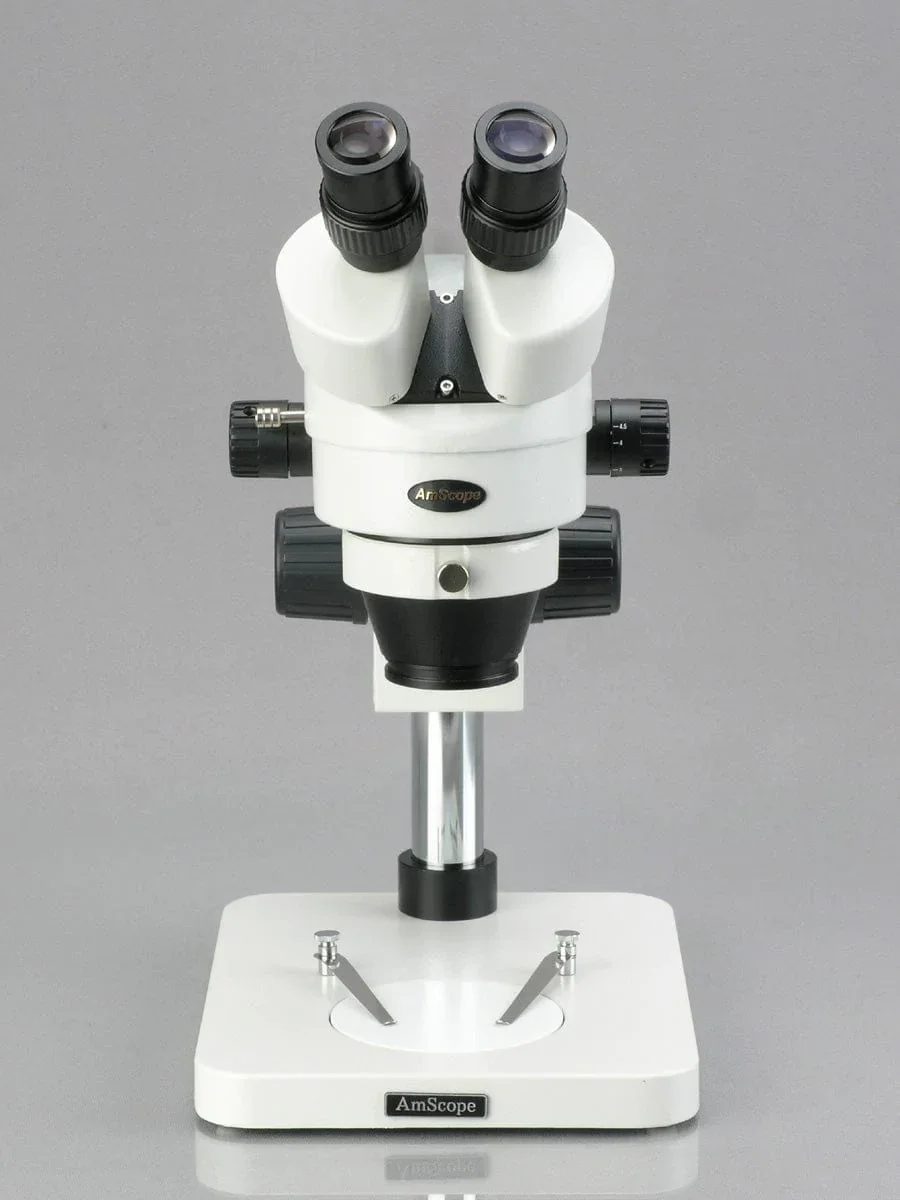

This is a binocular stereo microscope with a 144-LED compact ring light. The microscope has a super widefield optical system that provides a large zoom magnification power (6.5:1) and a large working distance (4", 100mm). The 144-LED ring light has a compact design and a built-in dimmer, providing cool, even and bright LED illumination. This microscopy system is an ideal instrument for manufacturing engineers, lab technicians, gemologists, circuit board inspectors, and anyone in electronic and semiconductor industries. It is also the right microscope for biological laboratory applications that require low heat release.

Features:

• A perfect stereo inspection microscope with a 144-LED compact ring light and built-in dimmer

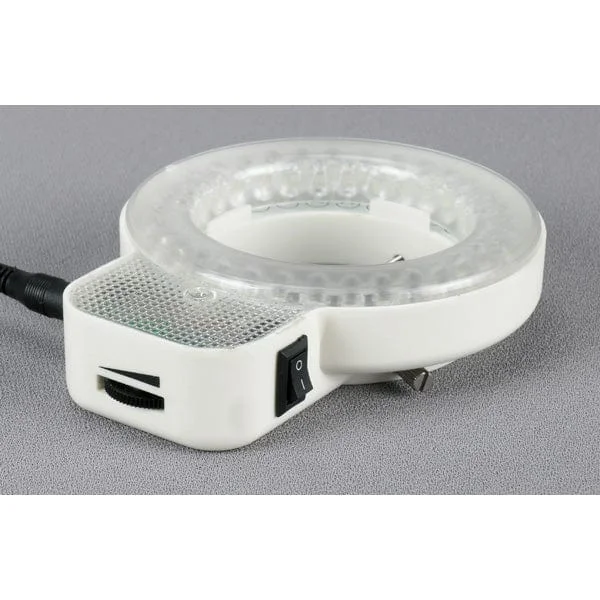

• Variable, cool, even and bright 144-LED ring illumination


• 7X-45X super wide zoom magnification power


• 4" (100mm) extremely large working distance


• High resolution with great flatness and contrast, giving sharp and clear images


• Binocular head with 45-degree inclined 360-degree swiveling eye tubes


• 30mm super widefield high-eyepoint eyepieces with 20 mm field of view


• Sharp stereo erect images with a wide field of view


• Crystal clear, original true color microscope images


• Dual eye tubes with adjustable diopters


• Sturdy all-metal table stand


• Accurate alignment reduces eye strain for longer periods of viewing


• Full optical glass elements


• Precise ground glass lenses


• Full metal chrome-plated mechanical components


• Adjustable interpupillary distance


• Rubber eyeguards included


• Manufactured under ISO 9001 quality control standard


• Five (5) year manufacturer warranty for microscope



Specifications:

• Head: 360 degree rotatable 45 degree inclined binocular


• Eyepiece: 30mm super widefield high-eyepoint WH10X/20MM


• Zoom Range: 0.7X-4.5X


• Diopter Adjustment: +/- 5dp


• Interpupillary Distance: 2-3/16" - 2-15/16"(55-75mm)


• Working Distance: 4" (100mm)


• Widefield View: 1-1/4" (33mm) super widefield


• Illumination: 144-LED compact ring light


• Power Input: 110-240V, 50-60HZ, automatic switching


• Stand: 10" x 7-7/8" x 10.75" (254 x 200 x 275mm)


• Round Plate: 3-3/4" (95mm) in diameter


• Accessories: a pair of eye-guards



Packing List:

• One Binocular Stereo Zoom Head


• One Pair of Super Widefield 10X Eyepieces


• One 144-LED Compact Ring Light


• One Pillar Table Stand


• One Focusing Rack


• One Round Plastic Plate


• One Pair of Eye-Guards


• One Pair of Clips


• One Dust Cover


• User's Manual Download
