Small Hydraulic Hand Pump CP 800

Product Overview

Description

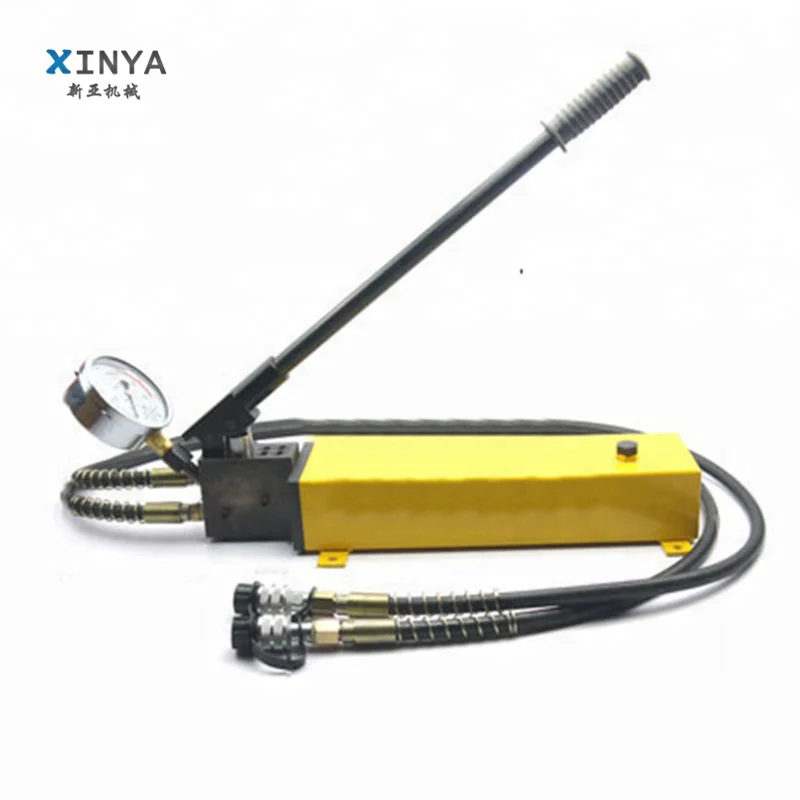

Small Hydraulic Hand Pump CP-800



Application

Hydraulic Hand Pump CP-800   is to provide power for the cutting tool, the hydraulic compressor,

punching machine and other construction machinery,which is operated in the wild field in electric power, railway, rescue, construction and other industries.



Features

1 Hydraulic pumps to drive crimping head, cutting heads and punch head.

2 Two stages speed action for rapid ram advantage.

3 Manual operation style, oil pipe fitted with quick coupling could be ordered in any length. It could be fitted with pressure meter(to be ordered).

4 Accessories including 2M high pressure hose and coupler plug P/T 3/8” thread, oil must be changed half a year.





Technical Data of Small Hydraulic Hand Pump CP-800

ModeL  Number	Max Output  Pressure(kg/cm²)		Spit Oil Capacity(cc)		Capacity  of Oil(cc)	Weight(kg)
	High Pressure	Low Pressure	High Pressure	Low Pressure
CP-800	700	20	2.3	13	2800	16.5
