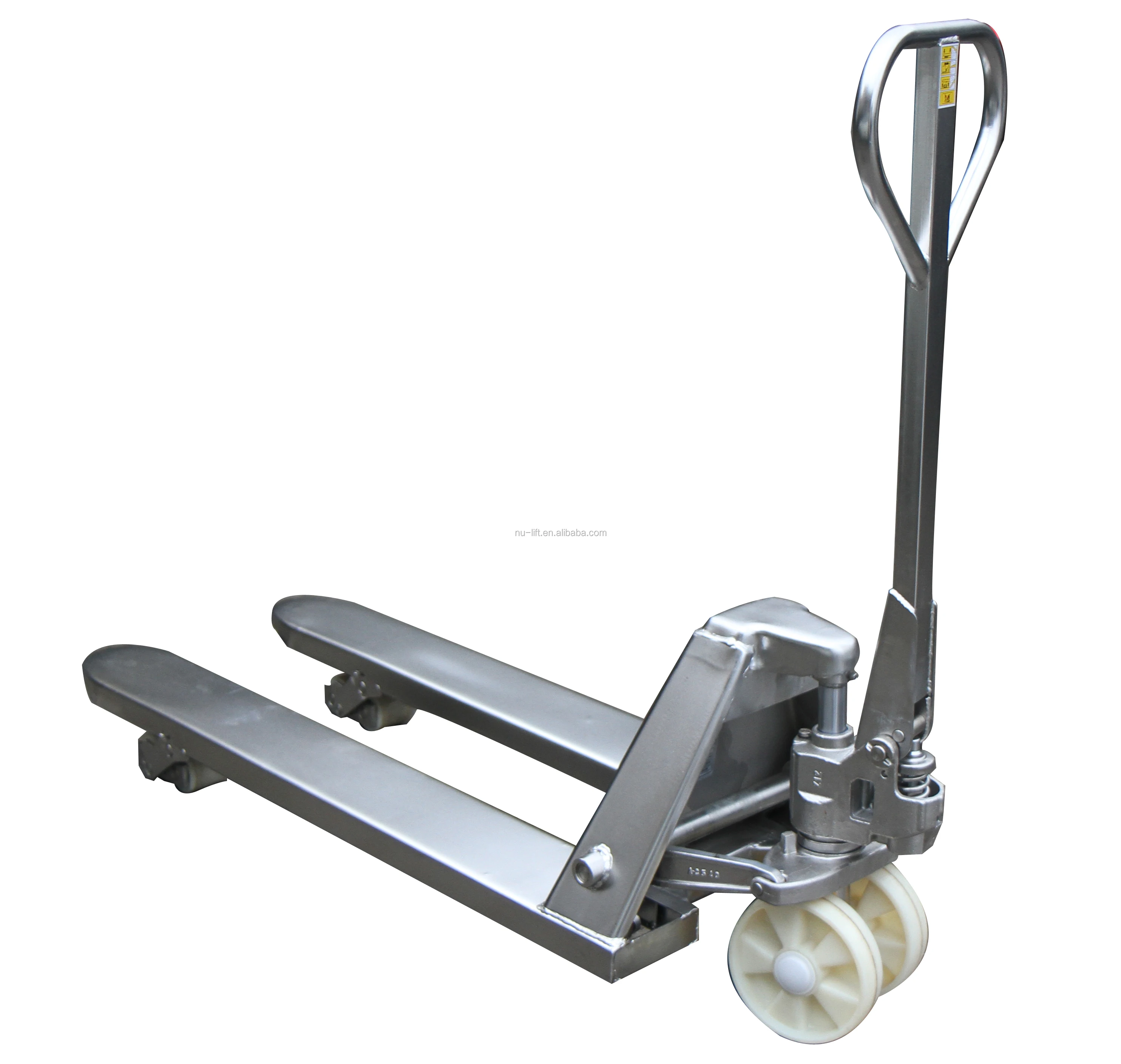

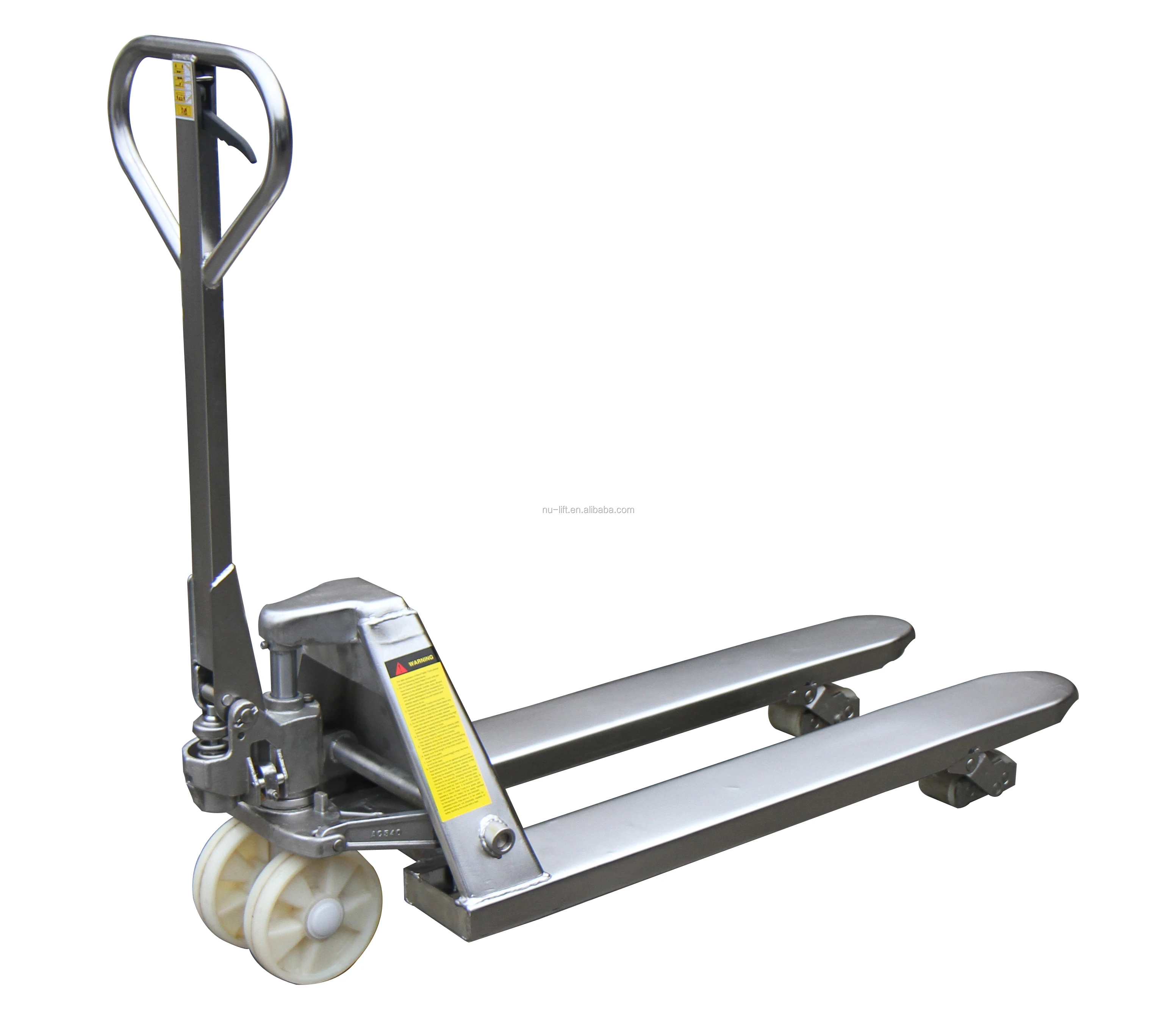

Stainless Steel Hydraulic Hand Pallet Truc ACS series

Product Overview

Description

Product Description

•Top quality range.

•Material: Grade 316 and 304

•Rollers/Wheels: Nylon

•Closed forks.

•75 (mm) (3'') lowered fork height available.

•All parts are made of stainless including hydraulic pump, fork frame, handle, push rod, bearing, pin and bolt, etc.

•For use in meat and other food industry, dairy canning and all areas where corrosive acids and saline solutions are used.







Model		ACS20S	ACS25S	ACS20L	ACS25L
Capacity	(kg)	2000	2500	2000	2500
Width overall forks	(mm)	540		685
Min. fork height	(mm)	85		75
Max. fork height	(mm)	200		190
Steering wheel	(mm)	200x50		180x50
Load roller Single	(mm)	80x93		74x93
Load roller Tandem	(mm)	80x70		74x70
Size of fork	(mm)	160x60
Fork length	(mm)	1000/1100/1150/1220
