Hydraulic Wire Rope Press Machine Manufacturer
- Category: Other Metal Cutting Machinery >>>
- Supplier: Jiangsu Xingtai Hydraulic Manufacture Co. Ltd.
Share on (60156315191):
Product Overview
Description
Product Description

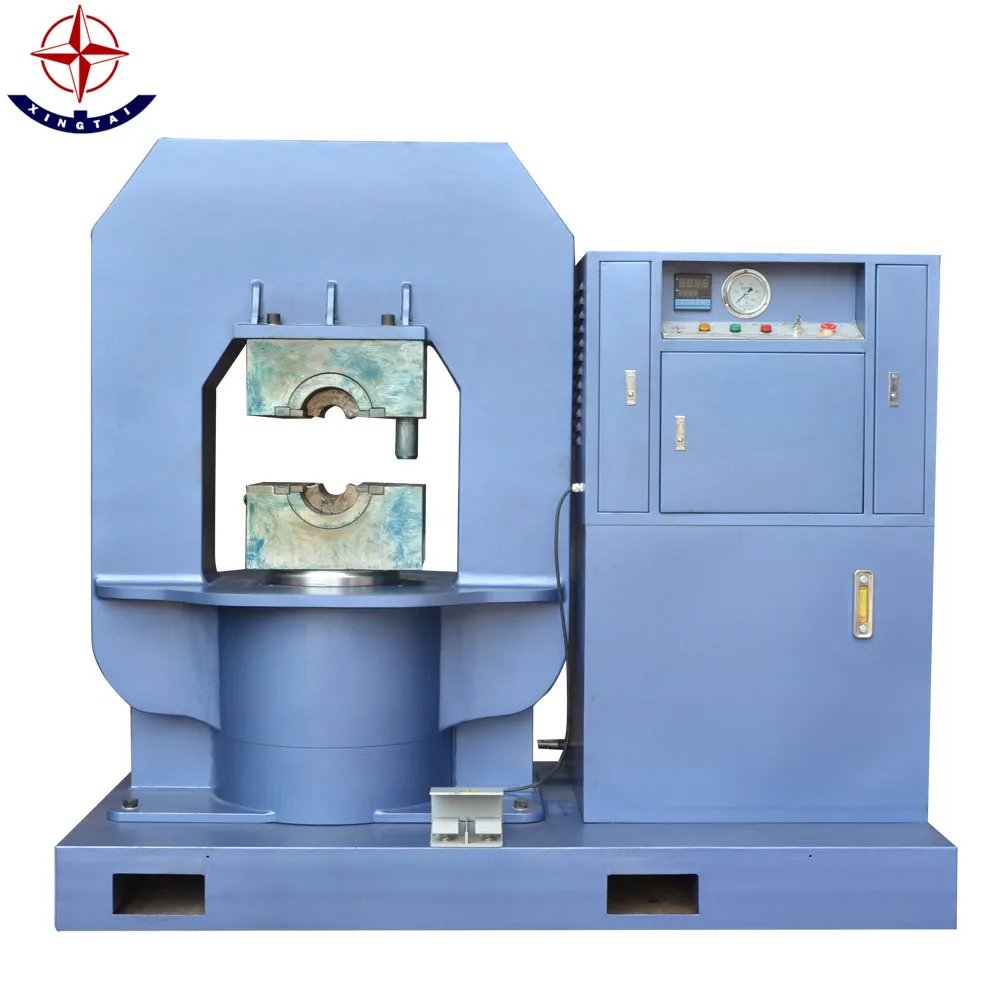

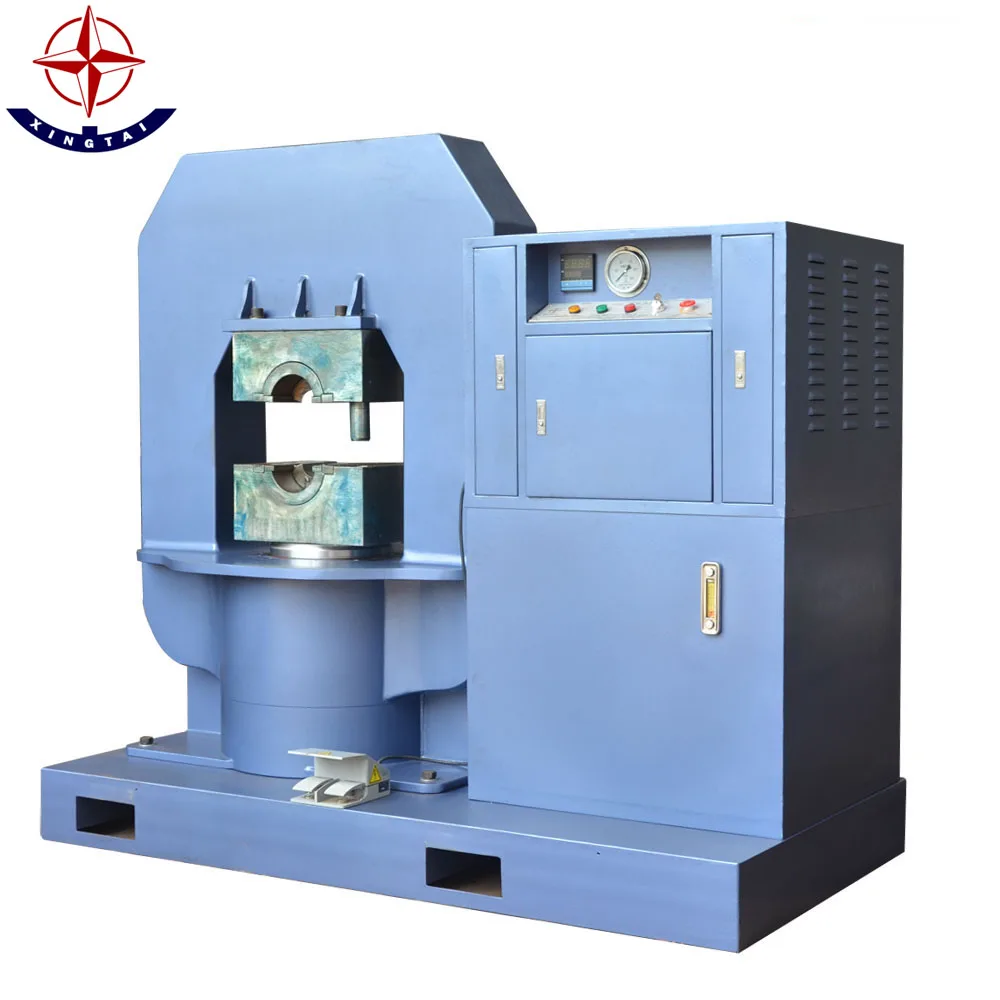

steel wire rope press machine

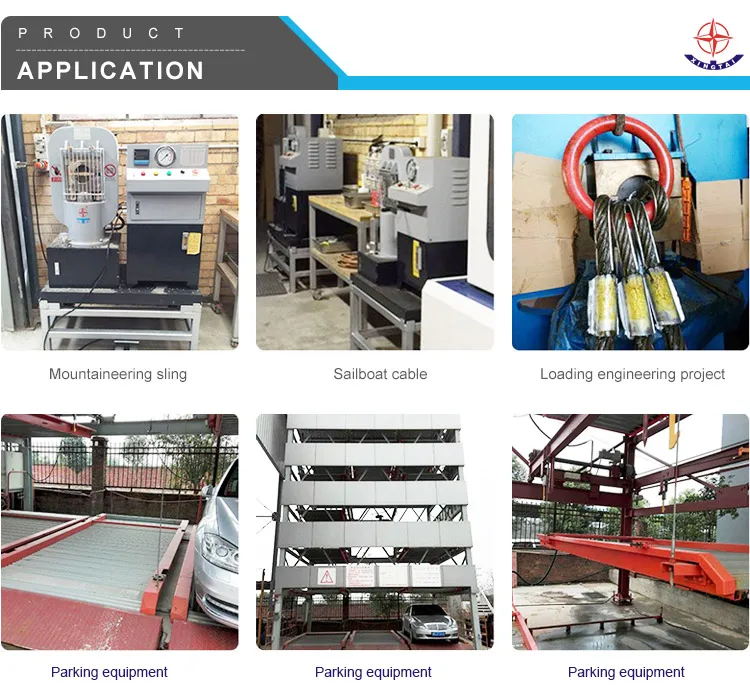

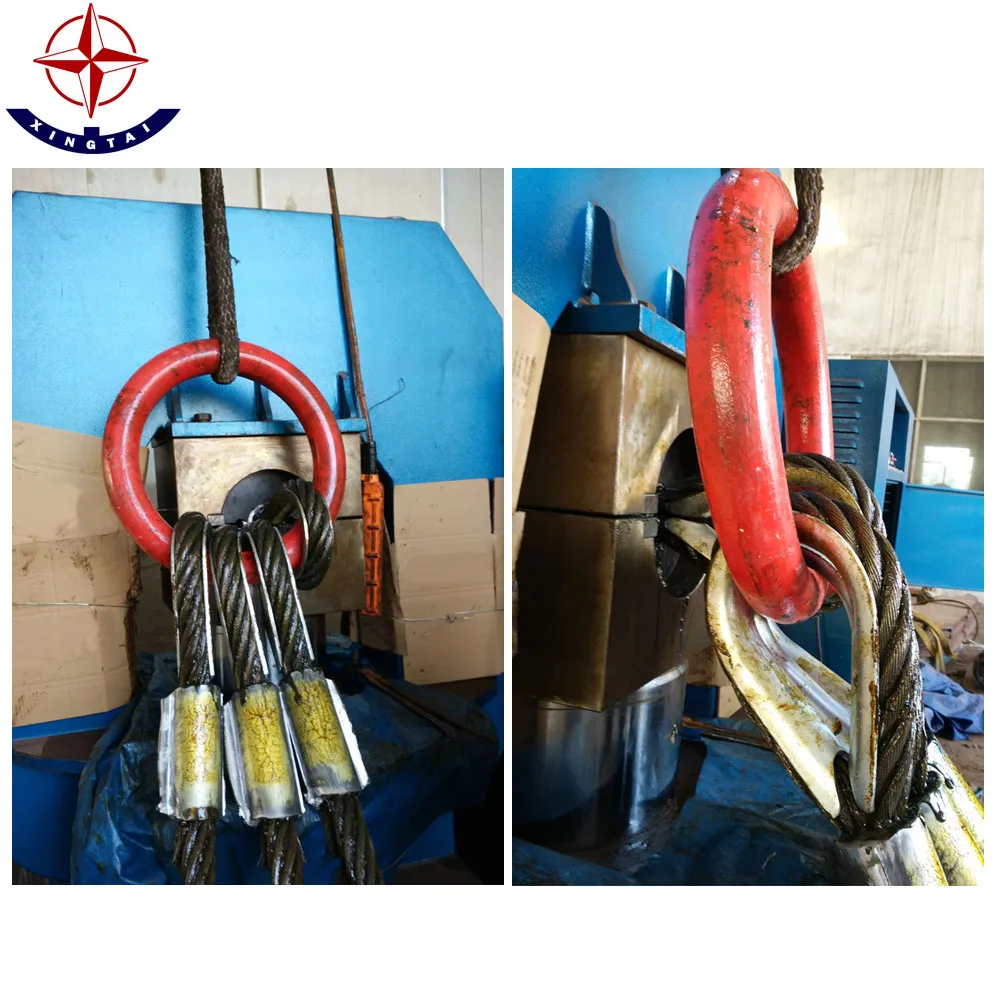

Xingtai wire rope sling pressing machines are used to make pressed wire rope sling. And Xingtai machines have exported to UK, Australia, Holland, Latvia, Malaysia, Thailand, India, Nigeria, Russia, Botswana,Polland and so on.
Feature of Xingtai wire rope pressing machine,
1. The swage construction is forged from high strength alloy steel. The body of swagers are manufactured from one single block construction that ensure strength and long service life.
2. Xingtai machines adopt high pressure and low pressure pump oil supply system to bring in fast upward and downward speed as well as smooth pressing process, greatly improving the pressing quality and production efficiency.

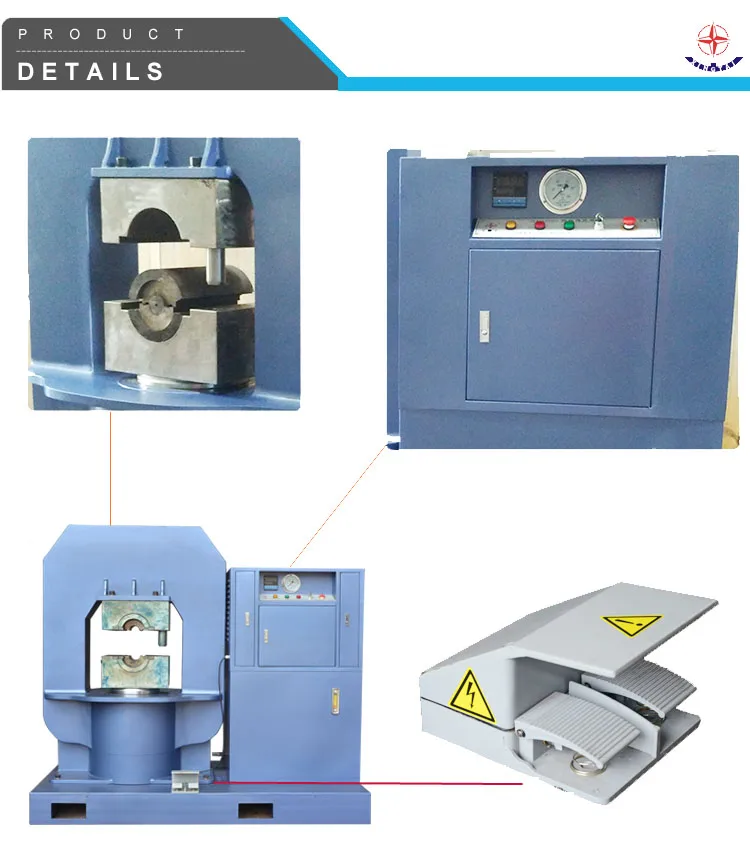

3. The die tables of Xingtai machines are designed to change different mold easy. Clinets can press other products through change dies.
4. All xingtai dies are made of high quality die steel and undergoes high temperature, quenching, tempering and other processes, becoming sturdy and durable.
5. Our 1000t press machine have two motors for work, one is for low pressure pump and the other is for high pressure pump.

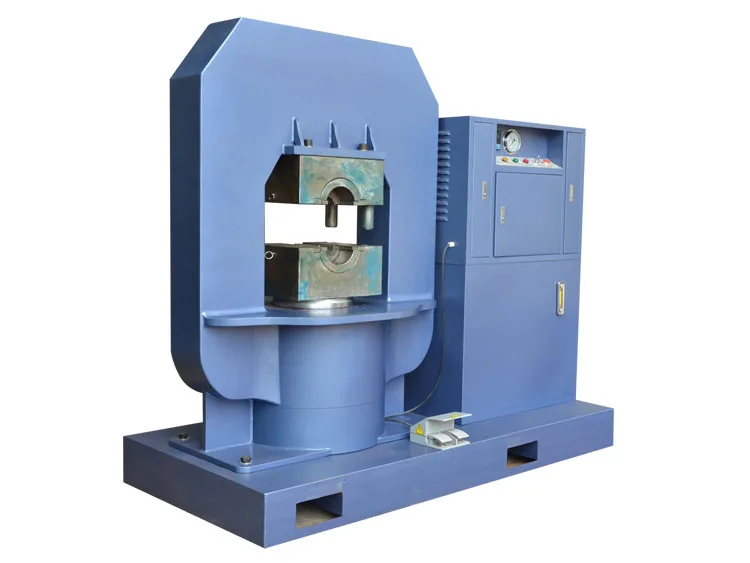

Technical data of wire rope pressing machine (GT-1000T)
Mode No. | GT-1000T |
Max press power (KN) | 10000 |
Max wire rope diameter in one pressing (mm) | Φ44 |
Max wire rope diameter in multi-pressing (mm) | Φ56 |
Power (KW) | 11 |
Max working pressure (Mpa) | 56Mpa |
Max piston movement (mm) | 200 |
The up speed of piston (mm/sec) | 4.8 |
The down speed of piston (mm/sec) | 10 |
Total length (mm) | 2200 |
Total width (mm) | 1100 |
Total height (mm) | 2000 |
Net weight (kg) | 5500 |

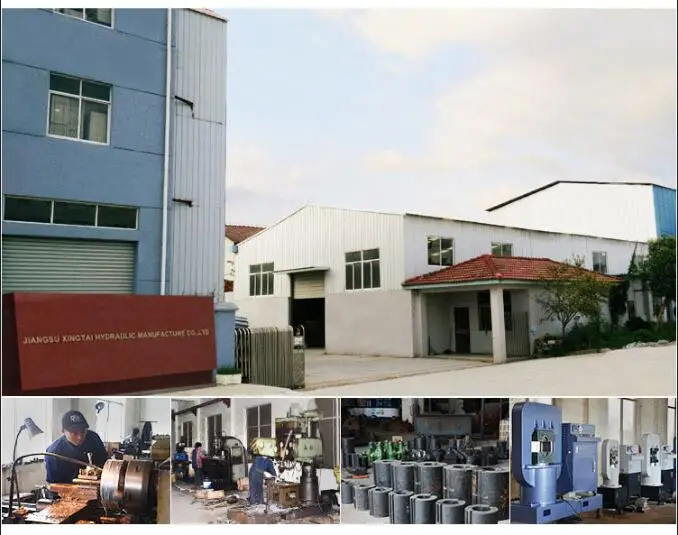

Company Information
FAQ
Q: Are you trading company or factory?
A: We are professional wire rope pressing machine and wire rope annealing machines manufacturer with 20 years' experience.
Q: What is after-sales services?
A: 24 hours around the clock & 12 months warranty
Life-long maintenance service for the product
Q: If I didn't use press machine before, how can I install and operate the machine?
A: We will delivery machine with use manual.
Q: Shall I see the machine work before I order?
a. Please send us inquiry and we will check whether there are customers in your country.
b. You may come our factory, we will teach you how to operate.
c. We may send you video.
Q: How long to finish one machine if I place order?
A: As usually, delivery time is 30 days. If we have machine and dies that you need in stock, we may delivery machine in 7-10 days after receipt of your payment.
