Koller Fast cooling Cold room (walk in freezer) for foodstuff storage
- Category: >>>
- Supplier: Guangzhou Koller Refrigeration Equipment Co. Ltd.
Share on (60156394894):
Product Overview
Description
Product Description

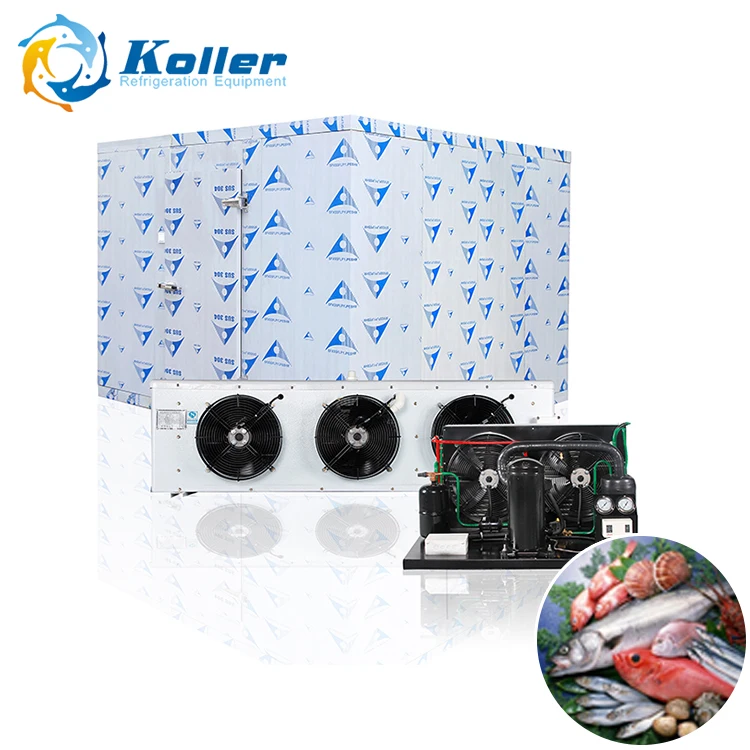

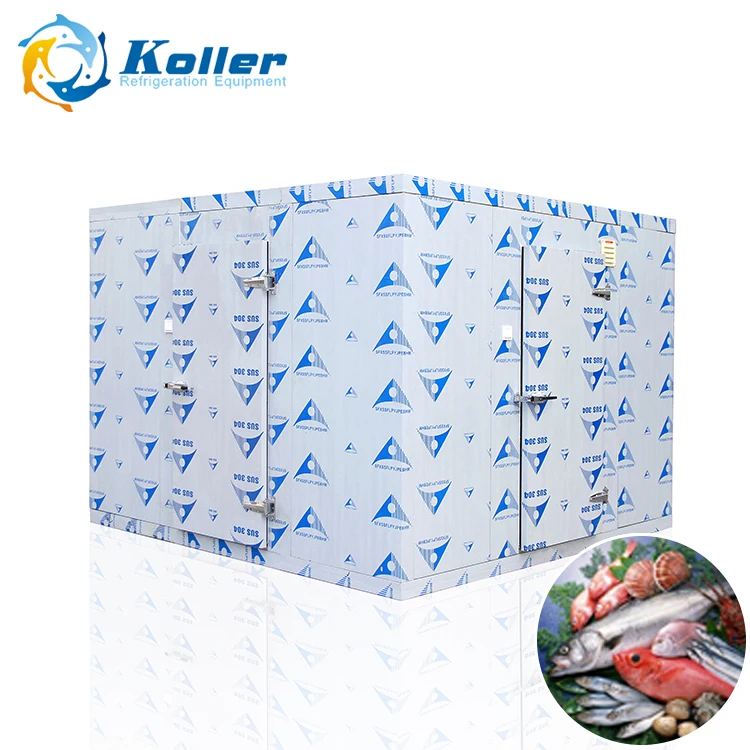

Fast cooling Cold room (walk in freezer) for foodstuff storage
Cold storage is a construction where reaching the required temperature, which used for goods storage, processing, by artificial refrigeration in a certain space. Polyurethane insulation panel is made by high-pressure foaming mold, the temperature can be adjusted between 5℃ to -25℃ or even lower.

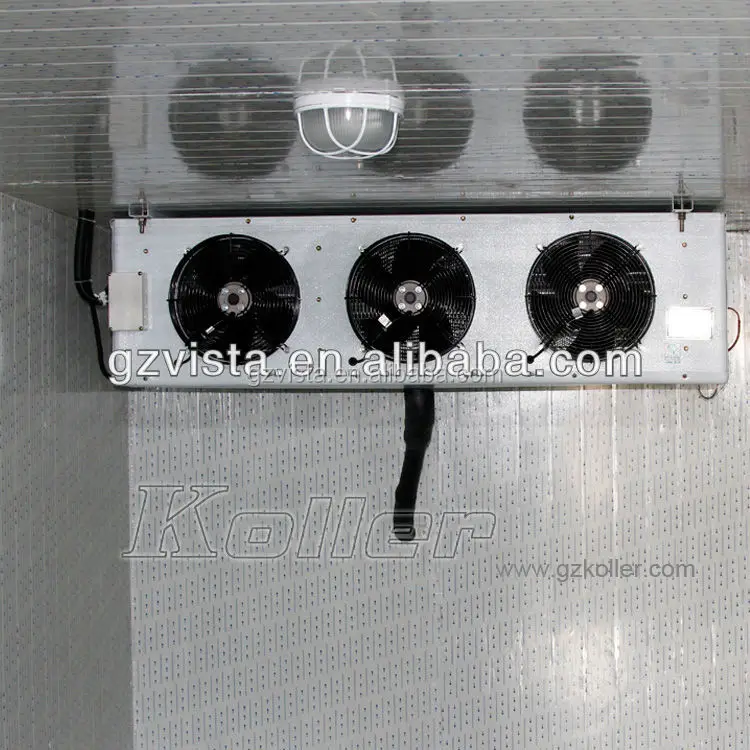

A complete set of cold room including the Compressor& Condensing unit [outside the cold room ]and Air Cooler[Inside the cold room]
Cold Room Product Feature:
◆ Koller brand VCR cold room series adopt the integrated cooling system with doors, which is convenient for loading and discharging.
◆ Long storage period, economic effectiveness, easy operation, easy maintenance. safe operation with a long faultless working period, no specific monitor.
◆ The full automatic intelligent controlling system has a temperature setting & controlling and automatic-defrost etc function. Precise automatically temperature control with low power consumption.

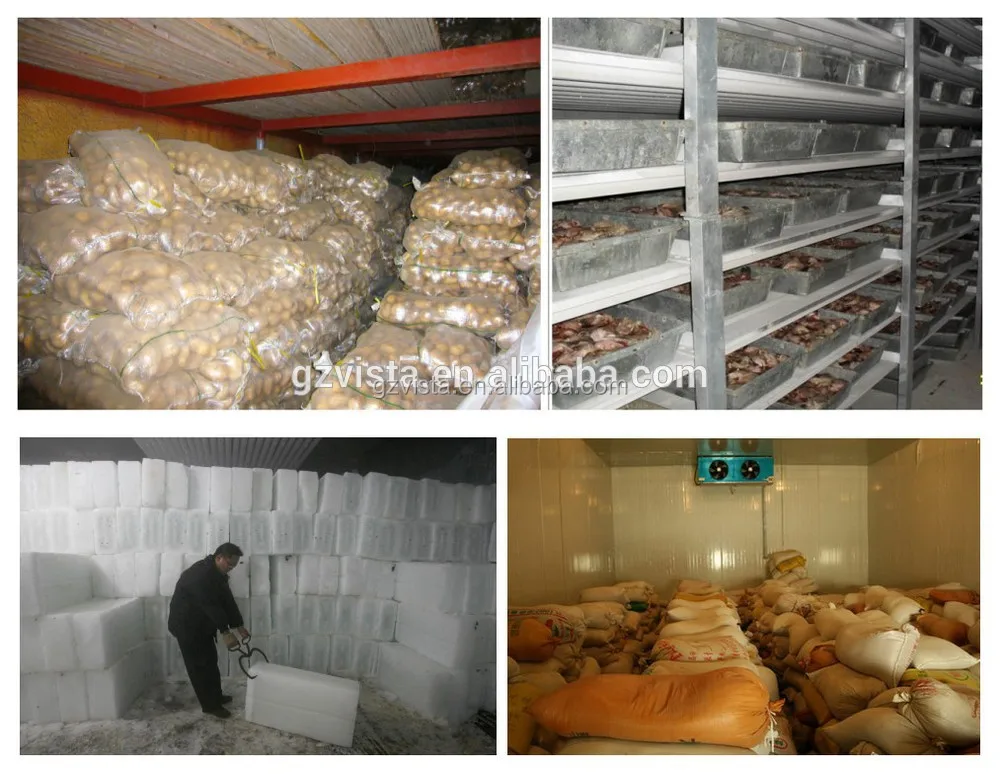

◆ It has a similar appearance to a container with wide using purpose. It can accommodate approx 5~100 tons of various kinds of food such as ice, food, fruit, fish vegetable and so on.
*** Cold Room with Mono-Block Refrigeration Unit ***
For small capacity cold room for fresh keeping and cold storage, volume from 3~30 cubic meters, we suggest you use the mono-block refrigeration unit, the compressor unit, air condenser and air cooler are all in one design. For installation, we need only mount the machinery unit on the wall panel, then connect the power and defrost drainage pipe.
A KOLLER 30 CBM COLD ROOM WITH MONO-BLOCK UNIT INSTALLED IN BRUNEI FOR ICE CUBE STORAGE
*** Cold Room with Split Refrigeration Unit for Mid-Temperature ***
For bigger capacity cold room for fresh keeping and cold storage, volume above 30 cubic meters, we suggest you use the split refrigeration unit, the compressor unit and air cooler are separated design. For installation, we need to connect the two parts with copper pipe, cable and charge the refrigerant inside the system.
A KOLLER 40 CBM COLD ROOM WITH SPLIT UNIT INSTALLED IN NIGERIA FOR ICE CUBE STORAGE
*** Cold Room with Split Refrigeration Unit for Low-Temperature ***
Air Cooling refrigeration unit
Water Coolin Refrigeration unit
A BIG KOLLER COLD ROOM WITH SPLIT UNIT[AIR COOLING] INSTALLED IN PHILIPPINES
A Big Koller Cold Room With Water Cooling Type Unit Installed In New Caledonia

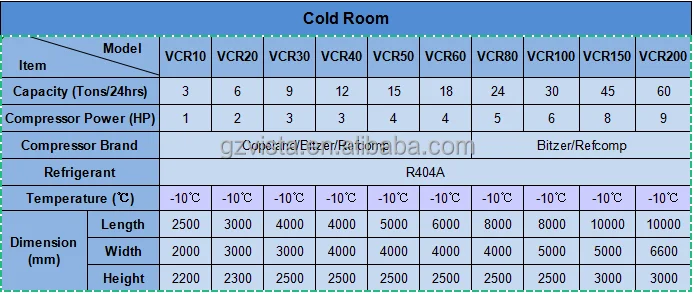

Suggested Koller Cold Room Size
Kindly note the cold room dimension and the temperature can be customized according to your actual requirement and factory condition, you may confirm your required cold room size, temperature and application, our salesman will choose the most suitable one for you.
◆ Power supply form: 220V, 50Hz 1P; 380V〜420V, 50Hz/60Hz, 3P; 220〜240V,60Hz, 3P; 440V〜480V, 60Hz, 3P
◆ Product-related parameters are subject to change without notice.
Cold Room With Split Unit Installation Introduction
Take our USA customer's ice factory for example:
Step 1. Assembled all floor panels
Step 2. Assemble the wall panels
Step 3. Put up the roof panels and hang the air cooler to the roof panel
Step 4. Assemble the door[sliding door and hinged door optional]
Step 5. Fix the compressor unit at a place with good ventilation
Step 6. Connect the compressor unit and air cooler, vacuum the system and charge refrigerant
Step 7. All cable finally connected to the electricity box, get the power connected
Step 8. Finished and get ready for turning on after the compressor have been warmed up
Cold Room Design Options
1. Door Design Options
Single Hinged Door and Double Hinged Door
Single Sliding Door and Double Sliding Door

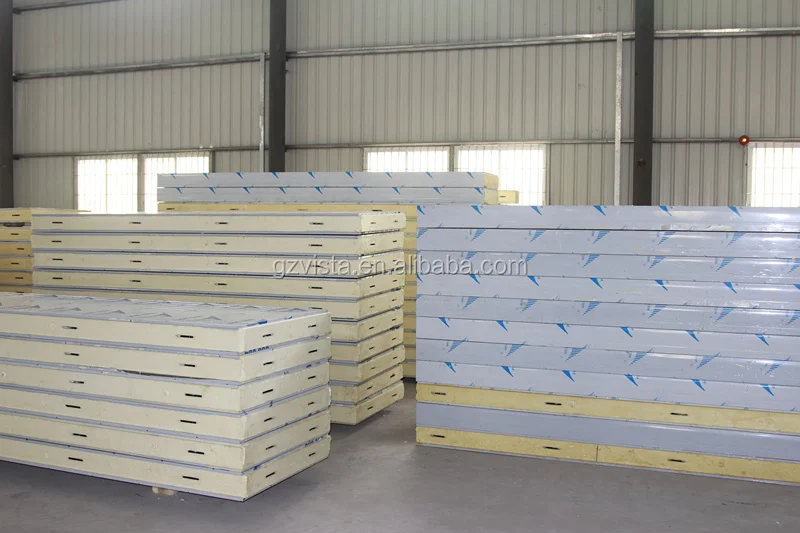

2. Cold Room Panel Material and Thickness Options
Cold Room Surface Materiel
1, White Color Painted sheet [ for wall and roof panels]
2, SUS304[316] sheet [ for wall and roof and floor panels]
3, Galvanized sheet [ for floor panels]
4, Embossed Aluminum sheet [ for floor panels]
Cold Room Panel Thickness
200mm for the blast freezer and freezer
150mm for the freezer
120mm for the freezer and cold storage
100mm or 75mm for the cold storage
3. Containerized Cold Room Design Option
All cold room assembled inside the 20ft/40ft container, can put be in use quality after the power connected!
Welcome to Koller Cold Room Workshop
To confirm the exact design and price for you, please kindly confirm your required cold room dimension according to the actual installation place's condition and temperature /application, what kind of goods do you want to store in the cold room?
Feel free to leave all your requirement to us, will respond immediately!
\t\t\t\t\t\t\t\t\tFAQ \t\t\t\t\t\t\t
1, What should I prepare to buy the ice machine from you?
First, we will need to confirm your exact requirement on the ice machine's daily capacity, how many tons of ice do you want to produce/consume per day?
Second, the install place power/water confirmation, for most big ice machines, will need run under 3 Phase industrial use power, most Europ/Asia countries is 380V, 50Hz,3P, most North and South America countries are using 220V,60Hz,3P, please confirm with our salesman and make sure it is available in your factory.
Third, with all above details confirmed, then we are able to provide you the exact quotation and proposal, a Proforma Invoice will be provided to guide you the payment[T/T or L/C or Trade Assurance Order on Alibaba.com directly] to close the deal, for all our standard design, we will need about 35~45 working days on the production.
Fourth. After the production done, the salesman will send you test report or video to confirm the ice machines production capacity and performance, then you can arrange the balance and we will arrange the delivery for you. All documents including the Bill of Lading, Commercial Invoice, and Packing List will be provided for your importation.
2, How to install the ice machine?
For most air cooling type ice machine, as it is all in one design, you need only connect the power and water, then it can be put to use. Manual book and video will be provided you guide you the installation and operation.
For the water cooling type ice machine or the split designed ice machine, will need to assemble the cooling tower and connect the water pipe..., Manual book and video will be provided you guide you the installation and operation. We can also send our engineer to guide you each step, only need you to take care of the VISA, TICKETS, foods, and accommodation.
3, What if I buy your ice machine, but I cannot find the solution for the problem?
All KOLLER ice plants come out with 12 months full warranty. If the machine breaks down in 12 months, KOLLER will send the parts for free, even send the technician over if situation needed. When beyond the warranty, KOLLER will supply the parts and service only for factory cost. Please provide the copy of Sales Contract and describe the problems appeared.
Dear friends, don't hesitate to send your inquiry if you are interested!
We would be very glad to be in service for you, as the most professional ice machine manufacturer with the biggest factory in China, we are pleased to attach our best offer. We are definitely to contact you within 12 hours after getting your inquiry.
