2.54 mm IDC wire to board connector

Share on (60156525027):


Price:RUB 0.7652 - RUB 153.03

Quantity:


Product Overview

Description

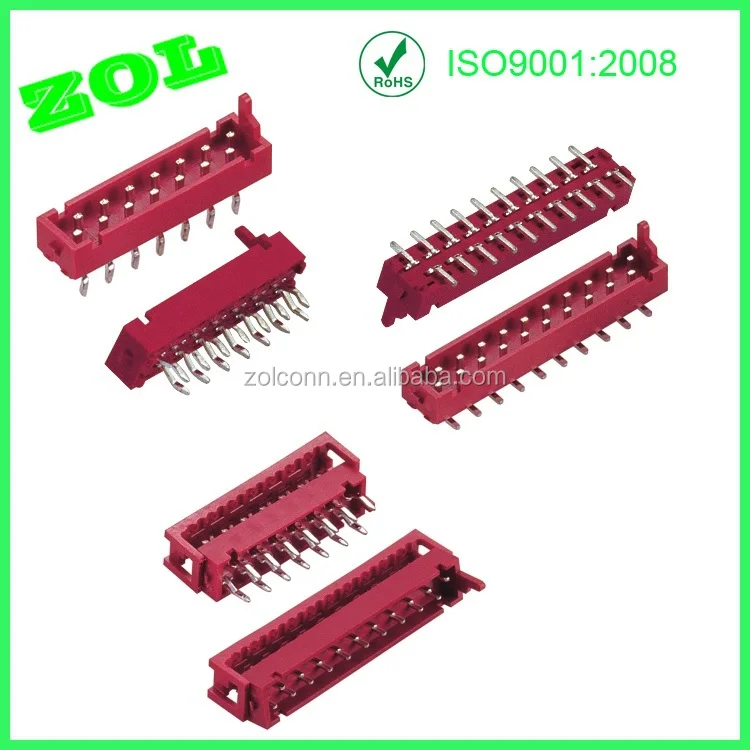

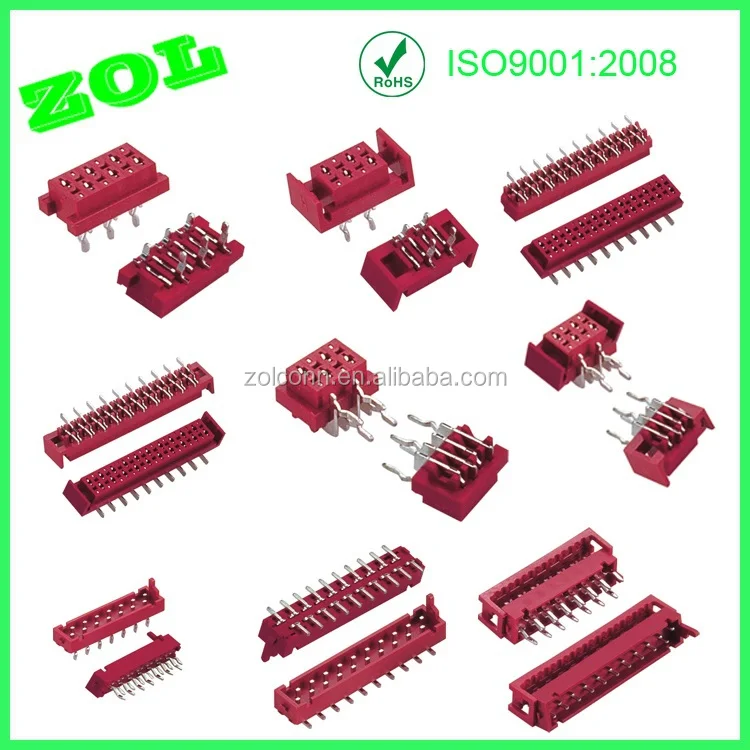

2.54 mm IDC wire  to board connector

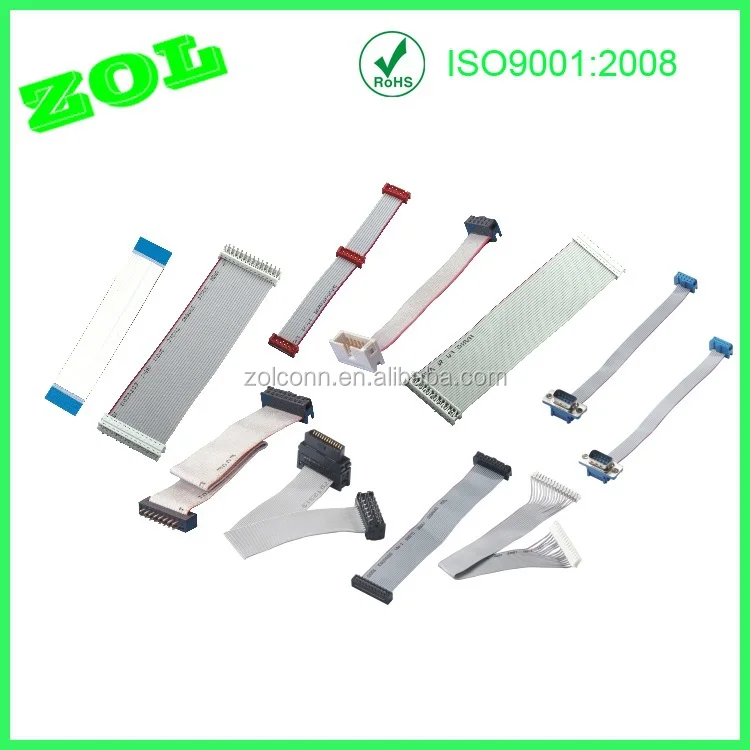

50

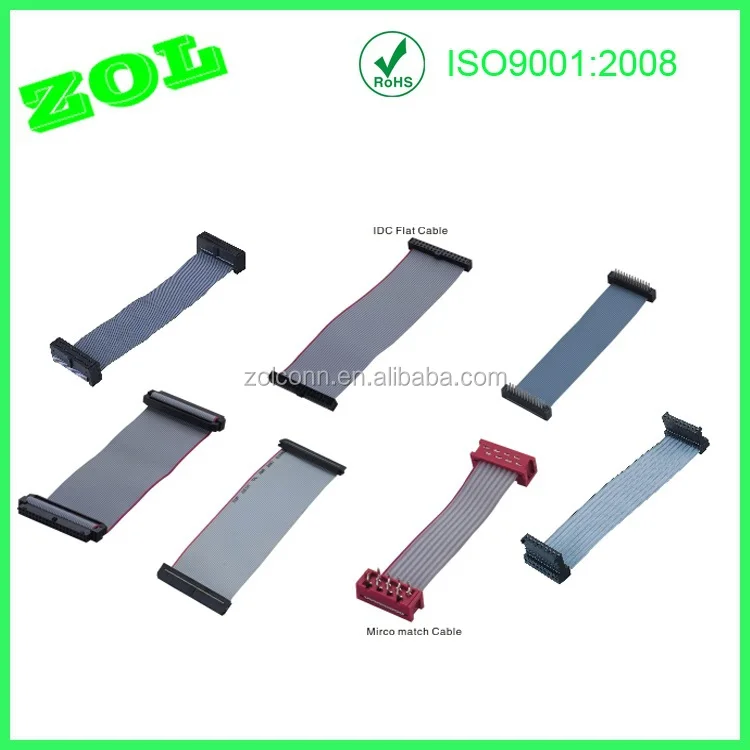

51

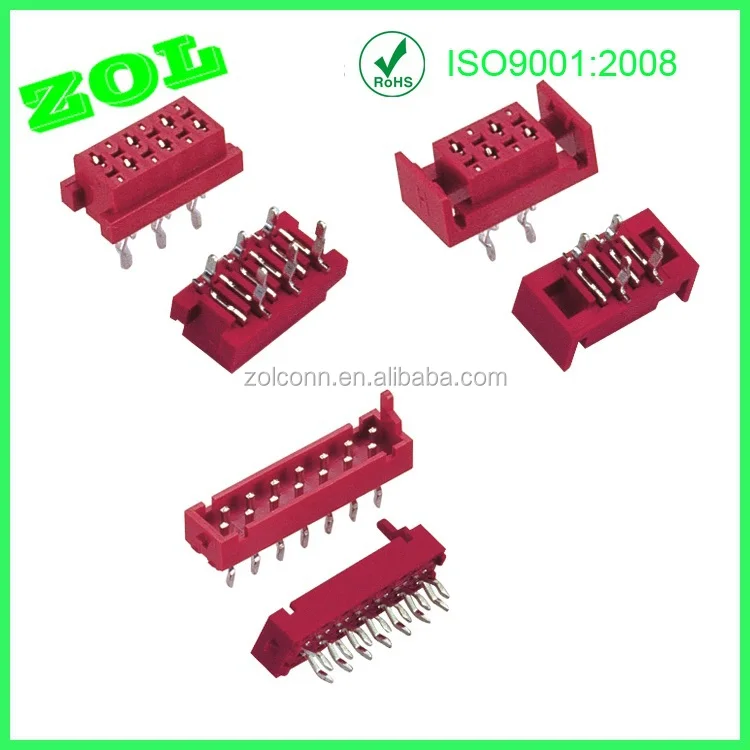

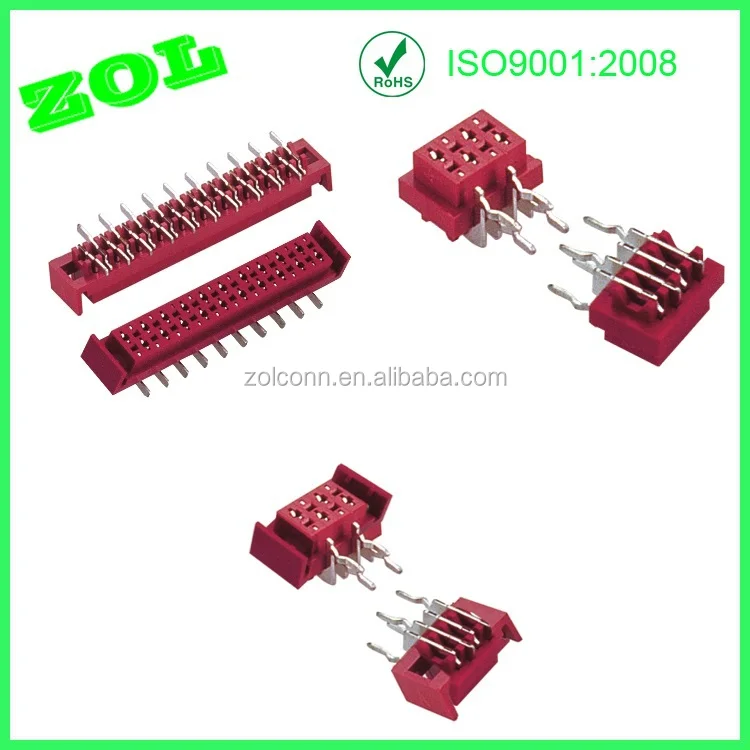

Male Gender 14 20 pin IDC Connector Red Color







1,Specifications:

        (1),  Electrical characteristic  :

Current Rating

0.5 A(pitch:1.27mm)

1.0 A(pitch:2.0mm&2.54mm)

Contact Resistance

30mΩ Max

Insulation Resistance



1000MΩ Min(pitch:1.27mm)



1000MΩ Min(pitch:1.27mm&2.00mm)



Withstand Voltage

500 VAC for one minute(pitch:1.27mm&2.0mm)

1000 VAC for one minute(pitch:2.54mm)

Operation Temperature

-40℃ to +105℃

Custom Dimentions

Accept



         (2),  Material:

Contact NaterialPhosphor Bronze of Brass
Contact PlatingGold or Tin over 50 micro Ni
Insulator MaterialPolyester (UL94V-0)



         (3),  Finishes:

ContactGold flash or full gold
ShellTin or Nickel plated



2,Packing details:





Packaging & Shipping

ZOL

3,About our company :

Company Information

Shenzhen ZhongLing Electronic ,Ltd is professional in D&R ,production,marking connector an pins ,cables ,and other electronic products.

Products mainly are D-Sub connector ,Round Pin Header ,Pin Header , Box Header,Ejector Header , IDC Socket,DIN Male/Female Connector,Sata Mele/Female connector,wire hardness and cable assembly.

We insist on " Quality,Service,Intergrity" first as the company concept.
We hope that our business partner and us become the vin-vin relationship forever.

Welcome all the clients worldwide to contact us, we will be your best partner.




4,Why Buy From US:



FAQ

Q1:Why choosing our company

A:   1,We are a professional manufacturer with many years design and research experience ,and also have a  standout design and research team, we can deal with our customers'  project efficiently .



      2, Small MOQ , High quality



      3,Free sample ,

Q2:What about shipping method

 A:  1,China Post Air Mail



      2,DHL



      3,EMS



      4,UPS



      5,Fedex and so on

Q3: What is your price term & payment terms

A:  1,  Usually the price is Exw price( factory price ),but others terms are available



      2, Payment terms:T/T,Paypal ,Escrow,Western Union,Money Gram and others

Q4:What about your delivery time

A:  Usually 7-15 working days , if you are urgent ,we can negociate it



5,For the IDC  Wire Connectors we can do customers'  own specifications,welcome to order





Any questions,kindly contact us, we will reply you as soon as possible
