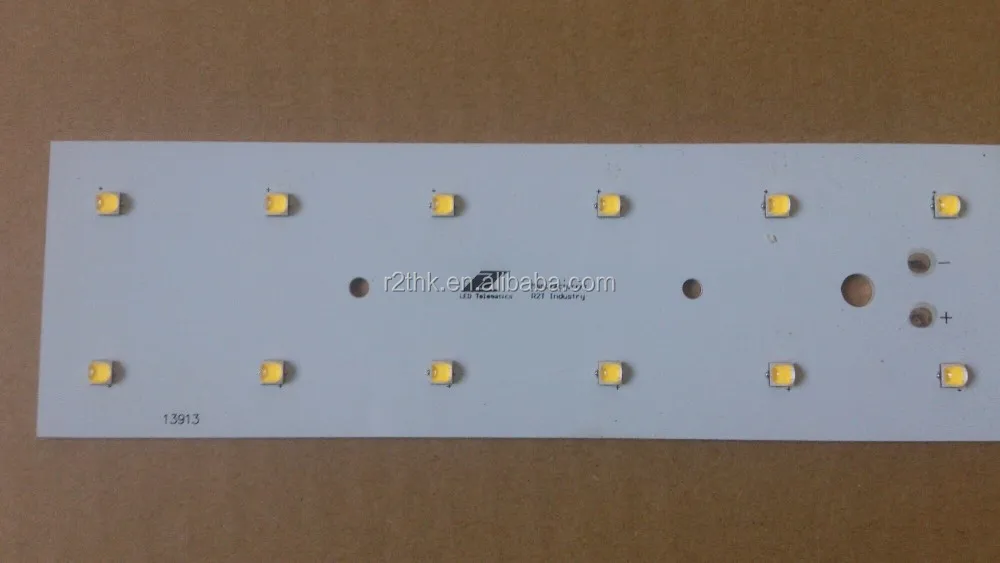

Customized OEM or ODM Cree chip aluminium base copper clad laminate pcb board & PCBA assembly
- Category: Rigid PCB >>>
- Supplier: Shenzhen R2T Electronic Limited
Share on (60156670135):
Product Overview
Description
Customized OEM or ODM Cree chip aluminium base copper-clad laminate pcb board & PCBA assembly
FAQ
Advantage:
S.r Engneers PCB design team
Quickly lead time,5-7days
Professional PCB assembly machine
LED Parts sourcing and buying for Customers
Product Description
Samsung 561B LED Diode Data:
MCPCB parameters
Technical Item | Specifications |
MCPCB Model | Aluminum Base Board |
Model Material | Domestic Aluminum, Overseas Aluminum, CCAF-01, CCAF-04, CCAF-05 |
Surface Treatment | HASL / ENIG/ Chemical Sn/ OSP/Immersion silver etc. |
Rise | MCPCB Single / Double-sided Aluminum Plate |
Max. Size | 1100mm * 450mm |
Min. Size | 10mm * 10mm |
Processing Thickness | 0.3 ~ 3.2mm |
Min. Diameter of Punching | 1.0mm |
Min. Specifications Slot | Thickness below1.0mm: 0.8 * 0.8mm Thickness below1.2 ~ 3.0mm: 1.0 * 1.0mm |
Red Silk Square Deviation Slot | +/-0.076mm |
Smallest Aperture | 0.5mm |
Largest Aperture | No limited |
V-cut Plate Thickness Range | 0.6mm ~ 3.0mm |
V-cut tolerance | +/-0.1mm |
Smallest Components Font Tag | 0.15mm |
Copper Foil Thickness | 0.5/1.0/1.5/2.0/3.0oz |
Tolerance Molding | +/-0.15mm |
Smallest Window pad | 0.15mm |
Processing Capacity | 2000m2 |
Packaging & Shipping
Shipping: Express(DHL&Fedex&UPS&EMS&TNT etc); Freight/ Cargo;
Packing: Vaccum & Carton
Fast Delivery: 10-12workday
Professional service: including finished lamp design & good product suggestion according to the market
OUR PAYMENTS
Company Information
We are professional Project Service Manufactuer. Our Factoris are Located in Shenzhen
Quality control
