532nm 400mW green DPSS line laser

GL-400-L

Optical Parameters^[1]

Parameters

Symbol

Typical Value

Unit

Central Wavelength

λc

532

nm

Wavelength Tolerance

+/-1

nm

Output power

P

400

mW

Power stability

Ps

<3%^[2]

%

Fan angle

30°^[3]

Line uniformity

+/-20

%

Line beam width

<1mm@700mm

mm

Expected operating lifetime

MTBF

10000

hrs

Warranty time

1^[4]

year

Warm up time

<5

min

Environmental Parameters^[5]

Operating temperature

Top

0~40

℃

Storage temperature

Tst

-40~85

℃

Note:

[[1]: Test data under 25℃.

[2]: Higher power stability value available upon request.

[3]: Fan angle can be other value upon request.

[4]: 2-year warranty time available upon request.

[5]: case temperature.

Part Number

532nm green line laser

GL-400-L-T2

GL

532nm free space green laser

400

Output power value: 400mW

L

Line laser

T2

Package type

T2: laser driver separated, laser head size: 49*42*140mm, temperature stabilized

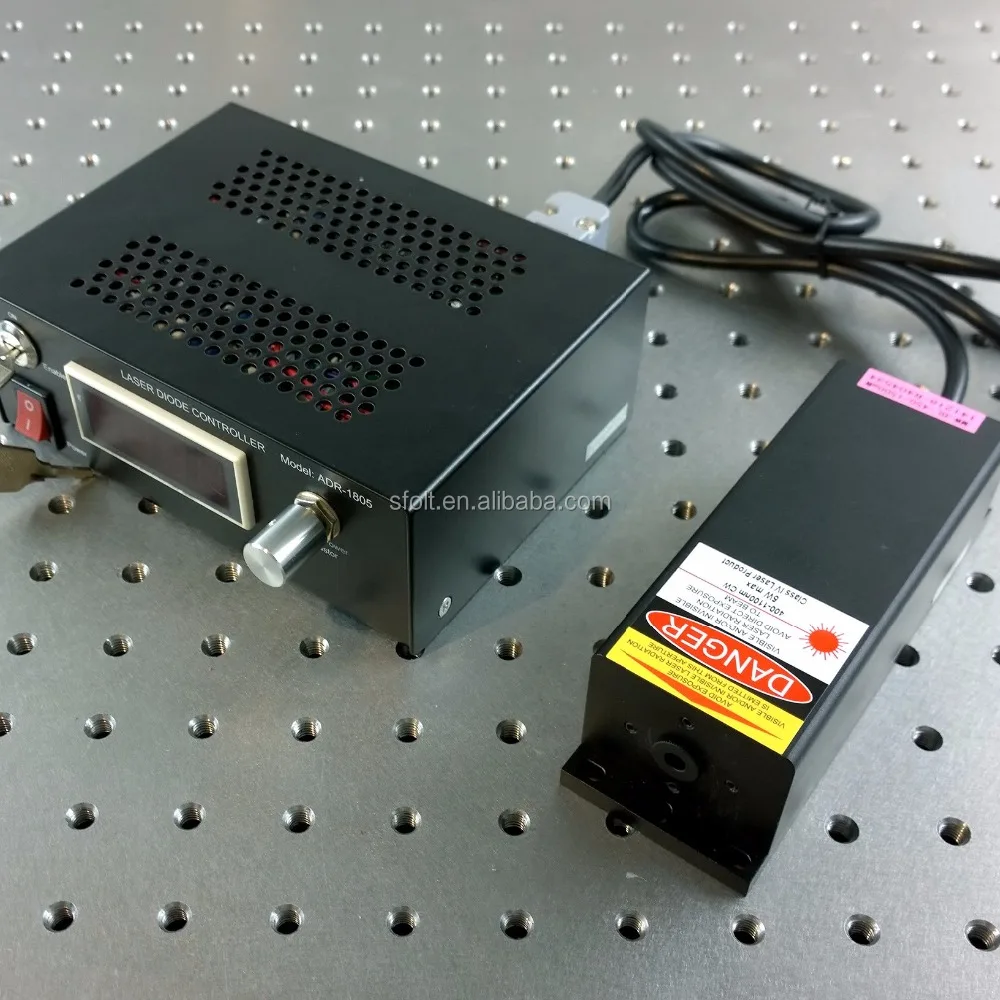

Package and legend

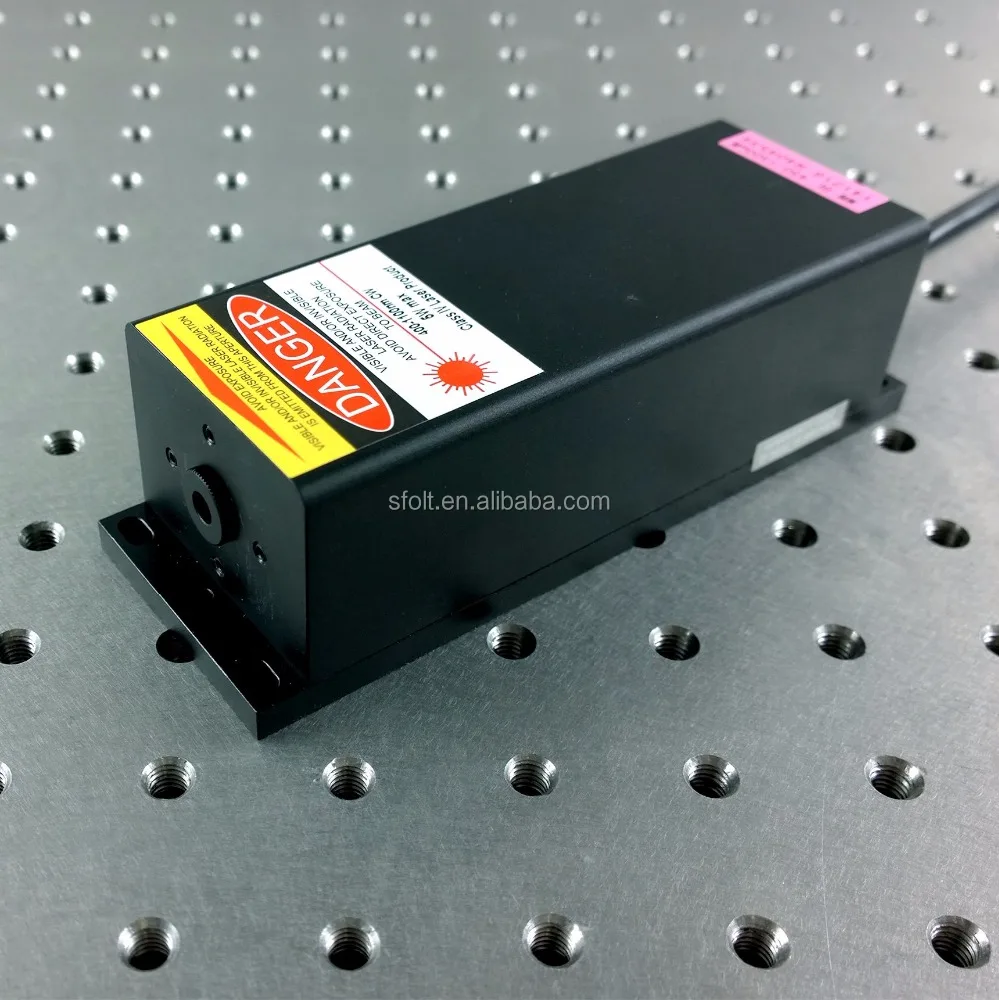

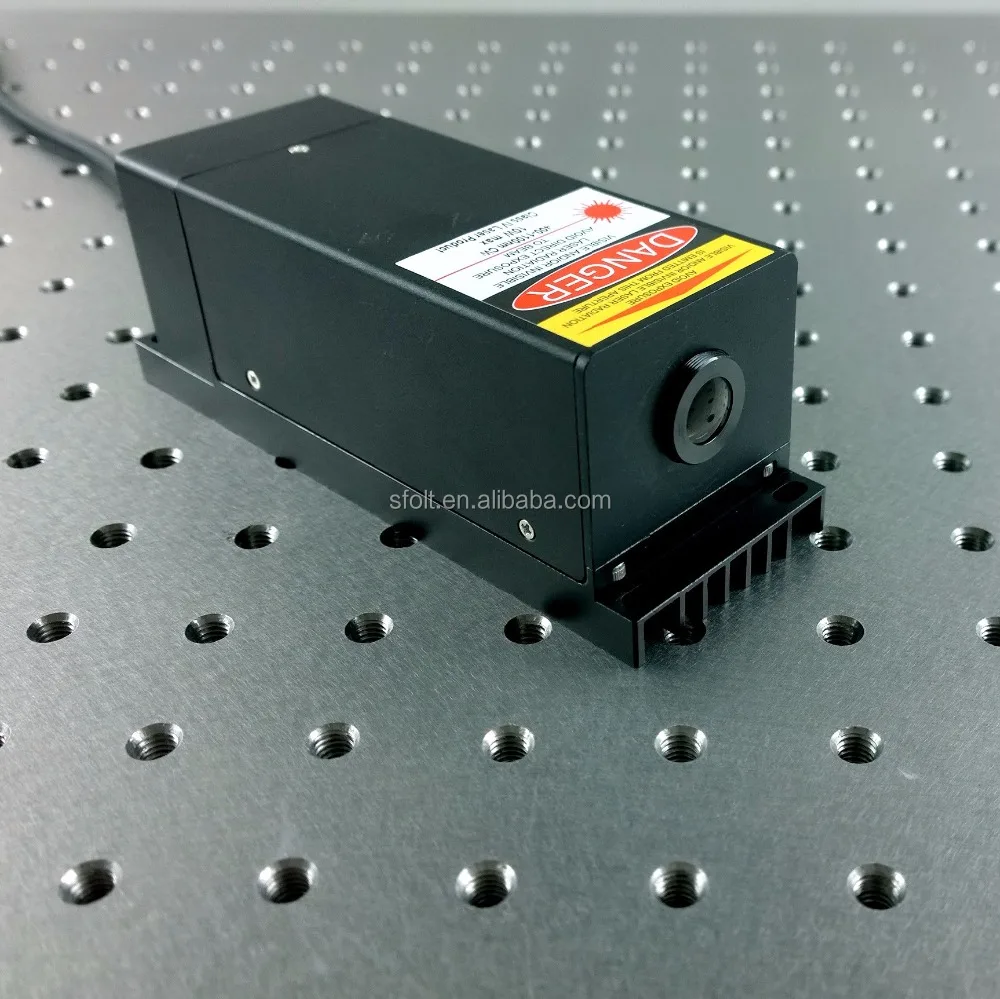

T2-serial package: laser head size: 49*42*140mm, driver separated, temperature stabilized

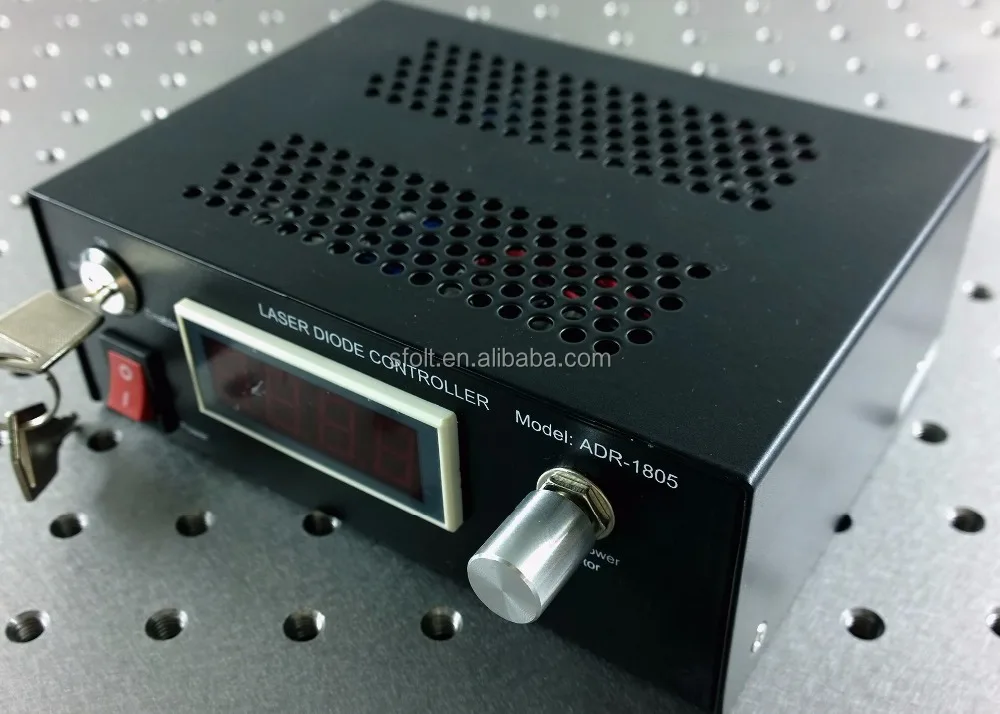

ADR-1805 laser driver, 90-240VAC power supply, with power adjustor and digital display
