Gas injector analyzer and cleaning machine HO 4H

Product Overview

Description

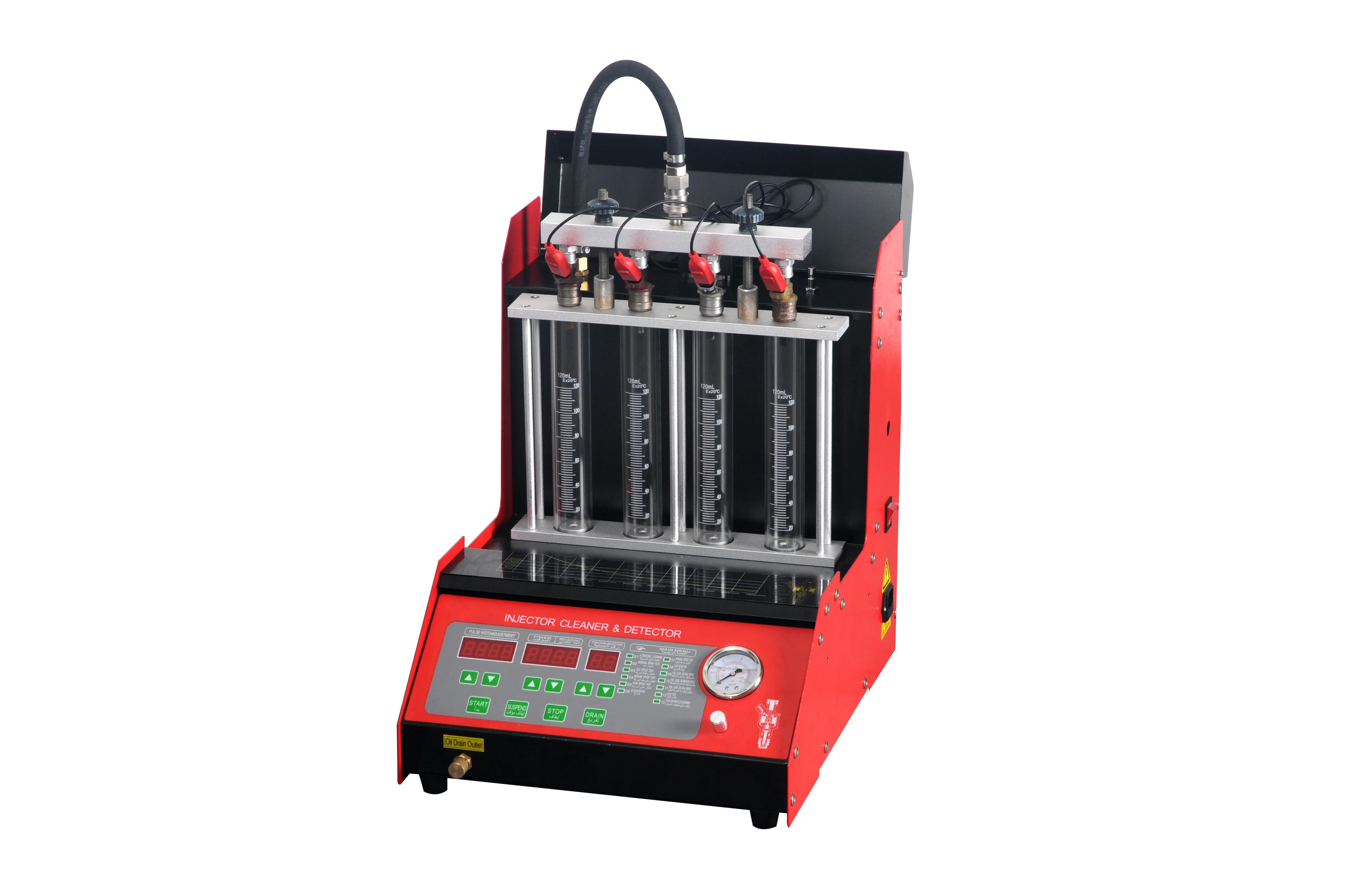

 Gas injector analyzer and cleaning machine HO-4H



Main functions
  It can not only diagnose and analyze the performance of the fuel injector, but also inspect dribbling,atomization, injecting angle, distributive value, uniformity coefficient, and their on off cycle, etc of single or multiple fuel injectors.
1. Can do reverse flushing, flush-back cleaning, ultrasonic flushing, and disaffiliation-free flushing to one or more fuel injectors
2. Automatically simulate the overall process under various pulse width and engine speed. The operation status of the fuel injectors can also be observed whether at acceleration and deceleration.
3. Can manually set time, pulse width and rotation speed of the fuel injector, and observe the performance under varied parameters. Ease and convenience of operation.
4. Can determine the shortest on-off cycle and the quality of the injector
5. Can do oil circuit testing, and disaffiliation-free flushing to the engine



Test Performed

Operation	Automatic
Color	Red
Cylinder	4
Input power	250W
Operation Temperature	-10C°~40ºC
Tank Capacity	4L
Test Tube Capacity	120ml
Simulated RPM range	10000rpm
Step	50rpm
Time range	10000s(adjustable)
Oil Pump Pressure	1.8kg/cm²-10kg/cm²

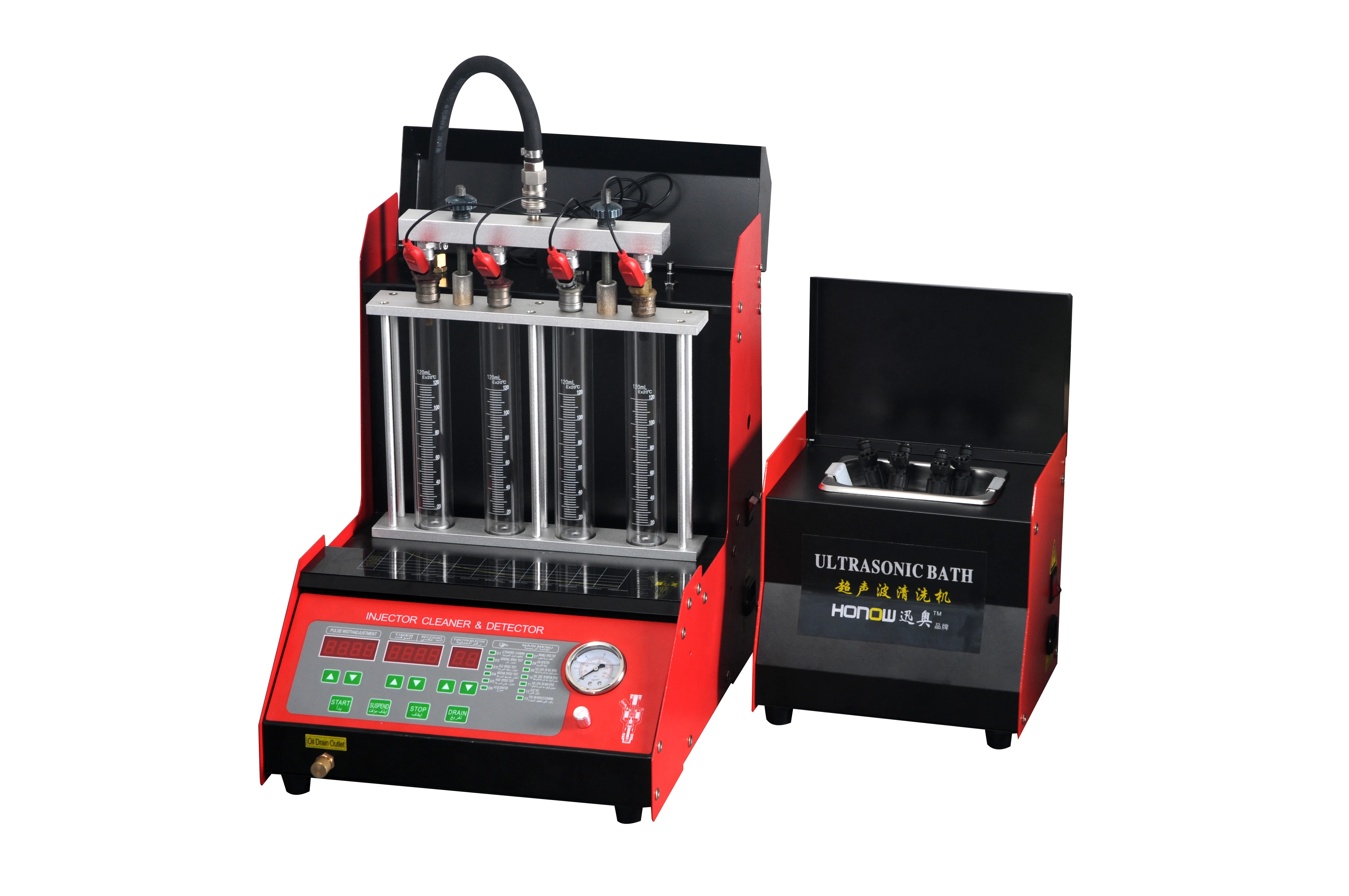

Ultrasonic cleaner power	100W,25KHz
Dimension	590mm*500mm*730mm
Weight	about 45kgs
System Pressure	0~6kg/cm²

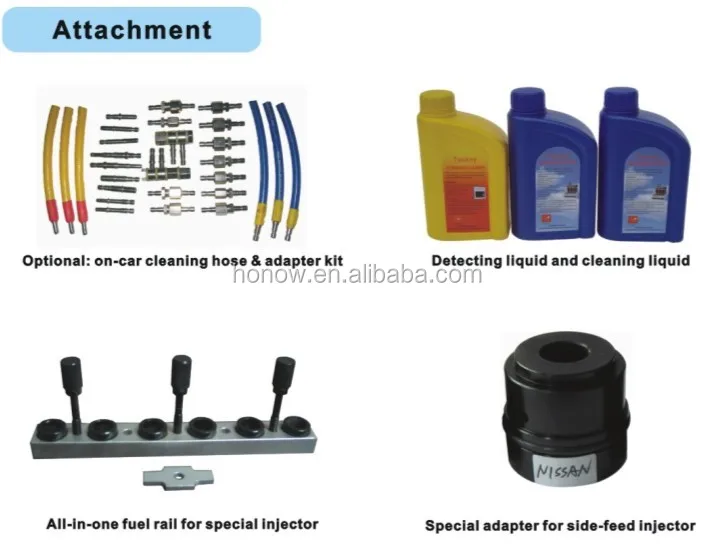

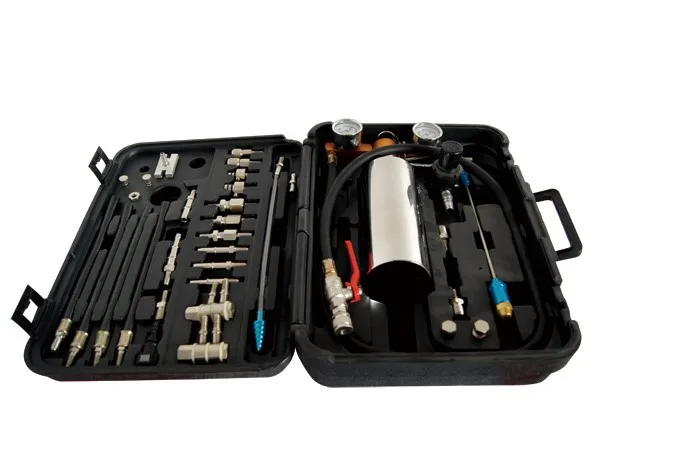

Optional parts

 2015 Shanghai Exhibition

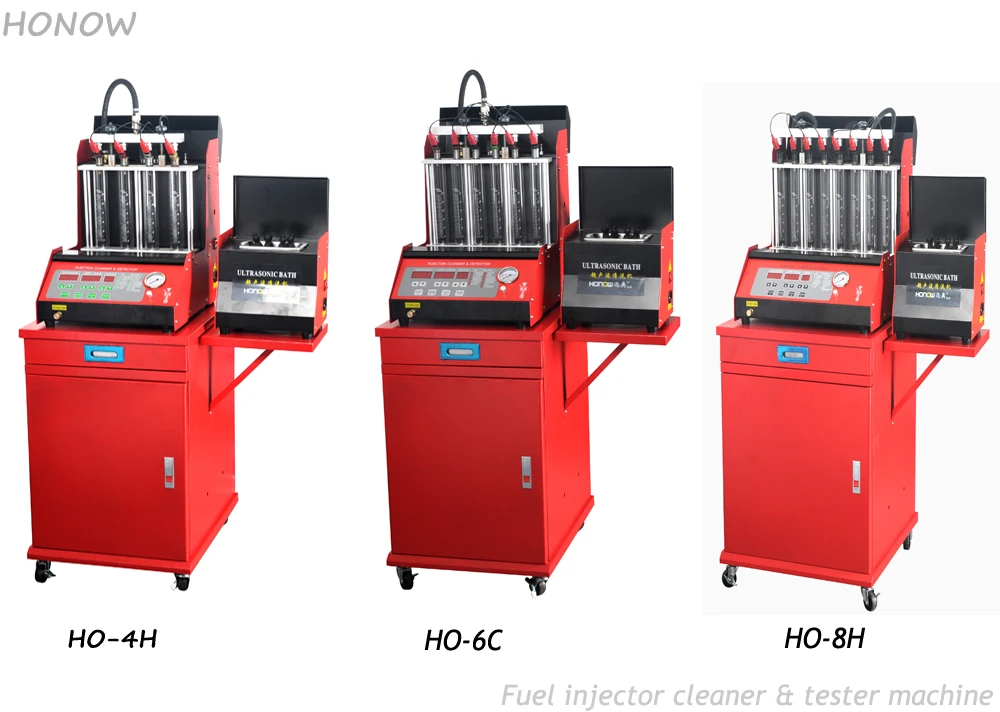

  Thanks for choosing our products! I believe our products must be satisfied with you! If you have any concerns about our products, please feel free to contact me.our company have many kind of Gas injector analyzer and cleaning machine.If you are interesting, please contact me , I will give you the favourable price. Thank you!
