lifting car jack 10 ton hydraulic jacks

Product Overview

Description

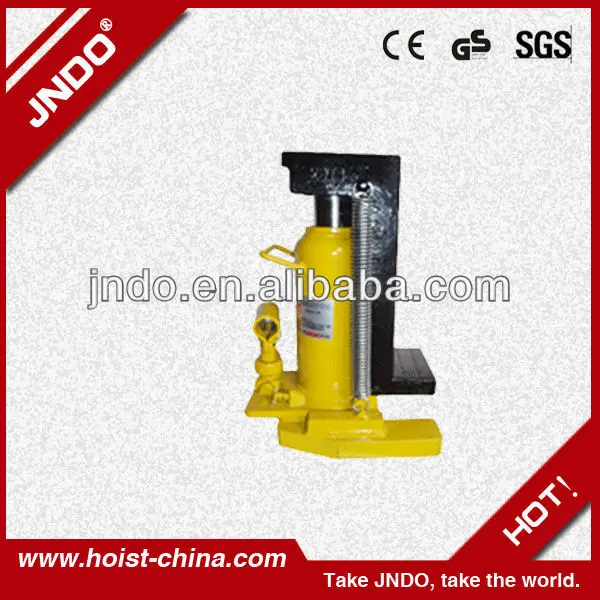

lifting jack 10 ton hydraulic jacks

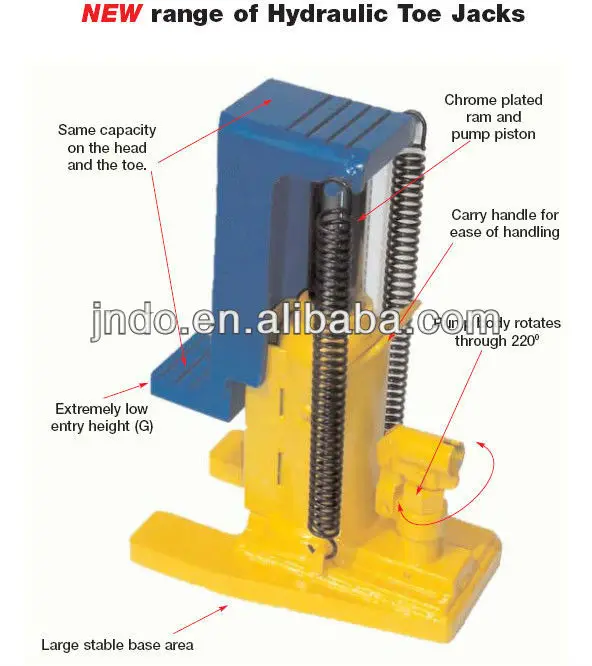

 2 This series product is made of high quality steel, after heat treatment and welding, structure simple, easy operate , durable, high quality is stable, safe and reliable; Top and hook lifting combination, easy to low position operation, is a kind of widely used lifting tool.

 3, This series product operating handle design for 180 degrees of rotation, according to different places, thus changing the Angle is more convenient to use.

 4, Use the machine please pay attention to the follows .

a, The machine should put on a flat place when using , and avoid deflection .

b, It is strictly prohibit the lifting height more than the product requirement limit , or else leading to the Guide fall off from the machine.

C, Forbid the overload operation .

d, Don’t put your finger and feet below the object when using .

 5,Before using keep the Guide lubrication ,keep the machine clean ,after use pay attention to put lightly ,not collision and arbitrary throws, if the bad thing occurs it will leading to damage and oil circuit malfunction .

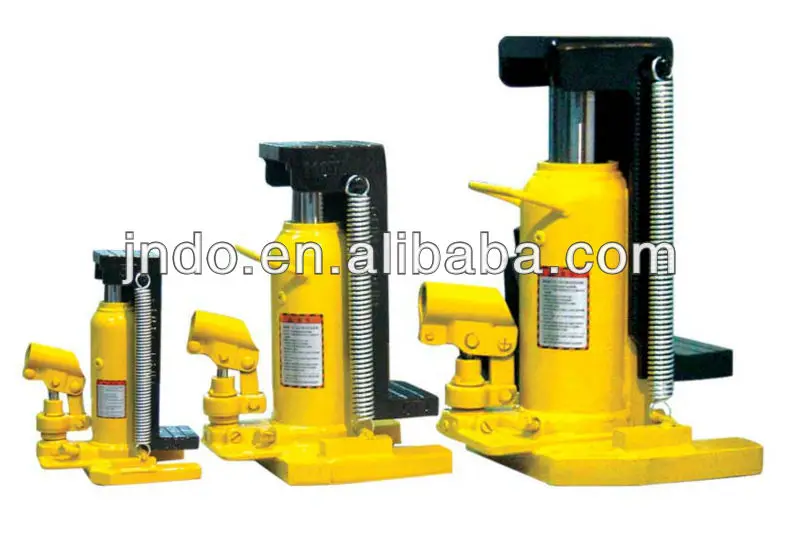

hydraulic jack Main Parameter

Model	Overall size (mm)	Hook Mini height (mm)	Lifting height (mm)	Rated capacity (T)		Weight (kg)
				TOP	HOOK
MHC-2.5RS	210X140X232	16	115	5	2.5	11
MHC-5RS	260X200X283	20	148	10	5	24
MHC-10RS	295X220X322	25	158	20	10	36
MHC-15RS	305X255X350	30	158	30	15	55
MHC-25RS	340X285X350	50	158	50	25	75
